End Gap

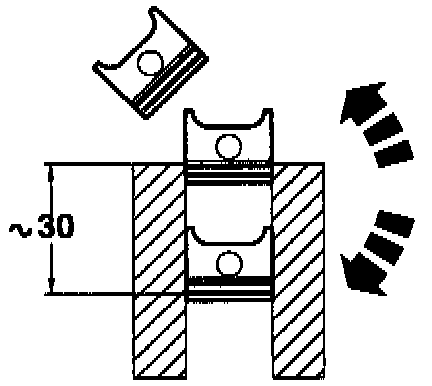

1. Take the piston ring and use a piston without rings to push the piston ring about 30 mm into the cylinder bore.

CAUTION: Do not mix the piston rings. Re-install the piston rings in the same position and location

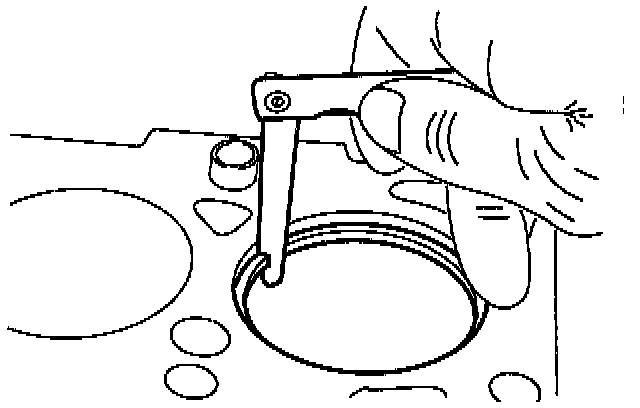

2. Measure the piston ring gap using feeler gauges.
- The values given in the specification refer to a gauge ring used during production. If measured in the cylinder, these values can be exceeded by 0.15mm.
