Power Windows

REMOVAL
1. Remove the door trim panel.

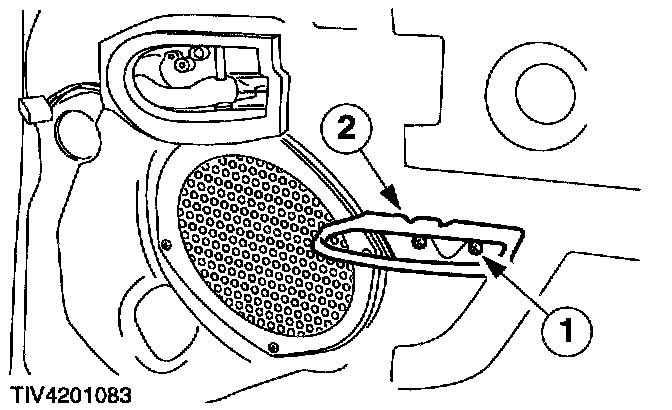

2. Remove the door pull.
1 Remove the screws.
2 Remove the door pull.
3. Remove the door speakers.







4. Locally peel back the door watershield.
- Using a plastic knife, cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired. Do not attempt to peel the watershield from the door without cutting the Butyl.







5. Reconnect the window operating switch.







6. Remove the window retaining bolts.
- Align the window retaining bolts with the access holes.







7. Raise and support the glass in the fully closed position.

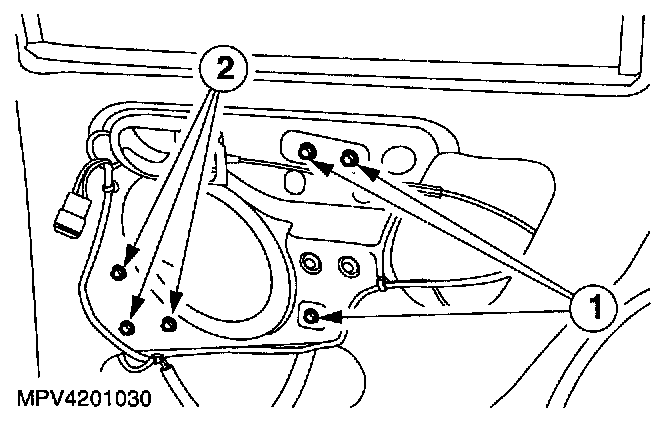

8. Detach the regulator assembly and motor.
1 Remove the regulator assembly bolts and allow the assembly to rest in the bottom of the door.
2 Remove the regulator motor (three bolts), or manual regulator winder (two bolts), and allow the assembly to rest in the bottom of the door.







9. Disconnect the regulator motor multiplug.







10. Remove the regulator assembly and motor.

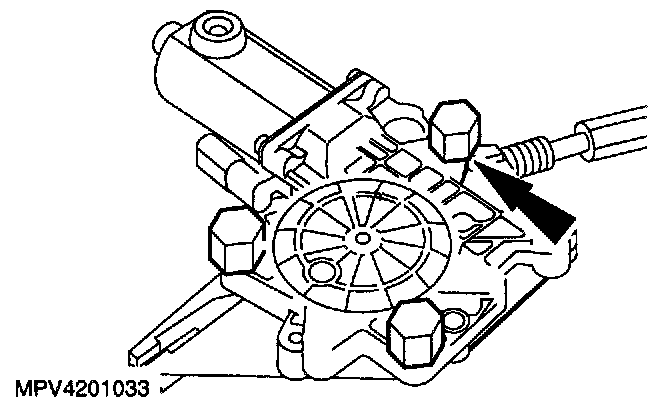

11. Remove the motor mounting bushes.

INSTALLATION












1. To install, reverse the removal procedure.
