Manual Windows

REMOVAL
1. Remove the door trim panel.

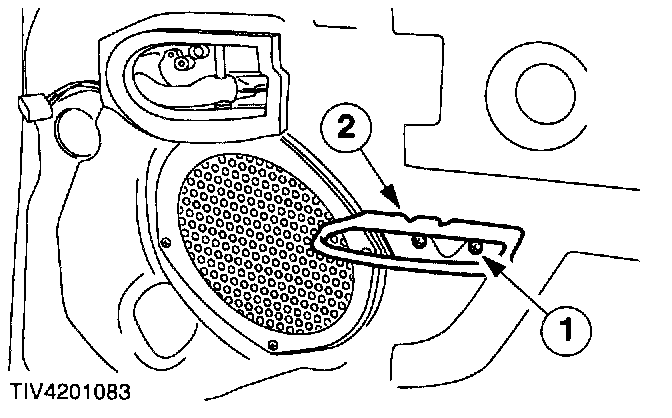

2. Remove the door pull.
1 Remove the screws.
2 Remove the door pull.
3. Remove the door speaker.







4. Locally peel back the door watershield.
- Using a plastic knife, cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired. Do not attempt to peel the watershield from the door without cutting the Butyl.

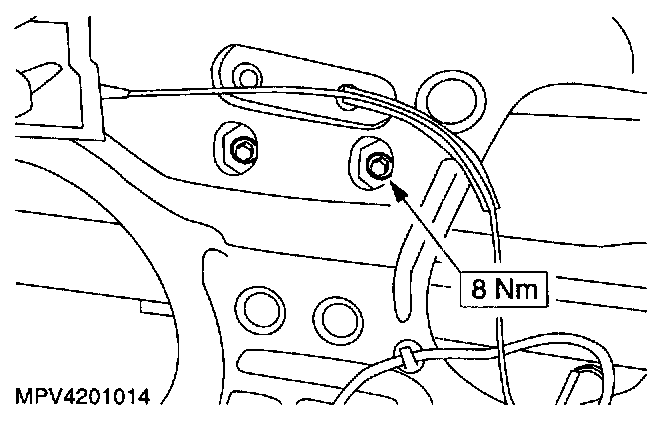

5. Remove the window retaining bolts.
- Align the window retaining bolts with the access holes.







6. Raise and support the glass in the fully closed position.

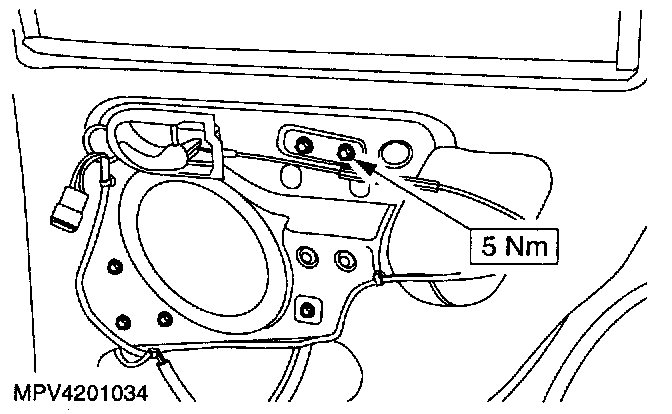

7. Remove the regulator assembly.

INSTALLATION












1. To install, reverse the removal procedure.
