With Manual Windows

REMOVAL
1. Remove the door trim panel.

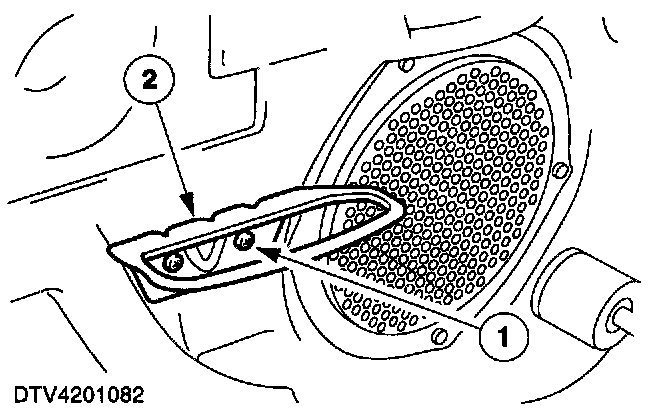

2. Remove the door pull.
1 Remove the screws.
2 Remove the door pull.
3. Remove the door speaker.

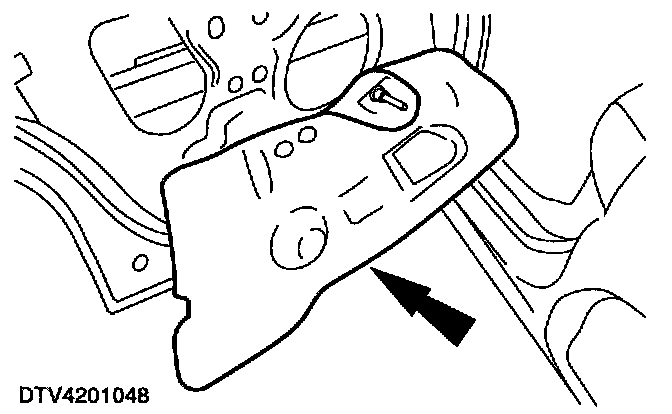

4. Remove the door watershield.
- Using a plastic knife (disposable cutlery), cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired. Do not attempt to peel the watershield from the door without cutting the Butyl.







5. Reinstall the window regulator handle.

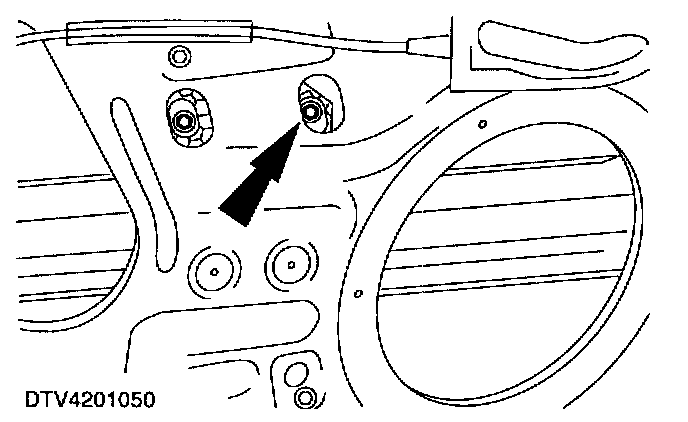

6. Remove the window retaining bolts.

NOTE: Align the window retaining bolts with the access holes.







7. Remove the door outer weatherstrip.







8. Raise and support the glass in the near closed position.

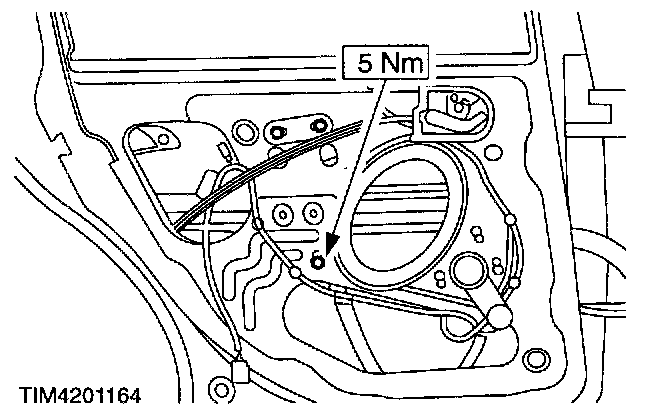

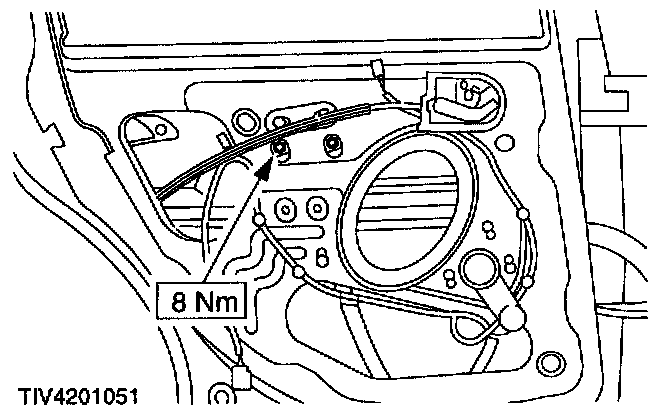

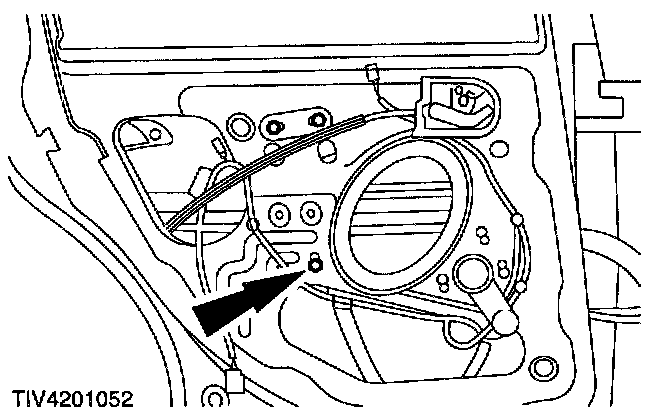

9. Detach the winder regulator.
- Remove the three retaining bolts.
- Allow the regulator to rest in the bottom of the door.

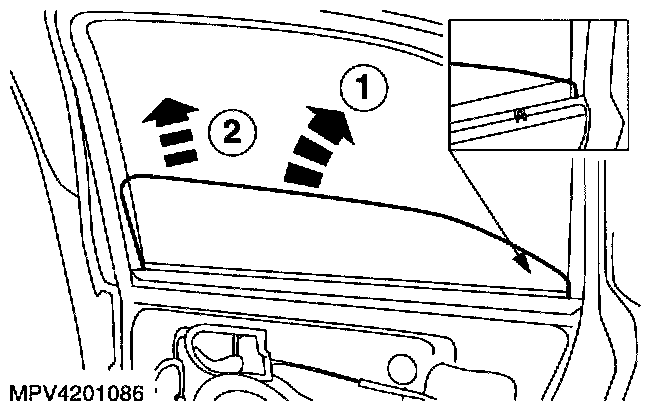

10. Remove the glass.
1 Tilt the glass past the regulator and remove the window run.
2 Remove the glass from the door.

INSTALLATION












1. To install, reverse the removal procedure.
