With Power Windows

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the door trim panel.







3. Peel back the door watershield.
- Using a plastic knife, cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired. Do not attempt to peel the watershield from the door without cutting the Butyl.







4. Remove the window retaining bolts.

NOTE: Align the window retaining bolts with the access holes.







5. Remove the door interior weatherstrip.

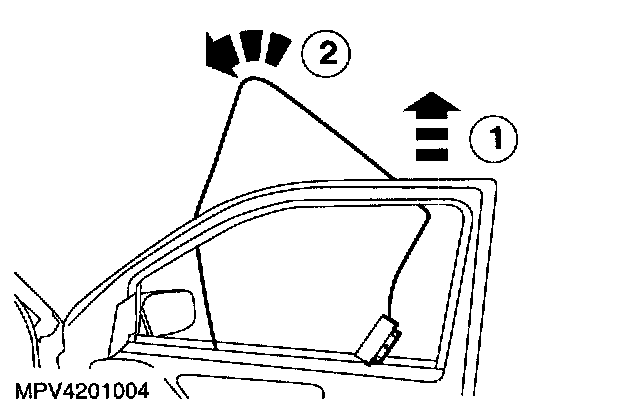

6. Remove the glass.
1 Lift the glass.
2 Tip the glass forwards and remove the glass.

INSTALLATION







1. To install, reverse the removal procedure.
