With Manual Windows

REMOVAL
1. Remove the door trim panel.







2. Peel back the door watershield.
- Using a plastic knife, cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired. Do not attempt to peel the watershield from the door without cutting the Butyl.

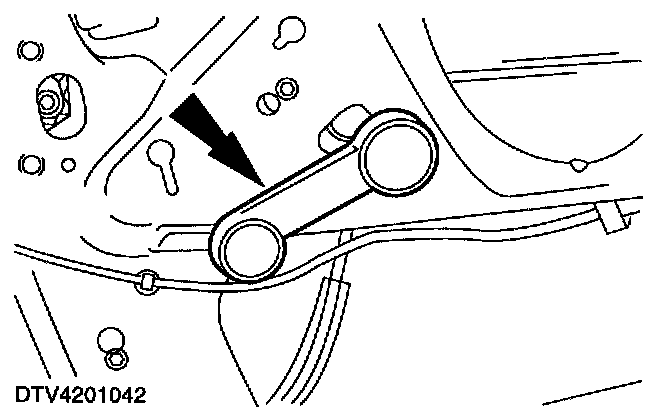

3. Reinstall the window regulator handle.

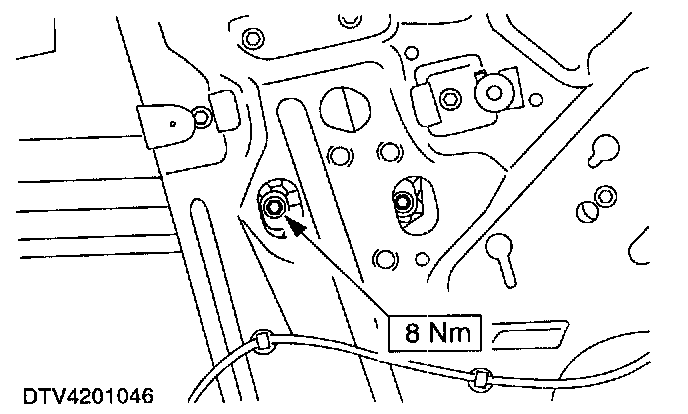

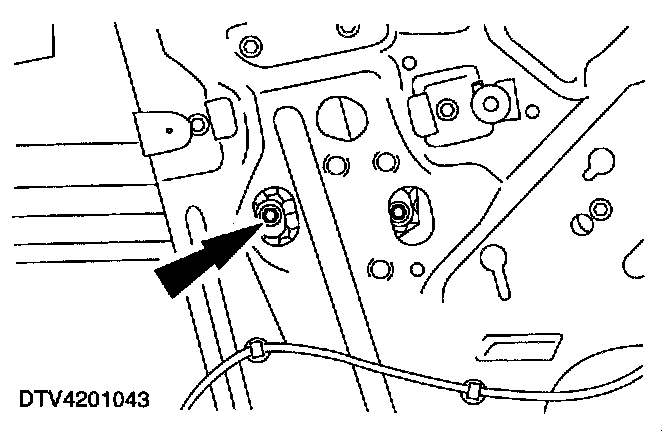

4. Remove the window retaining bolts.

NOTE: Align the window retaining bolts with the access holes.

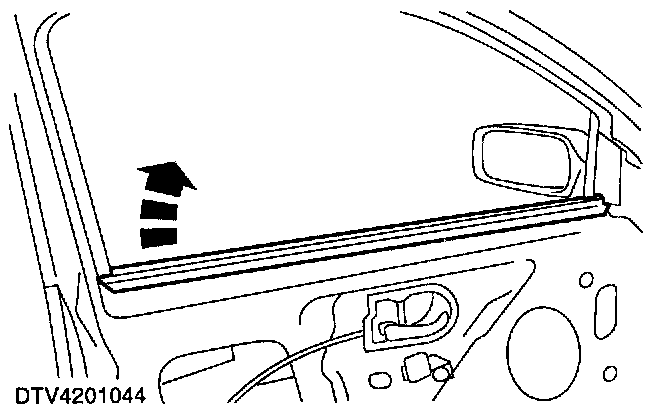

5. Remove the door inner weatherstrip.







6. Remove the glass.
1 Lift the glass.
2 Tip the glass forwards and remove the glass.

INSTALLATION







1. To install, reverse the removal procedure.
