Support Insulator LH

Special Tools:

REMOVAL
1. Remove the air cleaner.

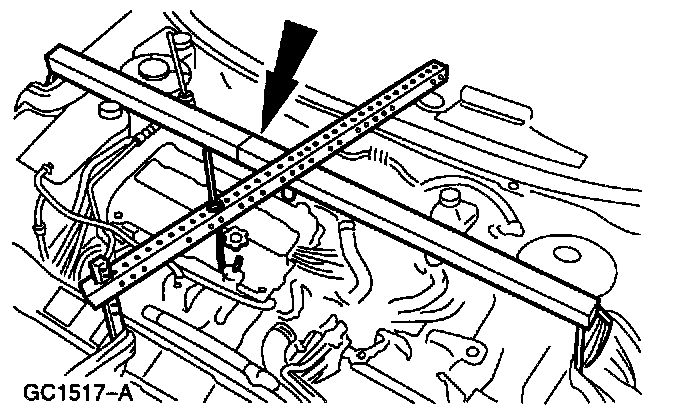

2. Install Three-Bar Engine Support.

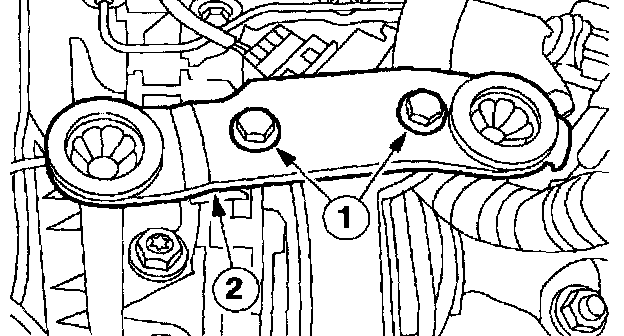

3. Remove the air cleaner bracket.
1 Remove the bolts.
2 Remove the bracket.

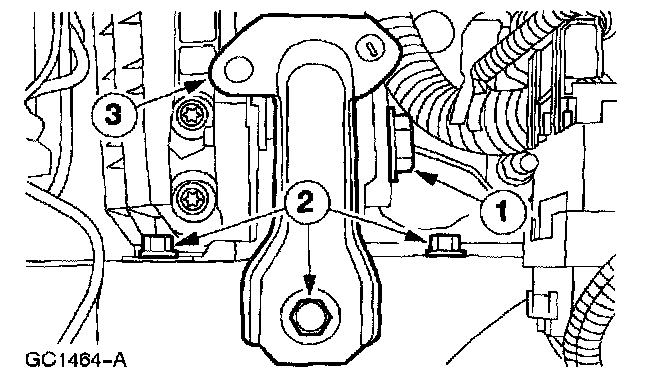

4. Remove the support insulator.
1 Remove the through bolt.
2 Remove the bolts.
3 Remove the insulator.

INSTALLATION

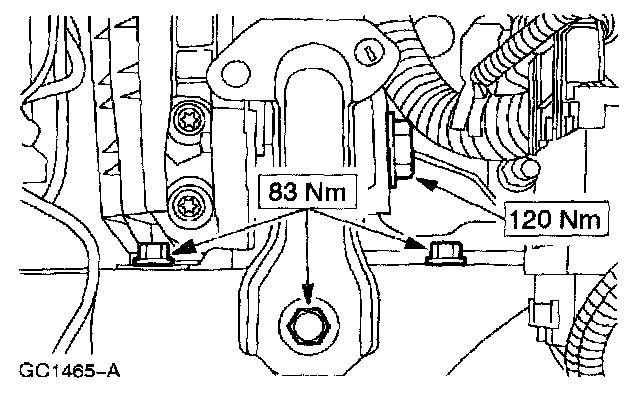

1. To install, reverse the removal procedure.

NOTE: Use new self-locking nuts.
