Roll Restrictor, Front

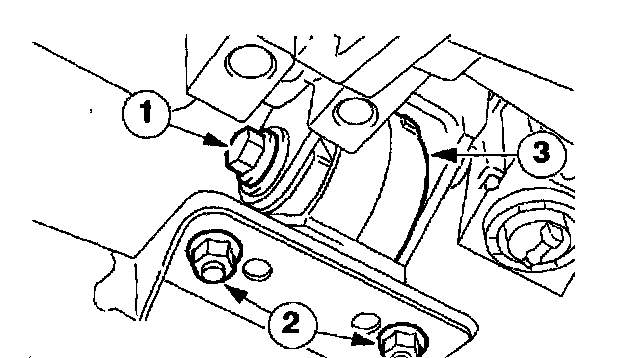

REMOVAL1. Raise and support the vehicle.
2. Remove the support insulator.
1 Remove the through bolt.
2 Remove the nuts.
3 Remove the insulator.
INSTALLATION

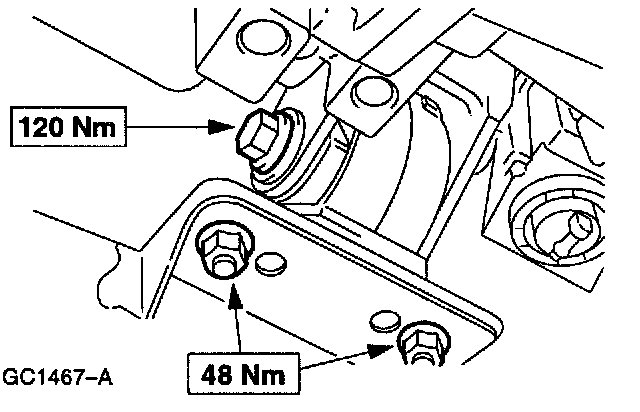

1. To install, reverse the removal procedure.
1. Raise and support the vehicle.
2. Remove the support insulator.
1 Remove the through bolt.
2 Remove the nuts.
3 Remove the insulator.
INSTALLATION
1. To install, reverse the removal procedure.
