Seals and Gaskets: Service and Repair

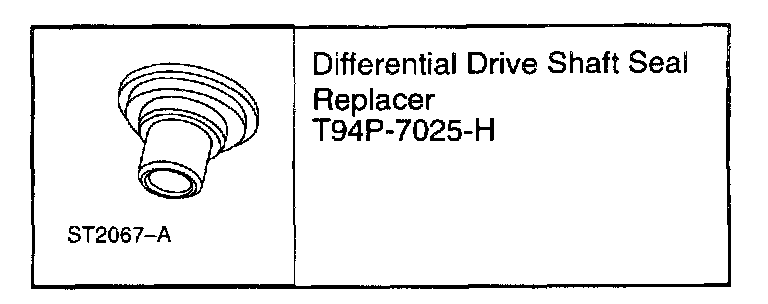

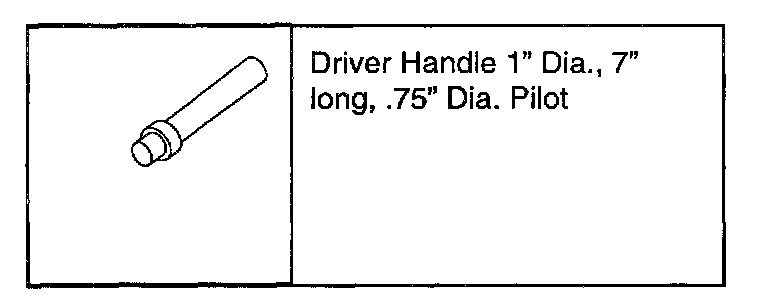

Special Tools:

REMOVAL
1. Remove the halfshaft.
LH side shown, RH similar

2. Remove the differential seal.

INSTALLATION

1. Use Differential Drive Shaft Seal Replacer T94P-7025-H and Driver Handle T80T-4000-W to install the new differential seal.

NOTE: Lubricate seal with Motorcraft MERCON Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting MERCON specification. MERCON(R) automatic Transmission Fluid is being replaced by MERCON(R) V as a service fluid, as per TSB 06-14-4.

2. Install the halfshaft.

NOTE: Always install a new driveshaft bearing retainer circlip.
