Off-Vehicle Repair

DISASSEMBLY





1. Remove the manual valve.





2. Remove the two solenoid valve body bolts and the solenoid valve body.

CAUTION: Do not attempt to remove the solenoid valve body wiring cover.





3. Remove and discard the solenoid valve body gasket.





4. Remove the three pressure tap plate bolts and the pressure tap plate.





5. Remove and discard the pressure plate tap gasket.





6. Remove the control valve body to transfer plate bolts, and remove the manual valve detent spring assembly.





7. Remove the accumulator body-to-transfer plate bolts.





8. Separate the accumulator body from the control valve body assembly.
1 Remove the accumulator body assembly.
2 Remove and discard the accumulator body separator gasket.
3 Remove the accumulator body separator plate.
4 Remove and discard the accumulator body separator gasket.
5 Remove the control valve body assembly.





9. Separate the transfer plate from the control valve body assembly.
1 Remove the control valve body assembly.
2 Remove and discard the valve body separator plate gasket.
3 Remove the valve body separator plate.
4 Remove and discard the valve body separator plate gasket.
5 Remove the transfer plate.





10. Remove the intermediate and overdrive accumulator valve plug retaining plate from the accumulator body assembly.





11. Remove the intermediate and overdrive accumulator valve plug.





12. Remove and discard the intermediate and overdrive accumulator plug seal.
13. If necessary, disassemble the parts of the accumulator body and control valve body assemblies.
- Lubricate and reassemble the parts as soon as possible to avoid accidental damage or incorrect installation.

CAUTION: Remove, note location and clean one valve at a time to avoid incorrect installation.

ASSEMBLY





1. Install a new intermediate and overdrive accumulator plug seal and coat with petroleum jelly.

CAUTION: If the valve sticks in its bore and cannot be freed, the main control must be replaced.

NOTE: Clean the control valve body assembly and accumulator body assembly of the main control in cleaning solvent. Blow dry with moisture-free regulated compressed air. The solenoid valve body should not be cleaned in cleaning solvent. It may be blown clean with compressed air or wiped clean with a lint-free cloth.





2. Install the intermediate and overdrive accumulator valve plug.

CAUTION: Do not install the intermediate and overdrive accumulator valve plug and seal too far into the bore and damage the seal. Only push the intermediate and overdrive accumulator valve plug until it is flush with the accumulator body assembly.





3. Install the intermediate and overdrive accumulator valve plug retaining plate.

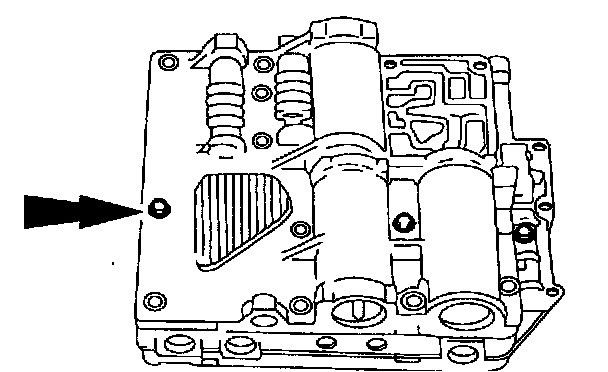

4. Install the alignment pins.





5. Install the valve body separator plate gaskets and valve body separator plate over the alignment pins.
1 Replace the valve body separator plate gasket.
2 Install the valve body separator plate.
3 Replace the valve body separator plate gasket.

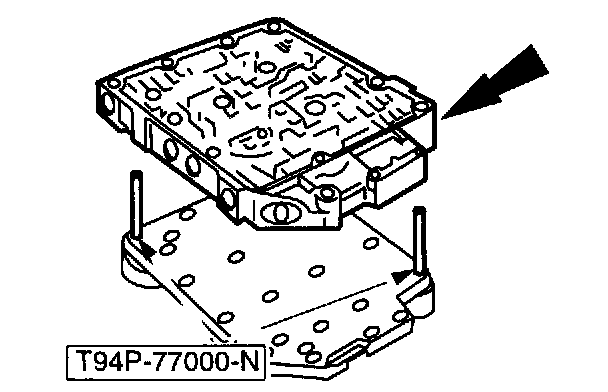

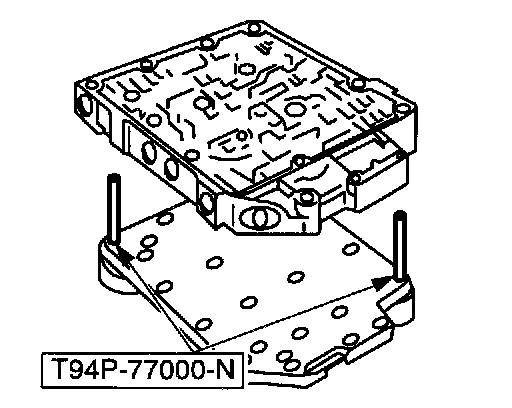

6. Install the control valve body assembly.

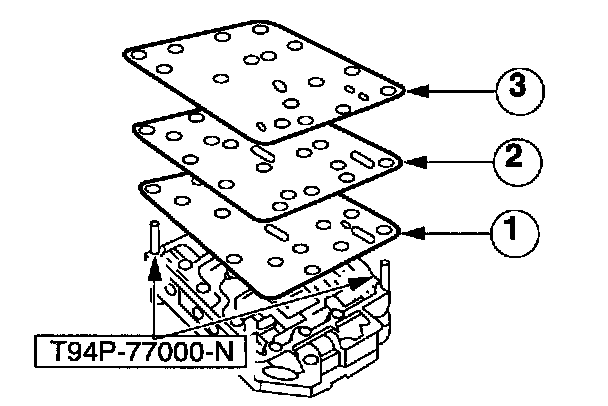

7. Install the accumulator body separator plate and gaskets.
1 Replace the accumulator body separator plate gasket.
2 Install the accumulator body separator plate.
3 Replace the accumulator body separator plate gasket.

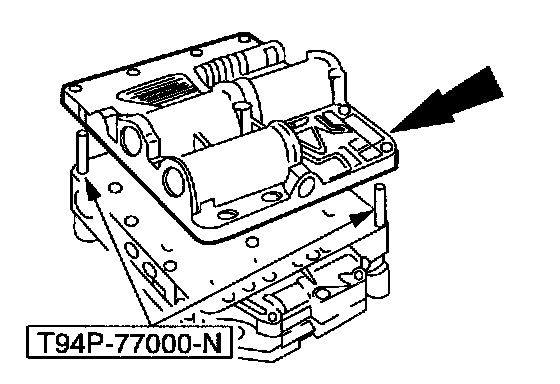

8. Install the accumulator body assembly.





9. Install the accumulator body transfer plate bolts.
- Start with the middle bolt.

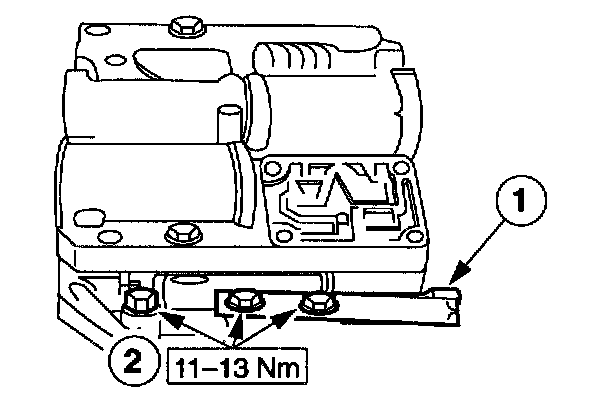

10. Install the control valve body to transfer plate bolts.
1 Install the manual valve detent spring.
2 Install the control valve body to transfer plate bolts.
- Start with the middle bolt.





11. Replace the pressure tap plate gasket.

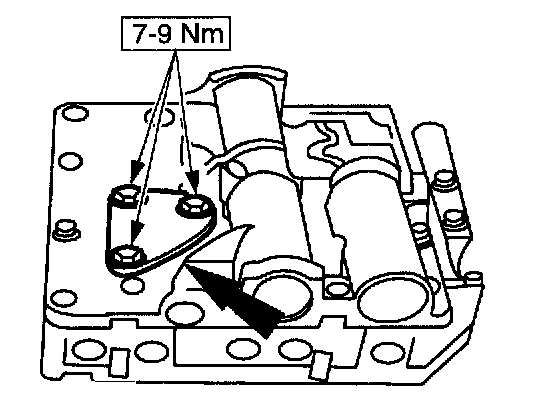

12. Install the pressure tap plate and bolts.





13. Install the solenoid valve body.
1 Install the solenoid valve body gasket.
2 Install the solenoid valve body.
3 Install the two solenoid valve body bolts.
4 Remove the alignment pins.

NOTE: Match the solenoid valve body gasket to passages.





14. Install the manual valve.
