Turbine Torque Check

Special Tools:

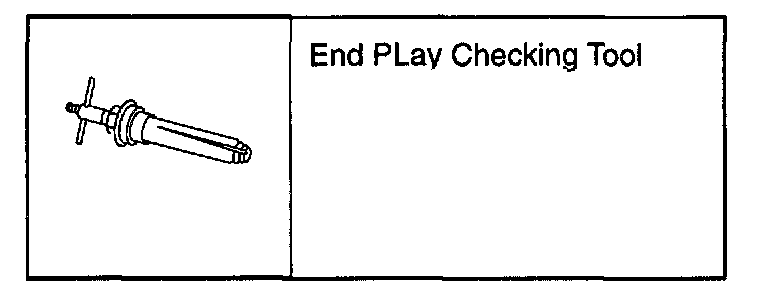

1. Install End Play Checking Tool and End Play Checking Tool Sleeve into the turbine splines in the torque converter.





2. Attach a torque wrench and determine the torque required to turn the turbine.





3. If the torque exceeds, replace the torque converter.
