E: Trans Control Indicator Lamp Is Not Operating Properly
E: Trans Control Indicator Lamp Is Not Operating Properly

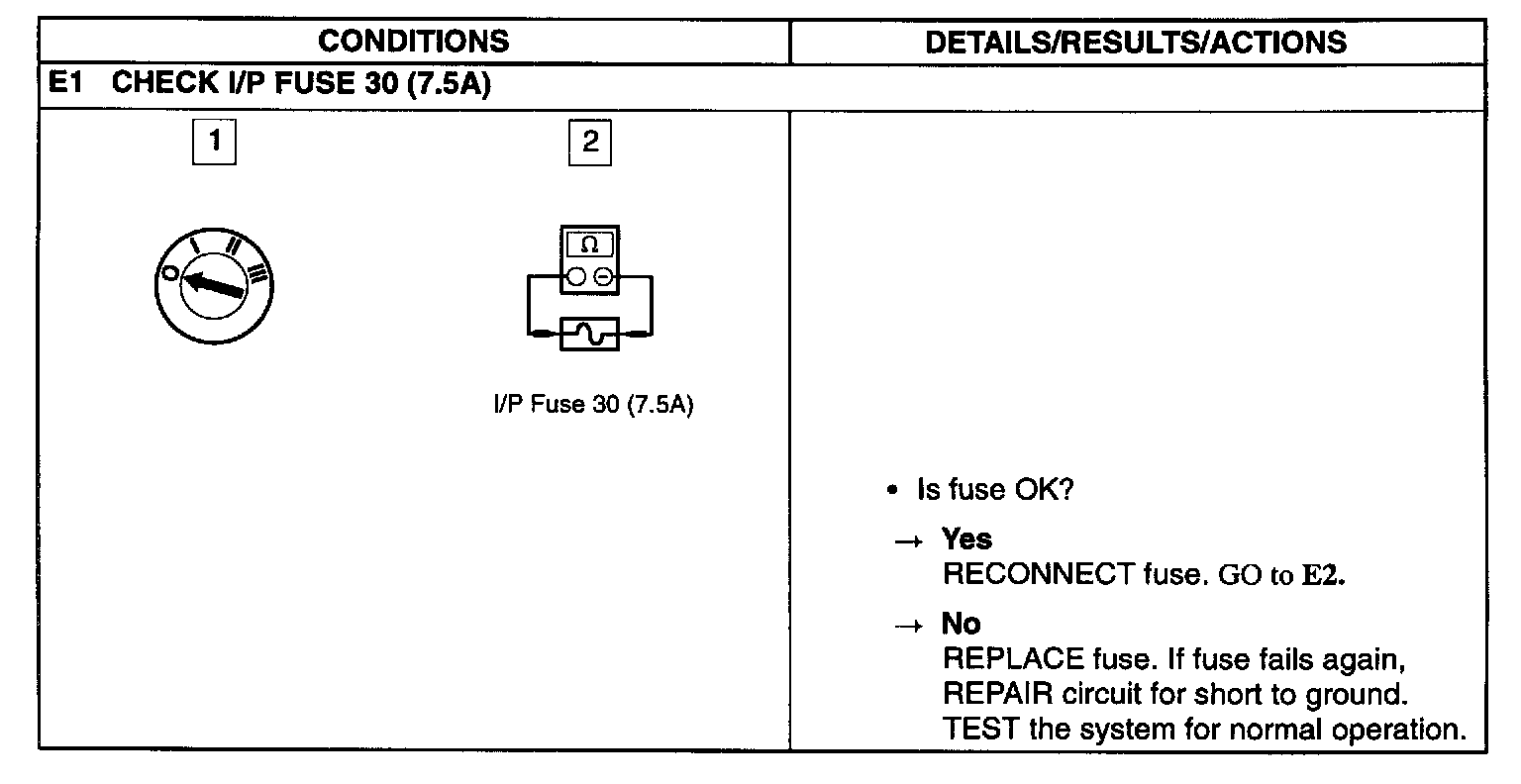

Test E1:

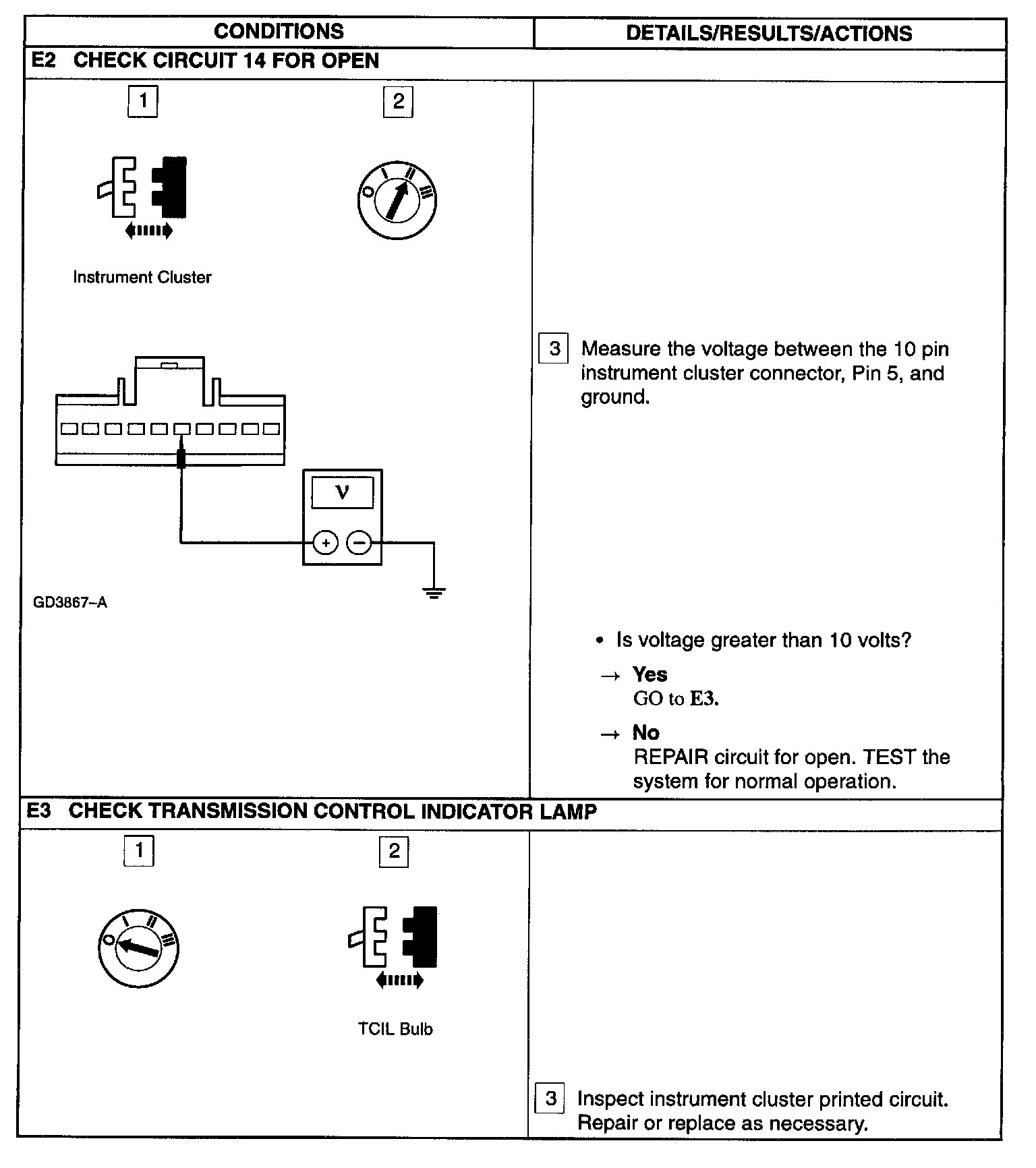

Test E2 - E3:

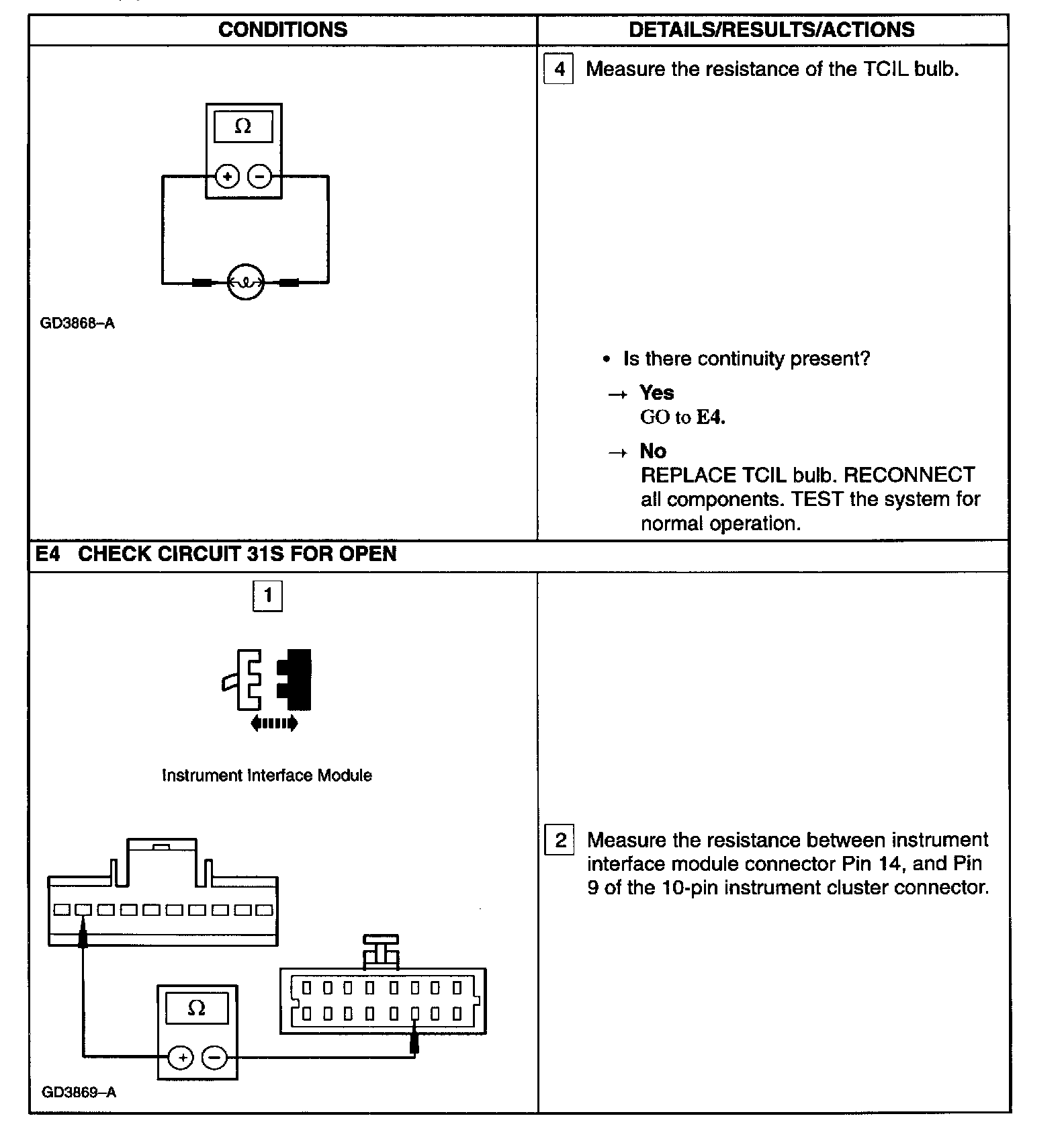

Test E3 - E4:

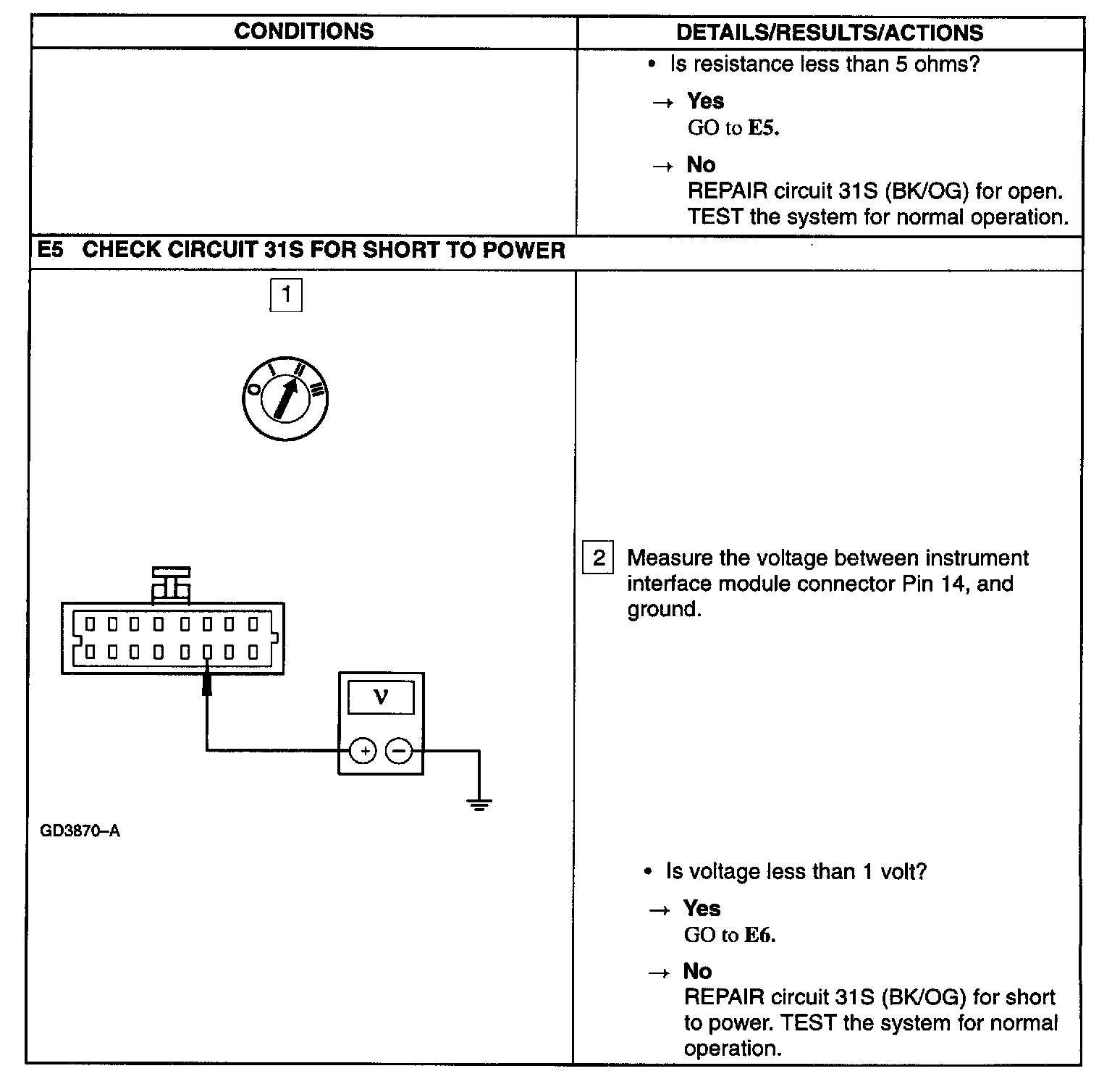

Test E4 - E5:

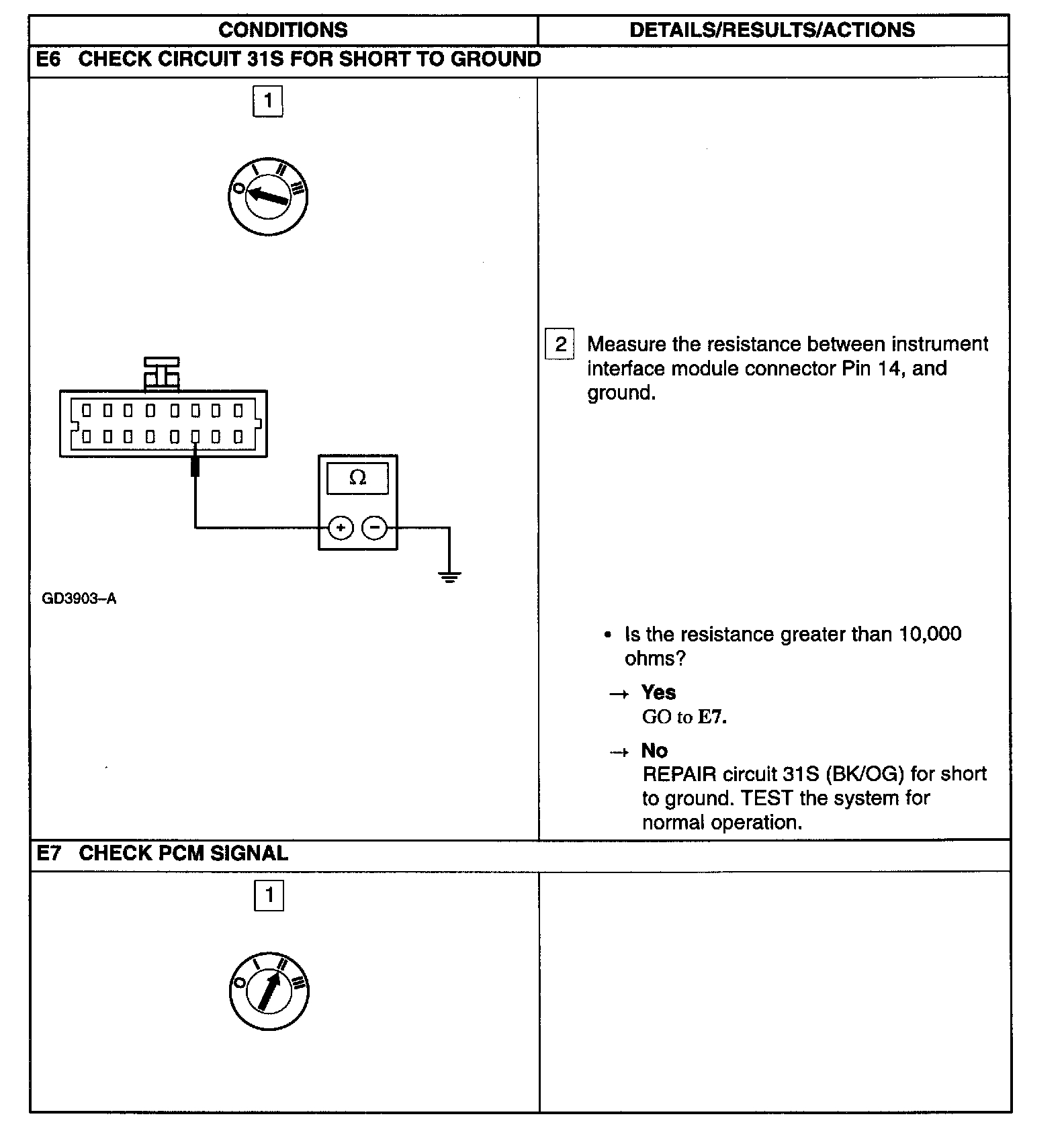

Test E6 - E7:

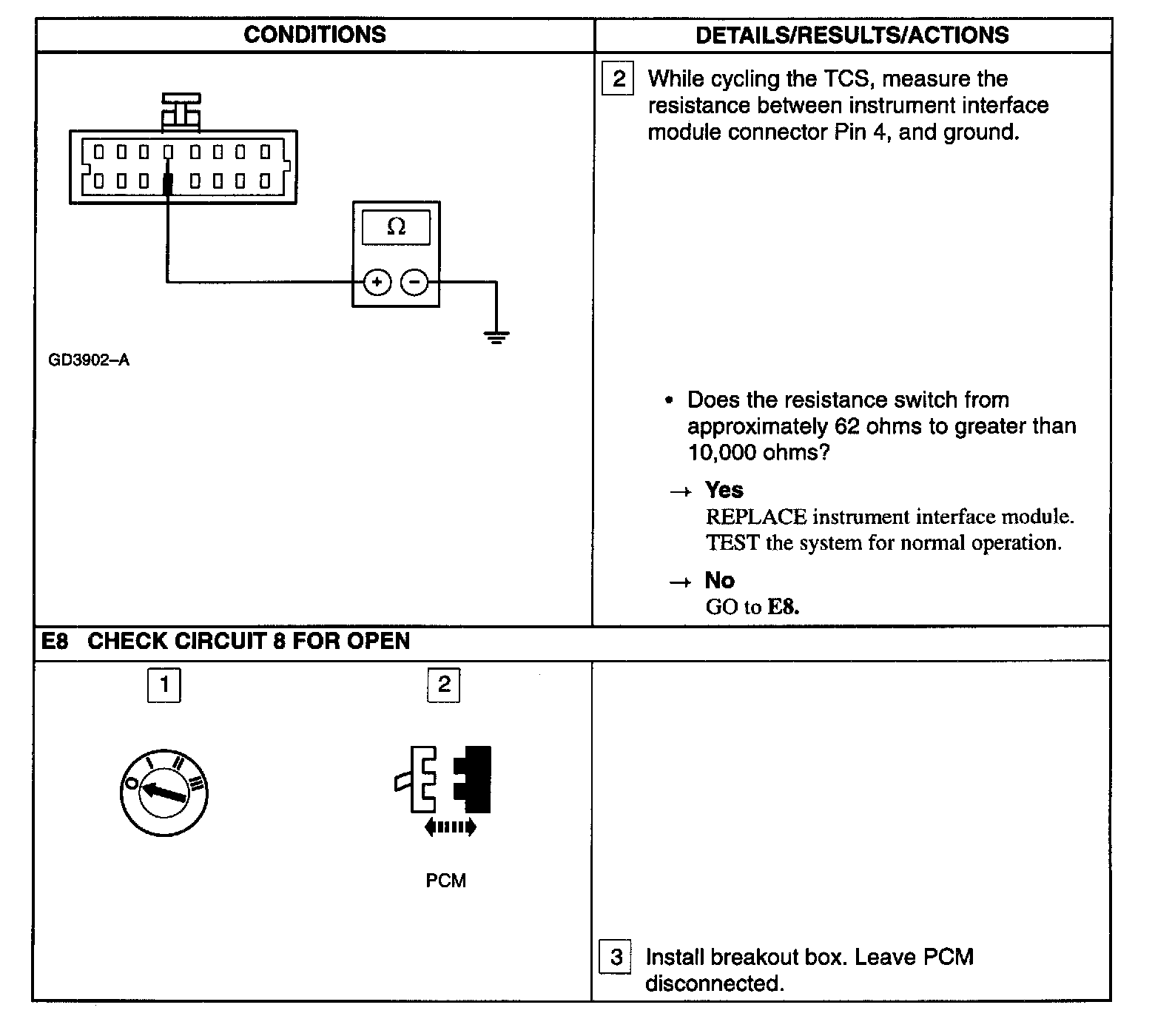

Test E7 - E8:

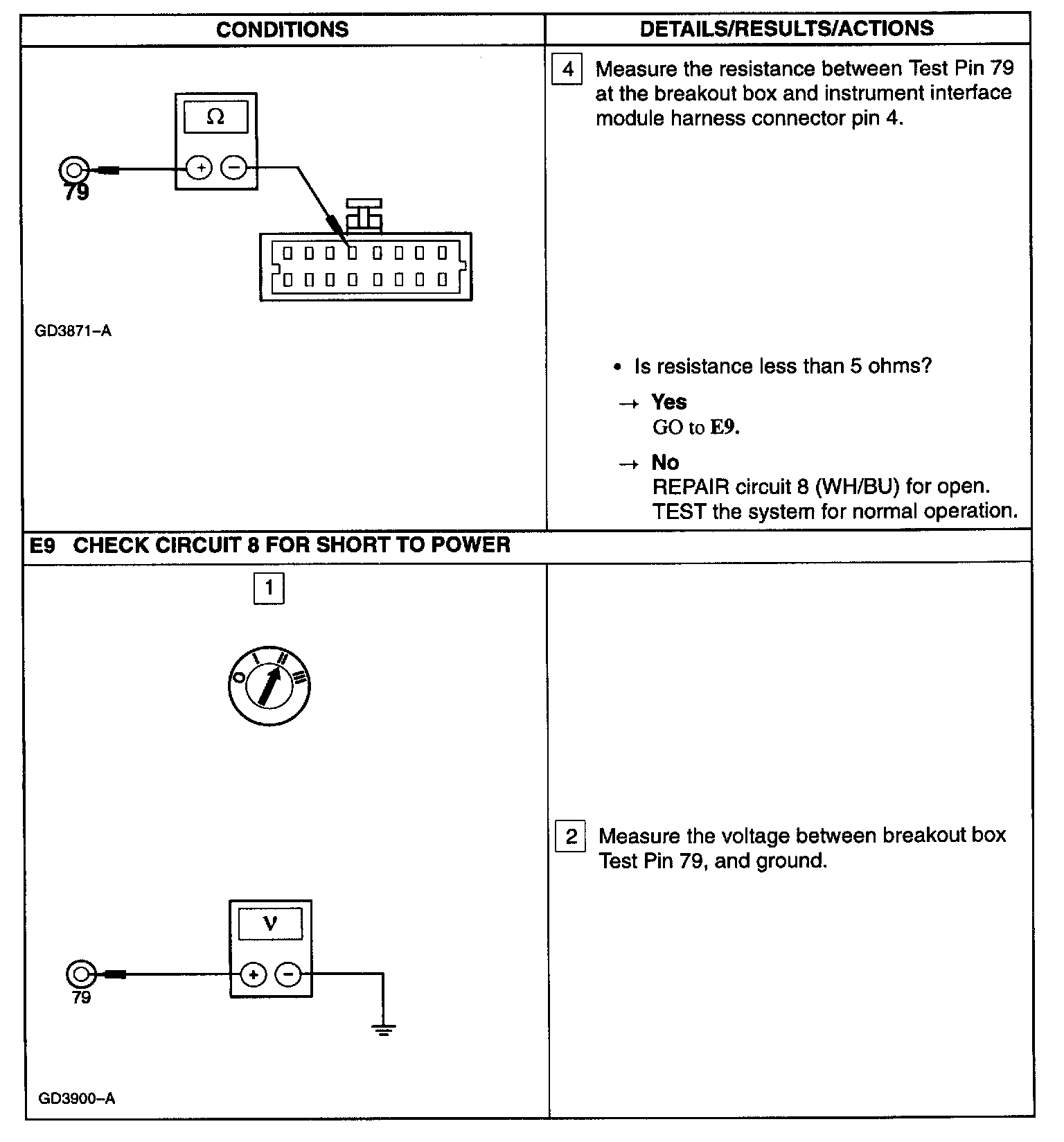

Test E8 - E9:

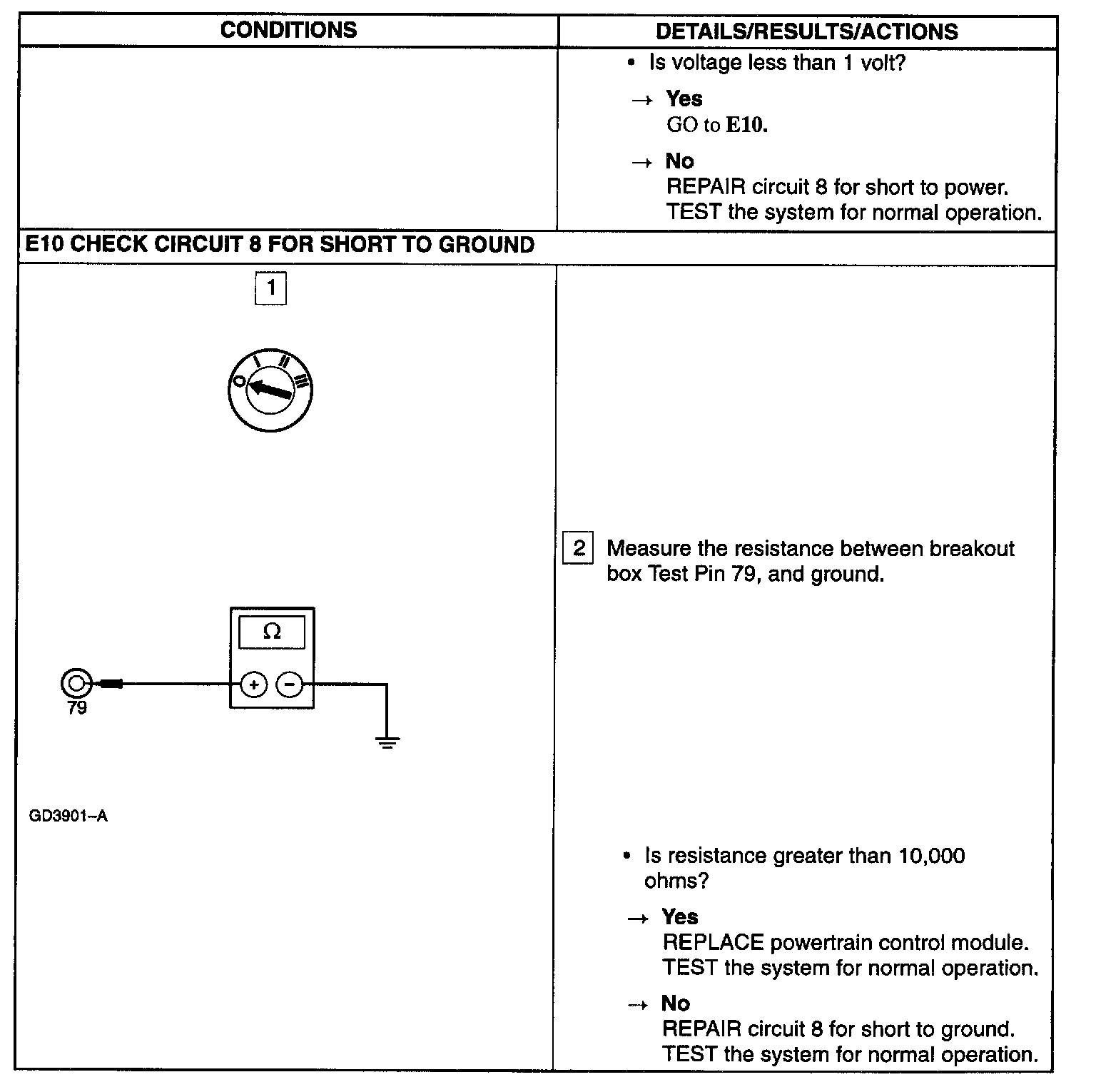

Test E9 - E10:
