D: Trans Control Switch Is Not Operating Properly

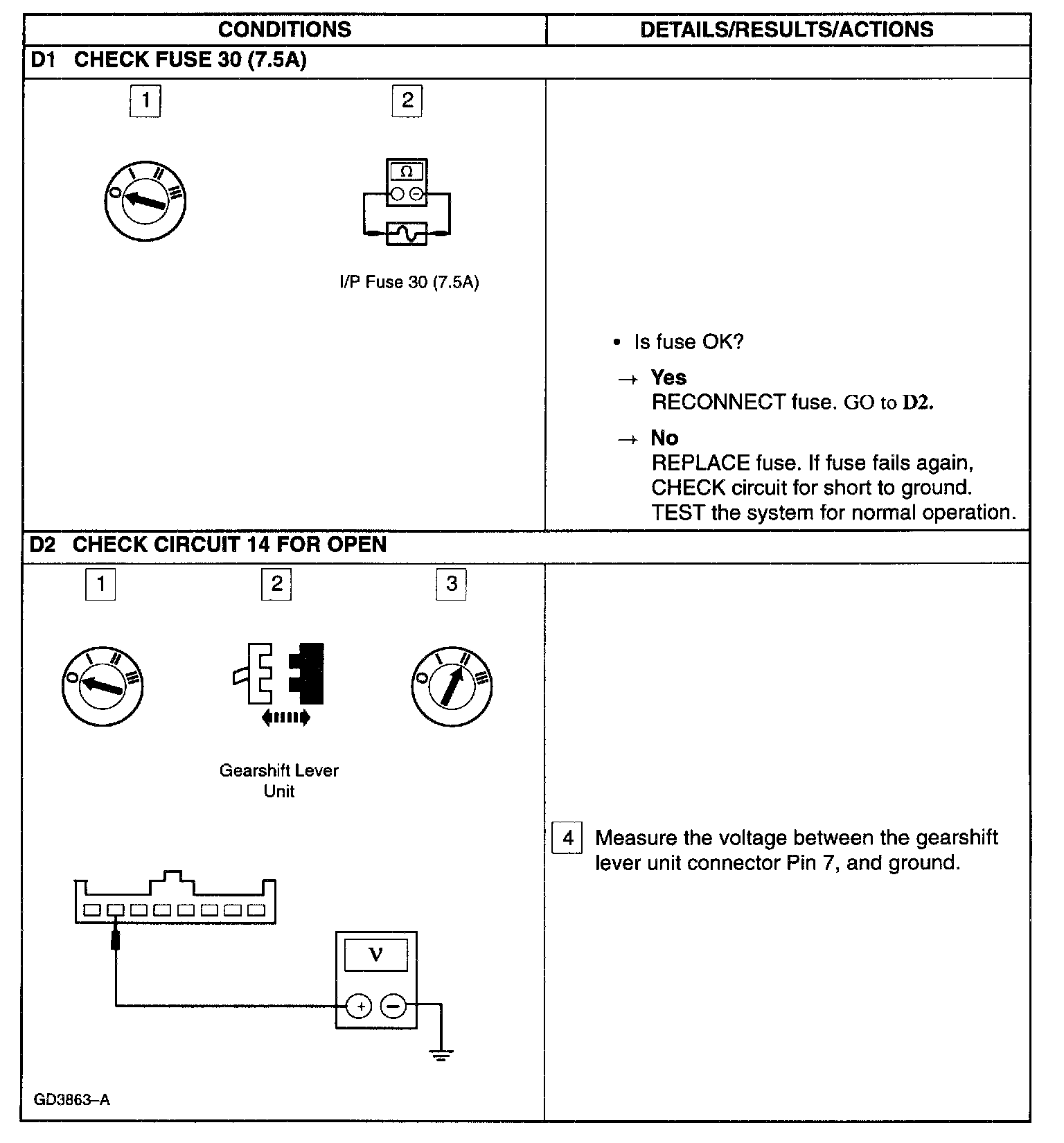

Test D1 - D2:

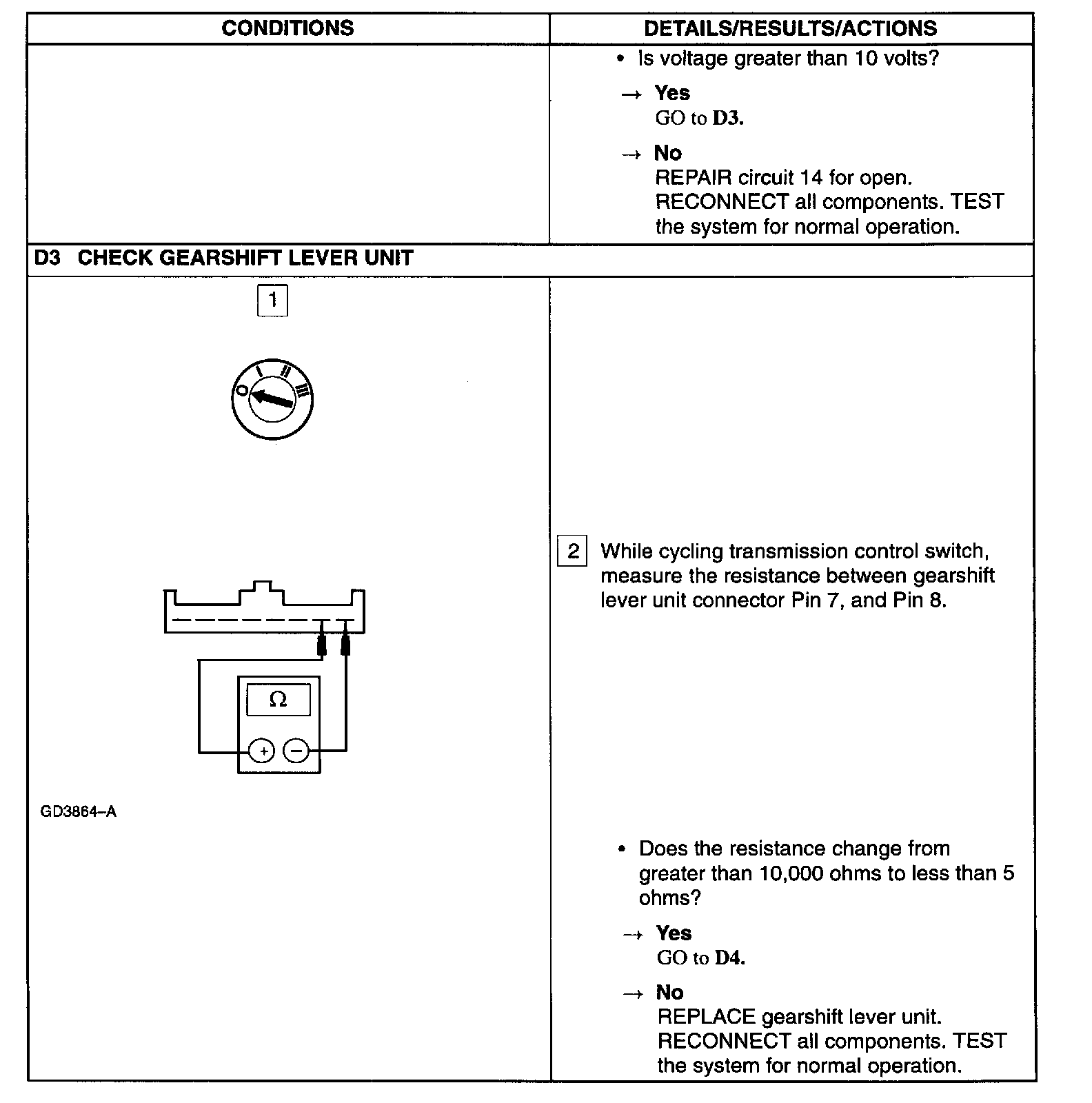

Test D2 - D3:

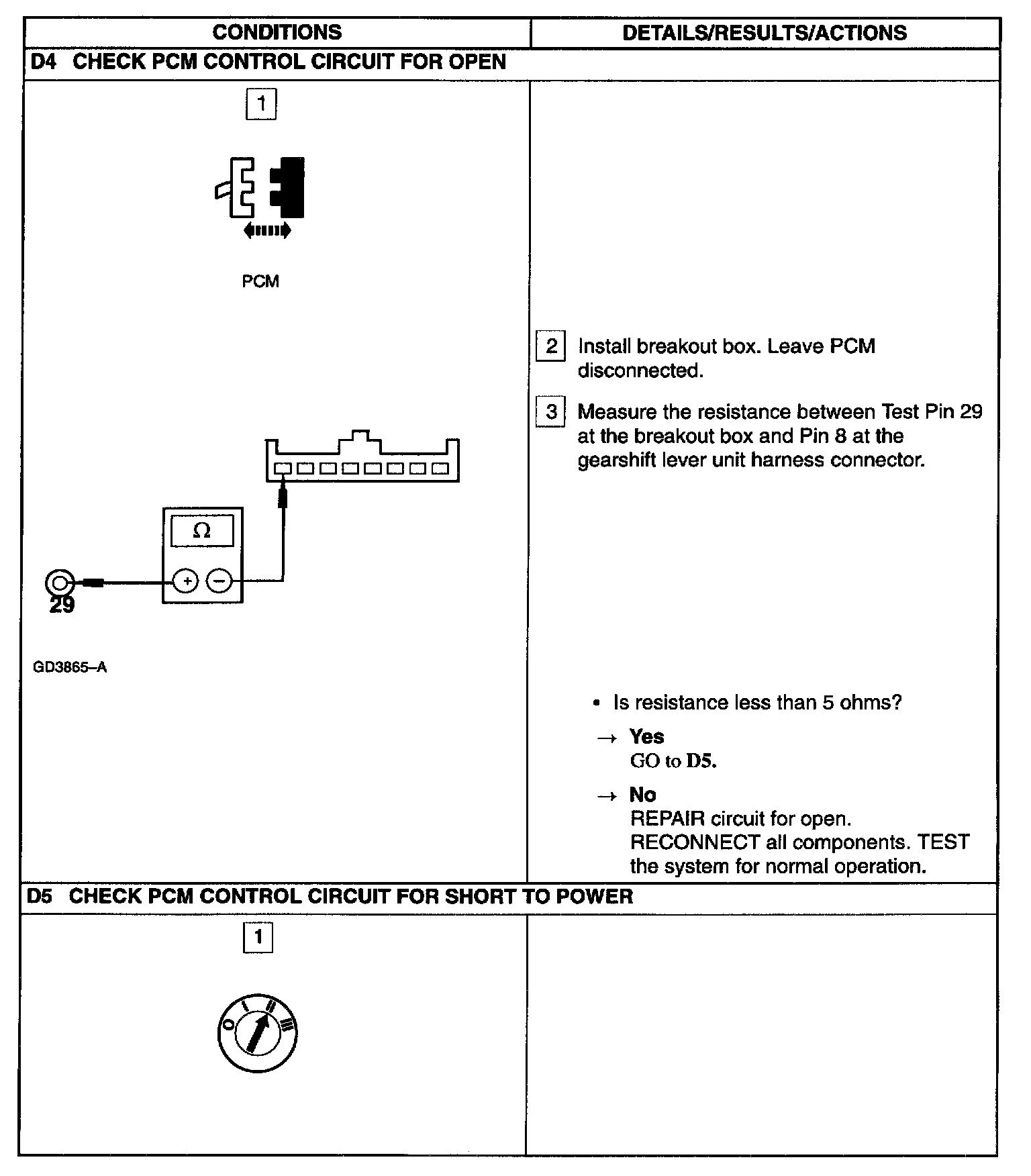

Test D4 - D5:

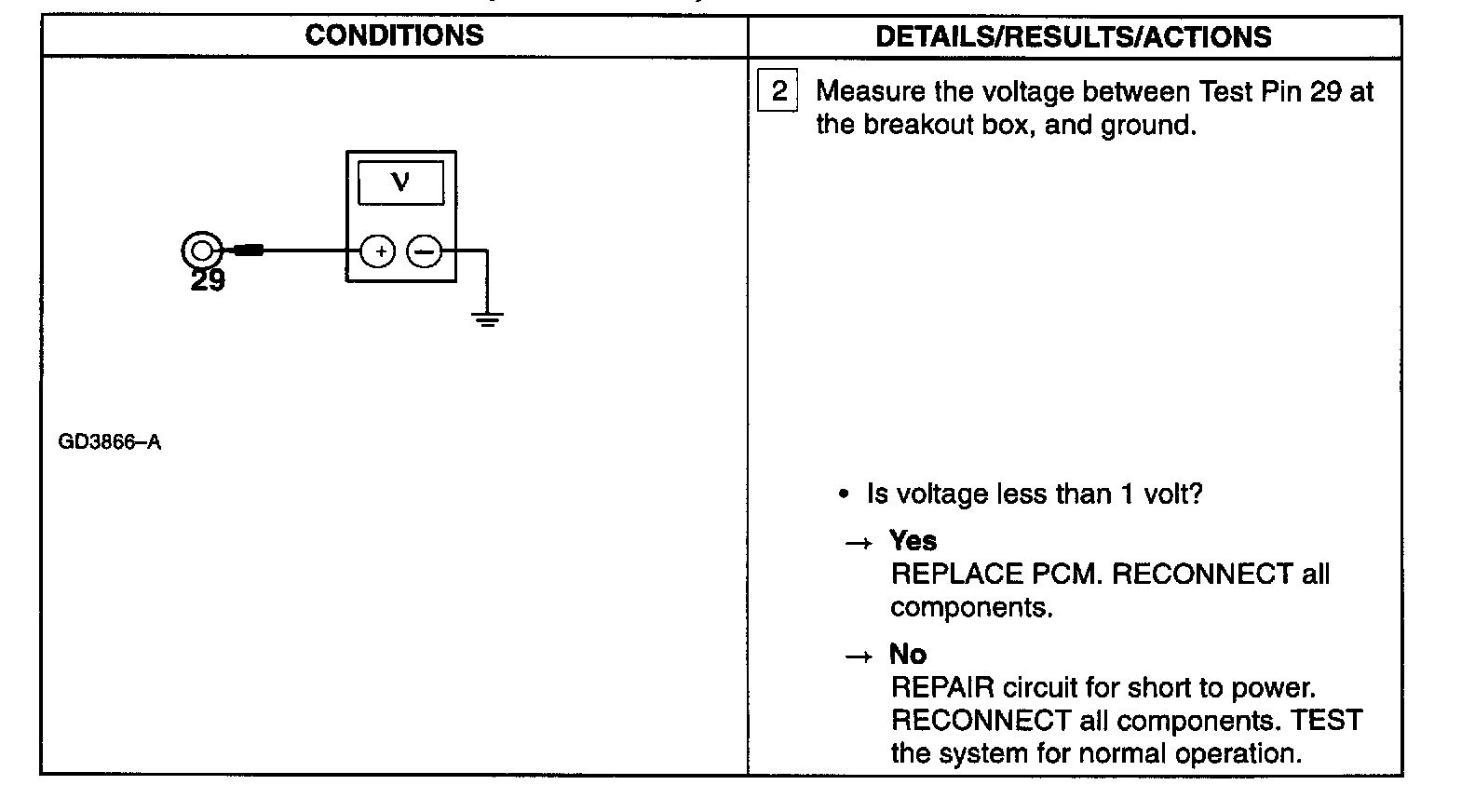

Test D5:
