A: Shift Interlock Does Not Release or Lock Properly

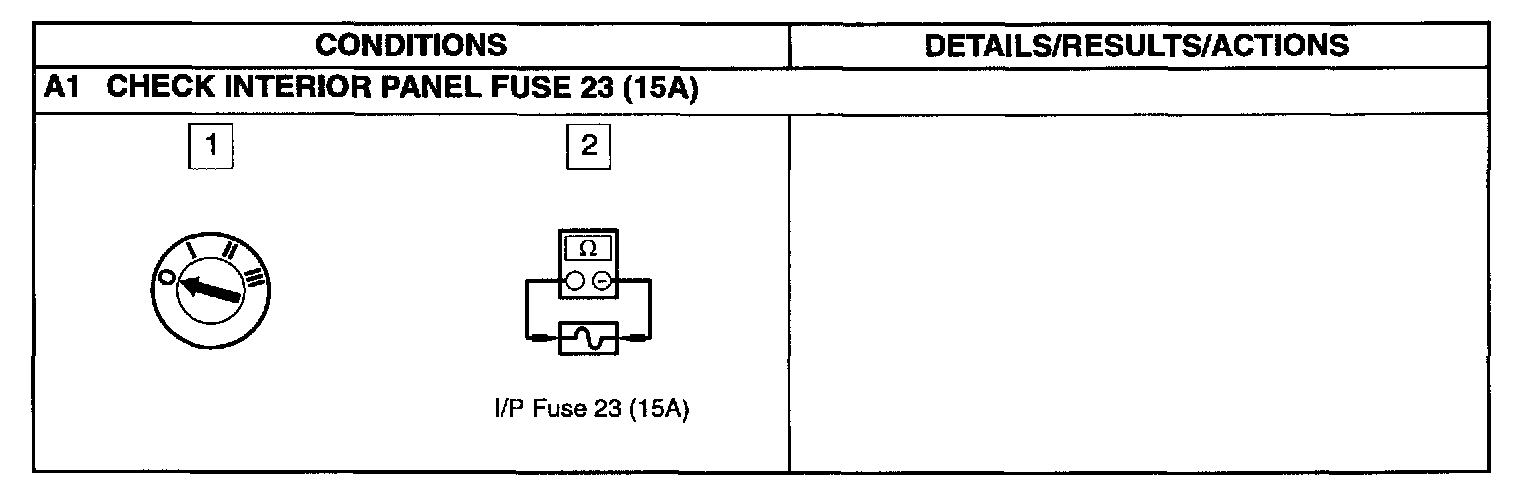

Test A1:

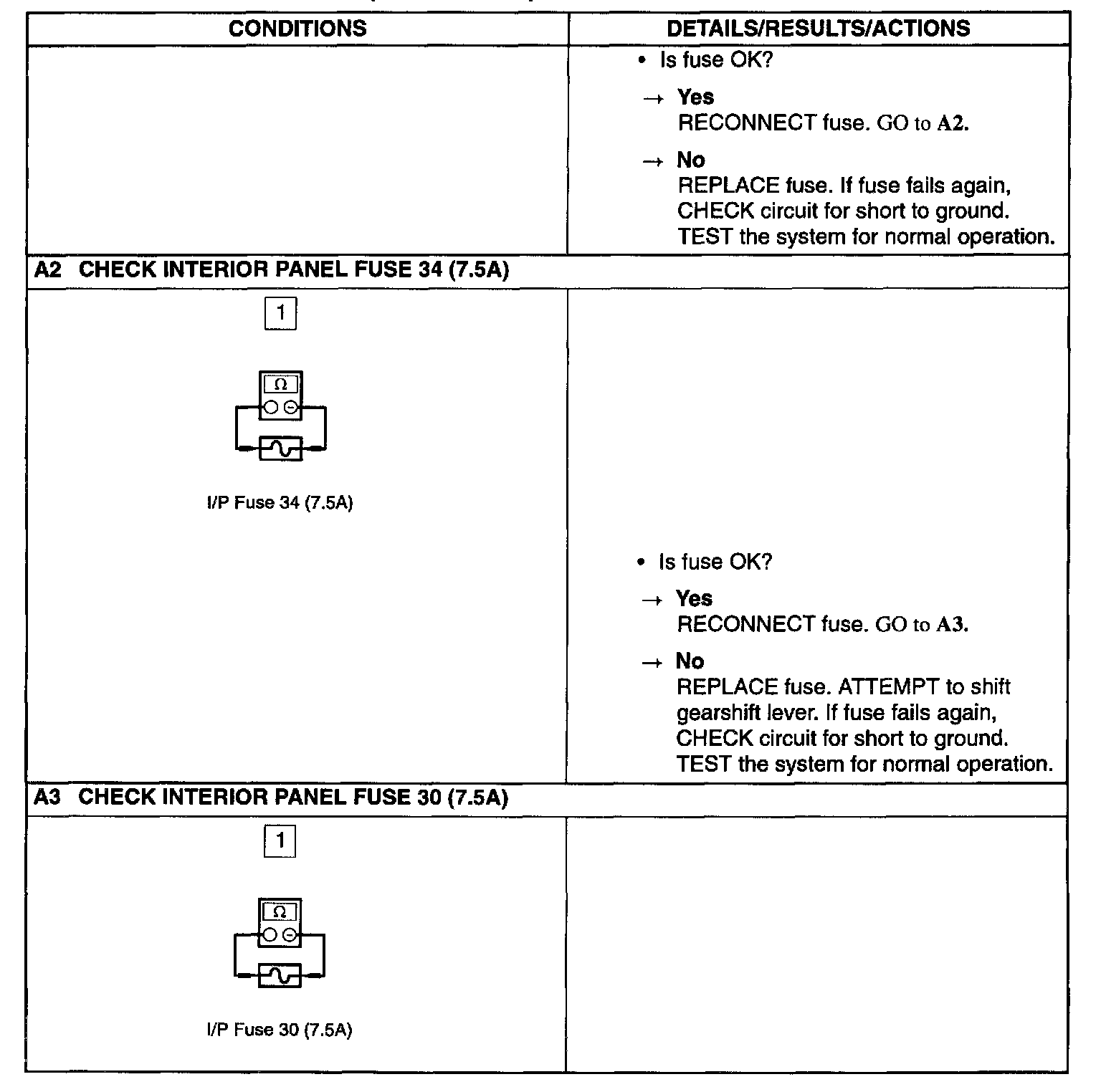

Test A1 - A3:

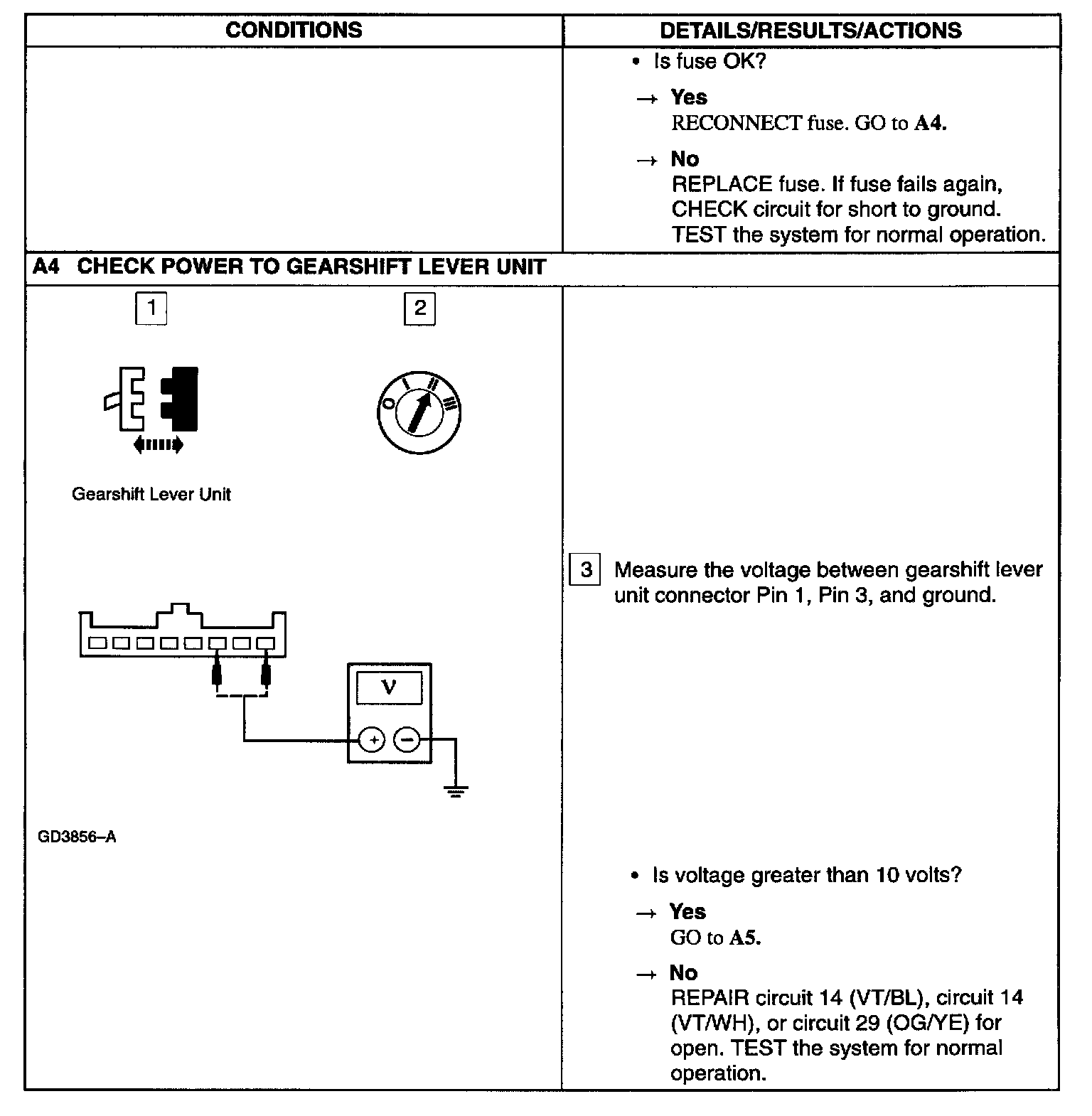

Test A3 - A4:

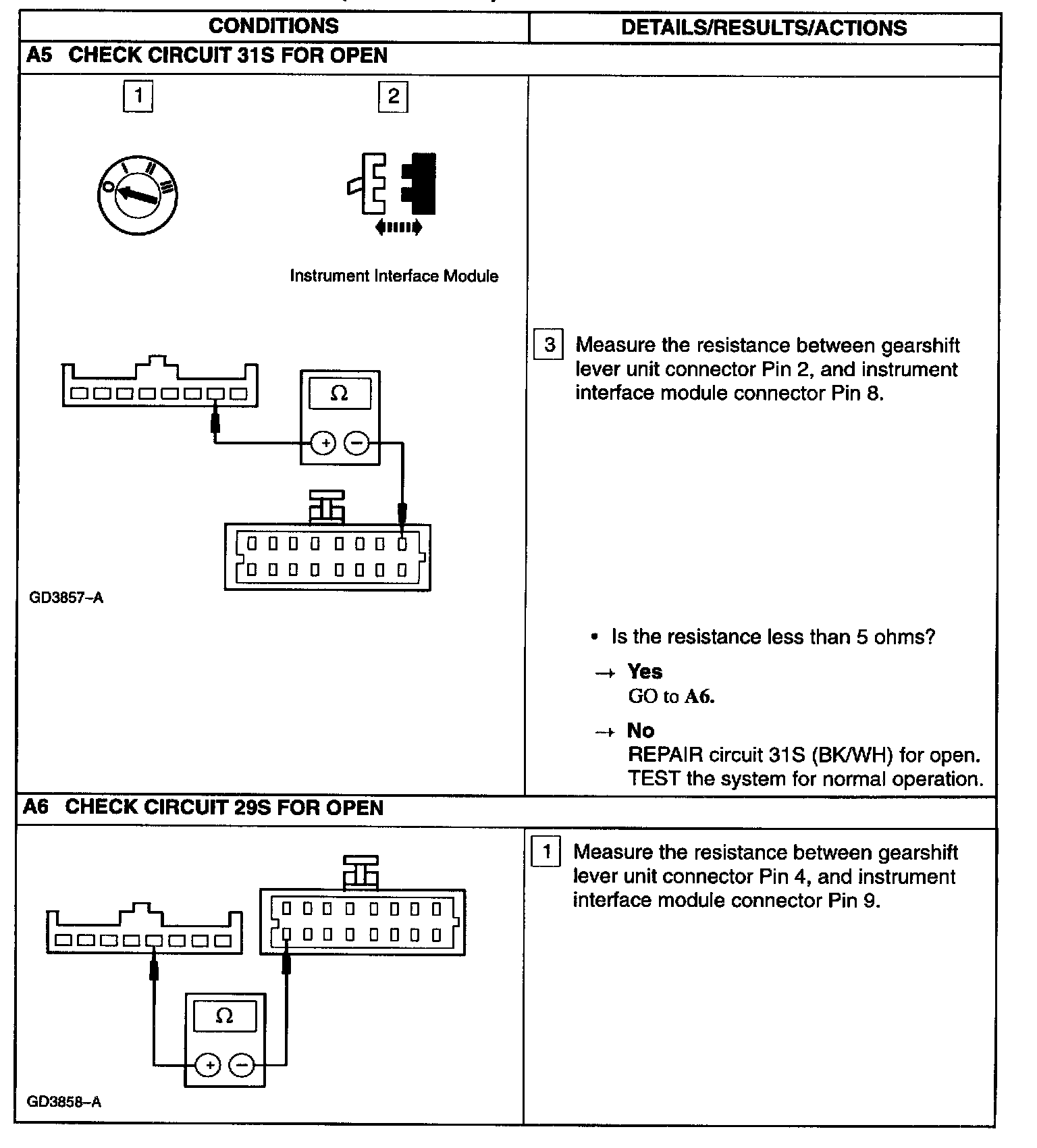

Test A5 - A6:

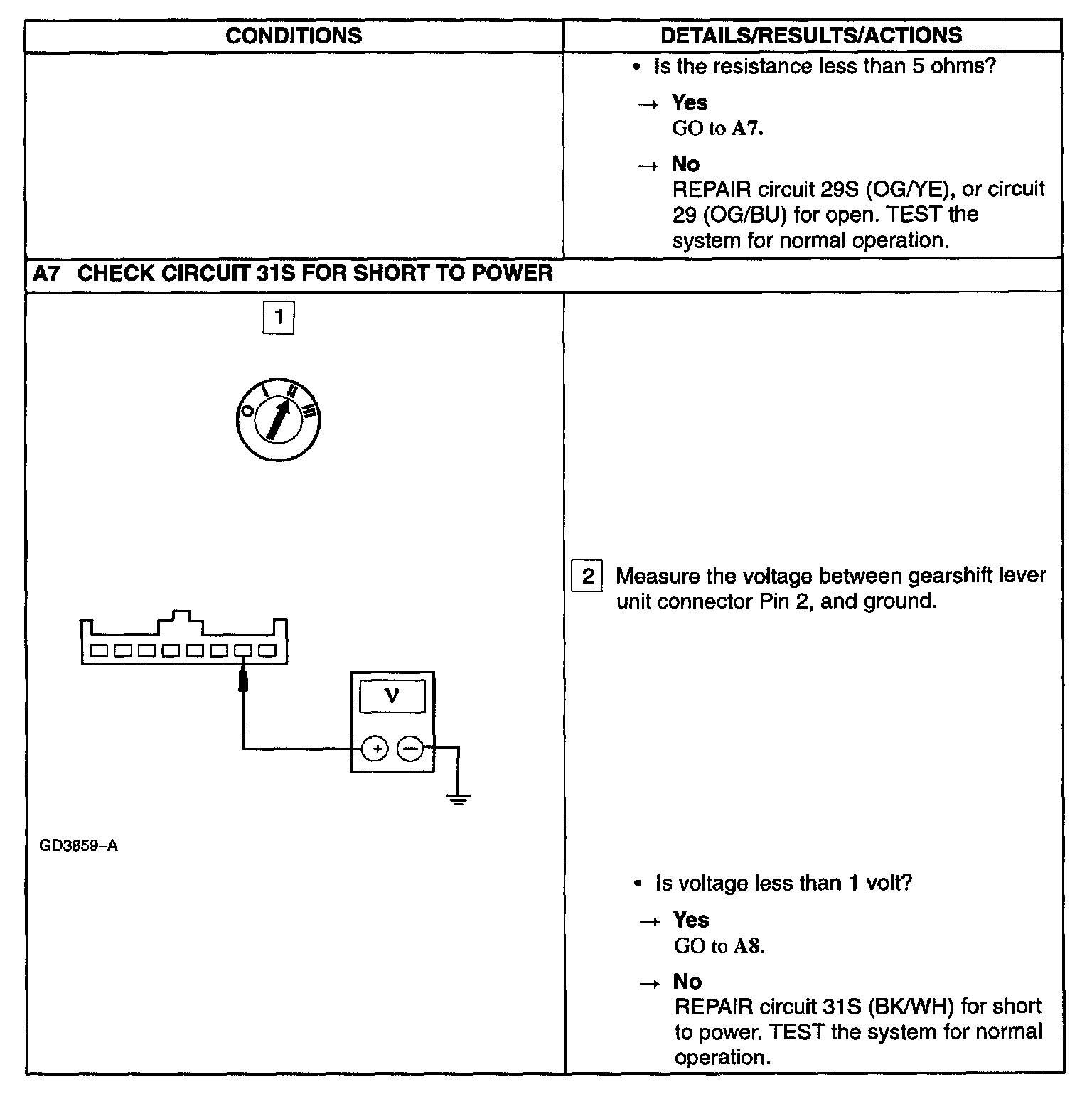

Test A6 - A7:

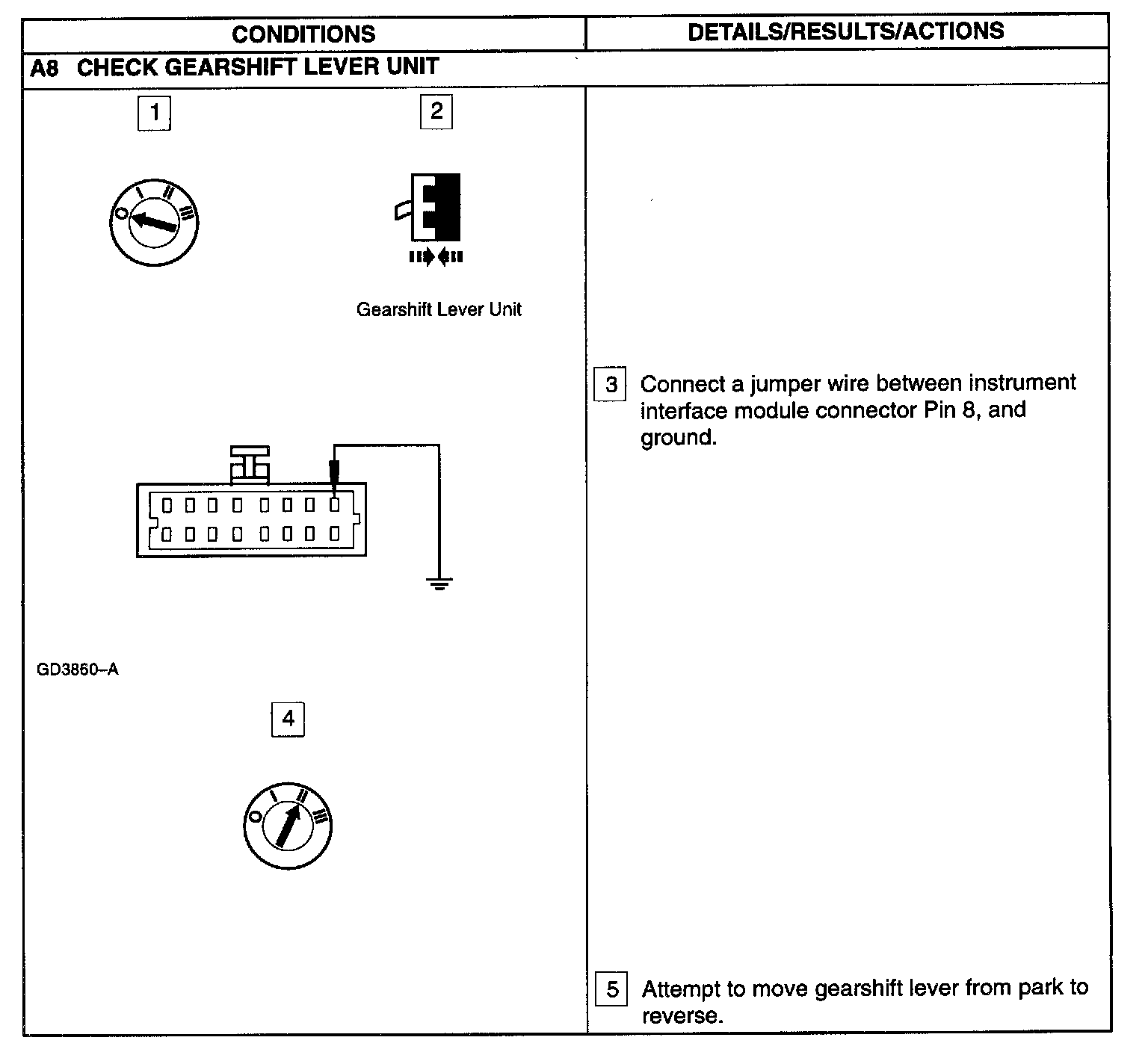

Test A8:

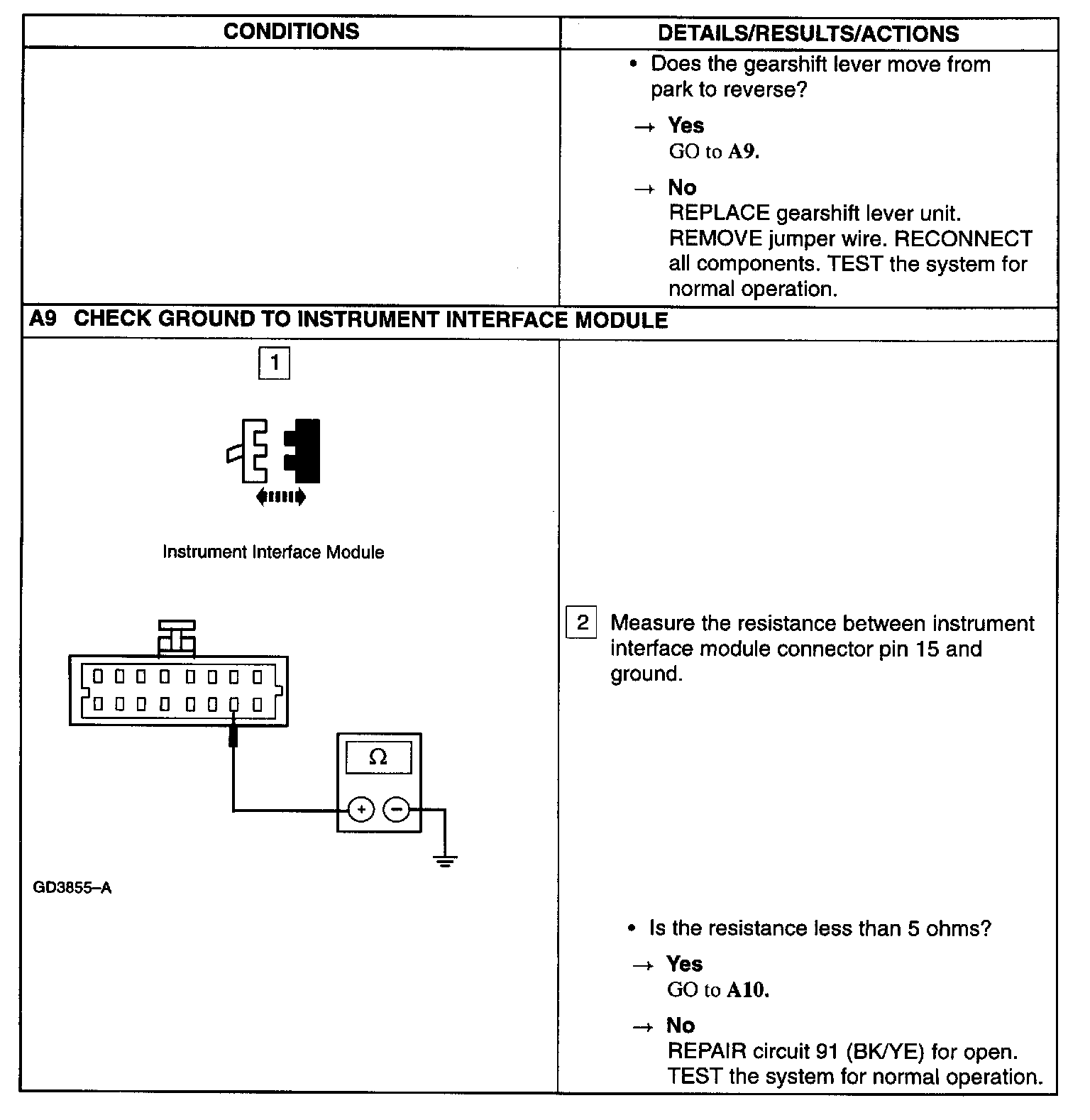

Test A8 - A9:



Test A10 - A11:

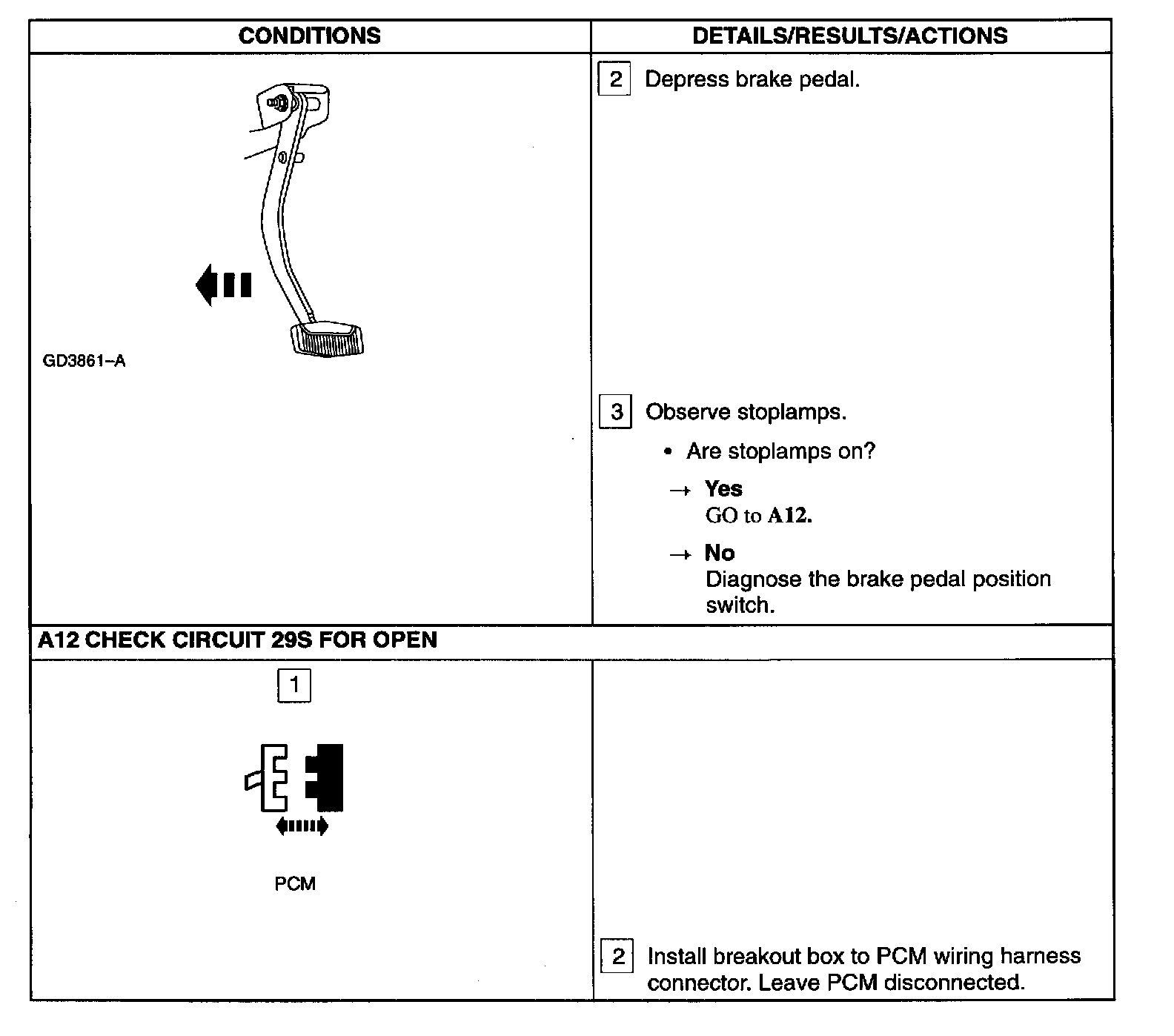

Test A11 - A12:

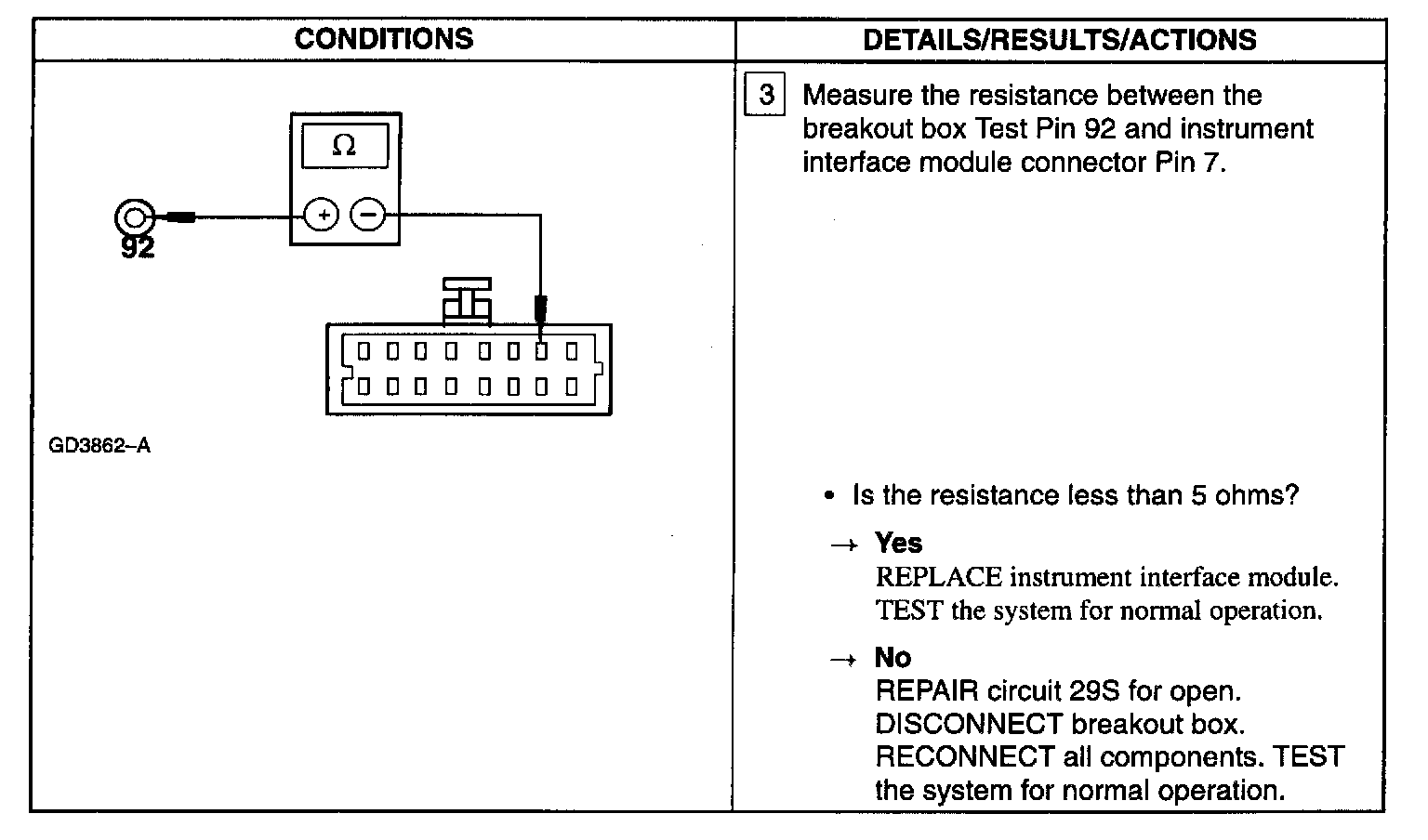

Test A12:
