External Controls/Shift Interlock

Because fault diagnosis starts as soon as the vehicle is taken in for repair we recommend the following procedure:
1. Check that the customer concern is clearly understood. If necessary reproduce the concern on the vehicle.

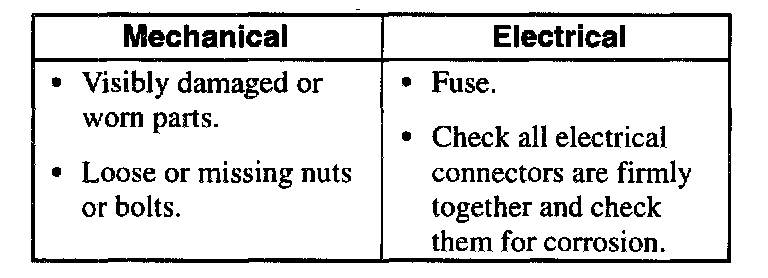

2. If the concern is not clearly understood carry out a road test and/or perform visual checks.

WARNING: Danger of accident. Apply the parking brake. Shift the transmission to "P". Failure to follow these instructions will result in personal injury.

3. If a concern can be identified with certainty by a visual check, correct it and test that the system operates normally.
4. If the concern cannot be identified with certainty, then use the symptom chart to identify it.
