Removal and Installation

REMOVAL
1. Raise the vehicle.
2. Remove the heat shield.

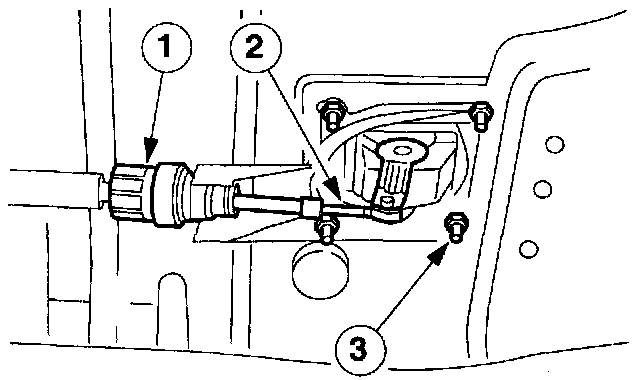

3. Disconnect the selector lever assembly.
1 Disconnect the selector cable adjusting cap.
2 Disconnect the selector cable.
3 Remove the nuts.
4. Lower the vehicle.

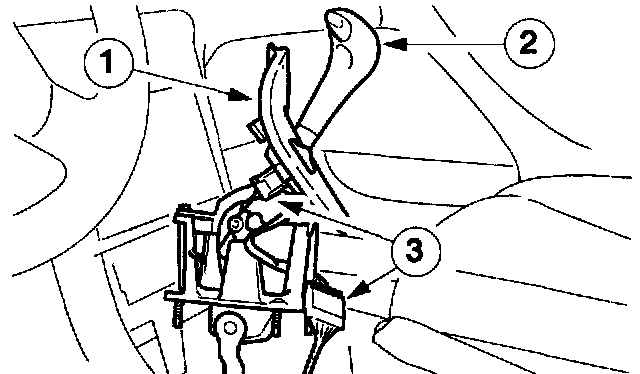

5. Remove the selector lever assembly.
1 Remove the cover.
2 Lift out the selector lever assembly.
3 Disconnect the selector lever electrical connector.


INSTALLATION

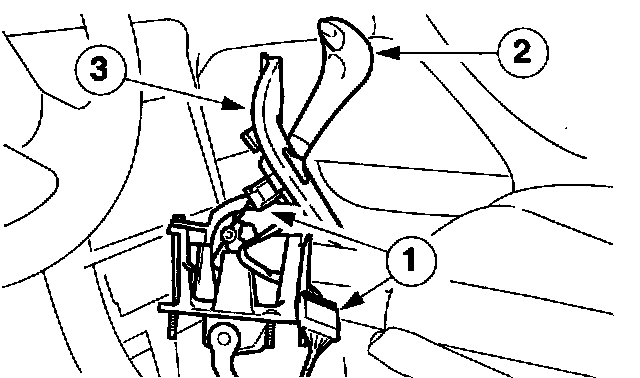

1. Install the selector lever assembly.
1 Reconnect the selector lever electrical connector.
2 Position the selector lever.
3 Install the cover.
2. Raise the vehicle.

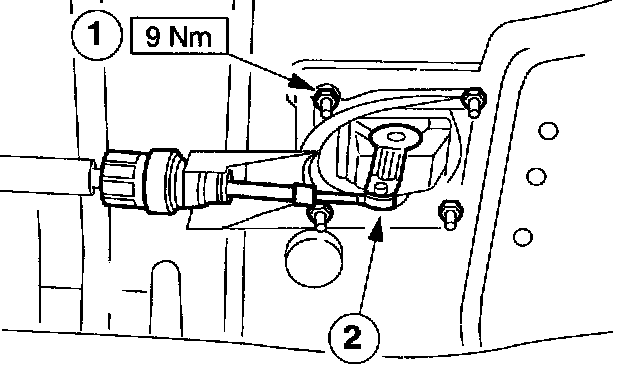

3. Install the selector lever assembly.
1 Install the nuts.
2 Connect the selector cable.

NOTE: Do not lock the selector cable adjusting cap.

4. Lower the vehicle.
5. Adjust the selector cable and selector lever.
