Disassembly and Assembly of Subassemblies

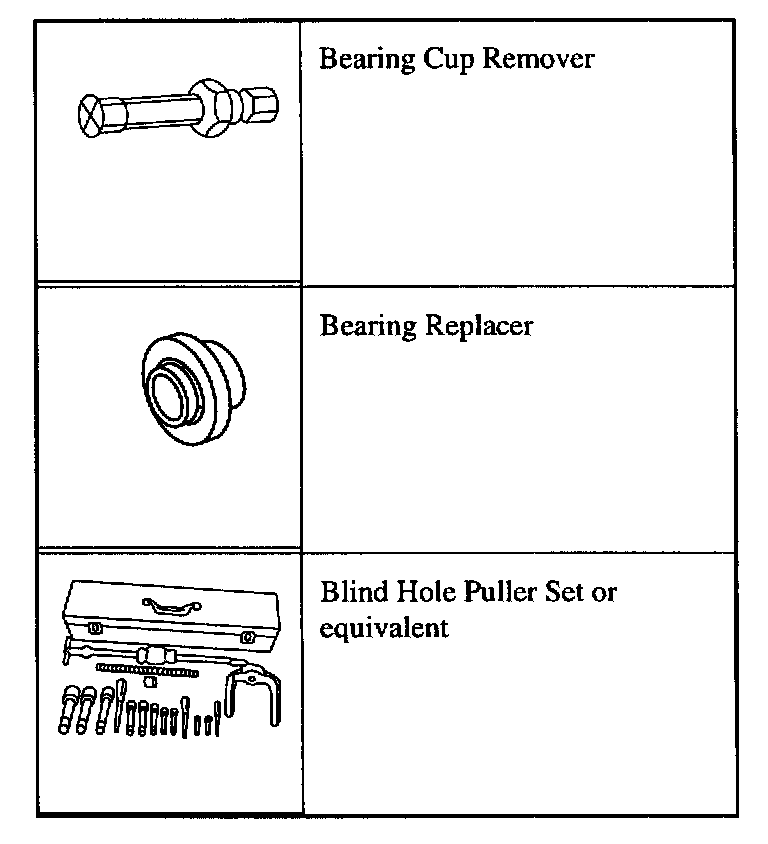

Special Tools:

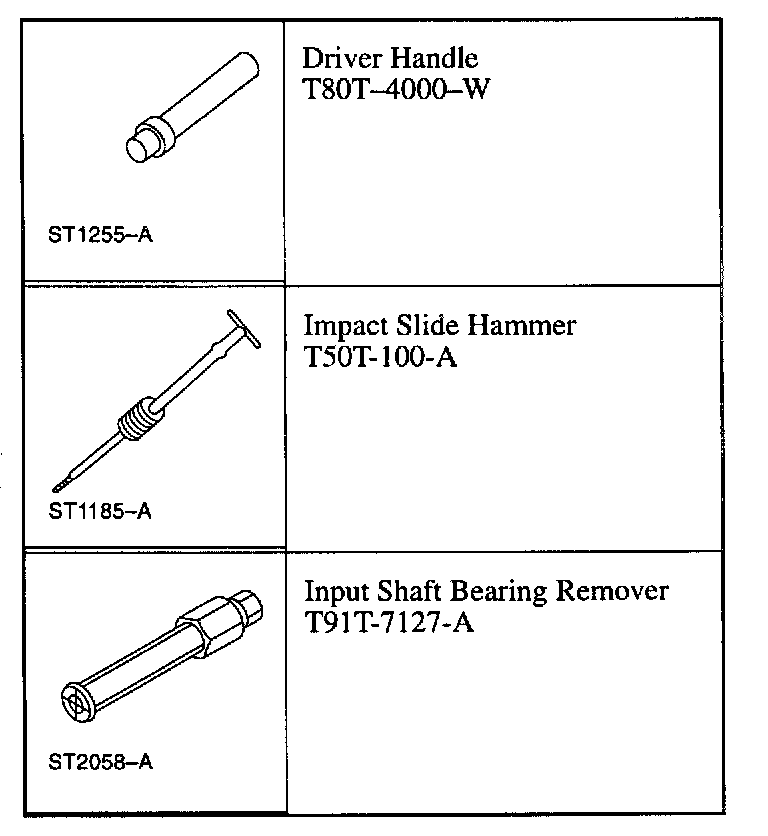

Special Tools:

DISASSEMBLY

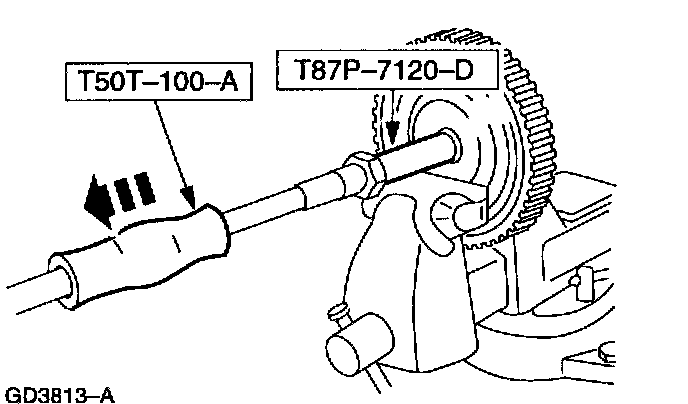

1. If necessary, remove the reverse/overdrive ring gear bearing (number 16).

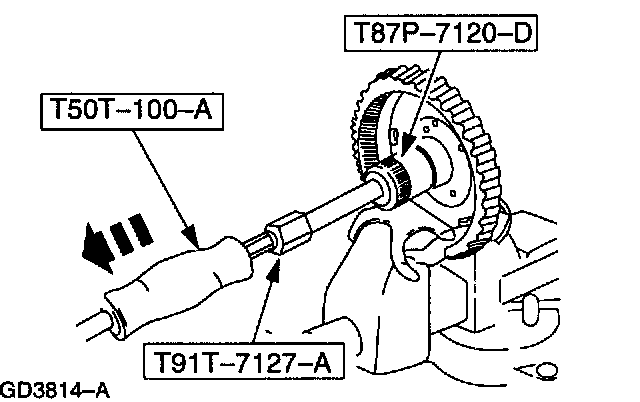

2. If necessary, remove the stator support bearing (number 17).


ASSEMBLY

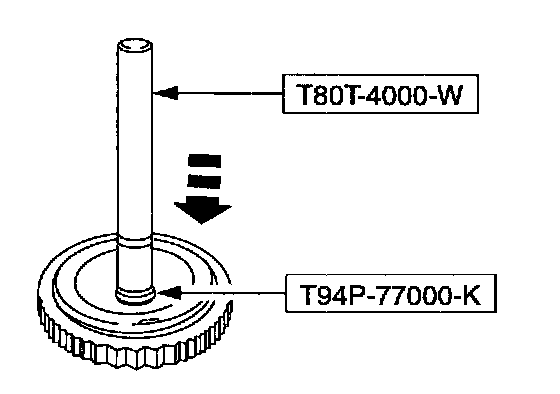

1. Position the (number 16) reverse/overdrive ring gear bearing on the installation tool.
- Position the bearing with the part number facing toward the handle of the tool.





2. Install the reverse/overdrive ring gear bearing (number 16).





3. Position the (number 17) stator support bearing on the installation tool.
- Position the bearing with the part number facing toward the handle of the tool.





4. Install the (number 17) stator support bearing into the stator support sprocket.
