Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Pinpoint Tests >> G: Vibration

G: Vibration

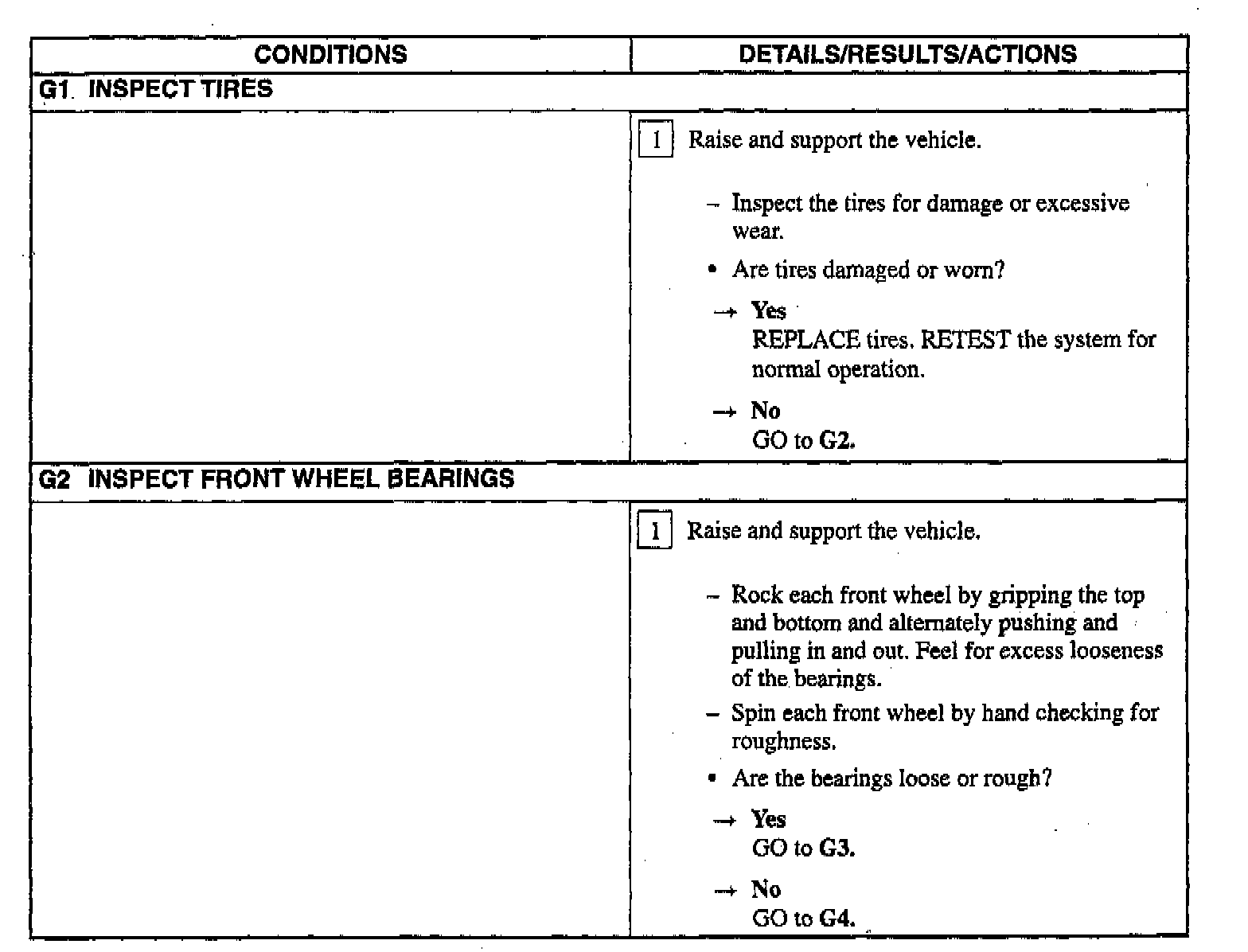

Test G1 - G2:

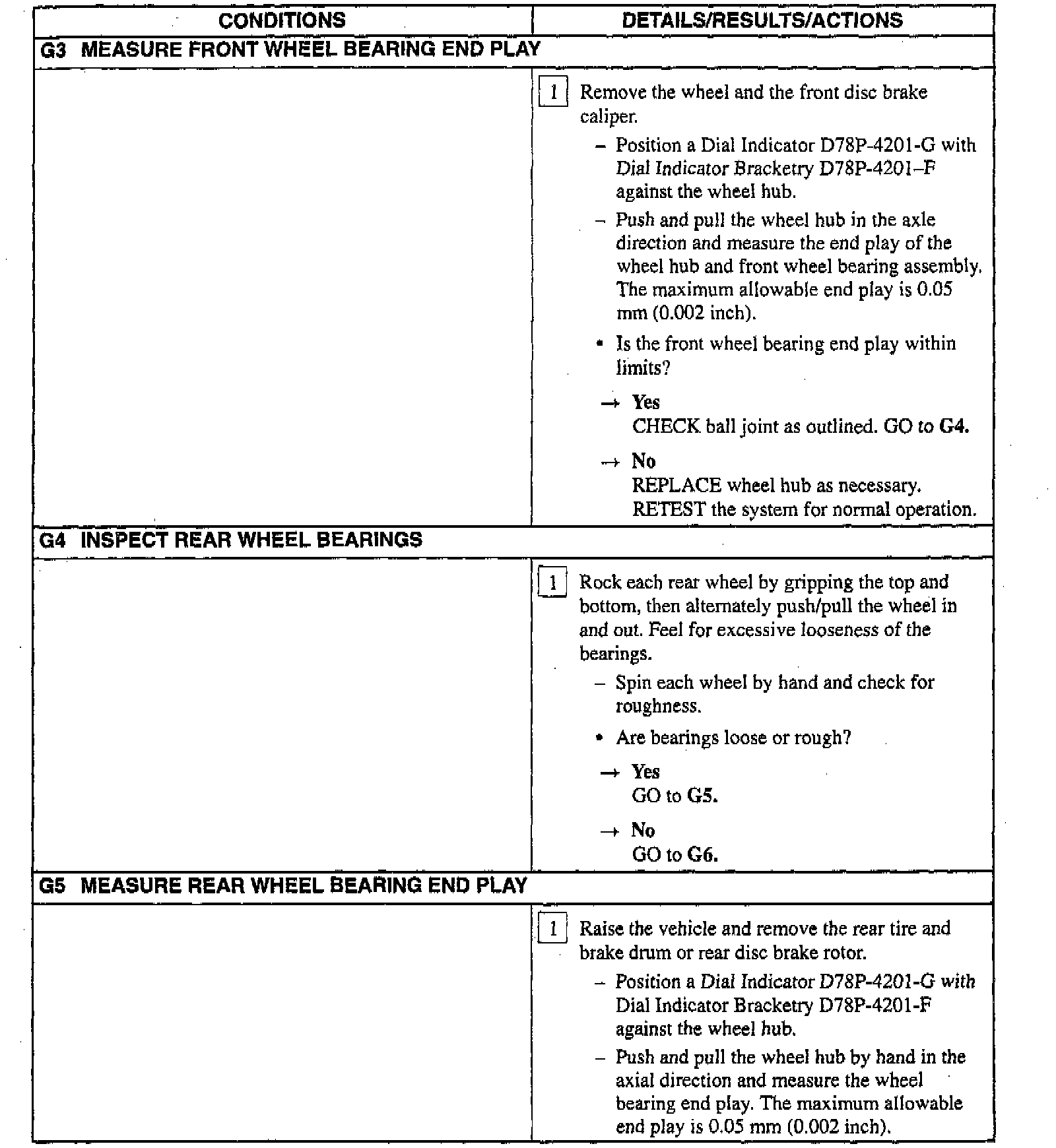

Test G3 - G5:

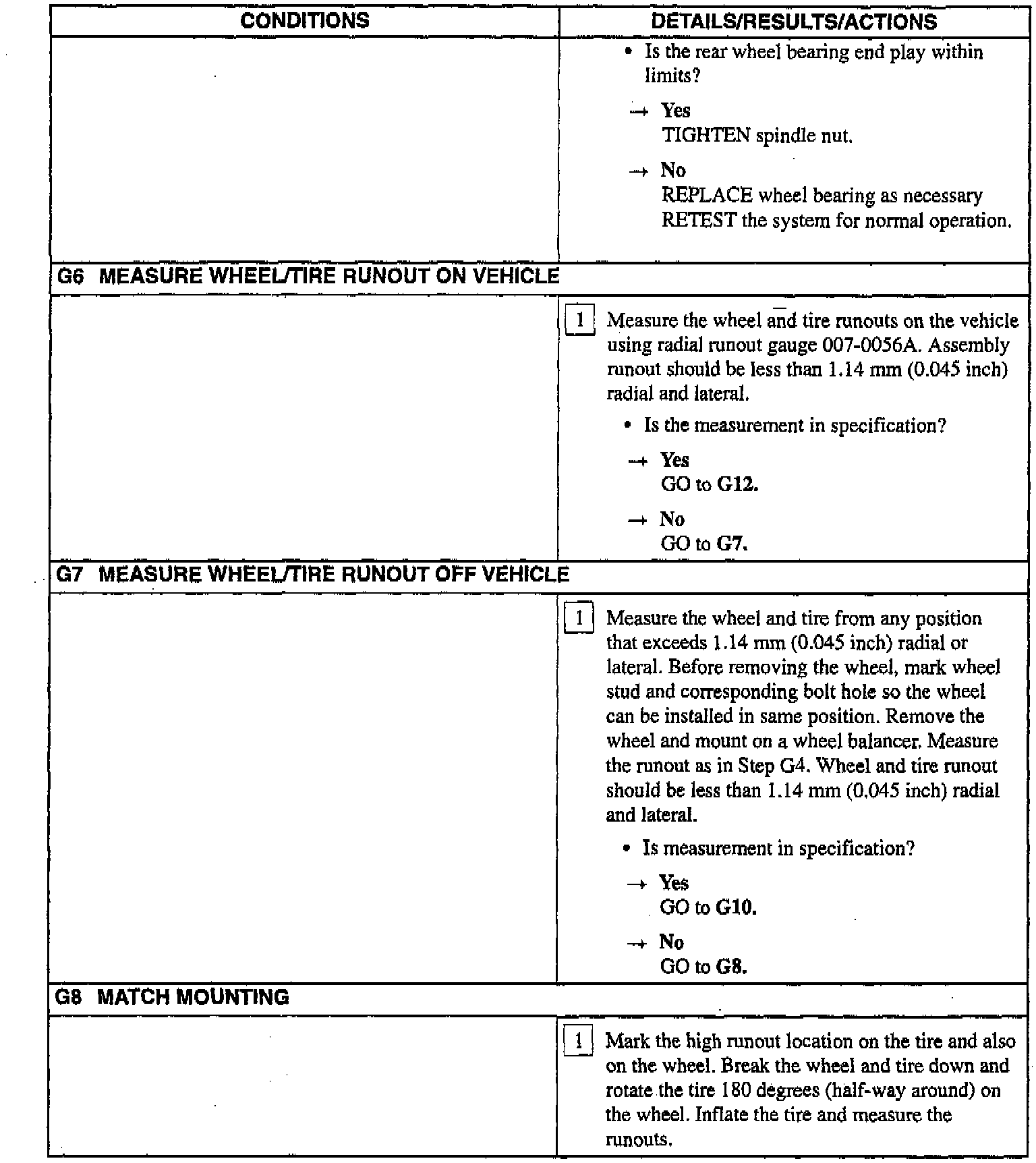

Test G5 - G8:

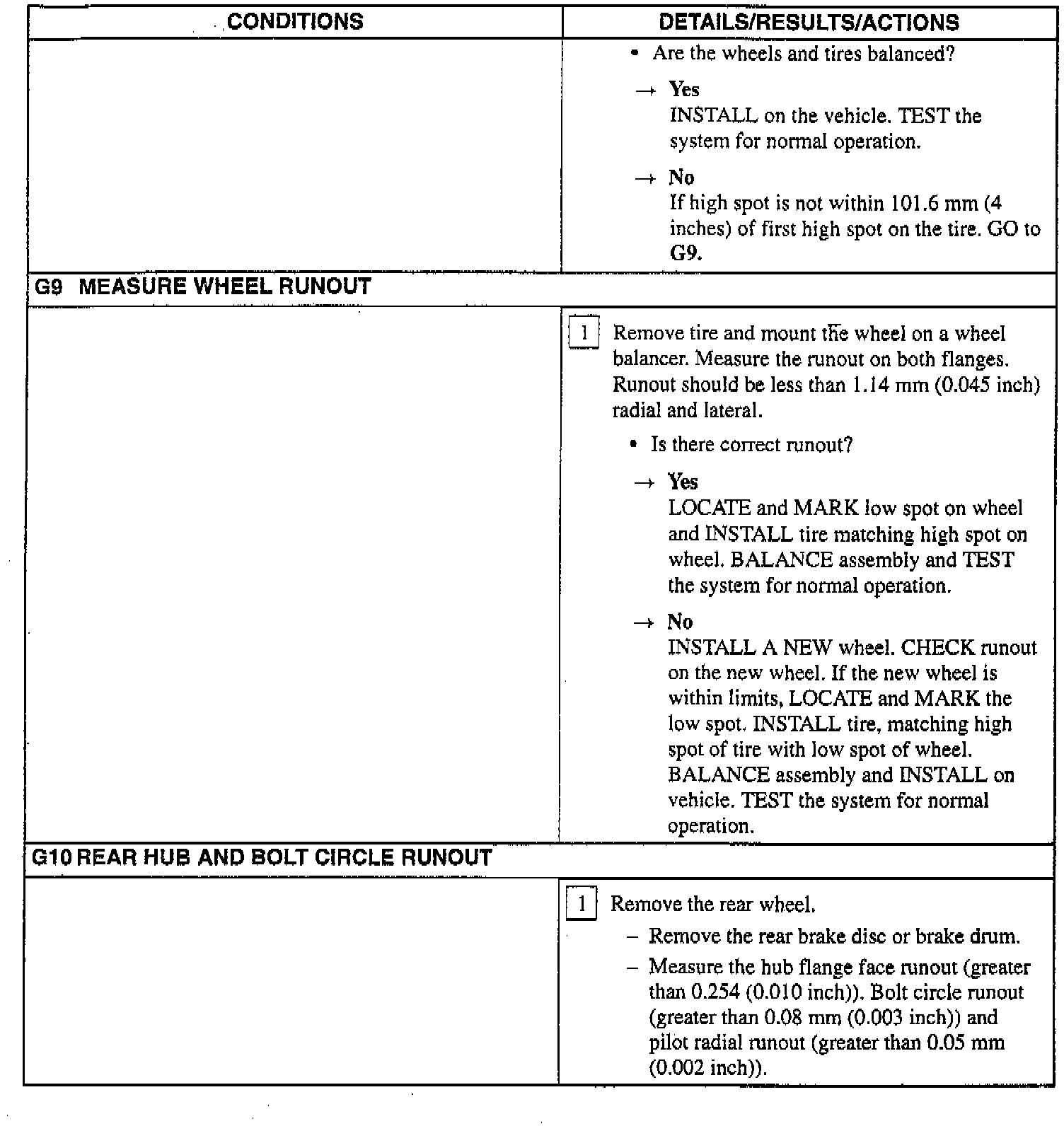

Test G8 - G10:

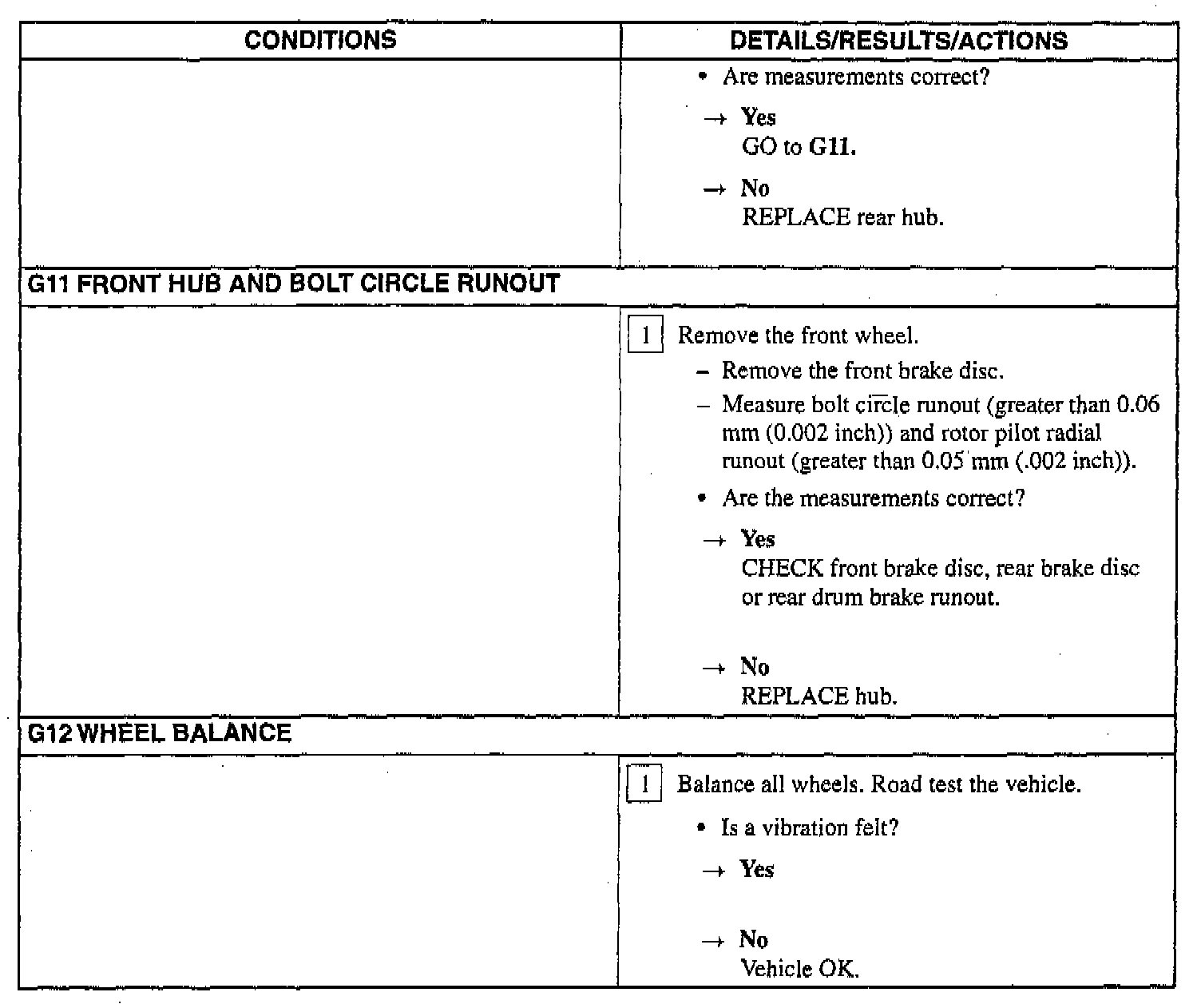

Test G10 - G12:
