Battery Junction Box
Battery Junction Box
Battery Junction Box:

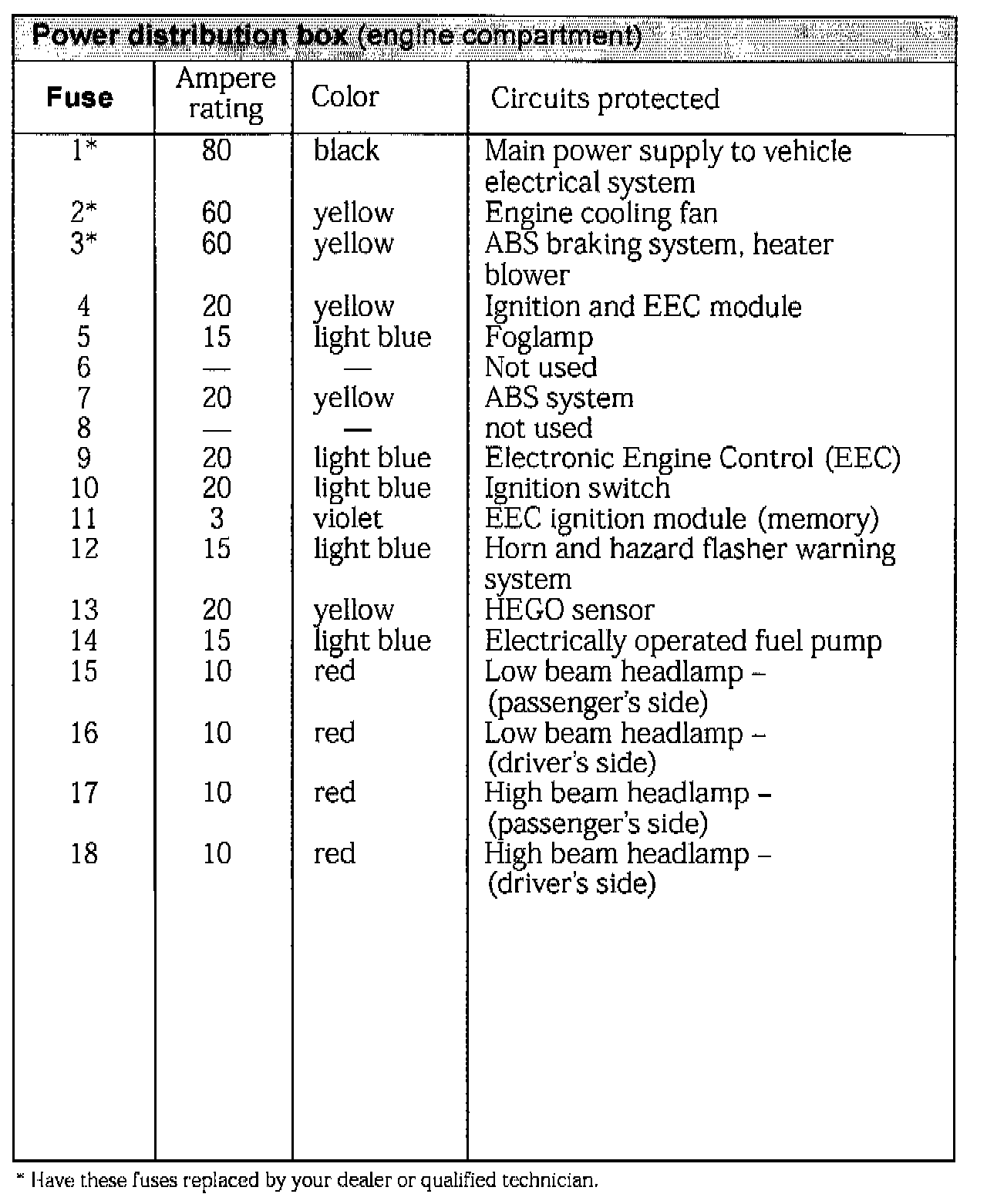

1 - 18:

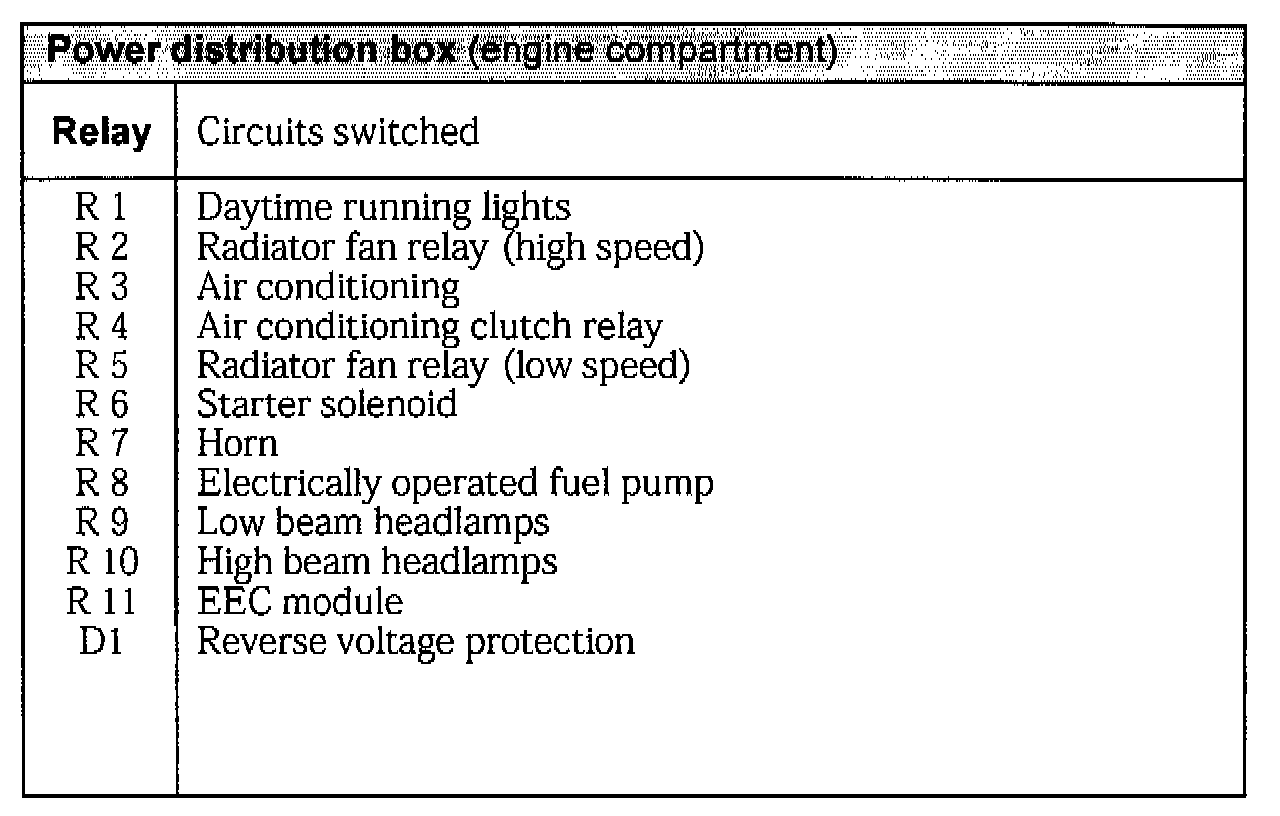

R1 - D1:
The Battery Junction Box is located in the engine compartment on the left hand side.
