Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Fuse Circuits >> F25 >> With Anti-Theft/Central Locking Module >> Higher Option Content

Higher Option Content

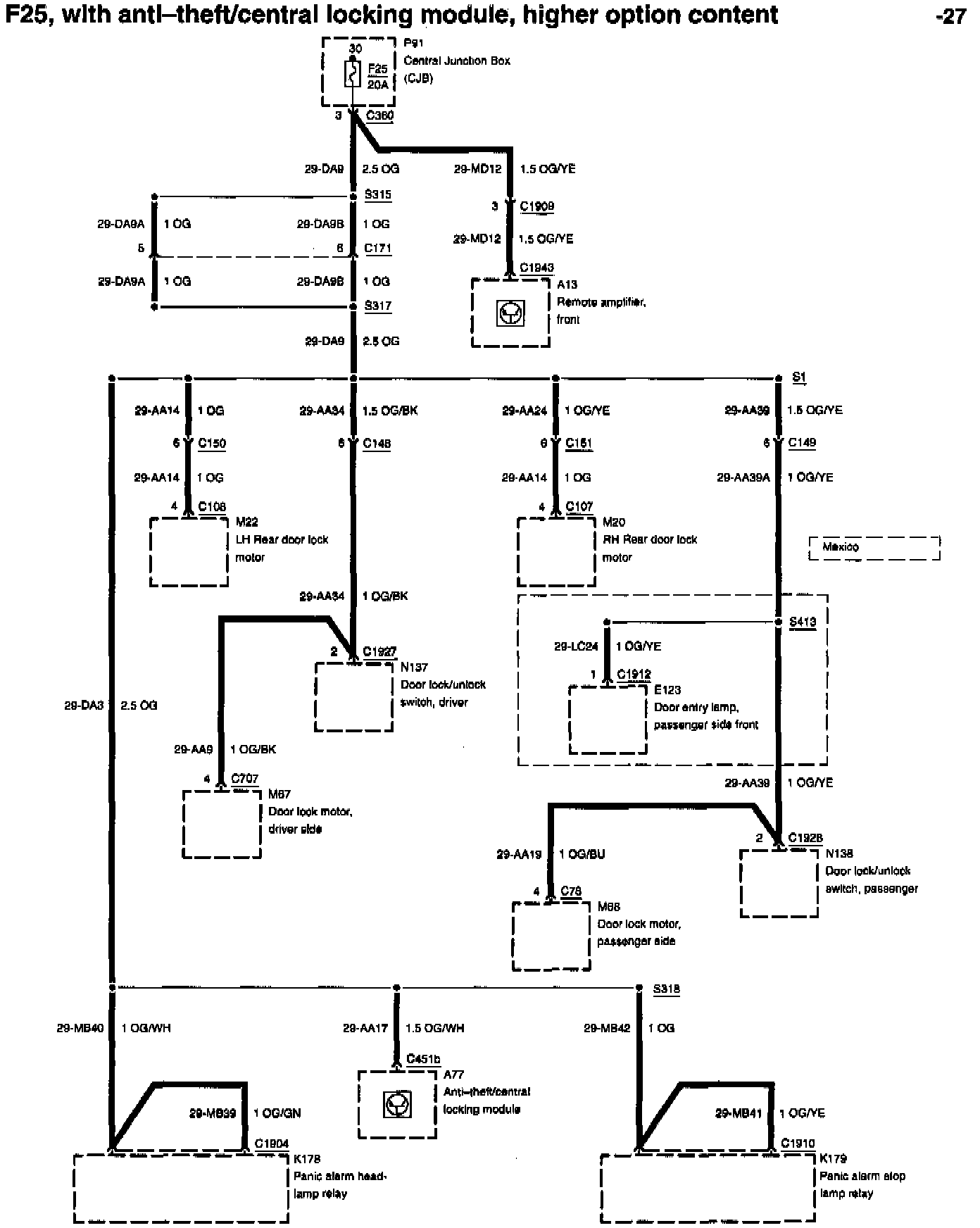

Diagram 700-03-00-27:





Diagram 700-02-00-4:





Diagram 700-02-00-1:
