Turn Signal Switch
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

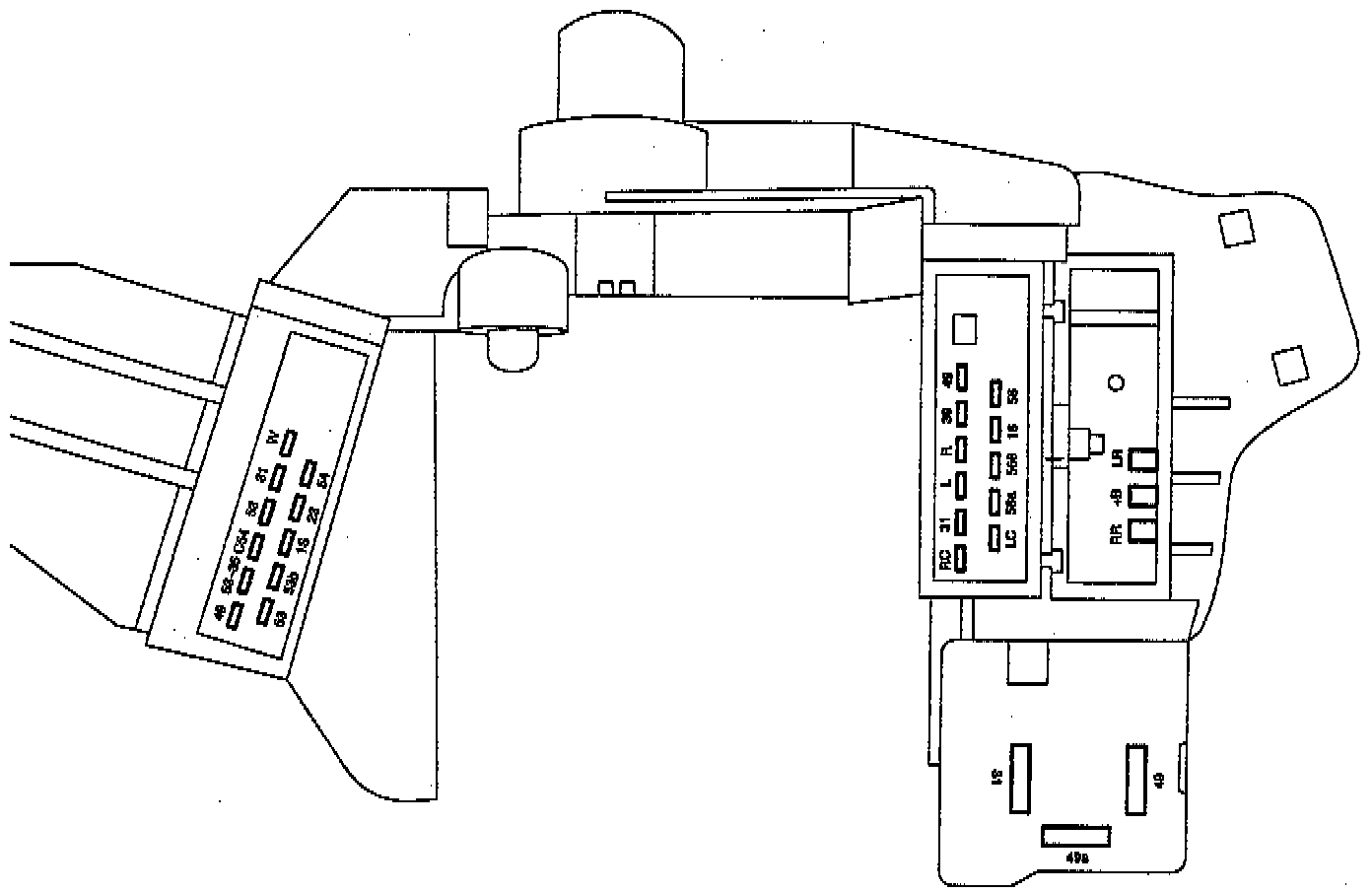

Multifunction Switch Pin ID:

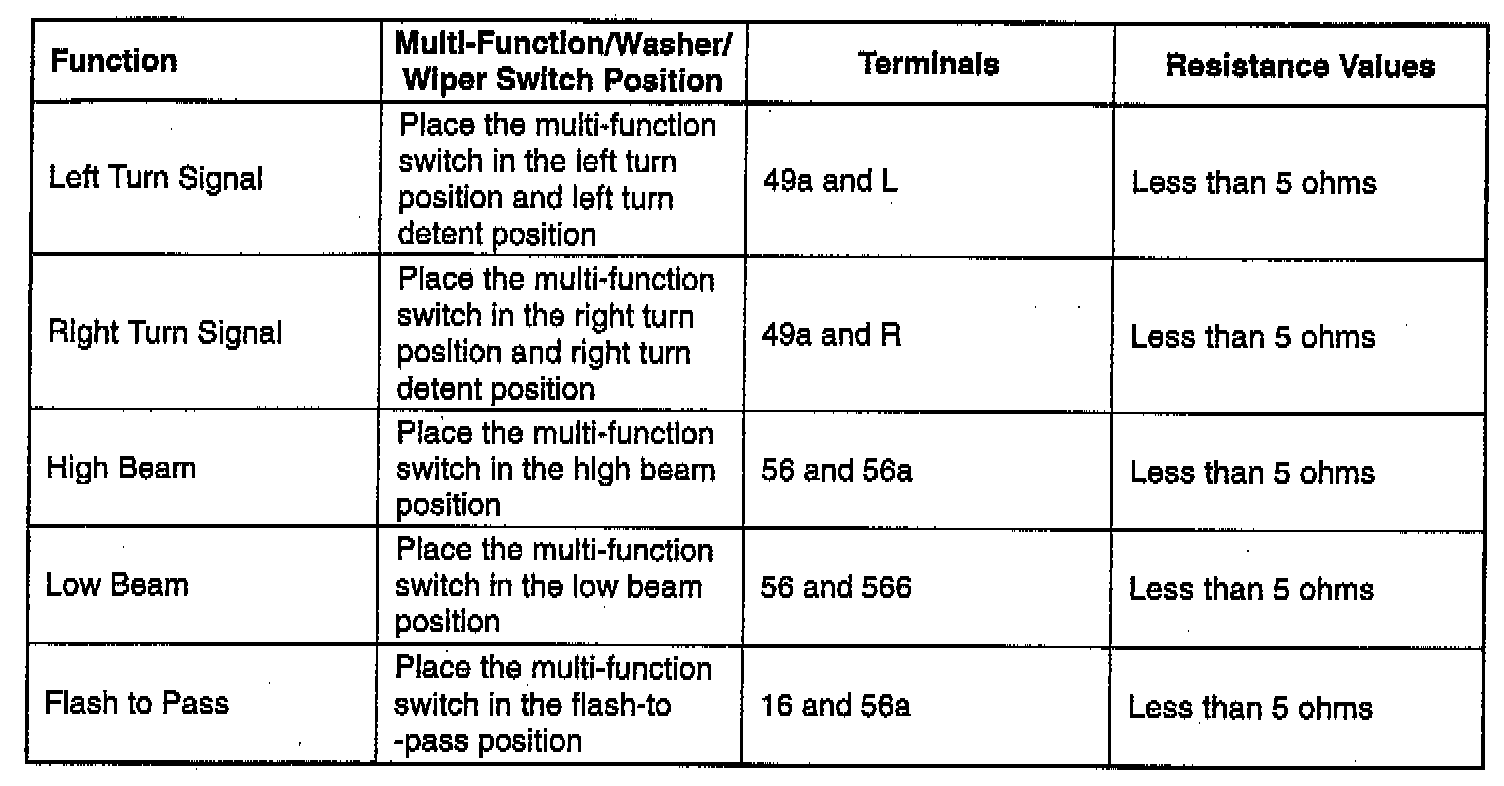

Multifunction Switch Continuity Test. Part 1 Of 2:

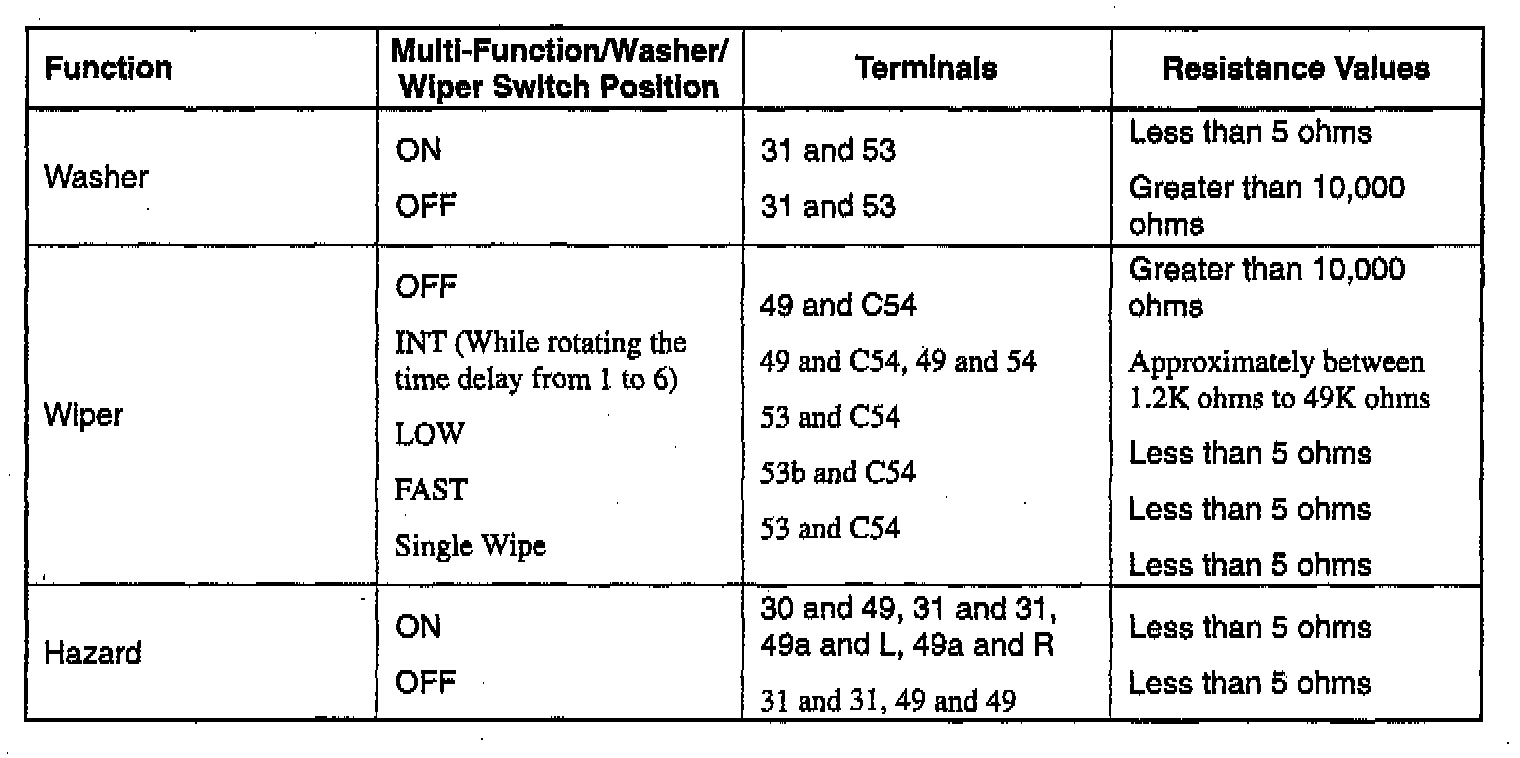

Multifunction Switch Continuity Test. Part 2 Of 2:
