Turn Signal Switch: Service and Repair

REMOVAL

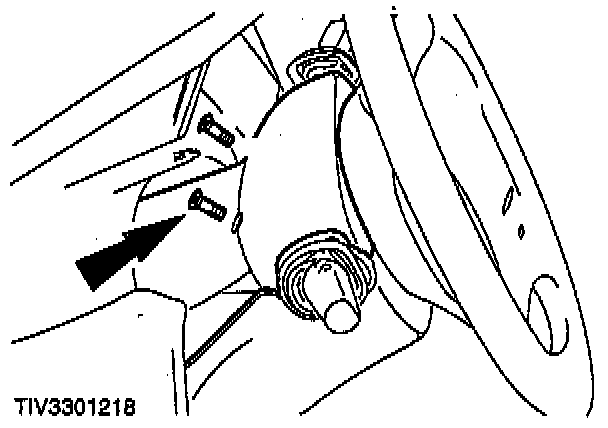

1. Remove the steering column lower shroud.
^ Remove the three screws.





2. Remove the steering column upper shroud.
^ Remove the two screws

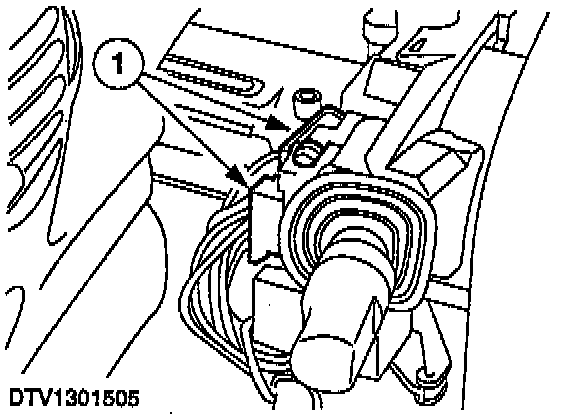

3. Disconnect the multi-function switch electrical connectors.

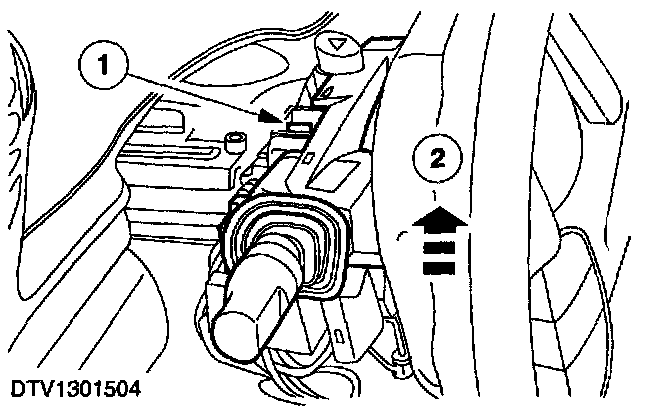

4. Remove the multi-function switch.
1 Disengage the retaining clip.
2 Remove the multi-function switch.

INSTALLATION
1. To install, reverse the removal procedure.
