Without Speed Control

REMOVAL


1. Remove the driver's air bag module.







2. Remove the plate and springs.

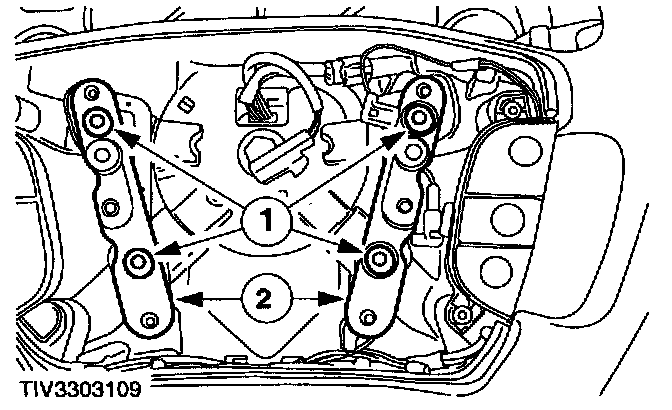

1 Remove the screws.
2 Remove the plate and springs.







3. Disconnect the horn switch electrical connector.

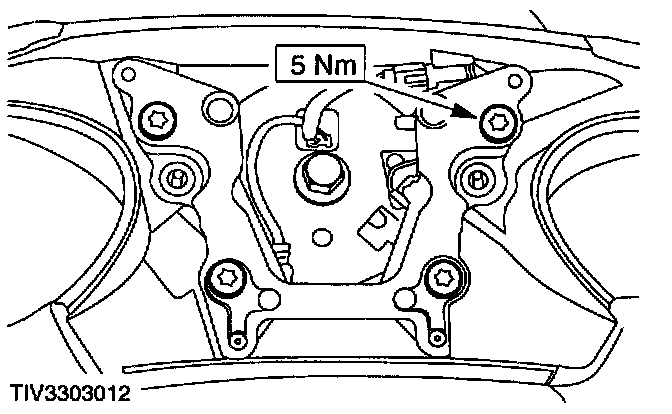

4. Remove the switch assembly.







INSTALLATION
1. To install, reverse the removal procedure.
