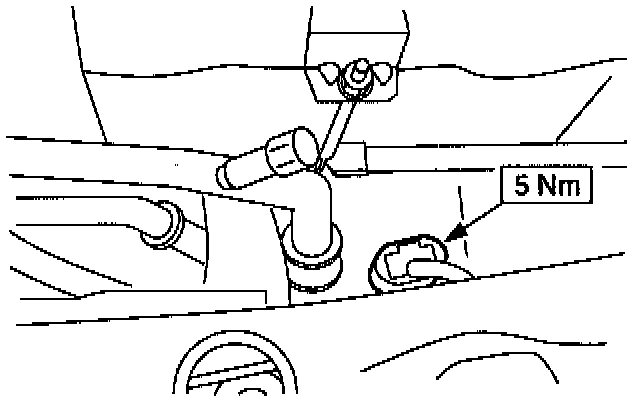

A/C Cycling Switch

REMOVAL







1. Disconnect the battery ground cable.







2. Remove the A/C cycling switch.
^ Disconnect the electrical connector.

INSTALLATION
1. Lubricate the new O-ring seal.

NOTE: Use Motorcraft YN-12b Refrigerant Oil F2AZ-19577-AC or equivalent meeting Ford specification WSH-M1C231-B.







2. To install, reverse the removal procedure.
^ Check A/C system for normal operation.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
