Blower Motor Switch: Service and Repair

REMOVAL
1. Remove the radio chassis.
2. Remove the floor console.







3. Remove the control opening finish panel.
1. Remove the four screws.
2. Disconnect the headlamp dimmer switch electrical connector.
3. Remove the panel.

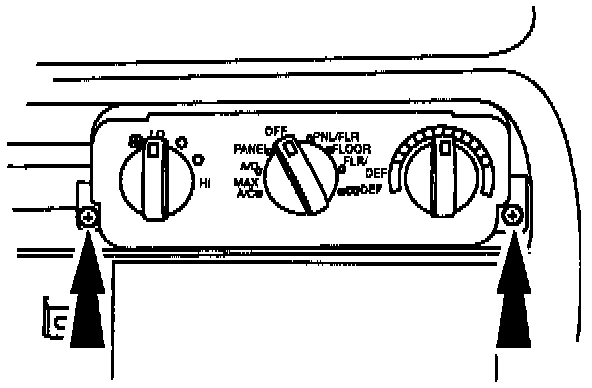

4. Remove the climate control assembly screws.







5. Position the climate control assembly.

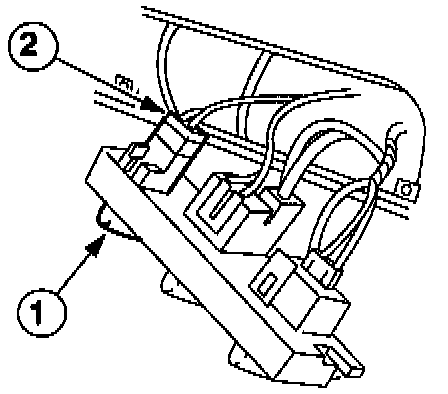

1. Disconnect the blower motor switch electrical connector.
2. Remove the control knob.







6. Remove the blower motor switch retaining screw and the blower motor switch.

INSTALLATION
1. To install, reverse the removal procedure.
