Air Conditioning Switch: Service and Repair

REMOVAL
1. Remove the radio chassis.
2. Remove the floor console.







3. Remove the control opening finish panel.
1. Remove the four screws.
2. Disconnect the headlamp dimmer switch electrical connector.
3. Remove the panel.







4. Remove the climate control assembly screws.

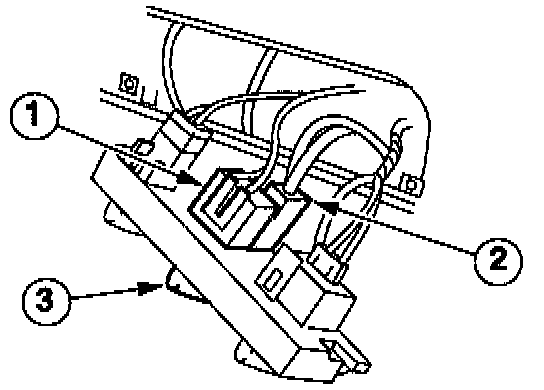

5. Position the climate control assembly.
1. Disconnect the air distribution switch electrical connector.
2. Disconnect the vacuum harness connector.
3. Remove the control knob.
6. Remove the air distribution control switch.
^ Pry up on switch to separate from climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
