Rear

REMOVAL
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.
3. Remove the wheel.

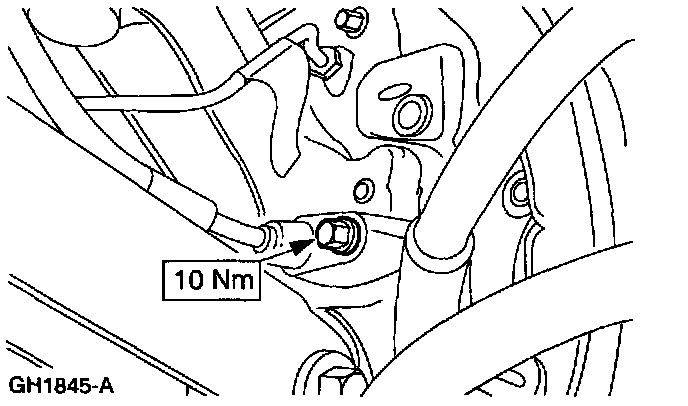

4. Remove the sensor bolt.

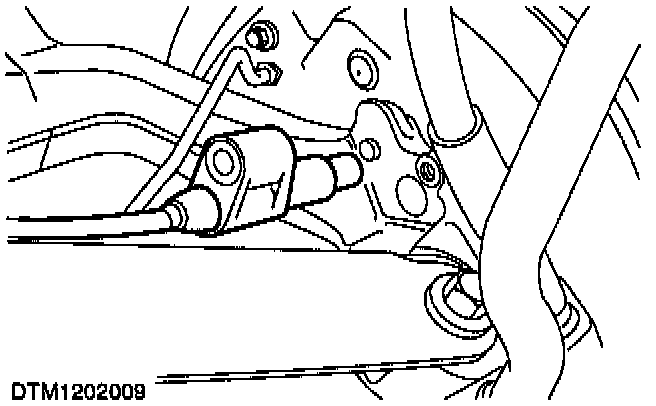

5. Remove the wheel sensor from the backing plate.

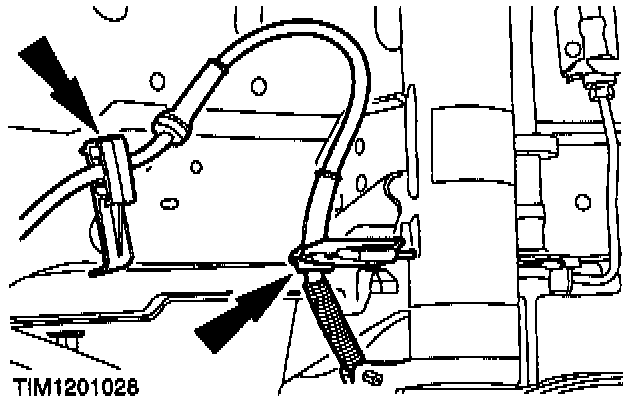

6. Disconnect the sensor wiring from the support brackets.
7. Lower the vehicle.

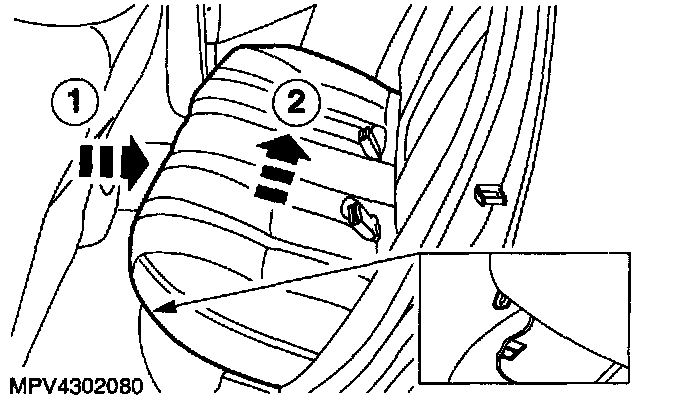

8. Raise the rear seat cushion.
1 Push the cushion towards the backrest.
2 Push the cushion up.

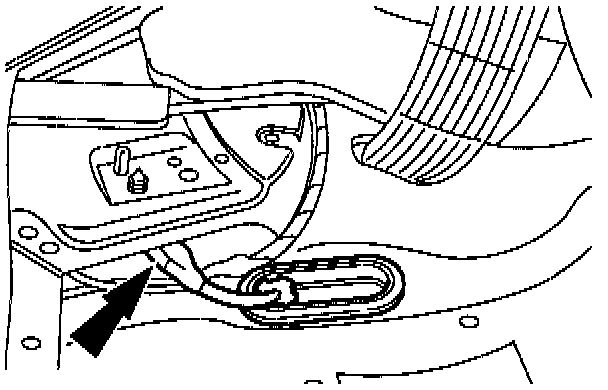

9. Disconnect the wheel sensor electrical connector.

INSTALLATION





1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
