Mercury
>>
1998
>>
Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Sunroof / Moonroof Switch
>>
Testing and Inspection
Sunroof / Moonroof Switch: Testing and Inspection
1.

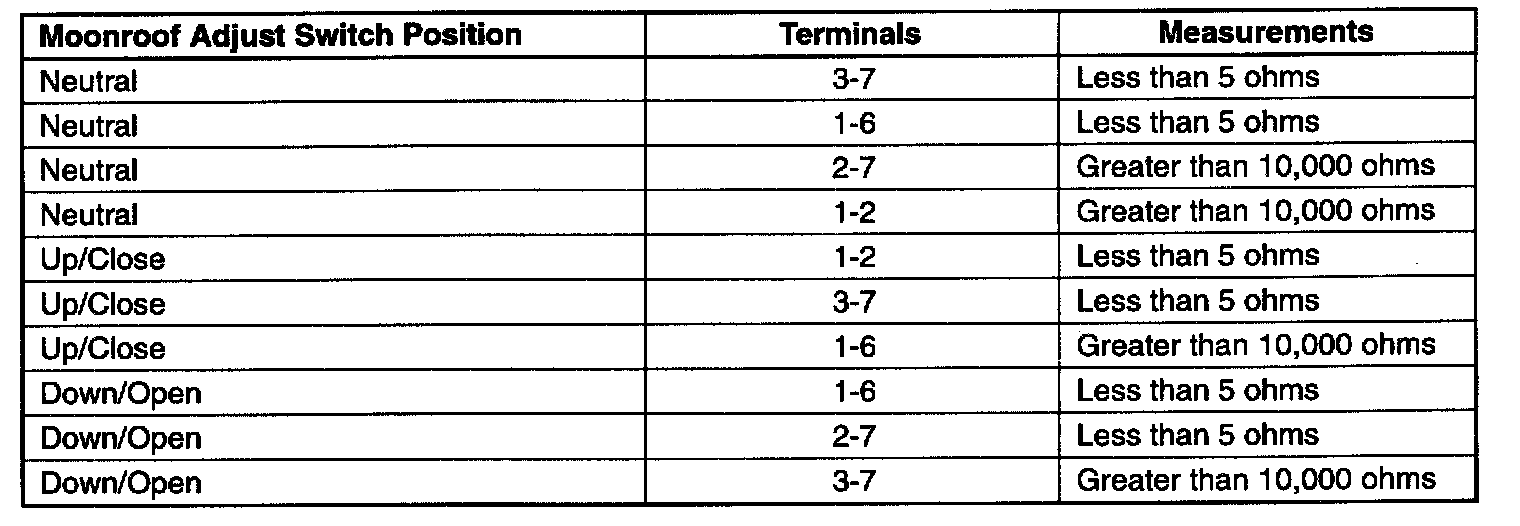

Measure the resistance.
2.
If all measurements of the moonroof adjust switch are as noted, return to the pinpoint test. Otherwise replace the moonroof adjust switch.
