Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt
>>
Service and Repair
>>
Retractor Side
>>
Rear
>>
Center
Center

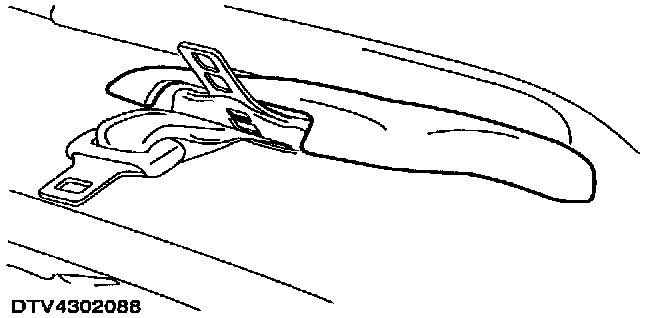

REMOVAL
1.
Remove the trim cover.
^
Unclip the four comers of the trim cover.
2.
Detach the retractor.
3.
Remove the retractor.
INSTALLATION
1.
To install, reverse the removal procedure.
