Front

REMOVAL



1. Detach the safety belt from the front seat.

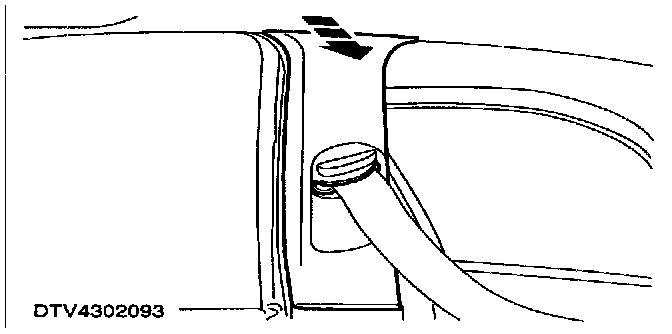

2. Detach the upper B-pillar trim panel.
^ Unclip from the top.

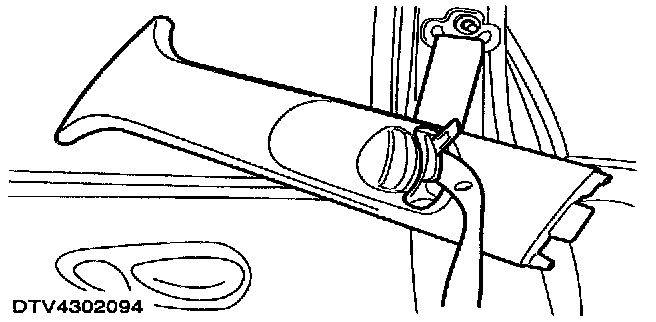

3. Remove the trim panel from the safety belt.
^ Pass the safety belt through the hole in the trim panel.

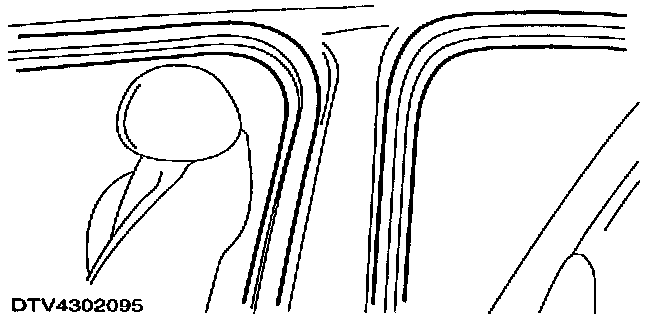

4. Detach the door weatherstrip.

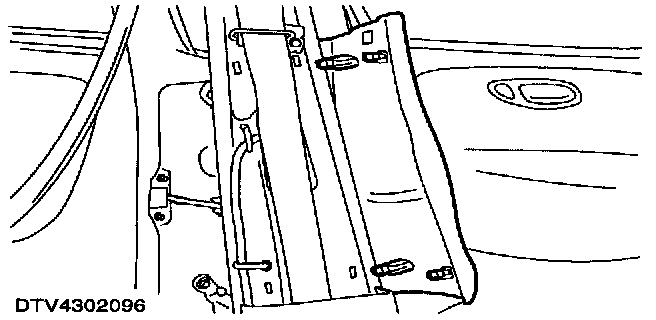

5. Remove the lower B-pillar trim panel.
^ Detach the four clips.

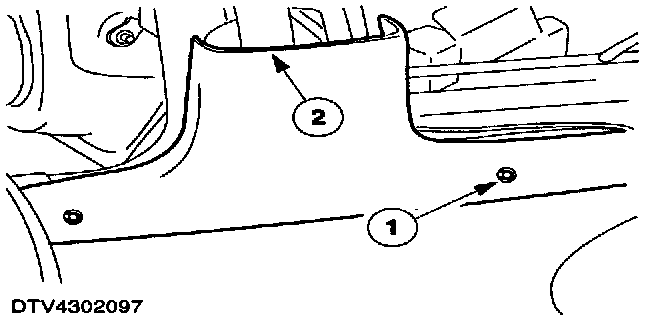

6. Detach the scuff plate trim panel.
1. Remove the two screws.
2. Pull back the trim panel.




7. Detach the safety belt guides from the B-pillar
^ Detach the belt guide.
^ Detach the guide.




8. Remove the retractor.
1. Remove the bolt.
2. Remove the screw.











INSTALLATION
1. To install, reverse the removal procedure.
