C: Torque Converter Clutch (TCC) Solenoid

Pinpoint Test Steps:

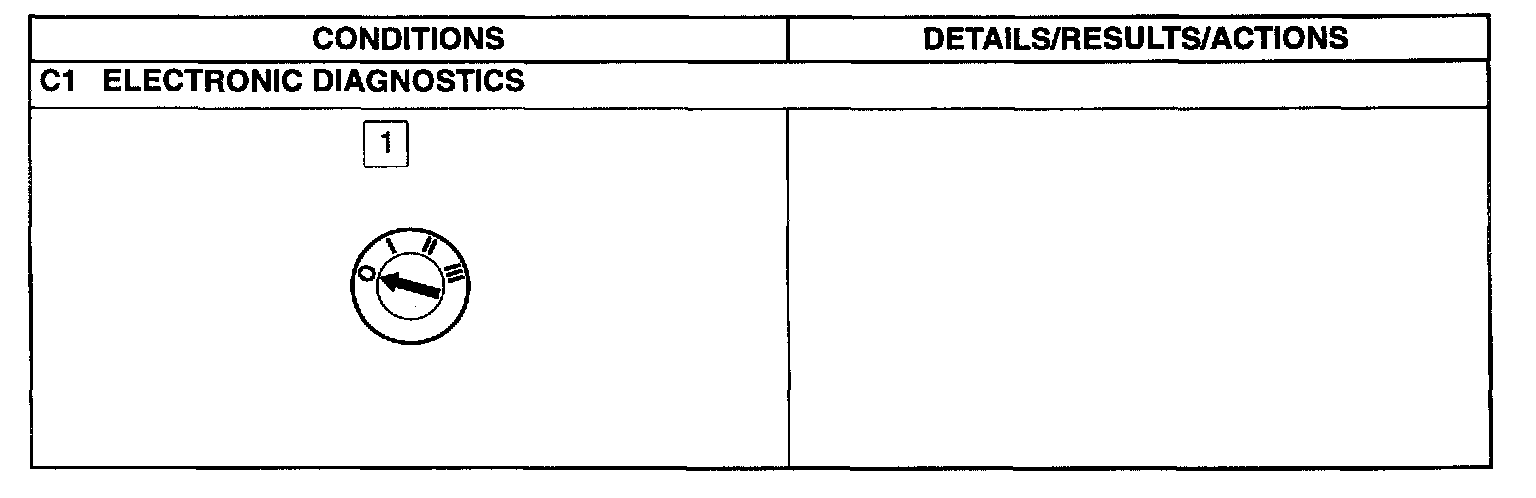

Test C1:

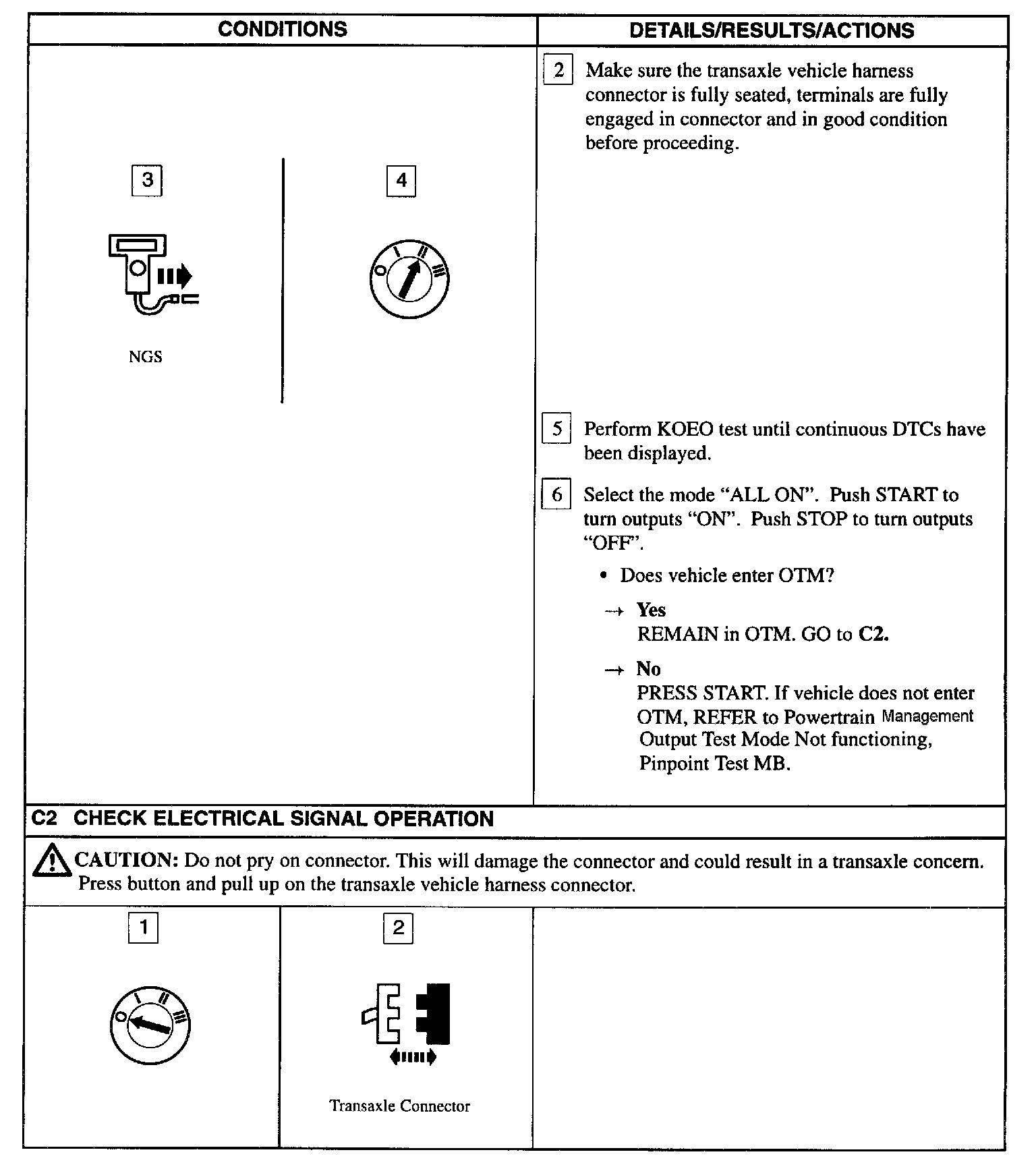

Test C1 - C2:

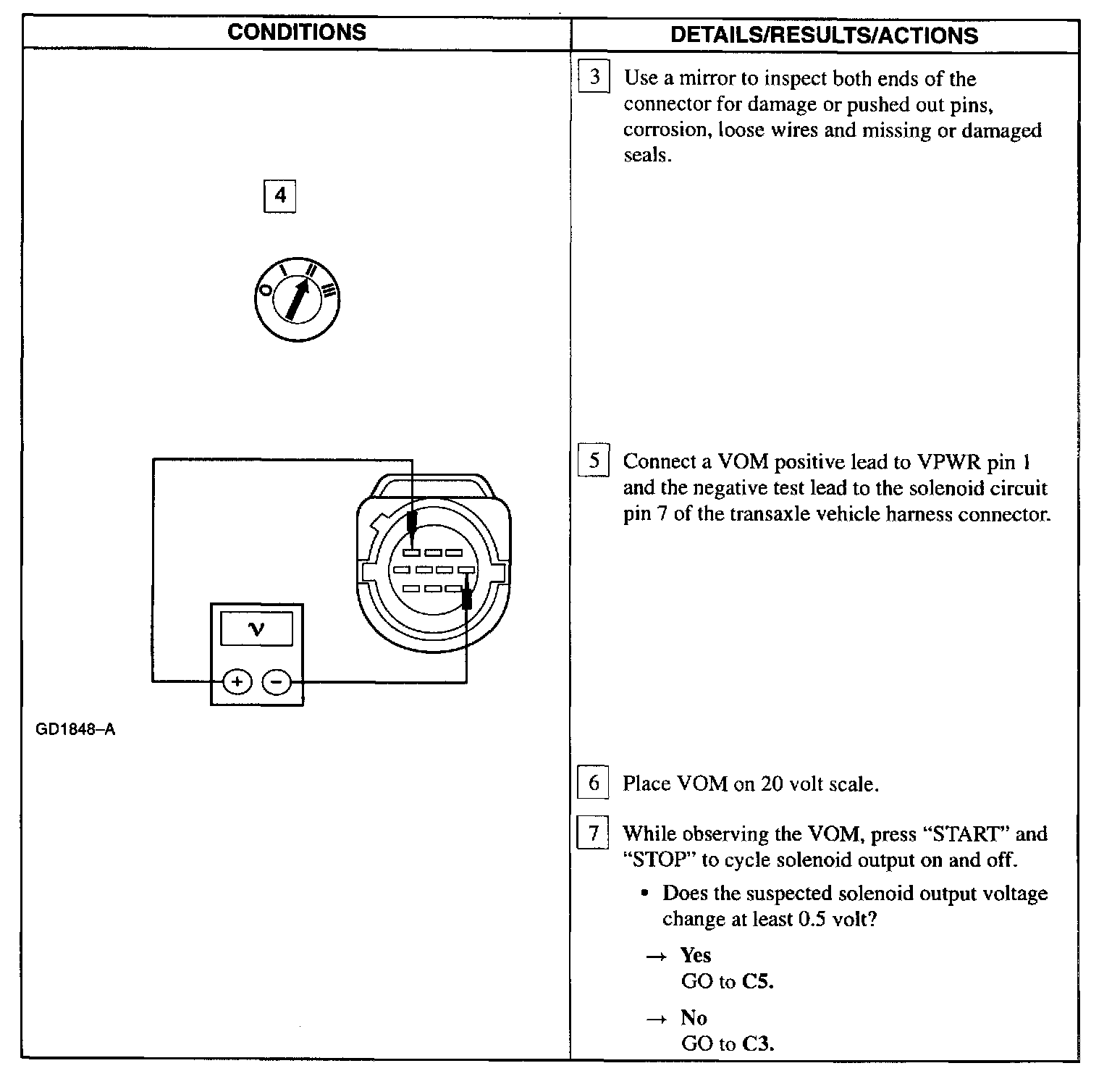

Test C2:

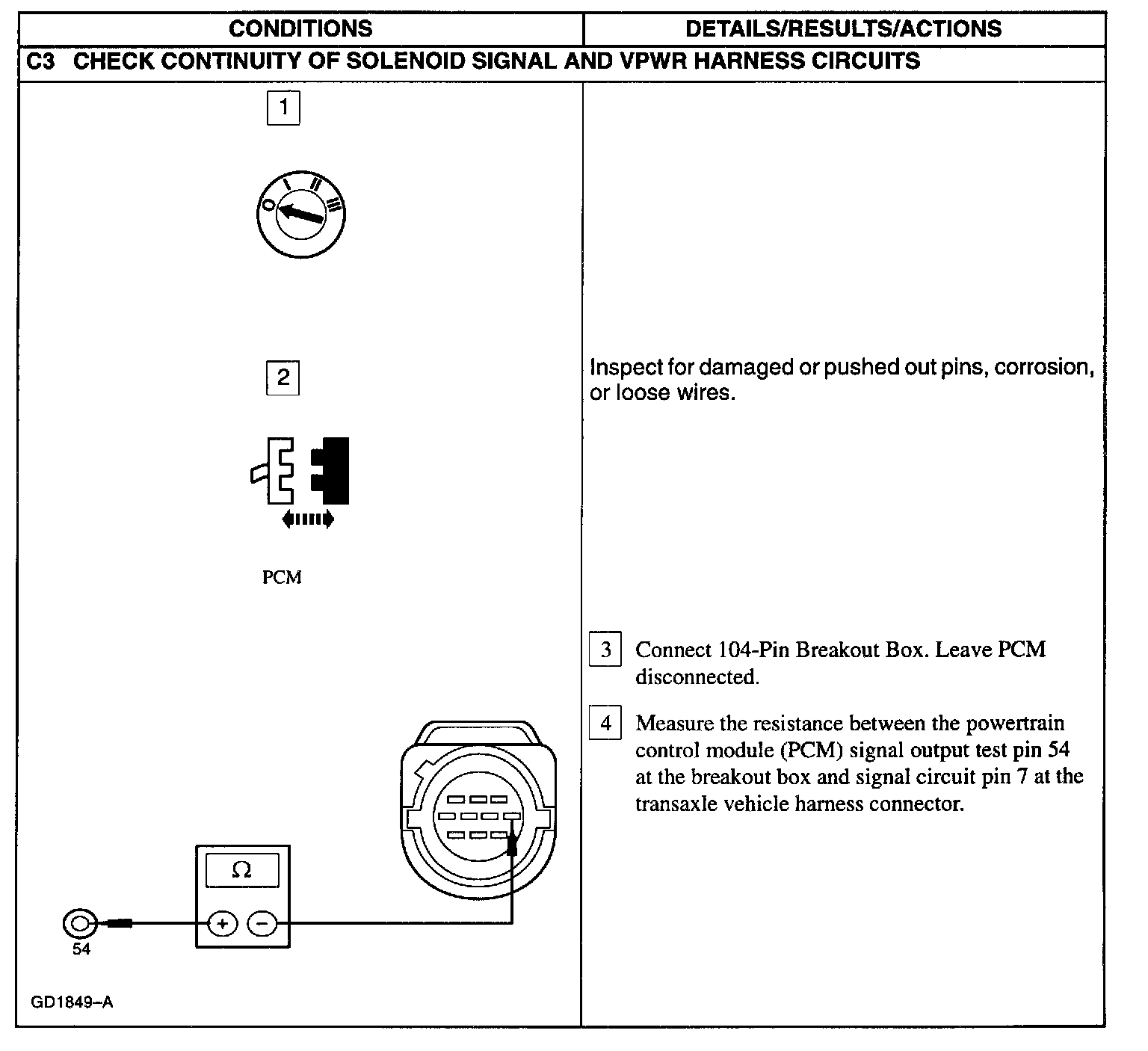

Test C3:

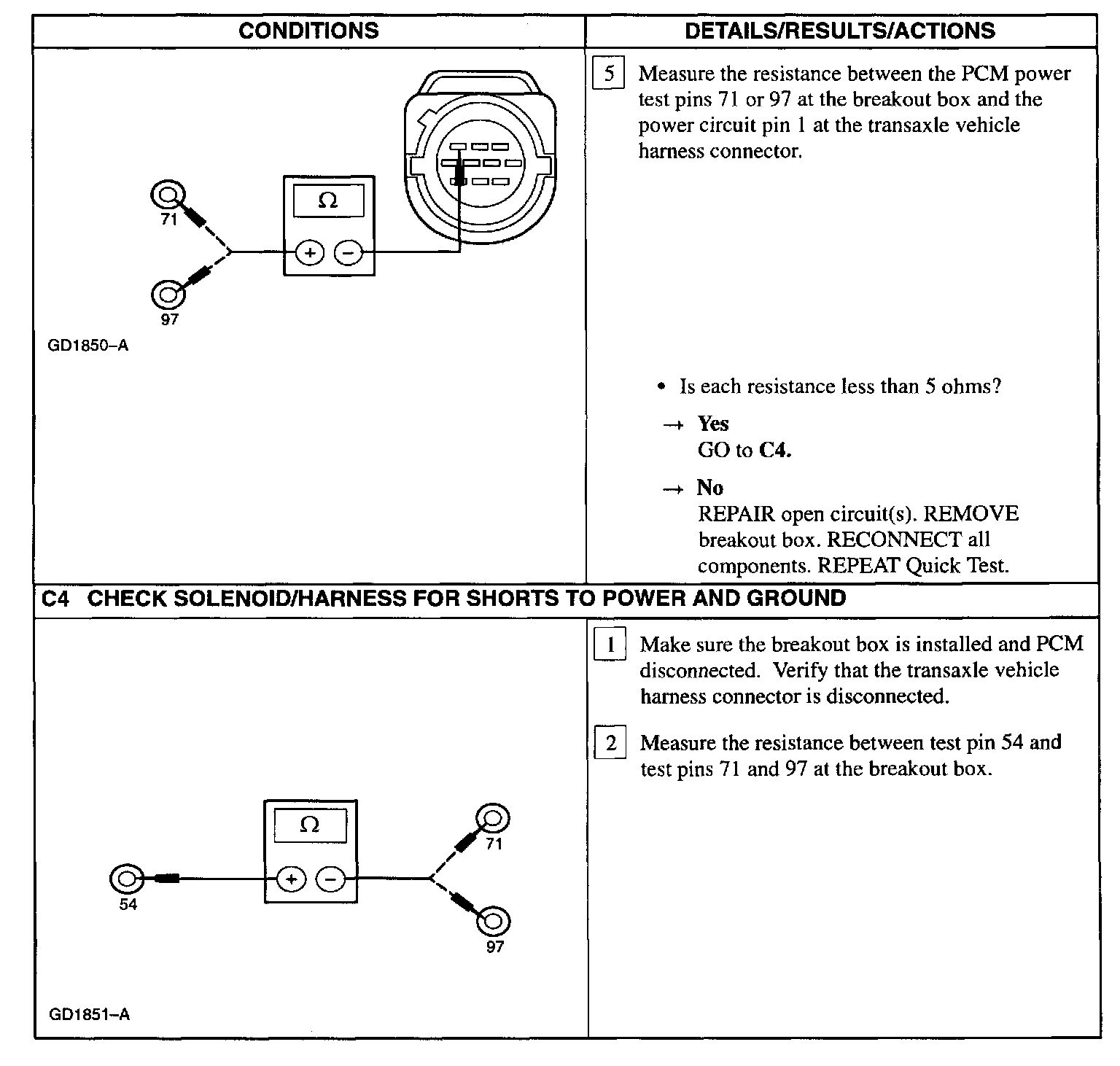

Test C3 - C4:

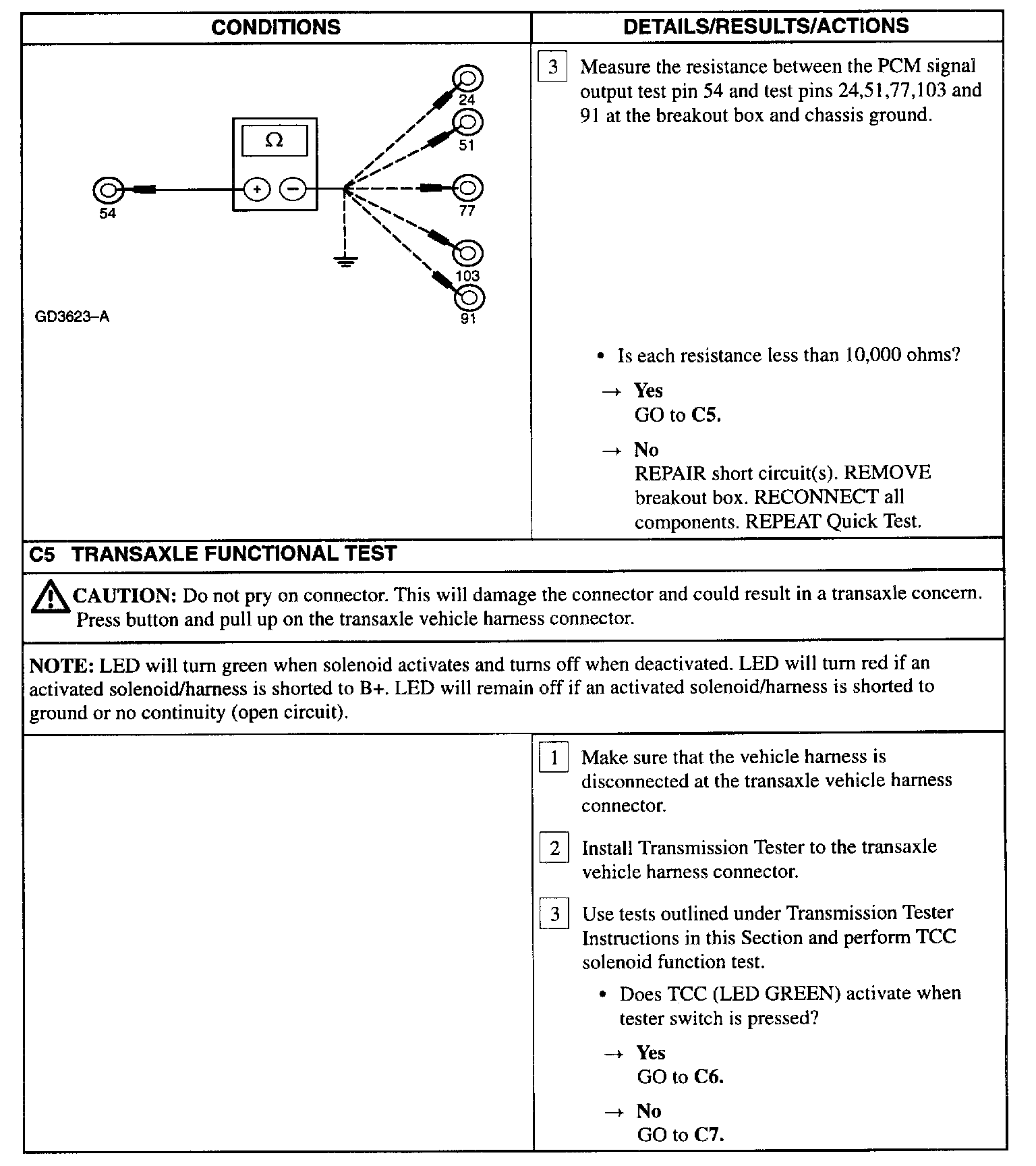

Test C4 - C5:

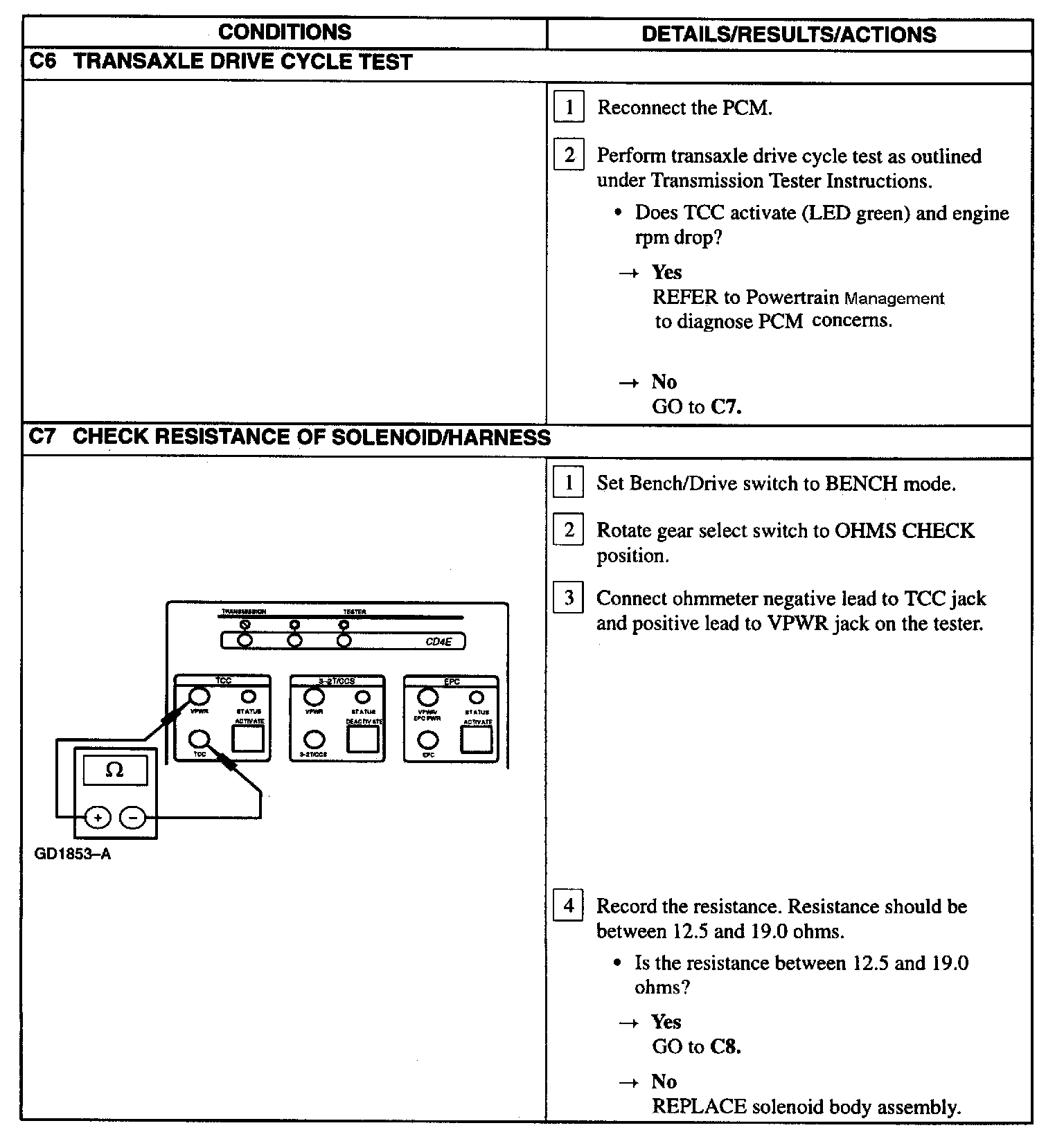

Test C6 - C7:





Test C8:
