B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor
B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor

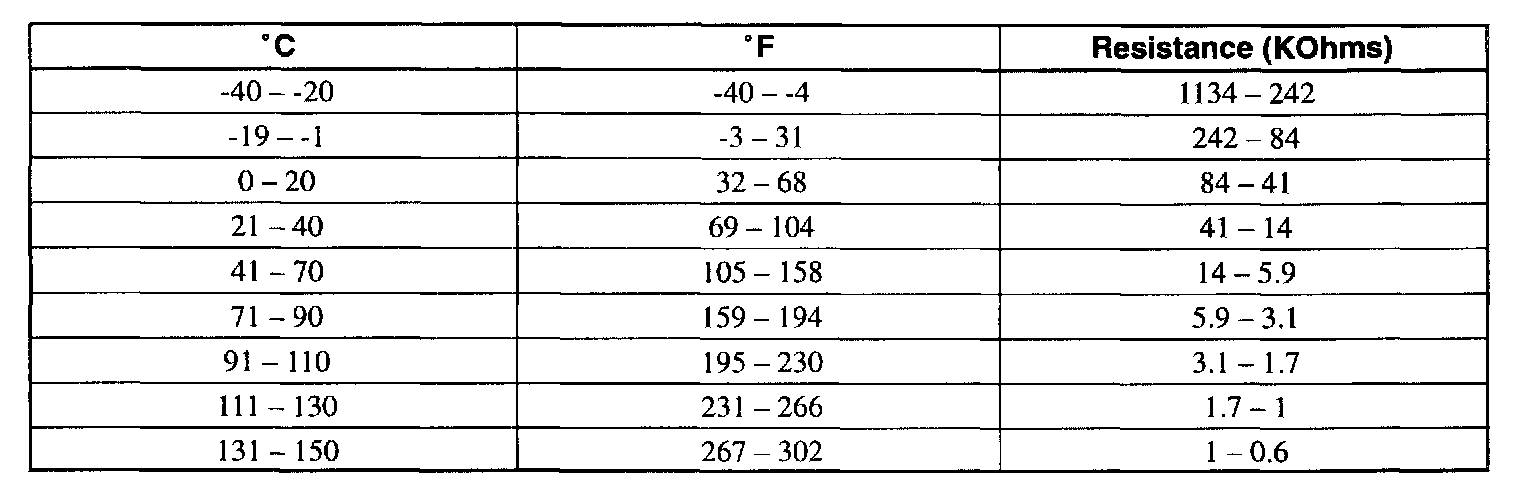

Transmission Fluid Temperature Chart:
Pinpoint Test Steps:

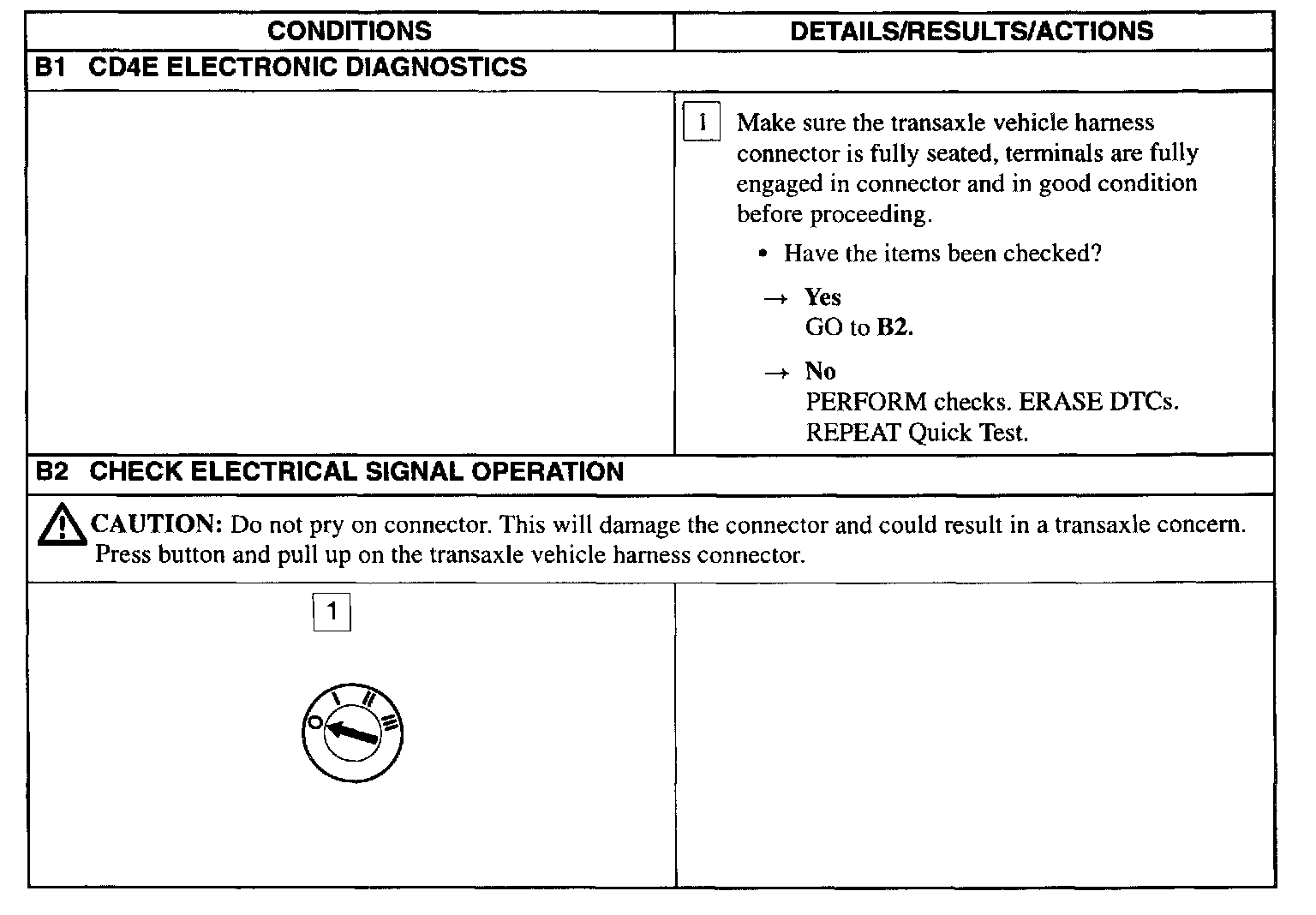

Test B1 - B2:

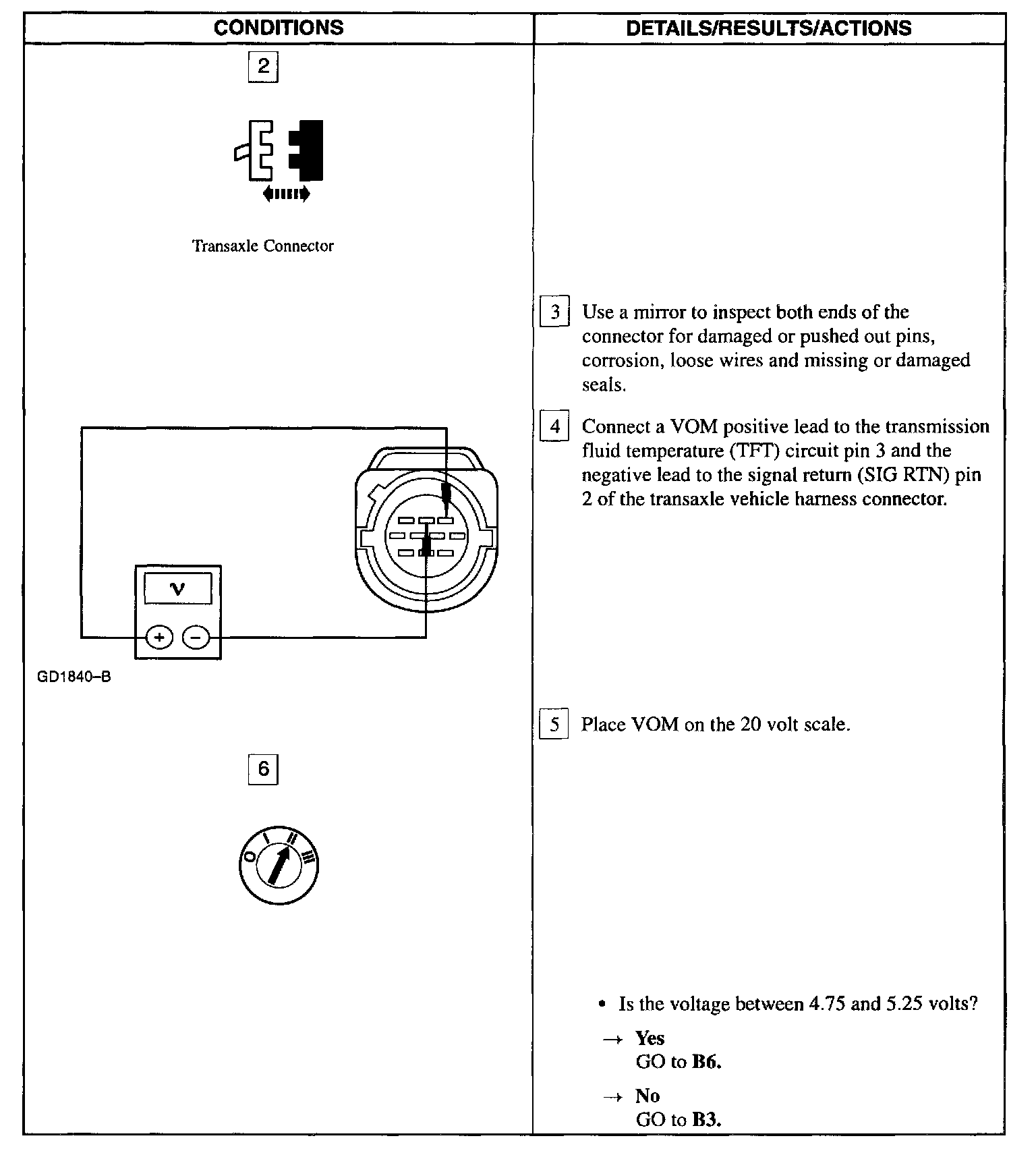

Test B2:

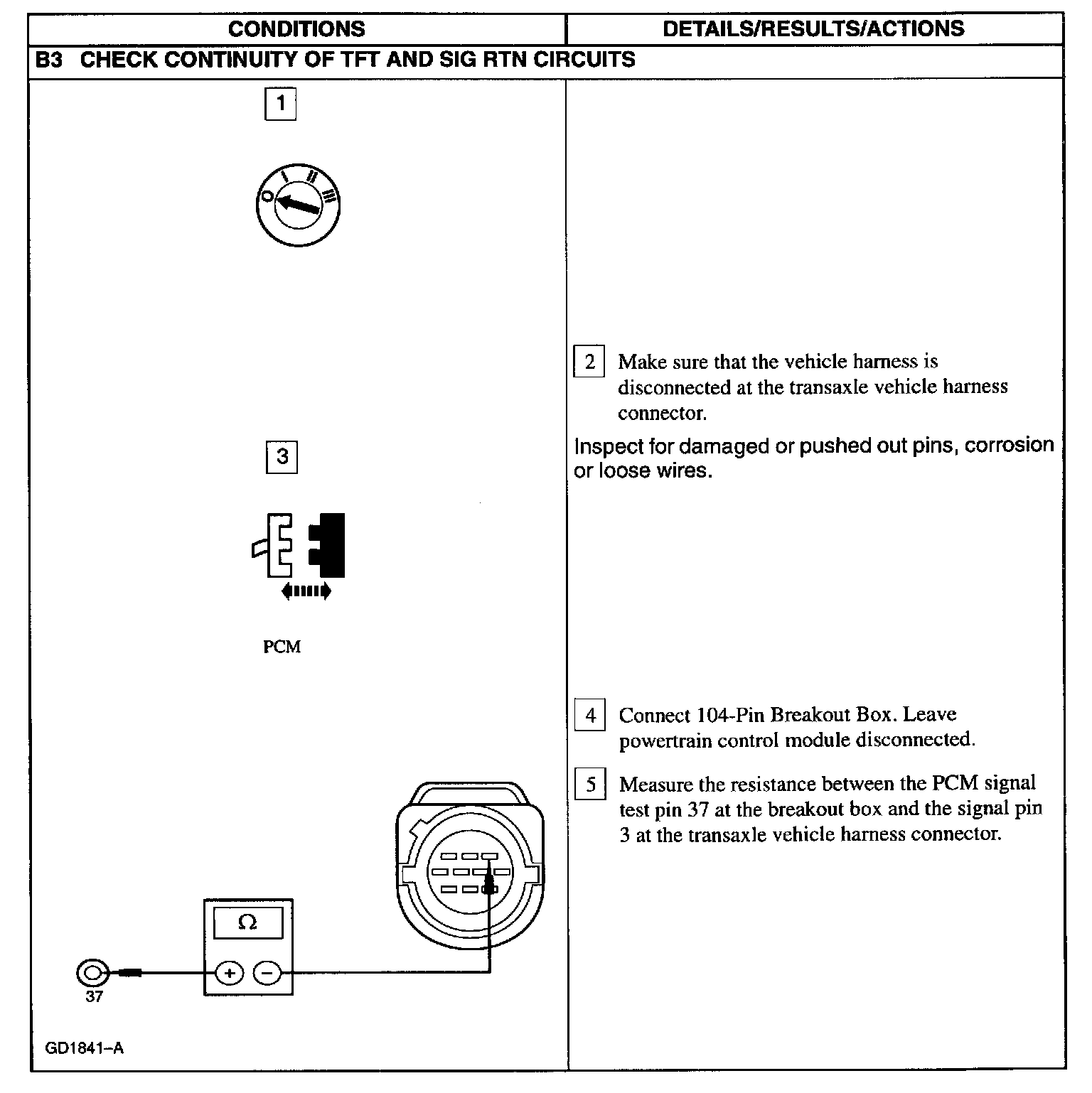

Test B3:

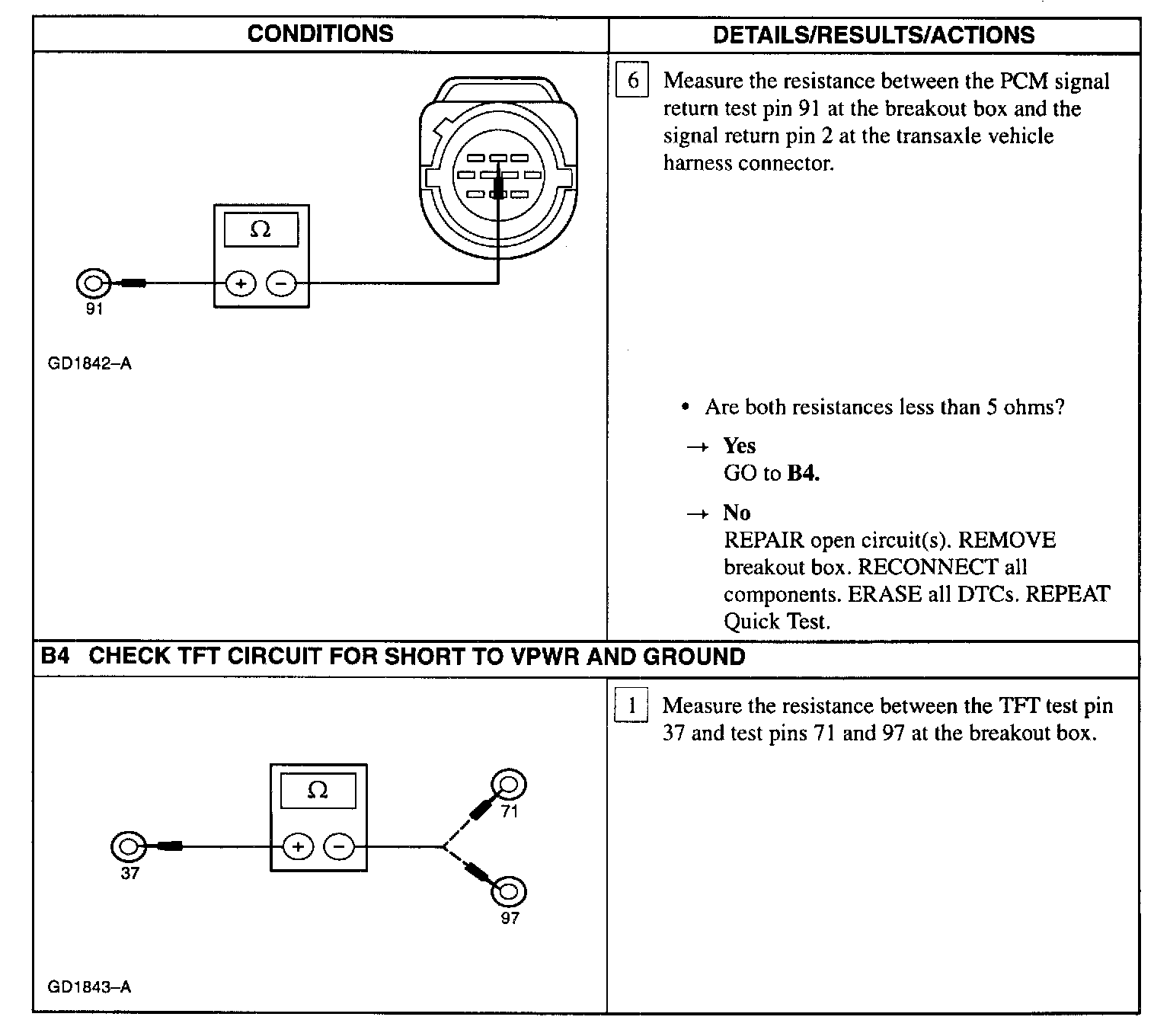

Test B3 - B4:

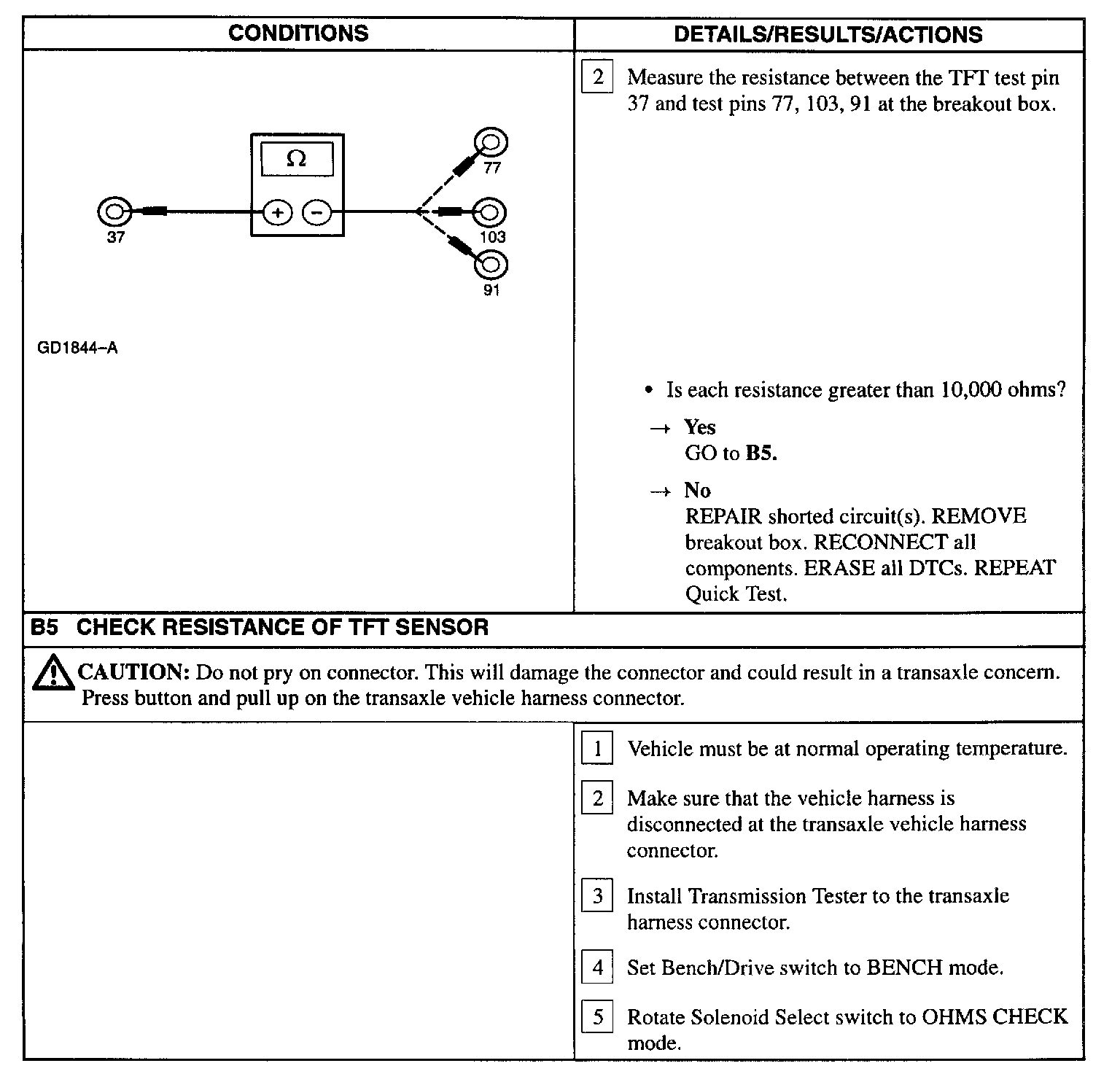

Test B4 - B5:

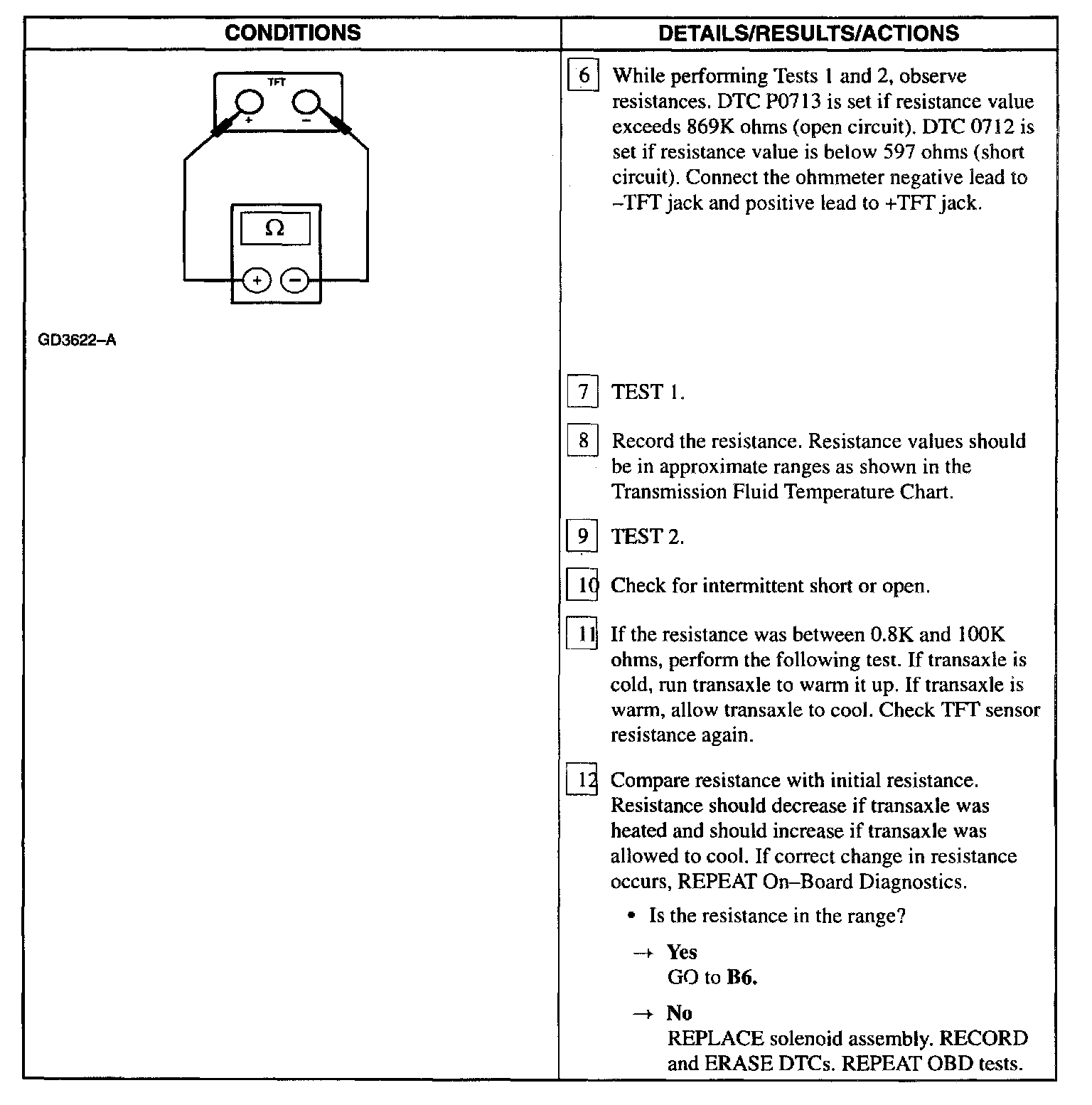

Test B5:

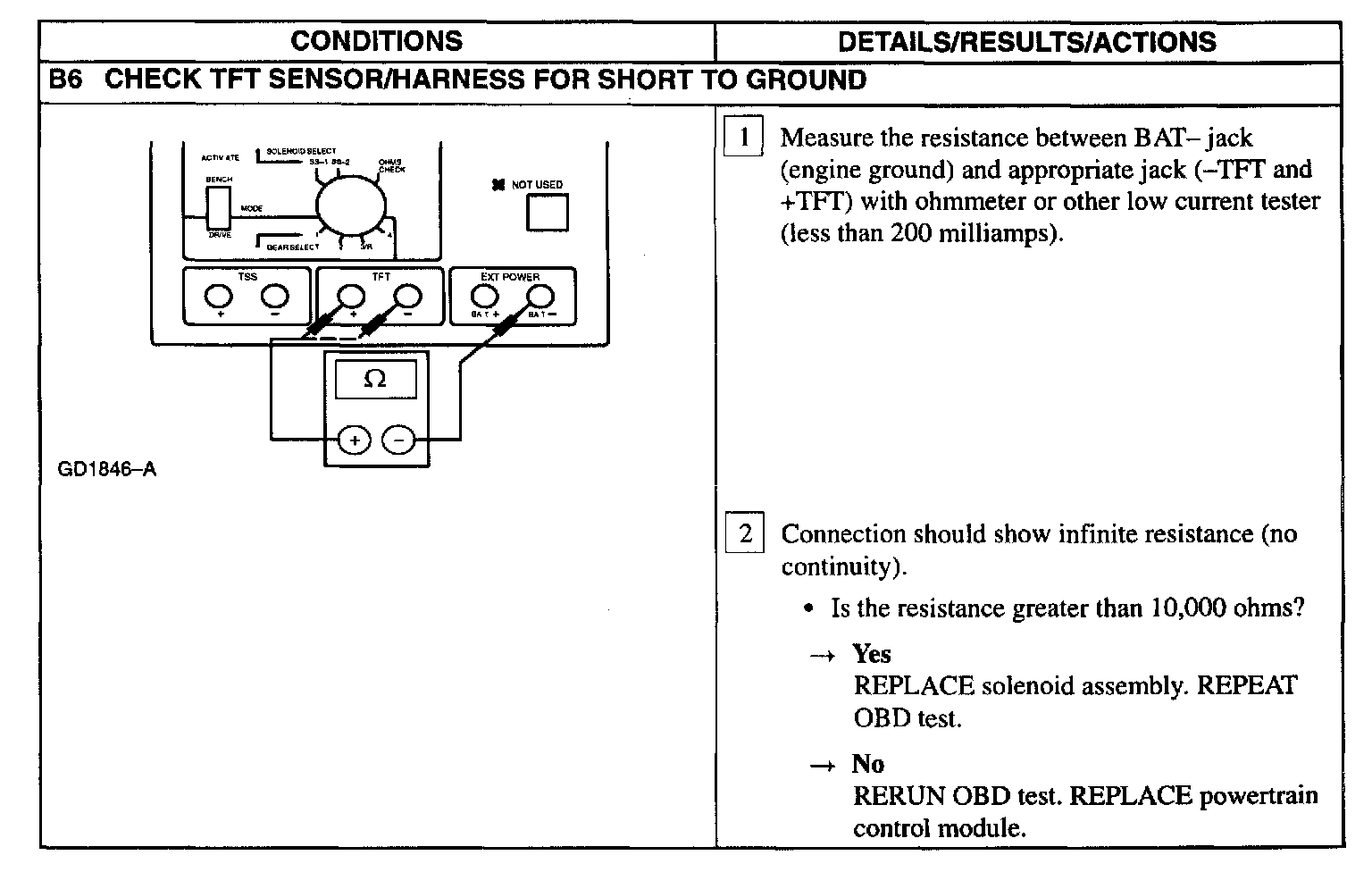

Test B6:
