Liquid Vapor Separator: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.







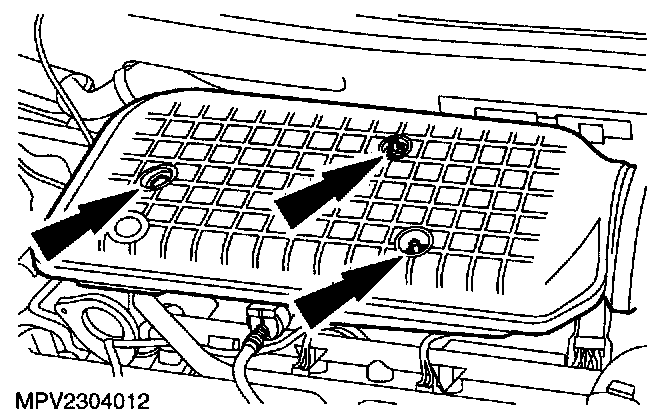

2. Remove the intake air resonator.







3. Disconnect the vapor management valve electrical connector.







4. Remove the vapor management valve retaining nuts.







5. Disconnect the vacuum hose from the vapor management valve.







6. Disconnect the vapor tubes and remove the vapor management valve.

INSTALLATION
1. To install, reverse the removal procedure.
