Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Disconnect the battery negative cable.
2. Raise and support the vehicle.







3. Disconnect the ventilation hose from the retaining clips.







4. Loosen the evaporative emission canister carrier rear retaining bolts.

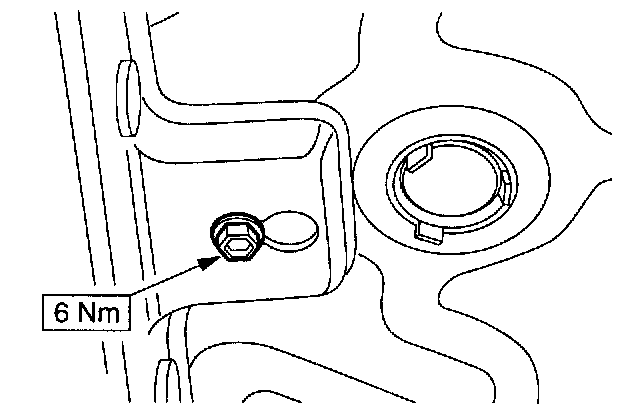

5. Remove the evaporative emission canister carrier front retaining bolt.







6. Partially lower the evaporative emission canister and carrier assembly.







7. Disconnect the evaporative emission canister vent solenoid electrical connector.







8. Disconnect the vapor tube connector from the evaporative emission canister.
9. Remove the evaporative emission canister and carrier assembly.







10. Remove the evaporative emission canister vent solenoid.
1 Disconnect the solenoid from the canister.
2 Remove the solenoid.







11. Remove the evaporative emission carbon canister.
1 Pry the carrier away from the canister.
2 Remove the canister.












INSTALLATION
1. To install, reverse the removal procedure.
