Variable Valve Timing Actuator: Locations

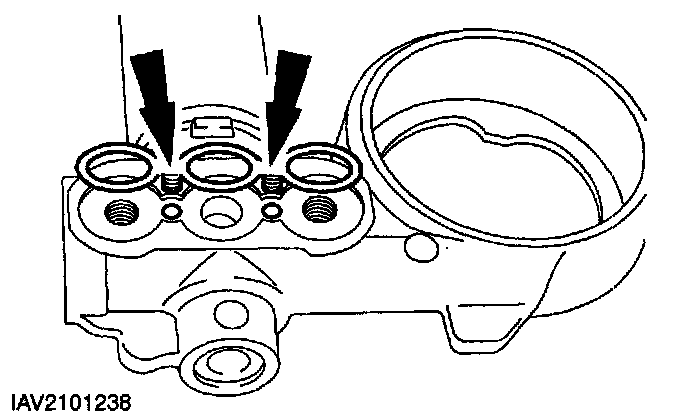

The oil feed flange.






The exhaust camshaft.

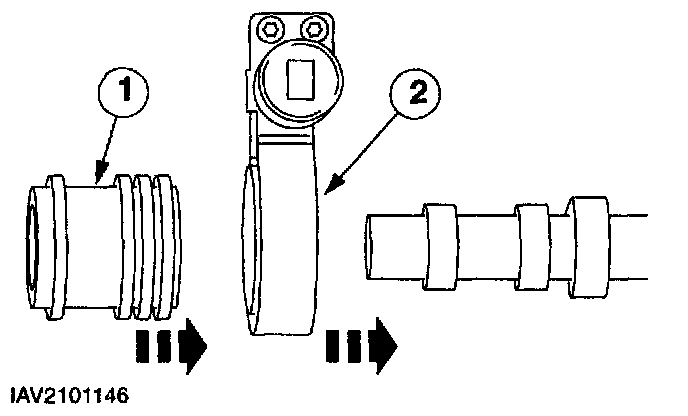

1 The oil feed ring/The oil feed flange.
2 The exhaust camshaft.

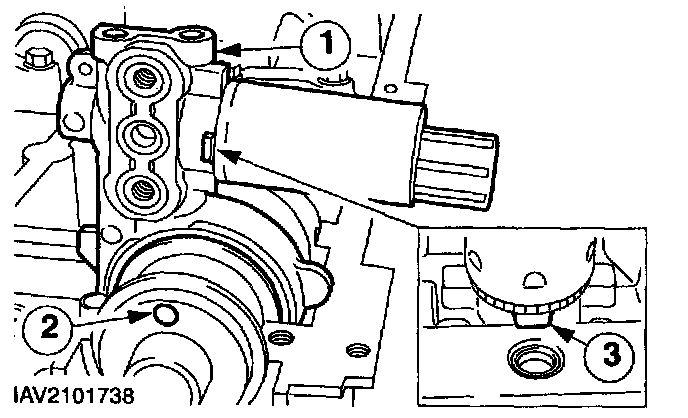

The oil feed flange.
1 The oil feed flange faces upwards during the installation of the exhaust camshaft.
2 The oil feed ring hole is at the top.
3 The locating tab.

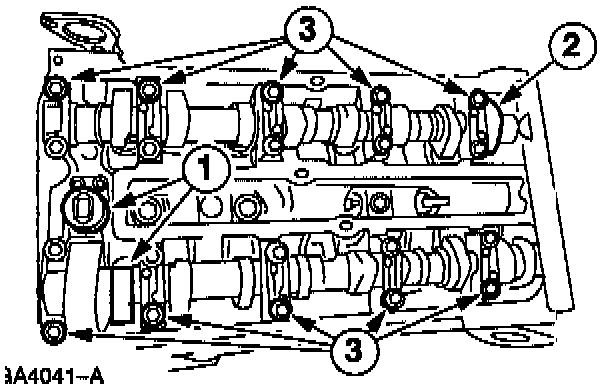

The camshafts.
1 The exhaust camshaft with the oil feed flange.
2 The exhaust camshaft.
3 The bearing caps.

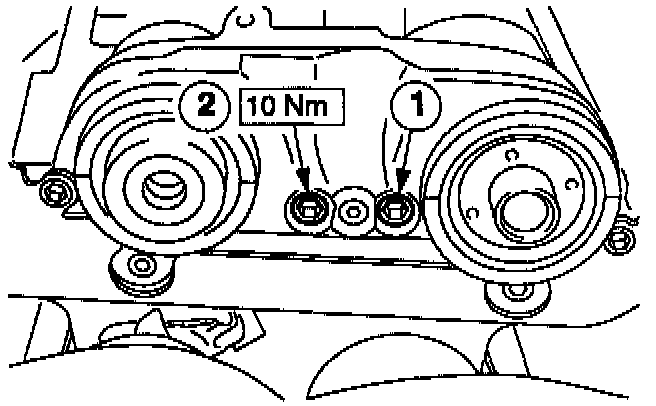

The oil feed flange bolts.
1 The right-hand bolt.
2 The left-hand bolt.

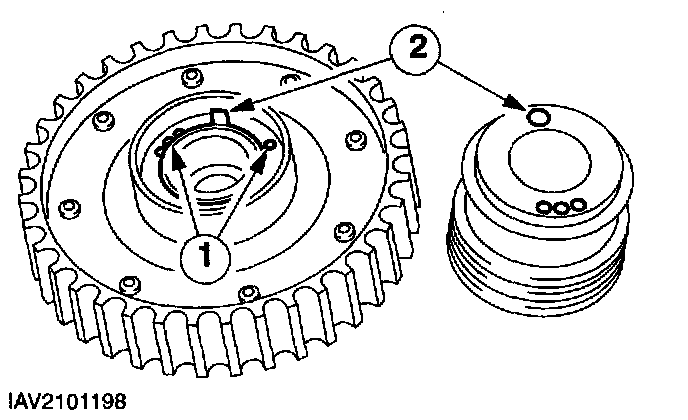

The tab on the exhaust timing gear.
1 The tab is centered between the oil bores and the mark.
2 The tab must be installed in the bore.
