Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> B An Individual Courtesy Lamp Is Inoperative

B An Individual Courtesy Lamp Is Inoperative

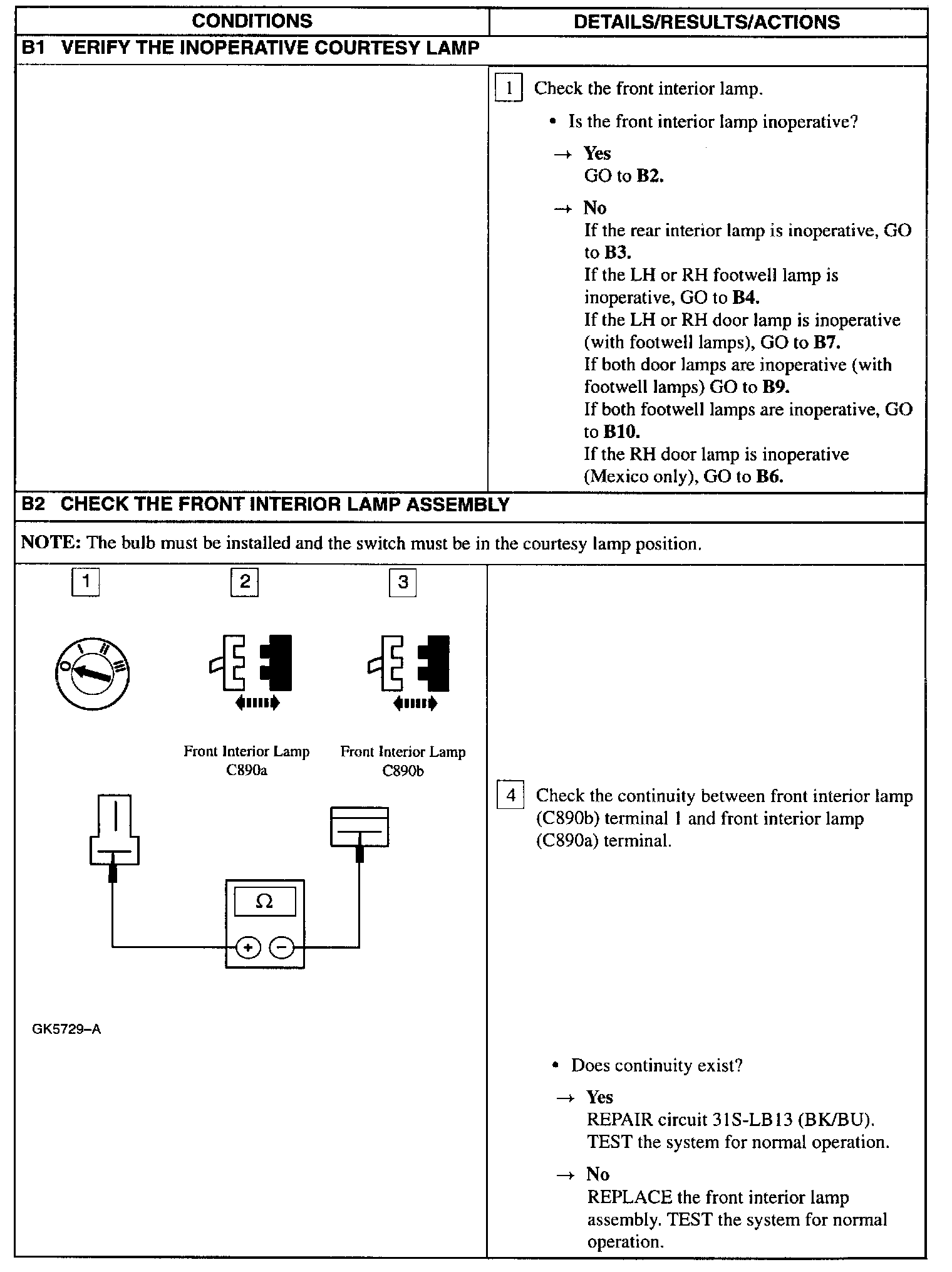

B1 - B2:






B3:

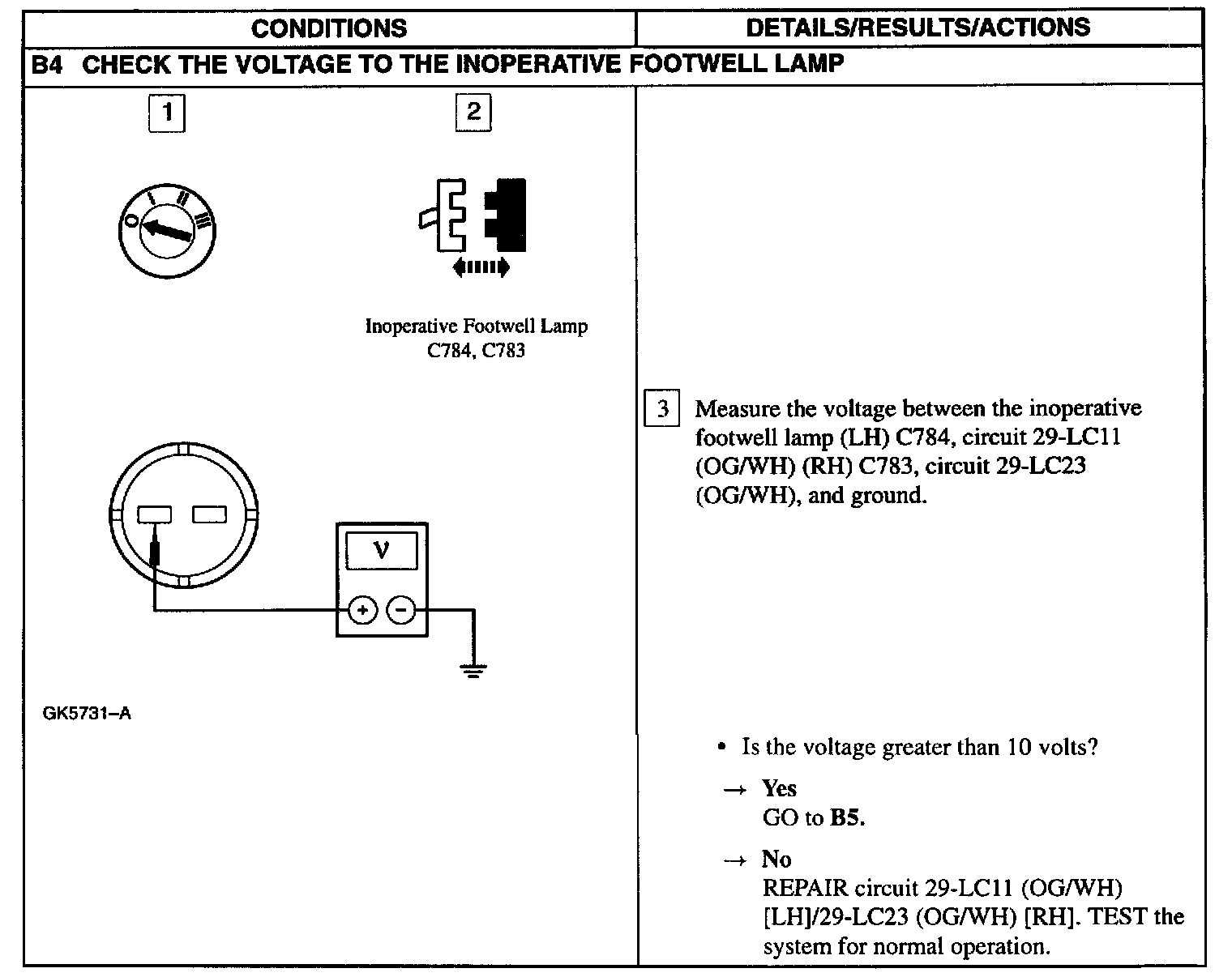

B4:






B5 - B6:

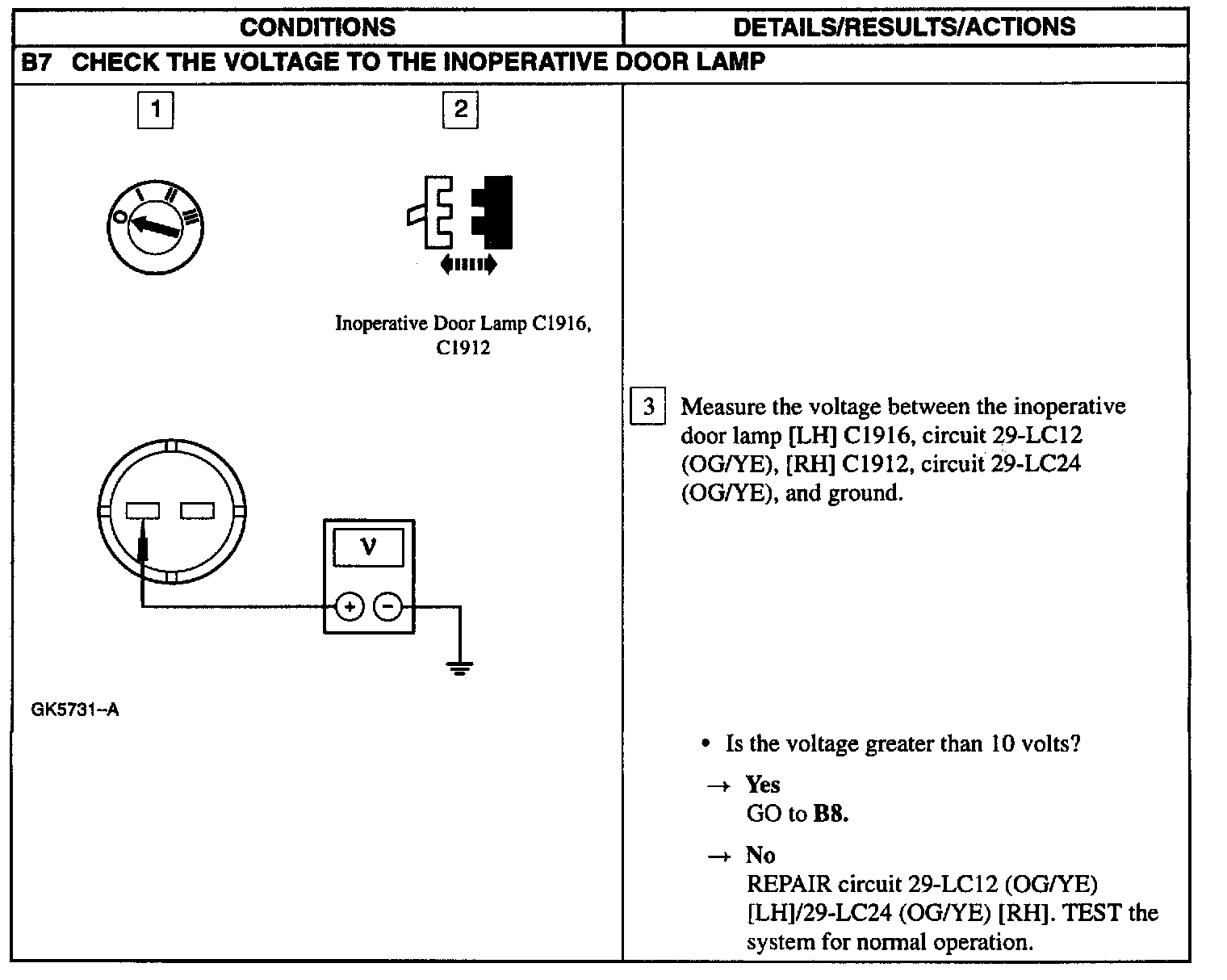

B7:

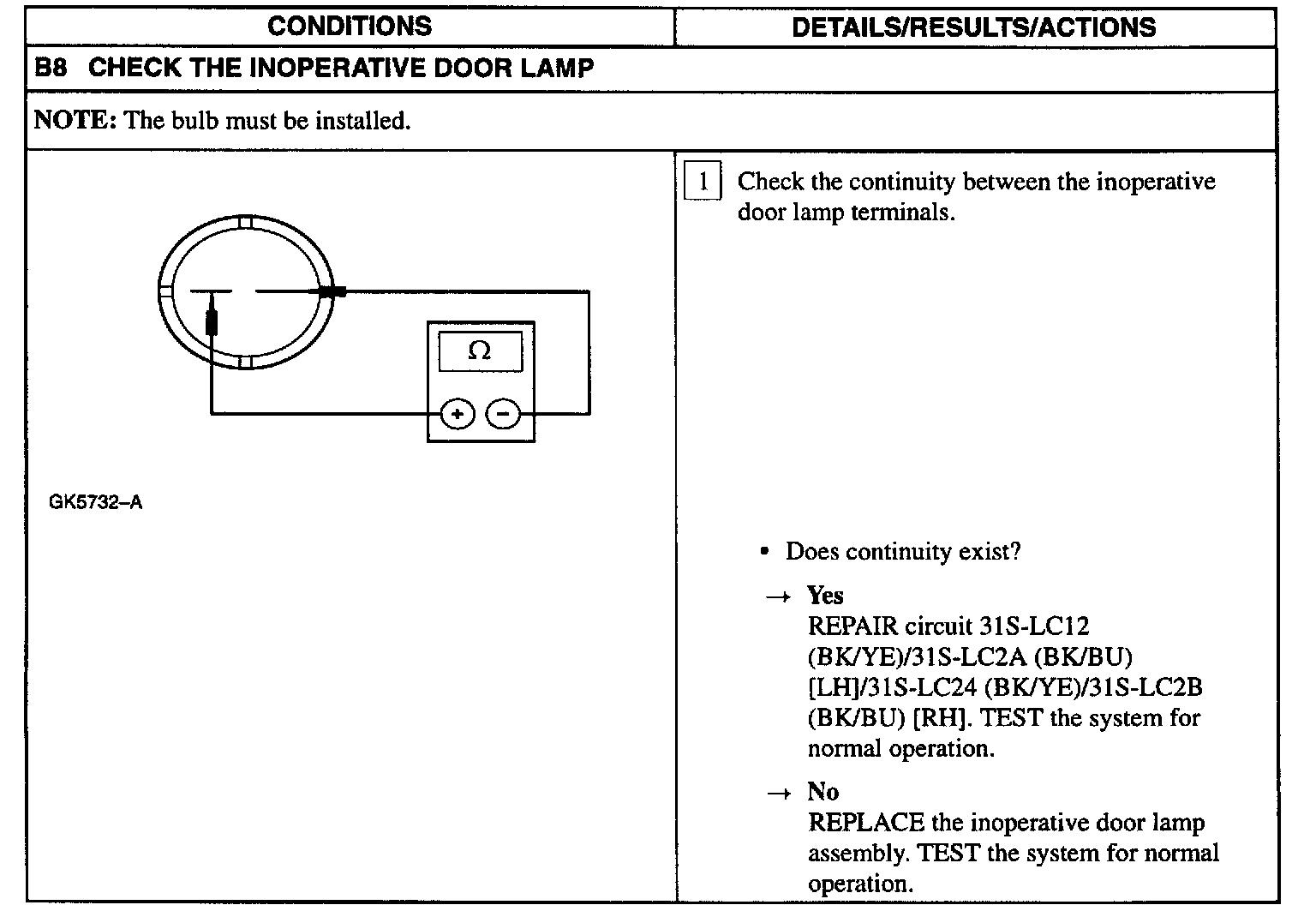

B8:

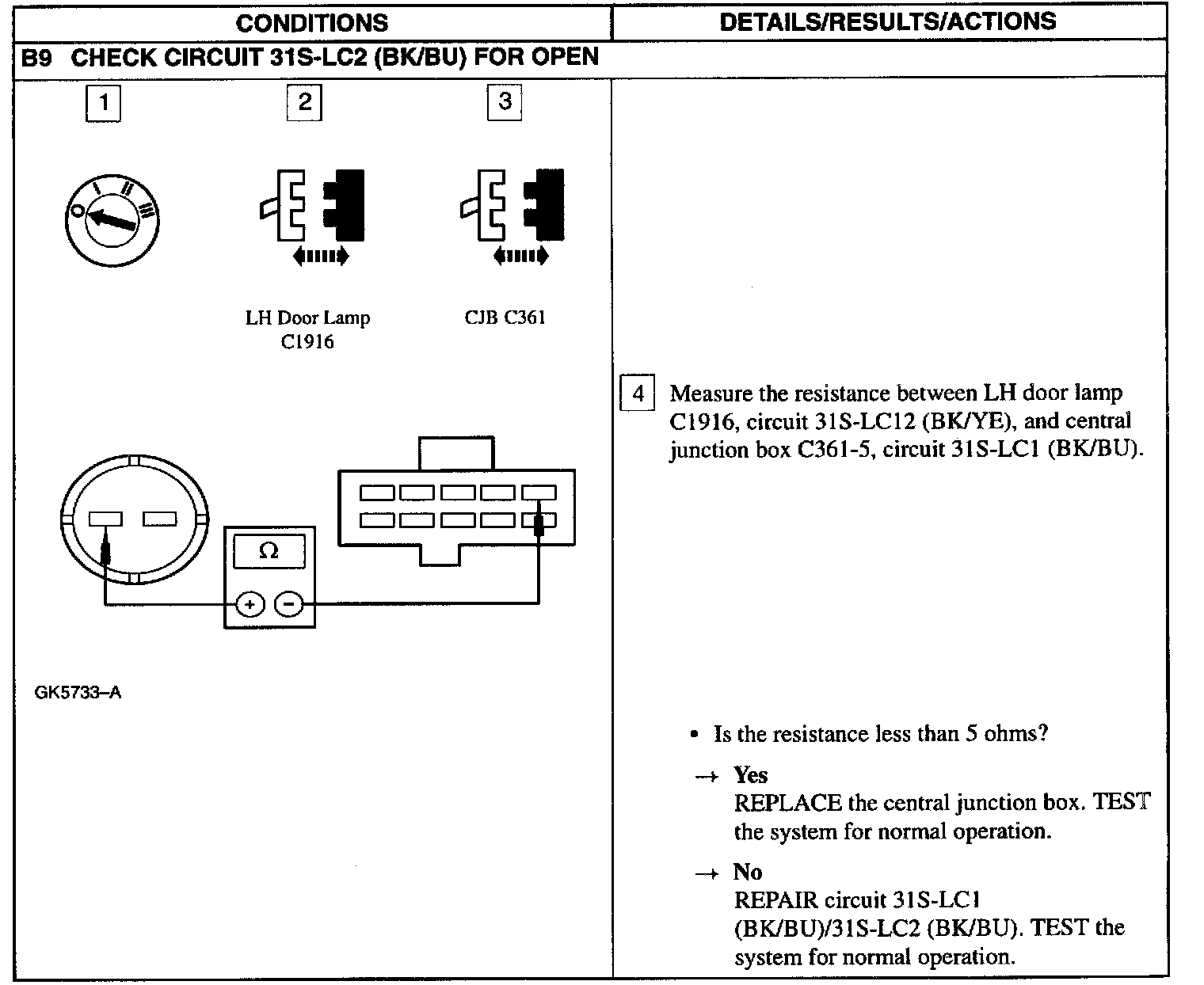

B9:






B10:
