Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Test O: The Fog Lamps Are Inoperative

Test O: The Fog Lamps Are Inoperative

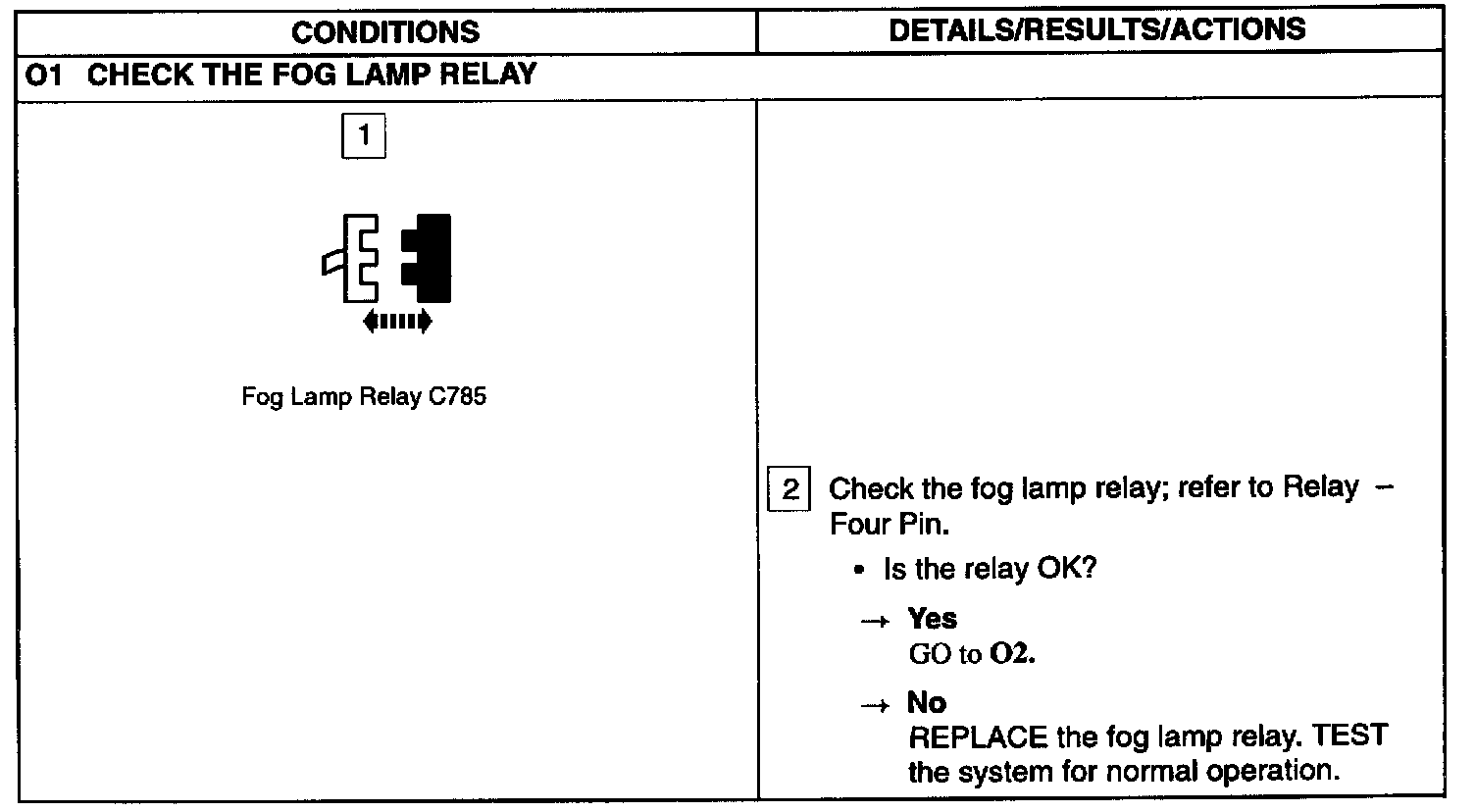

O1:

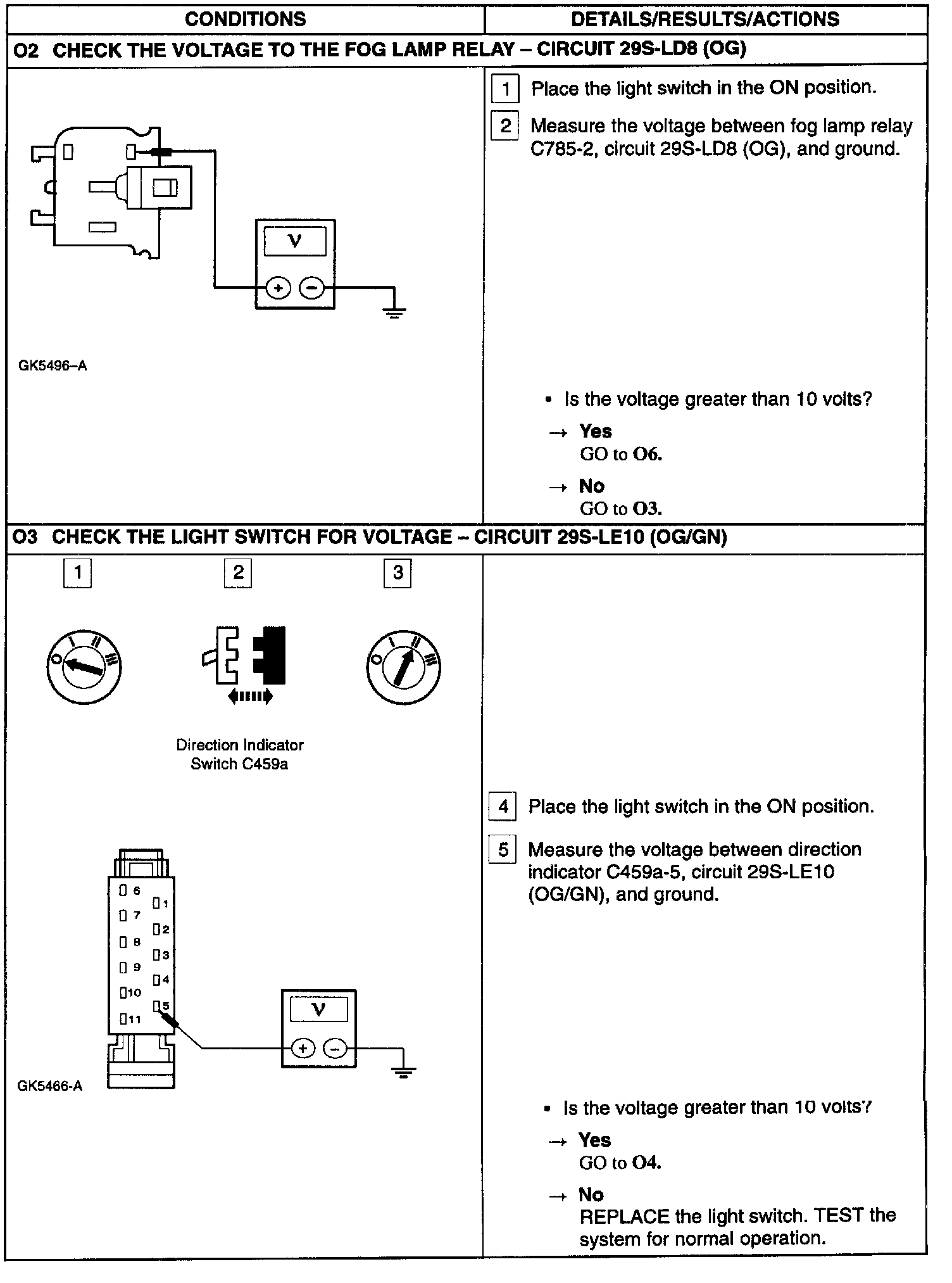

O2 - O3:

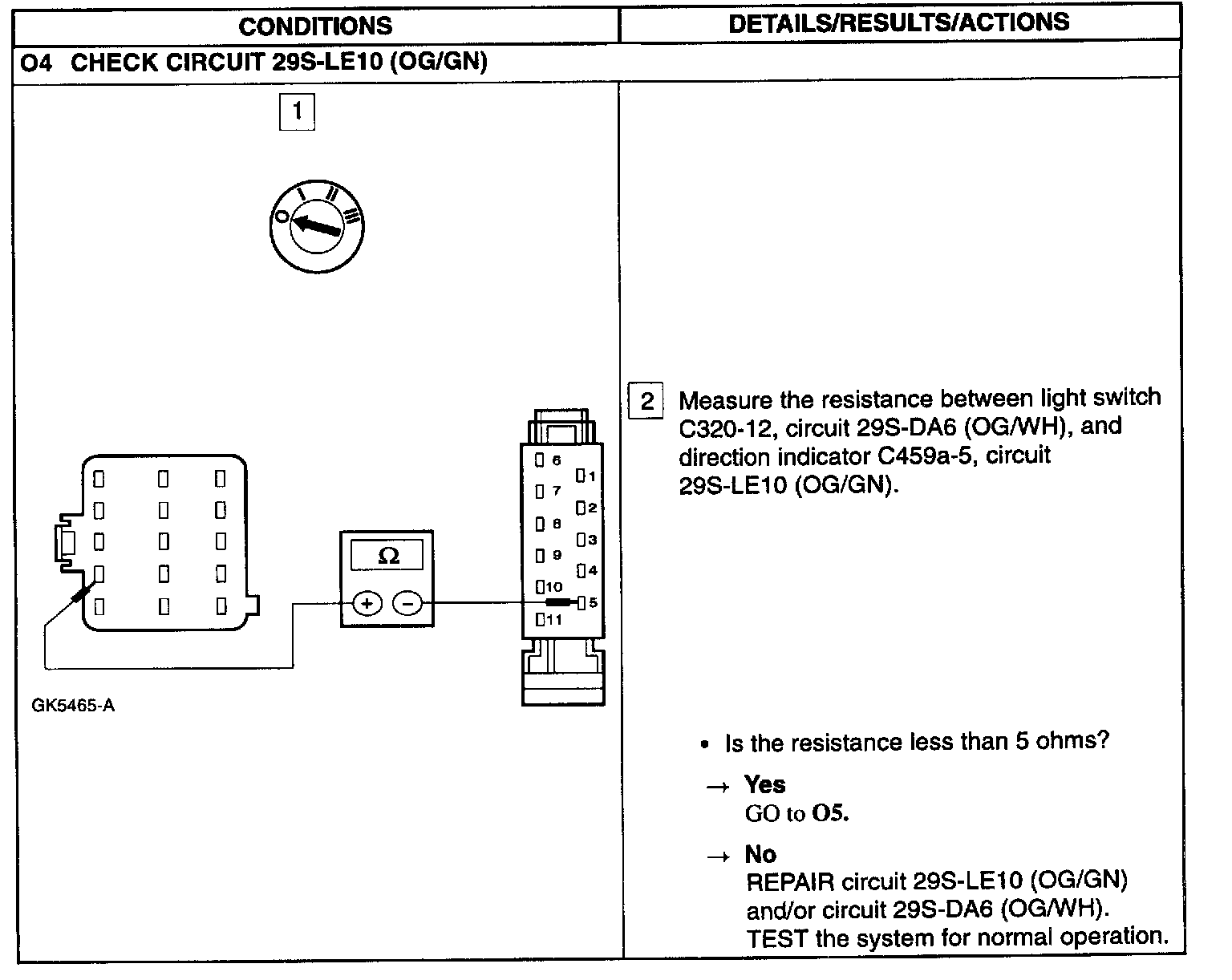

O4:

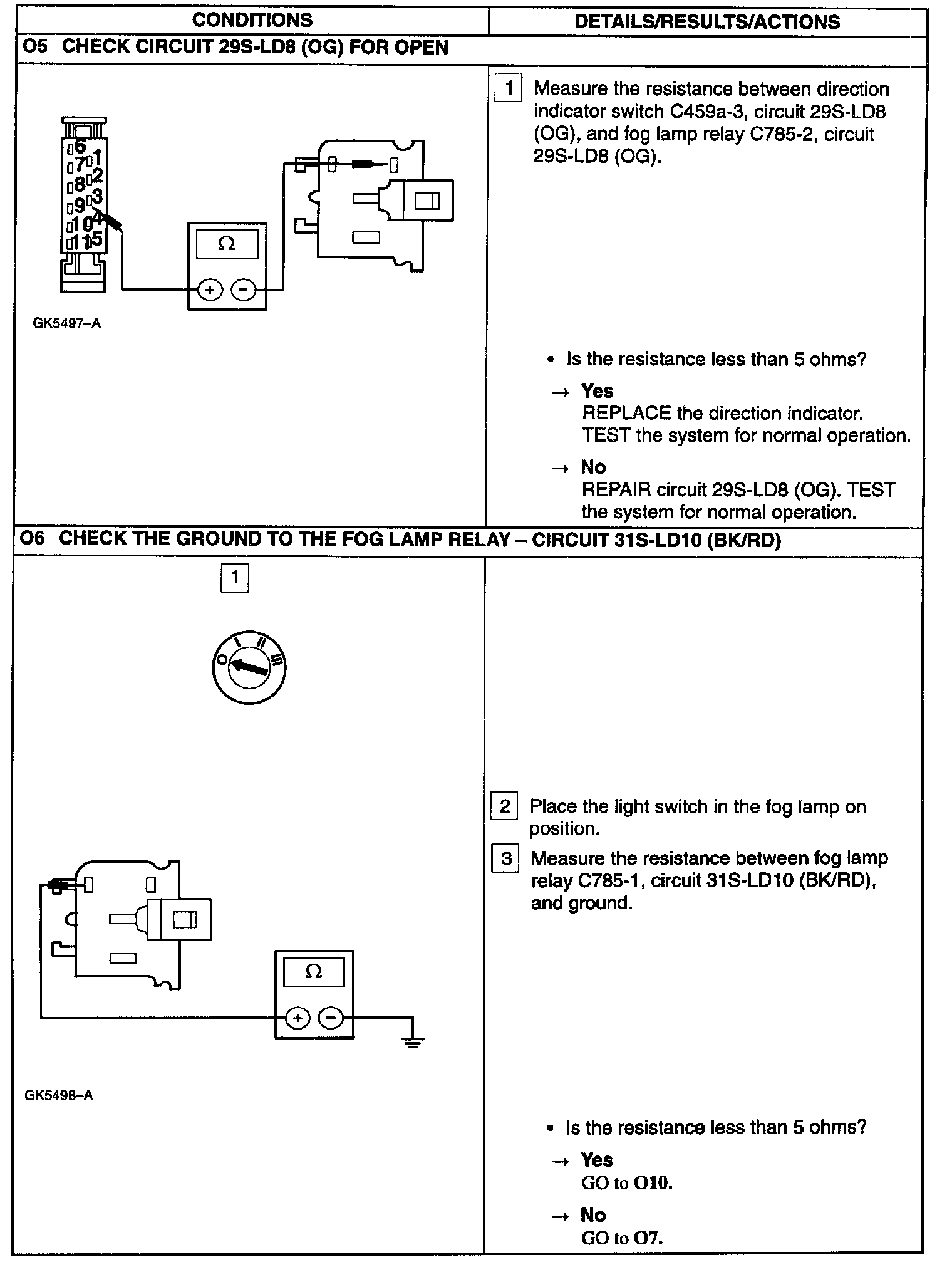

O5 - O6:

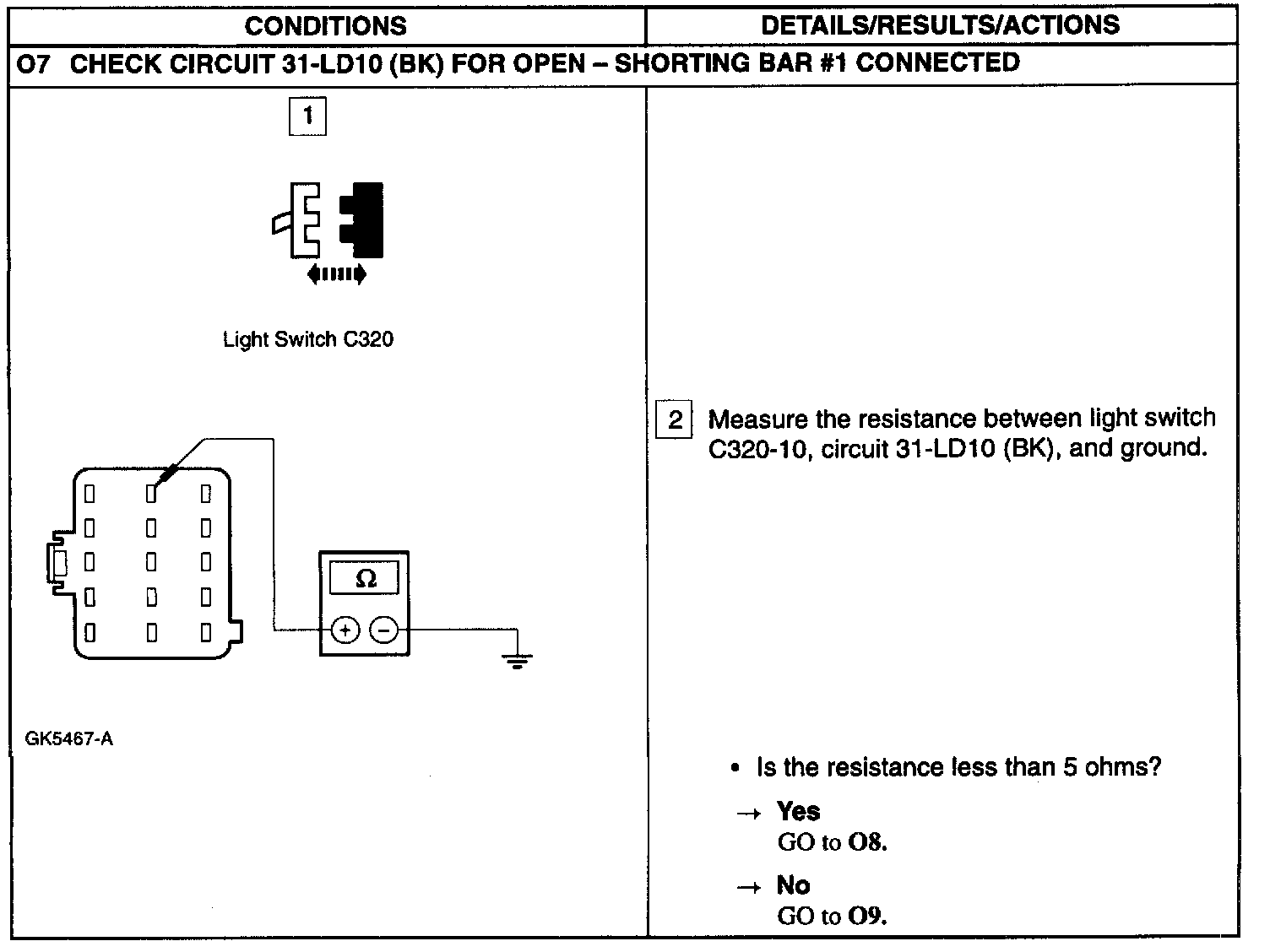

O7:

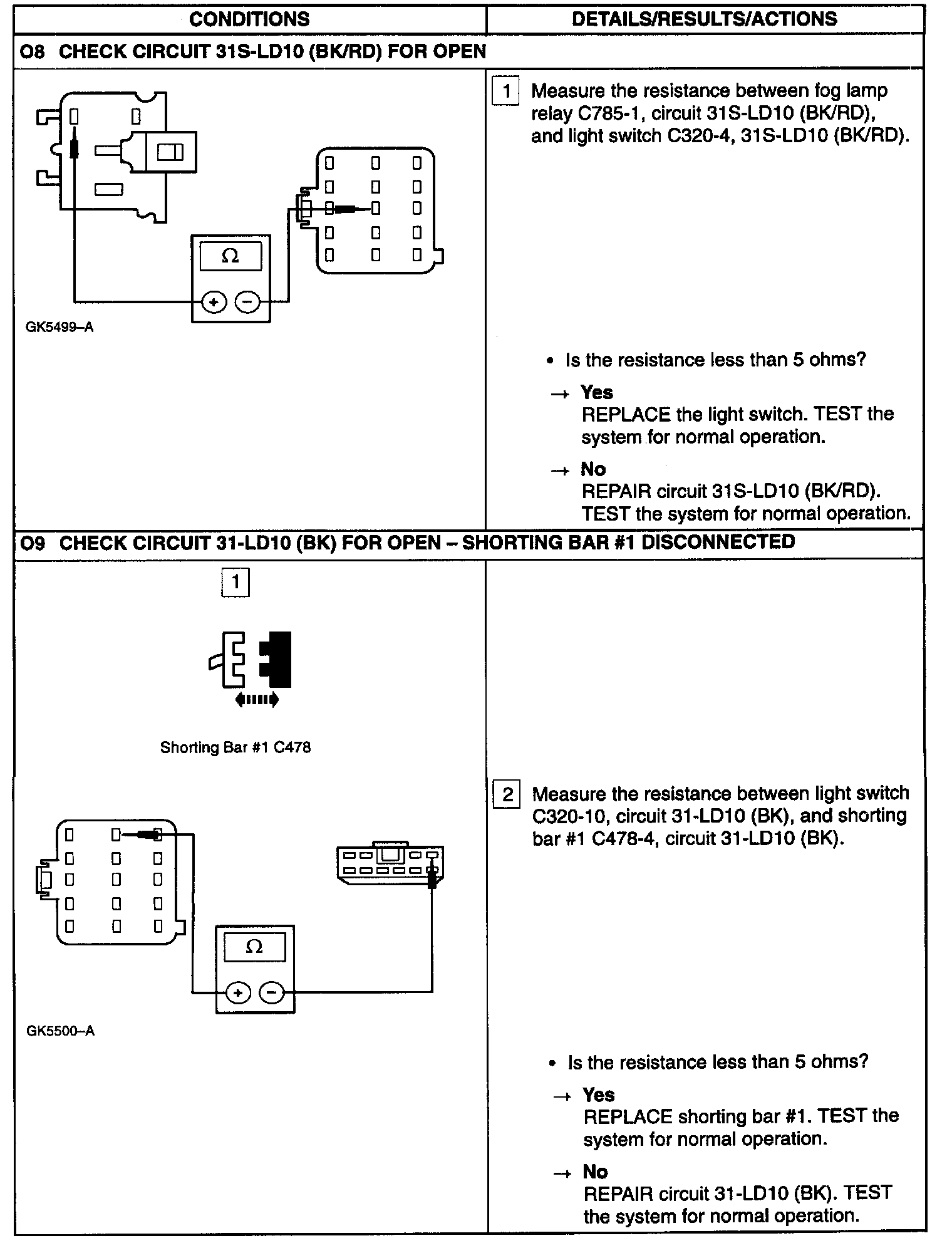

O8 - O9:

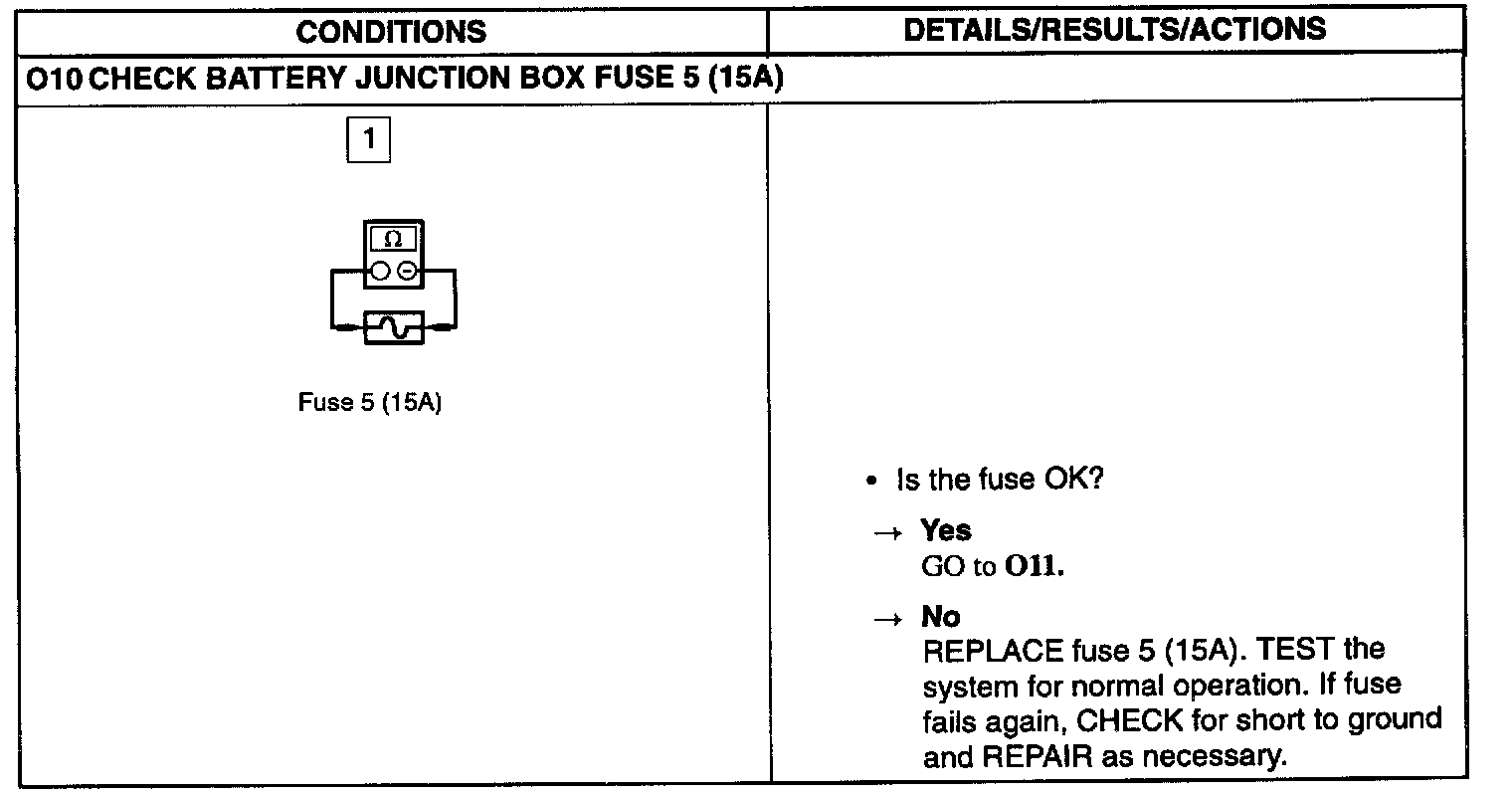

O10:

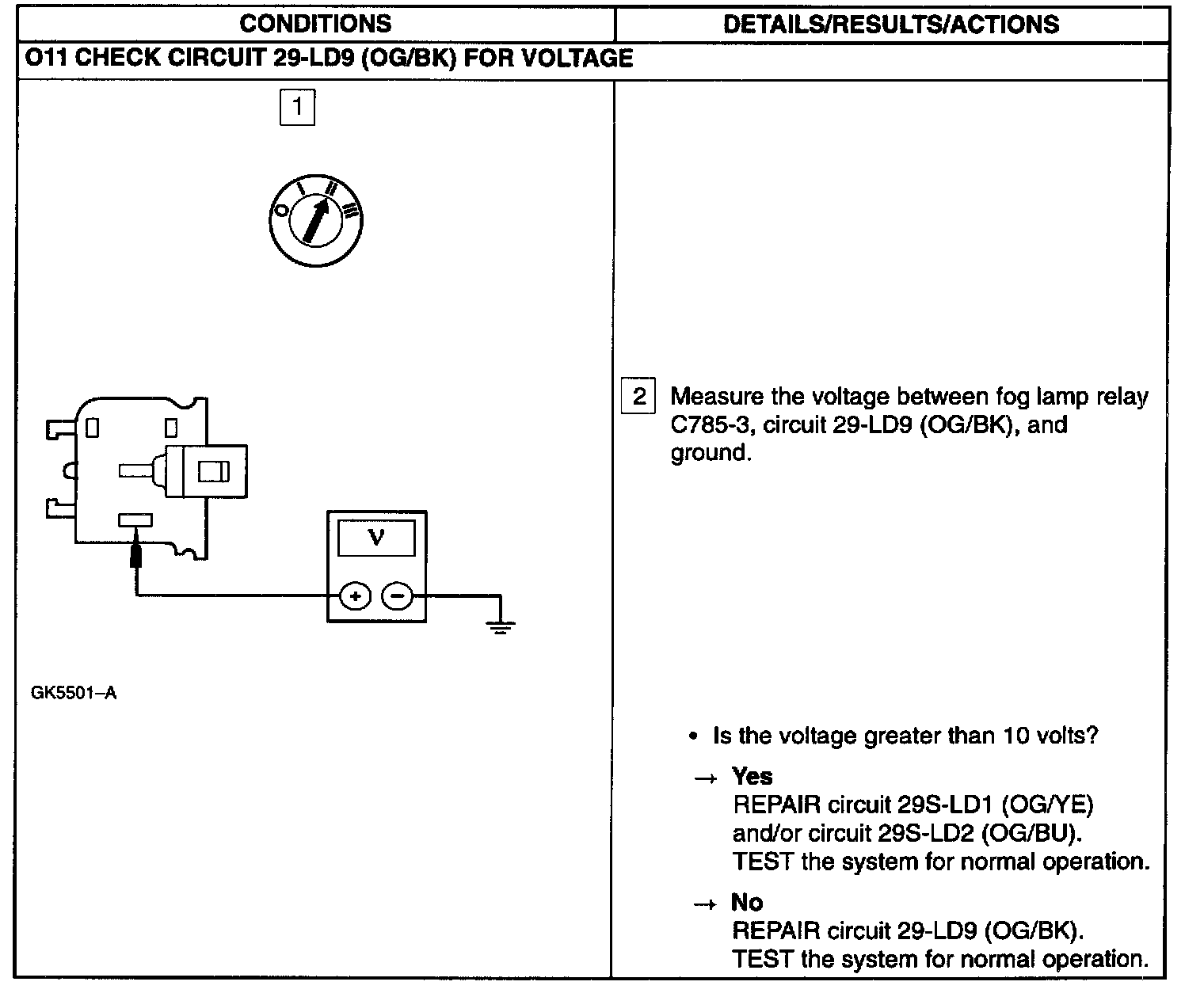

O11:
