Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> H One or More Stoplamps Are Inop

H One or More Stoplamps Are Inop

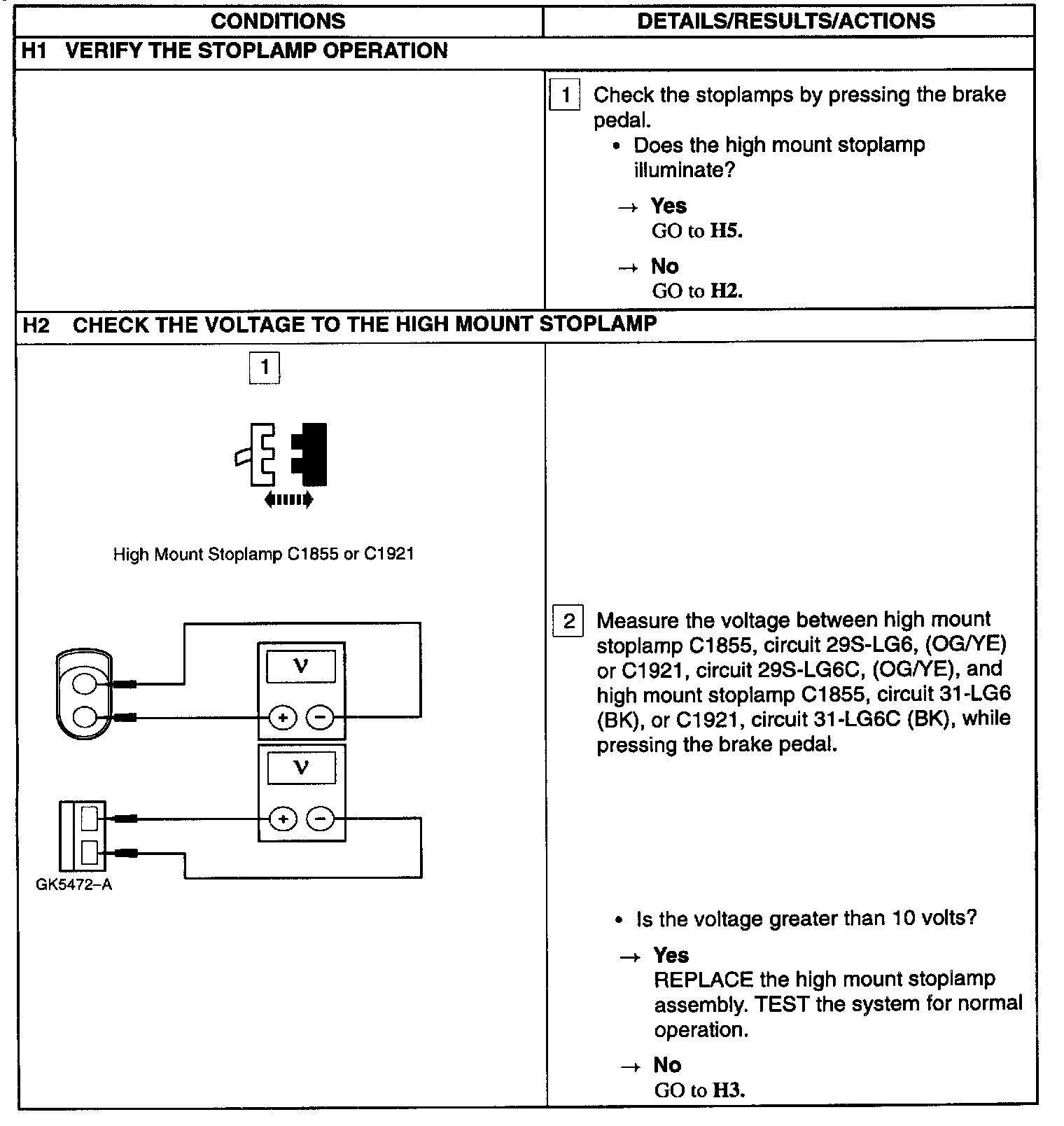

H1 - H2:

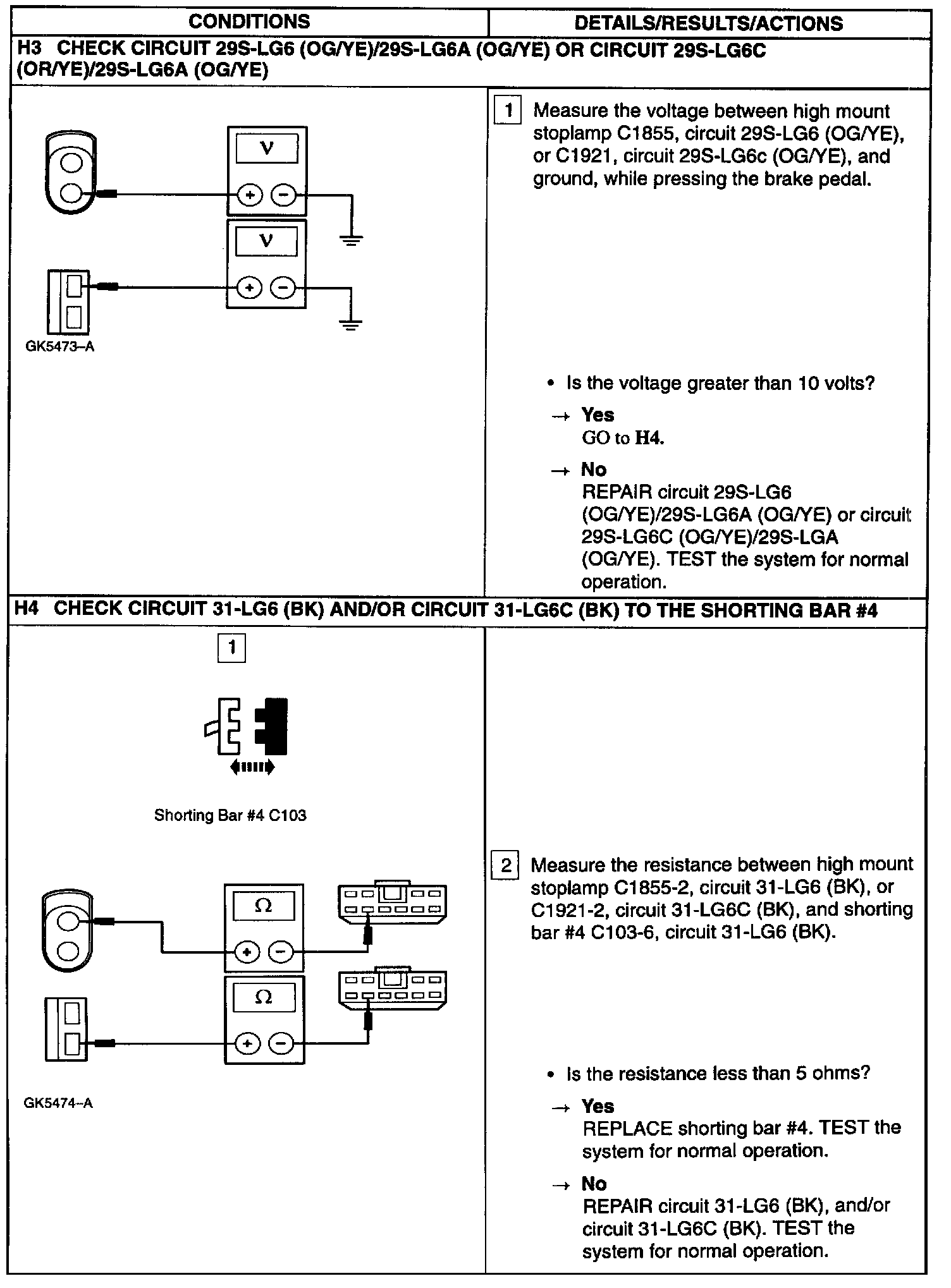

H3 - H4:

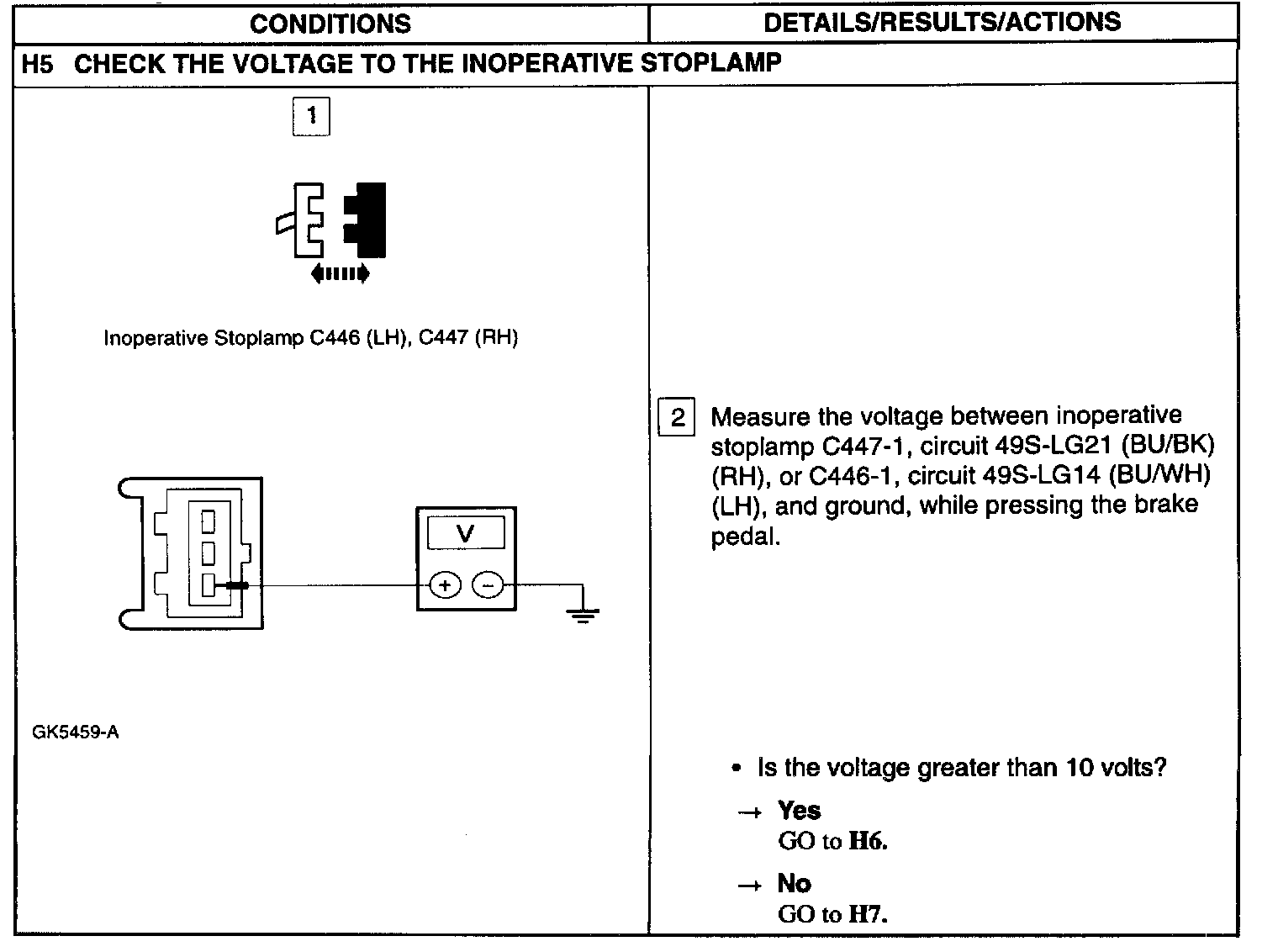

H5:

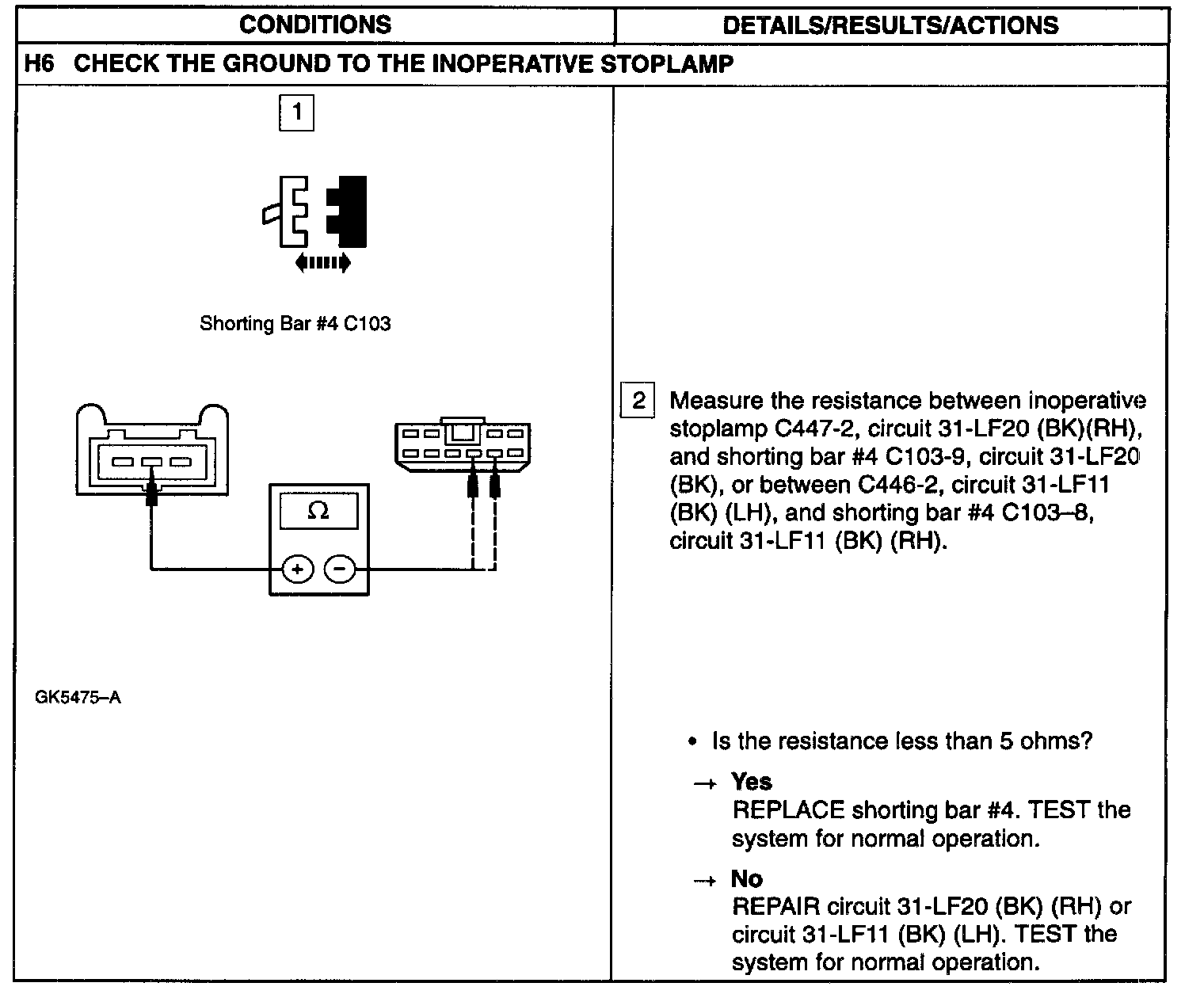

H6:

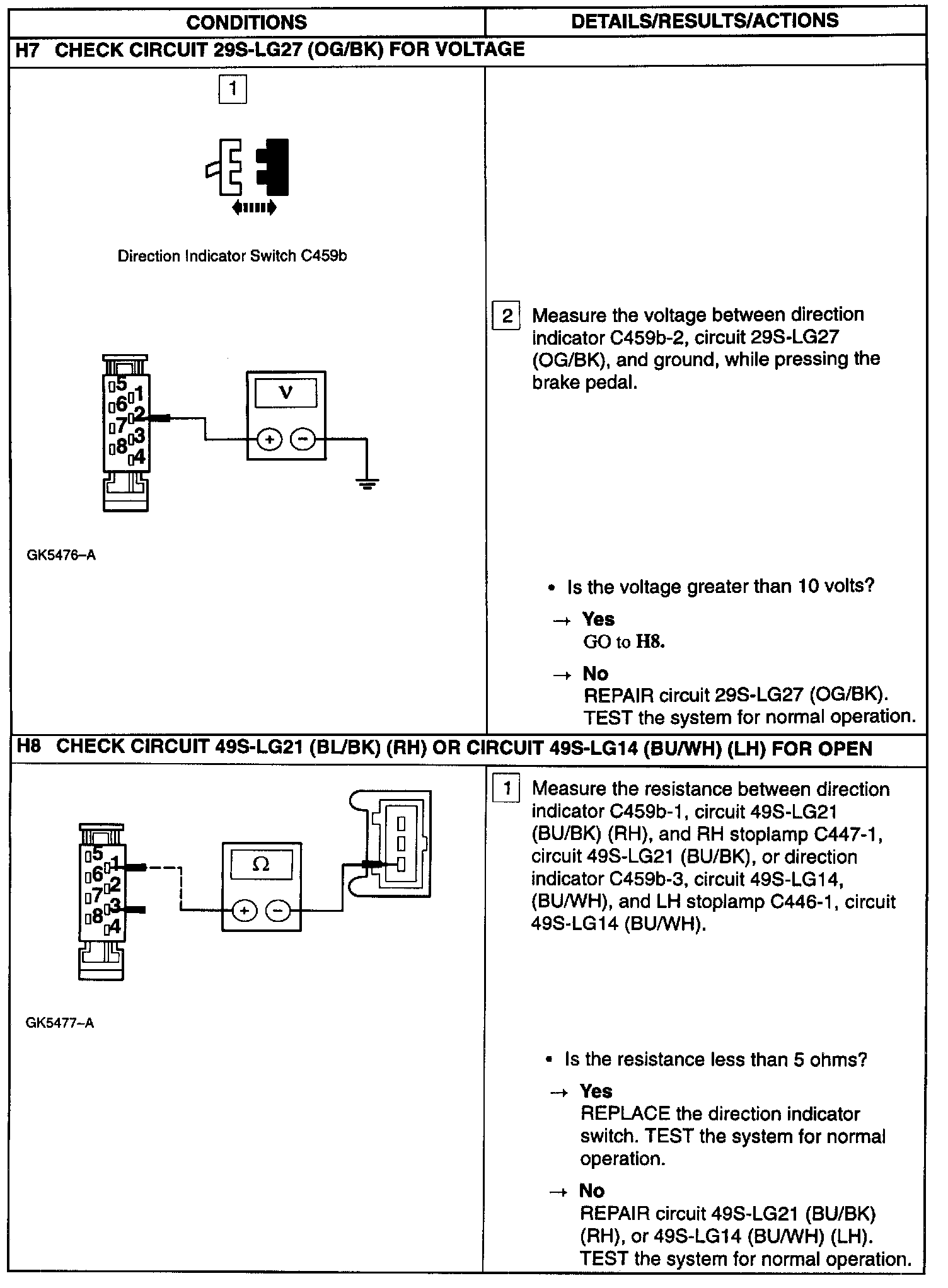

H7 - H8:
