Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
S: An Indicator Is Inoperative /Always ON - Turn/ Hazard
S: An Indicator Is Inoperative /Always ON - Turn/ Hazard

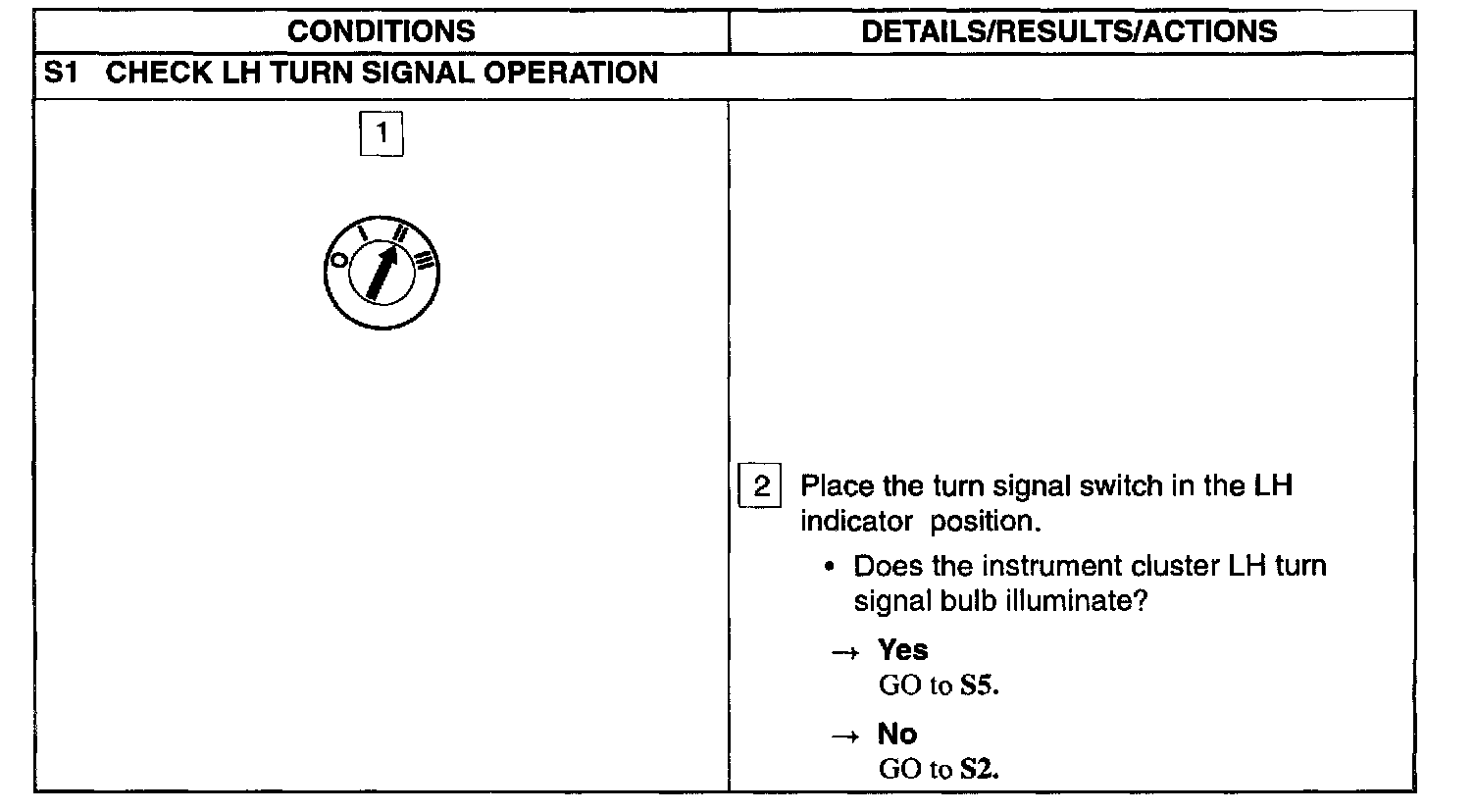

S1:

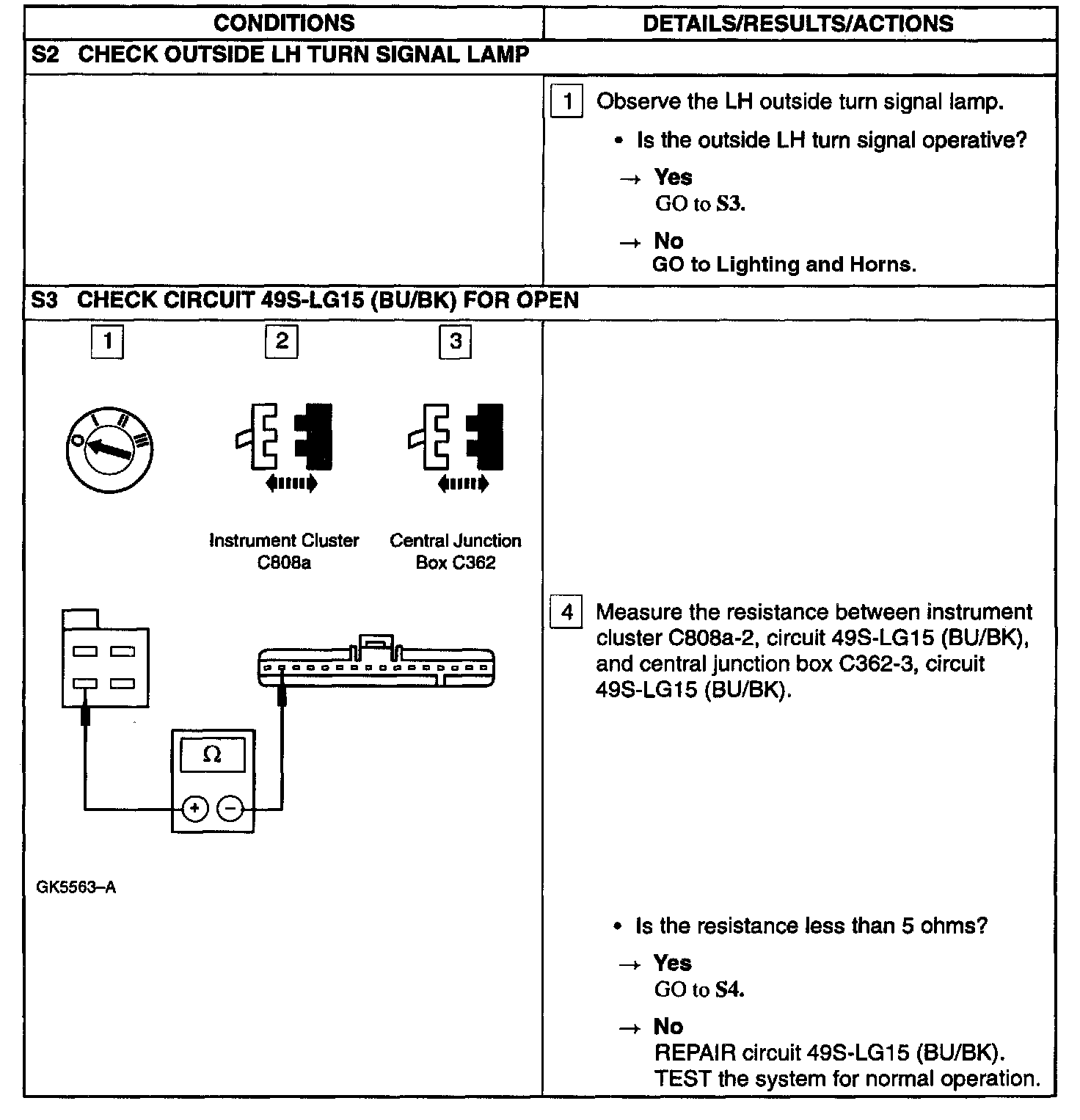

S2 - S3:

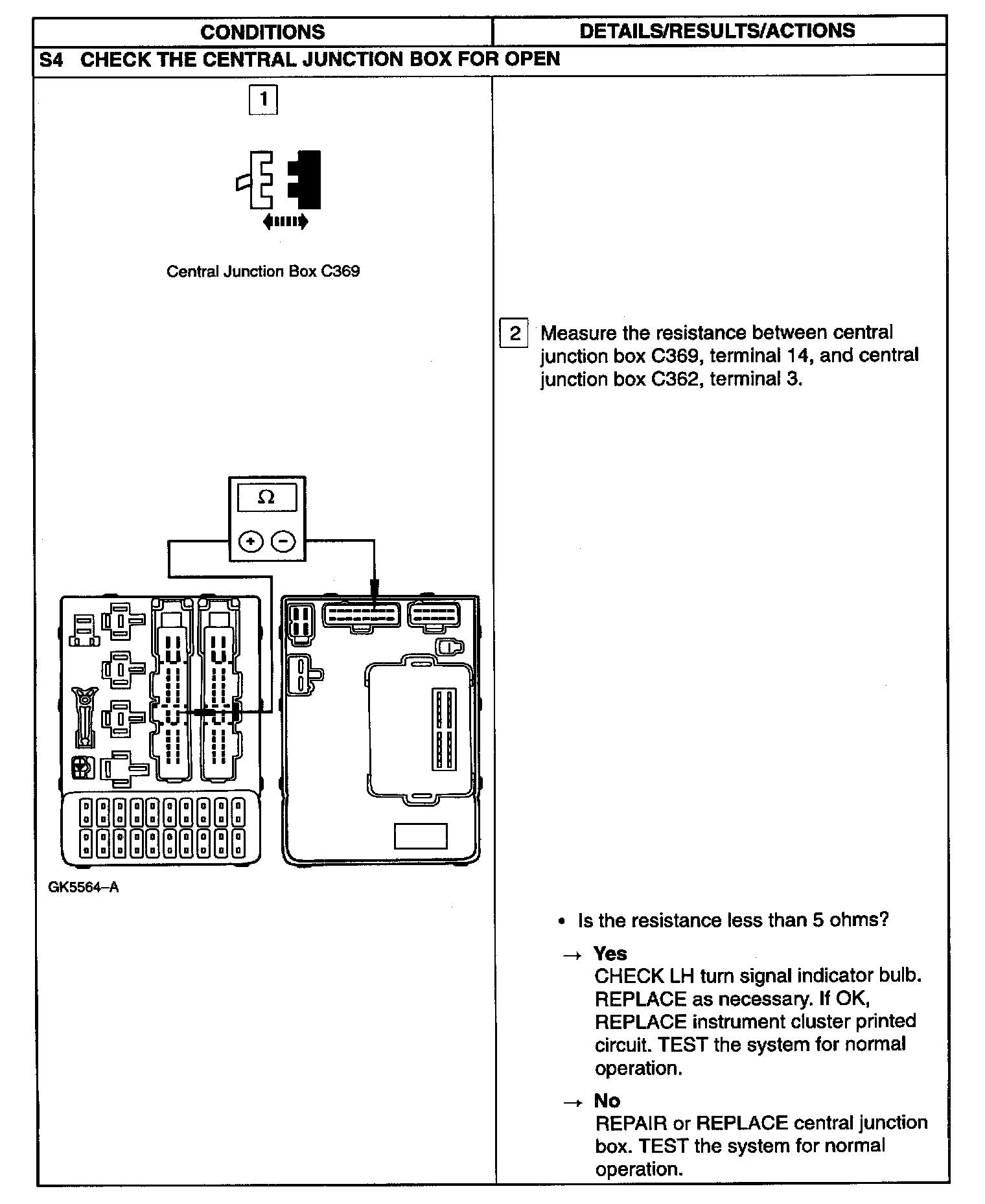

S4:

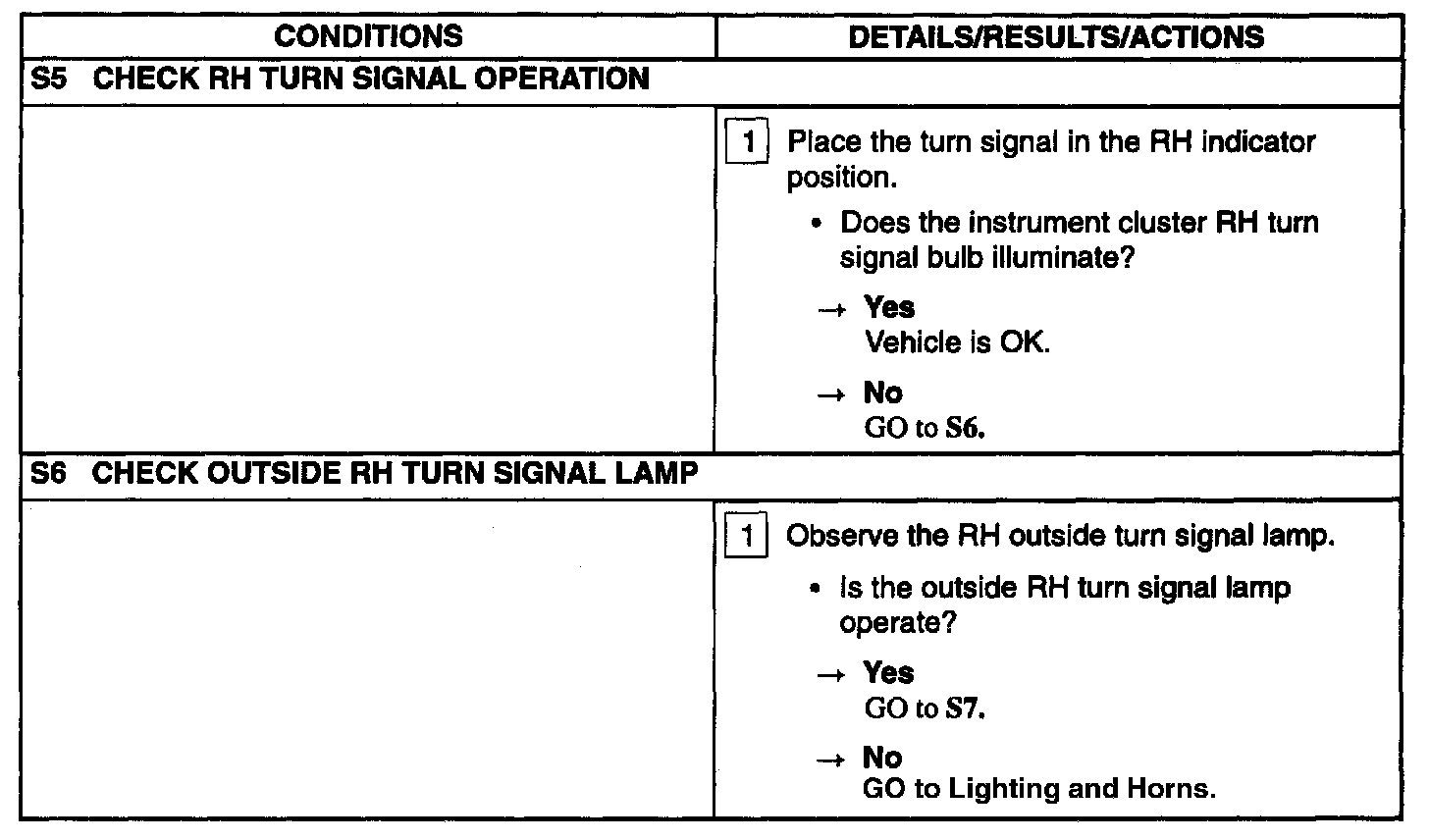

S5 - S6:

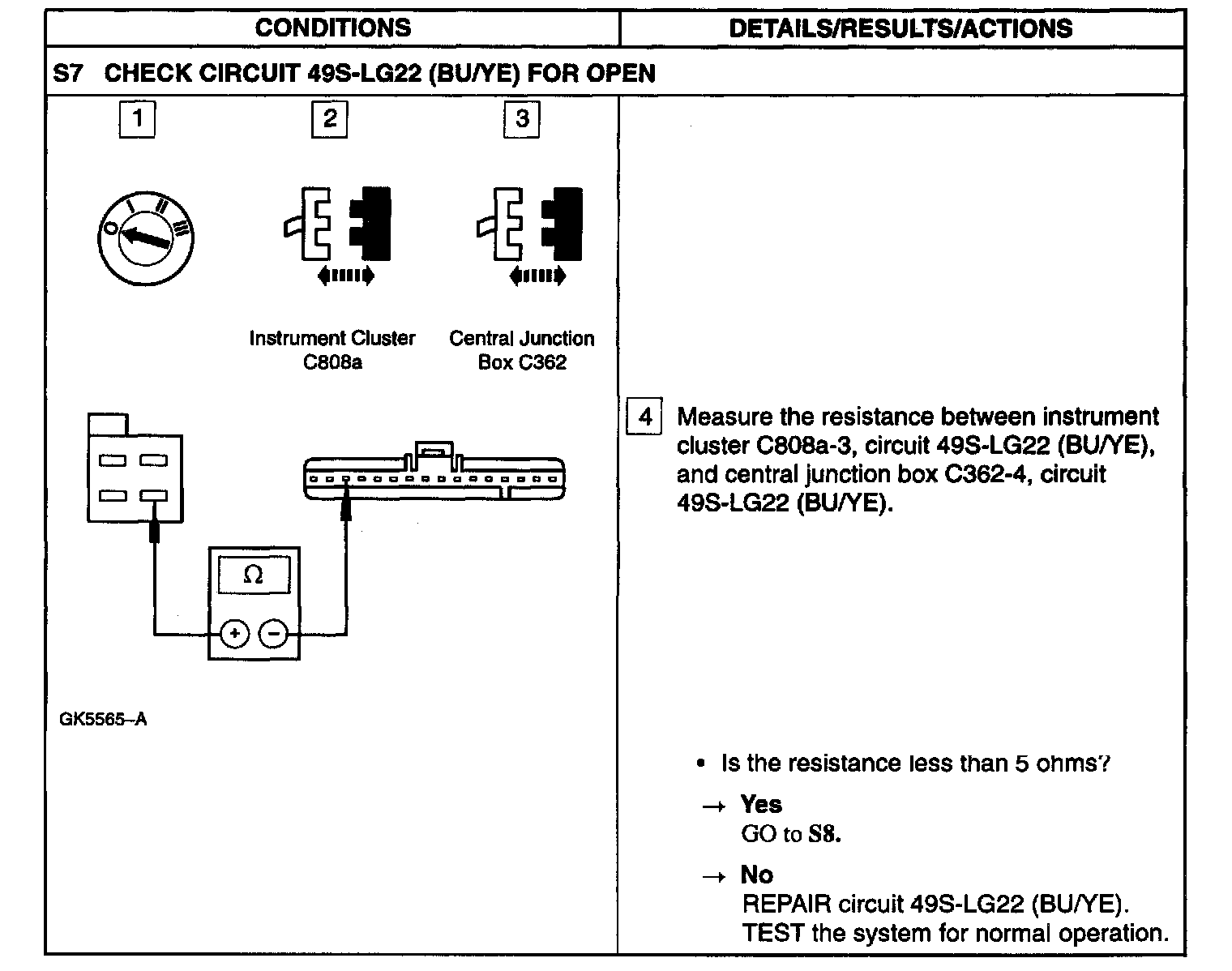

S7:

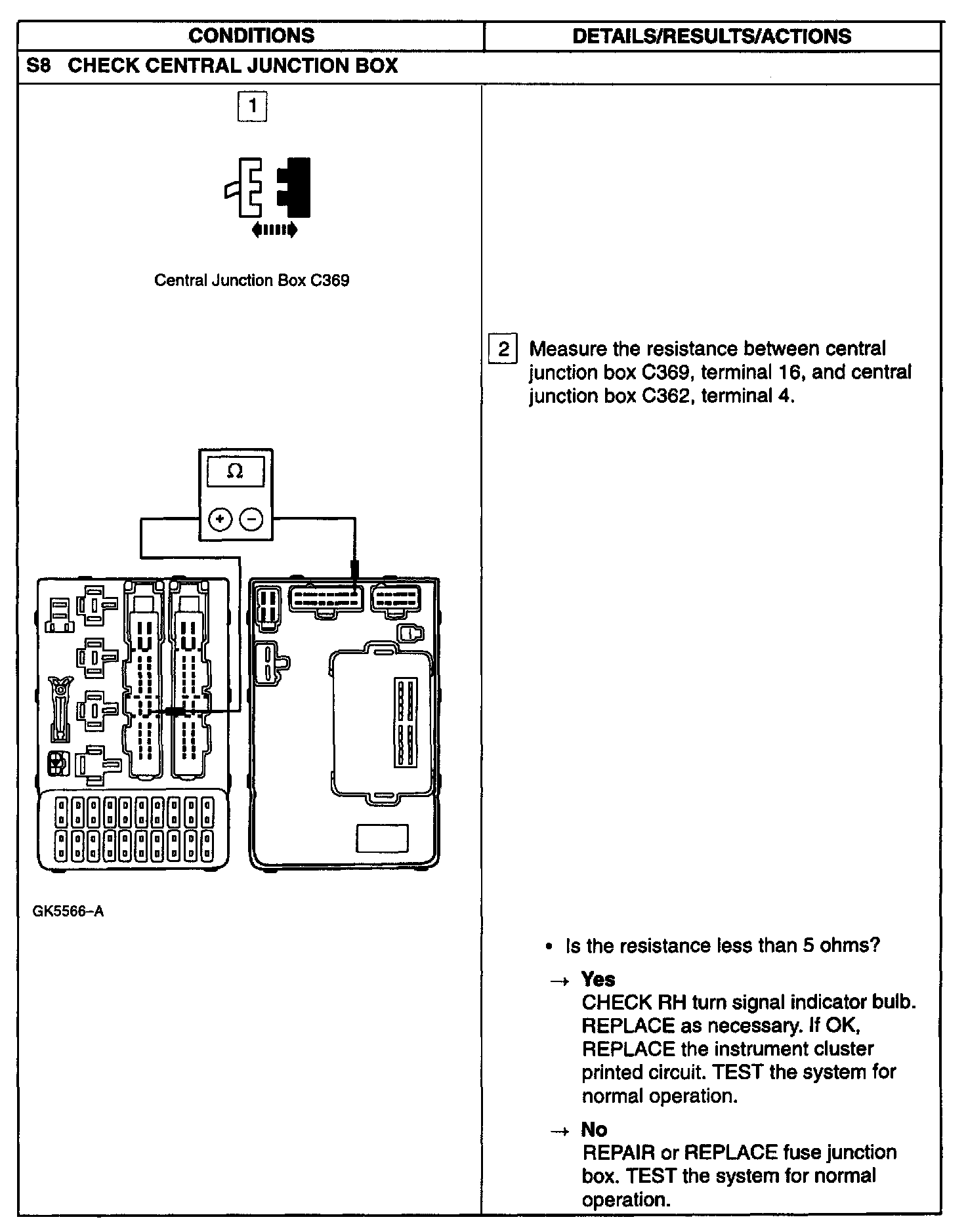

S8:
