Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
R: An Indicator Is Inoperative-High Beam
R: An Indicator Is Inoperative-High Beam

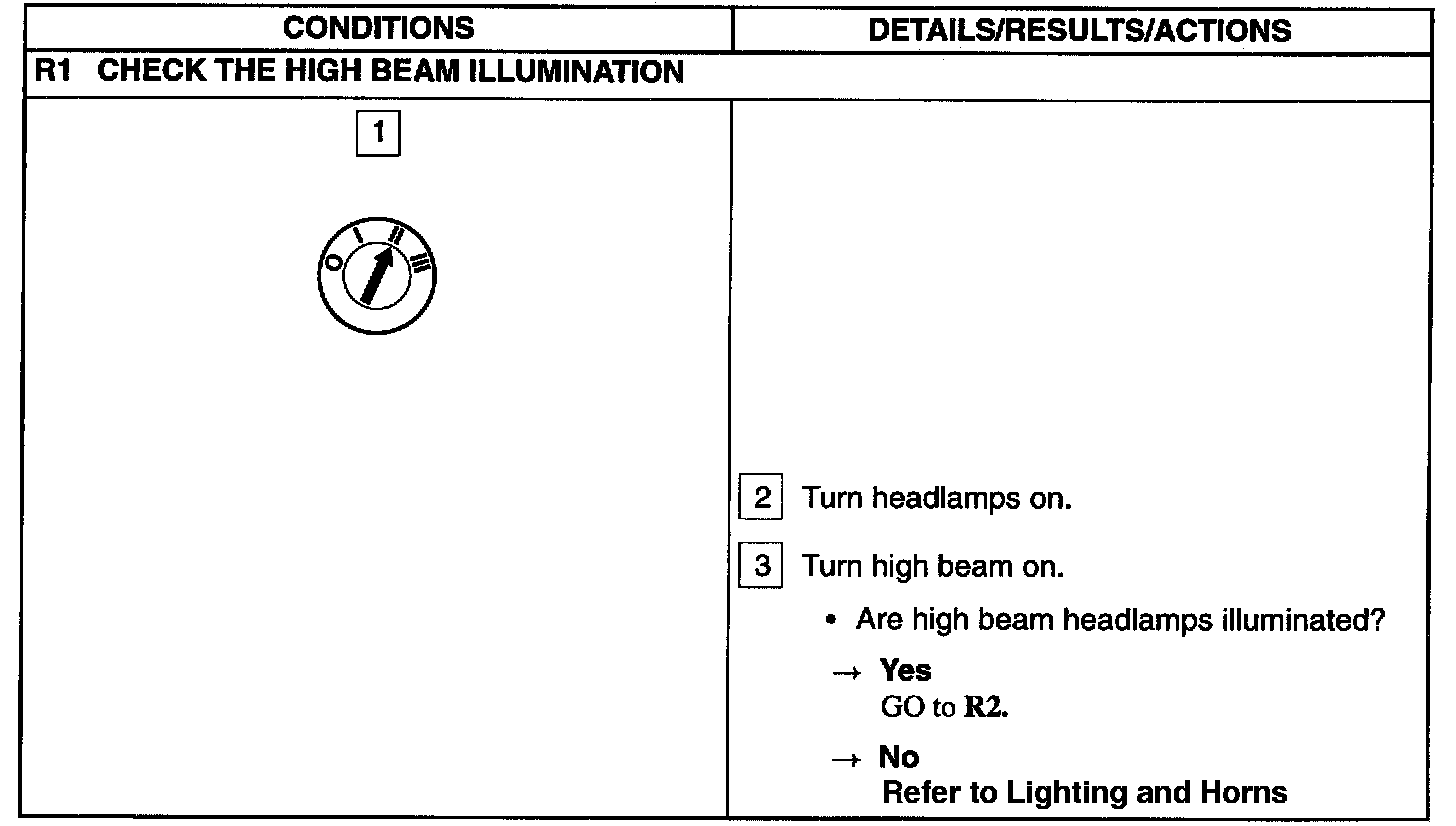

R1:

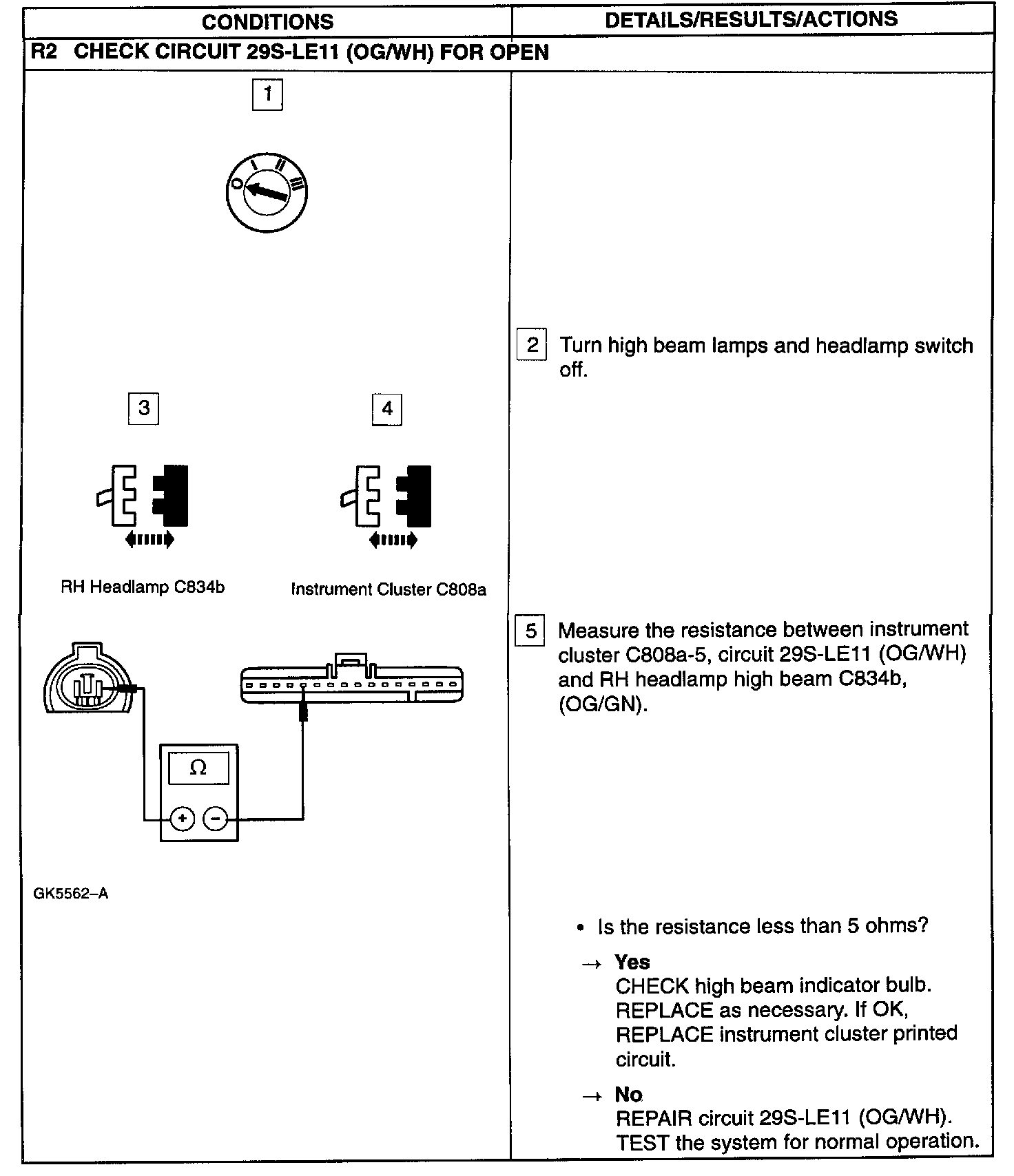

R2:
