Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> H: Safety Belt Warning Indicator Is Always ON (Chime Works)

H: Safety Belt Warning Indicator Is Always ON (Chime Works)

H1 - H2:

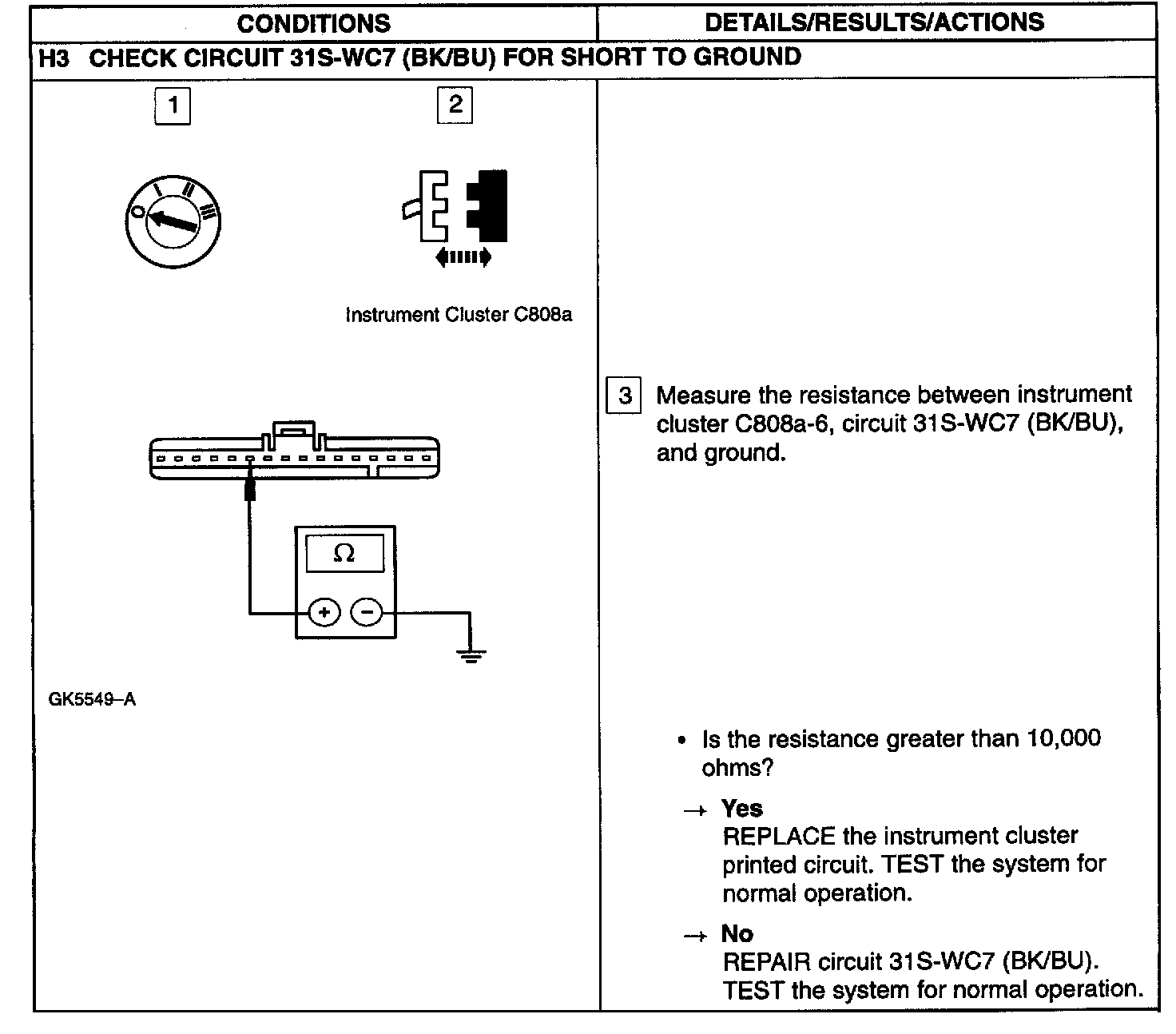

H3:

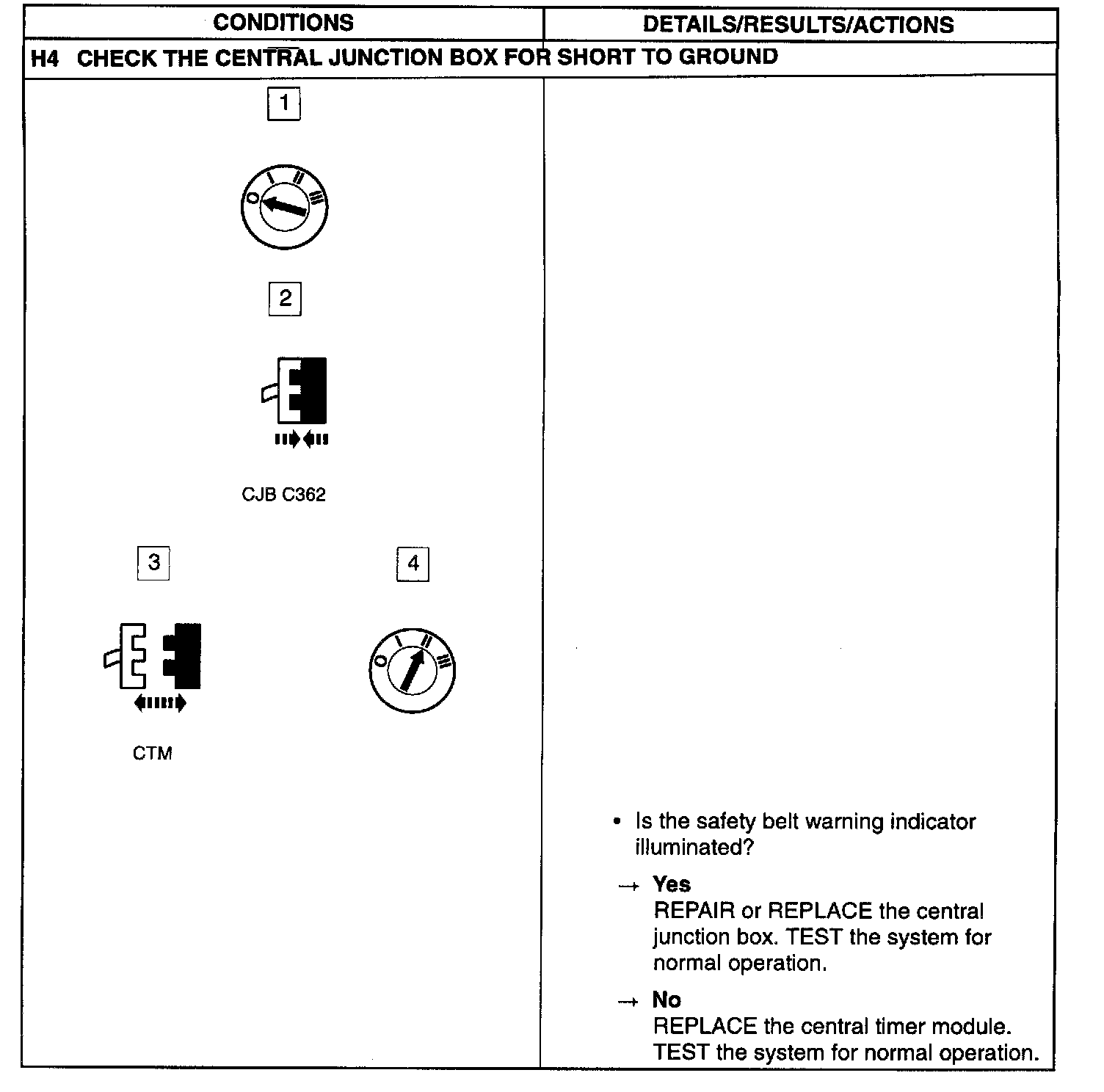

H4:
