Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> B: Fuel Level Reads Inaccurately

B: Fuel Level Reads Inaccurately

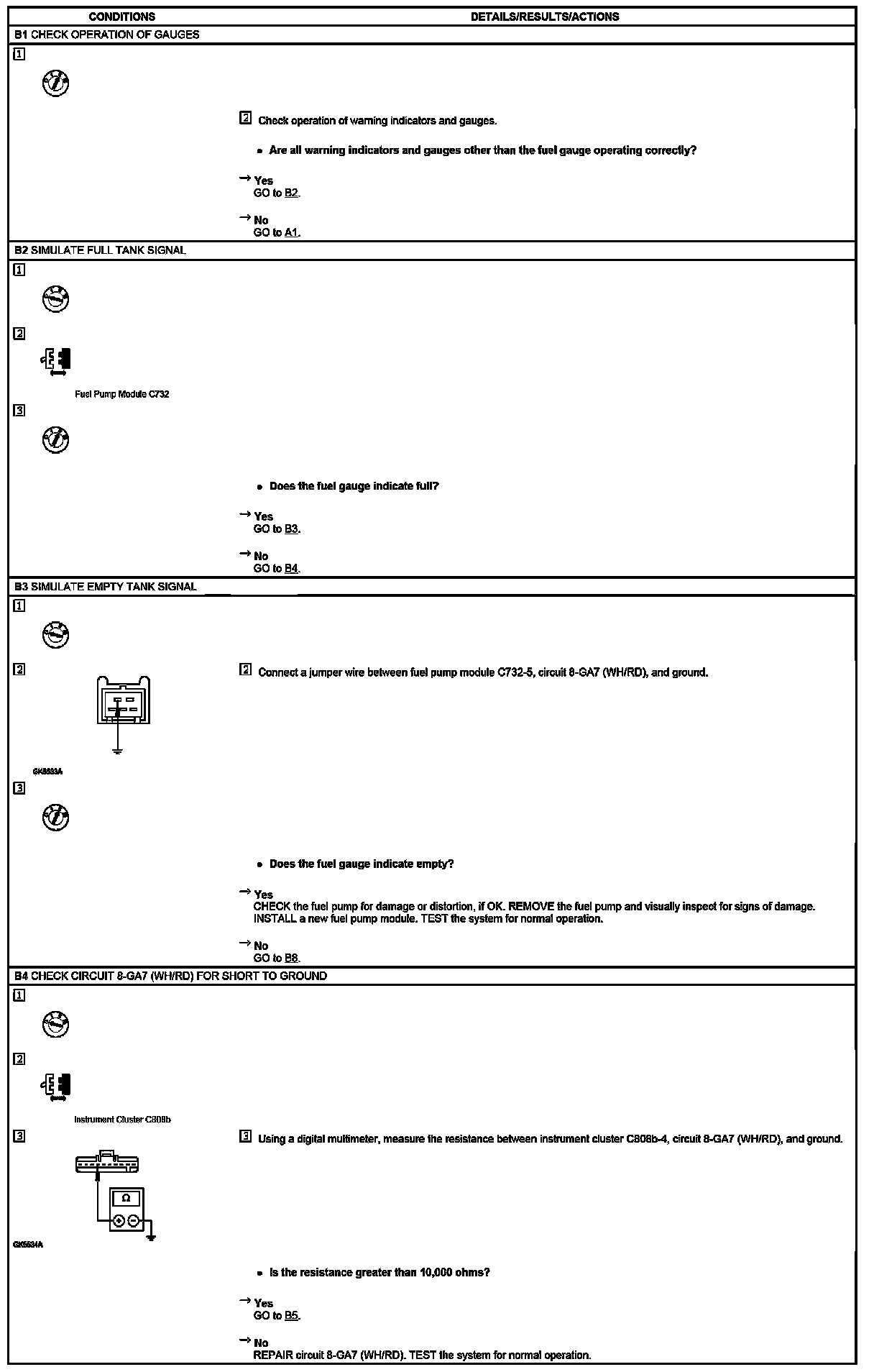

B1-B4:

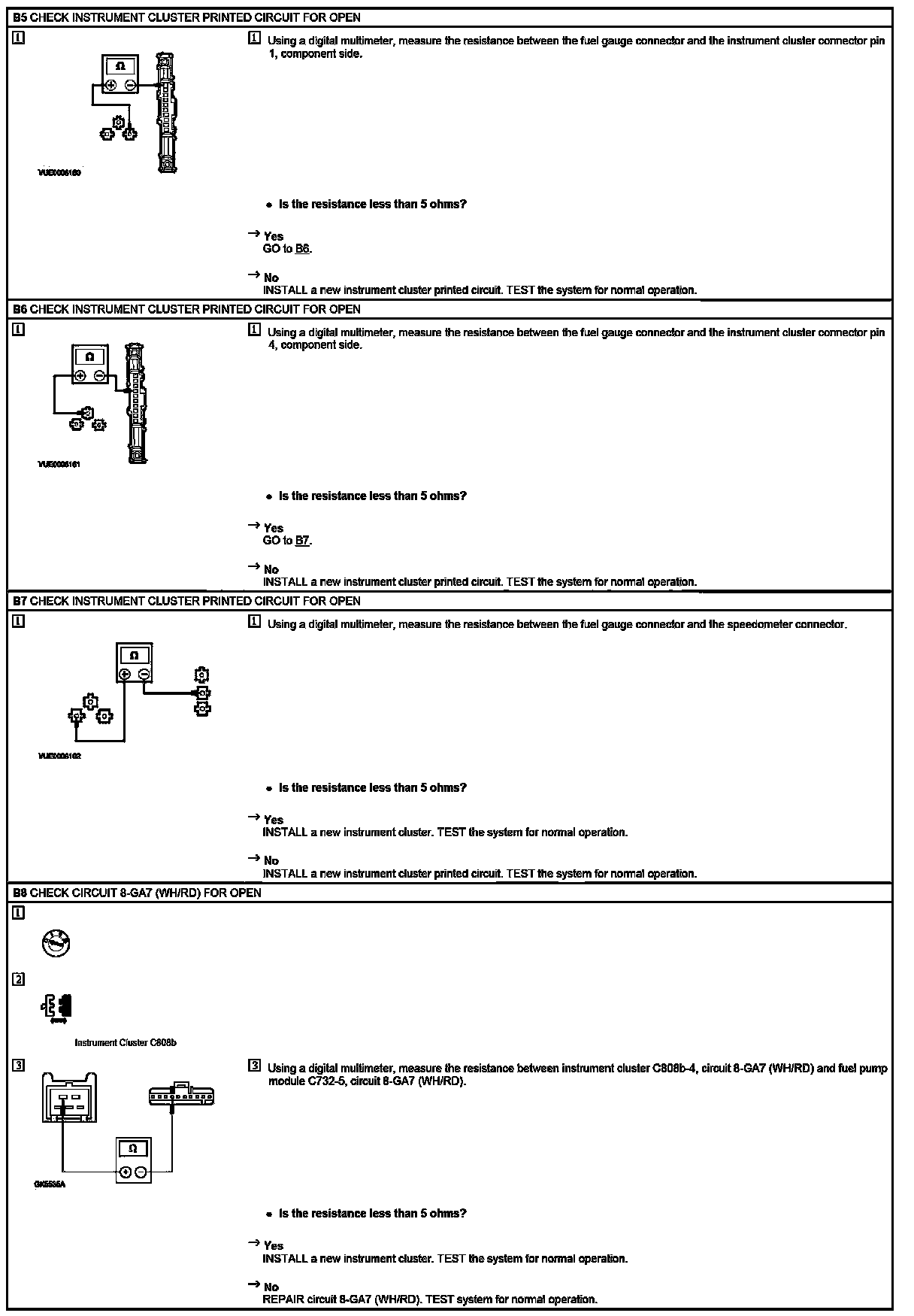

B5-B8:
