Mercury
>>
1998
>>
Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
AA: Incorrect Fuel Gauge Indication - In Alernative Fuel and Gasoline Mode (BI-Fuel Vehicles Only)
AA: Incorrect Fuel Gauge Indication - In Alernative Fuel and Gasoline Mode (BI-Fuel Vehicles Only)

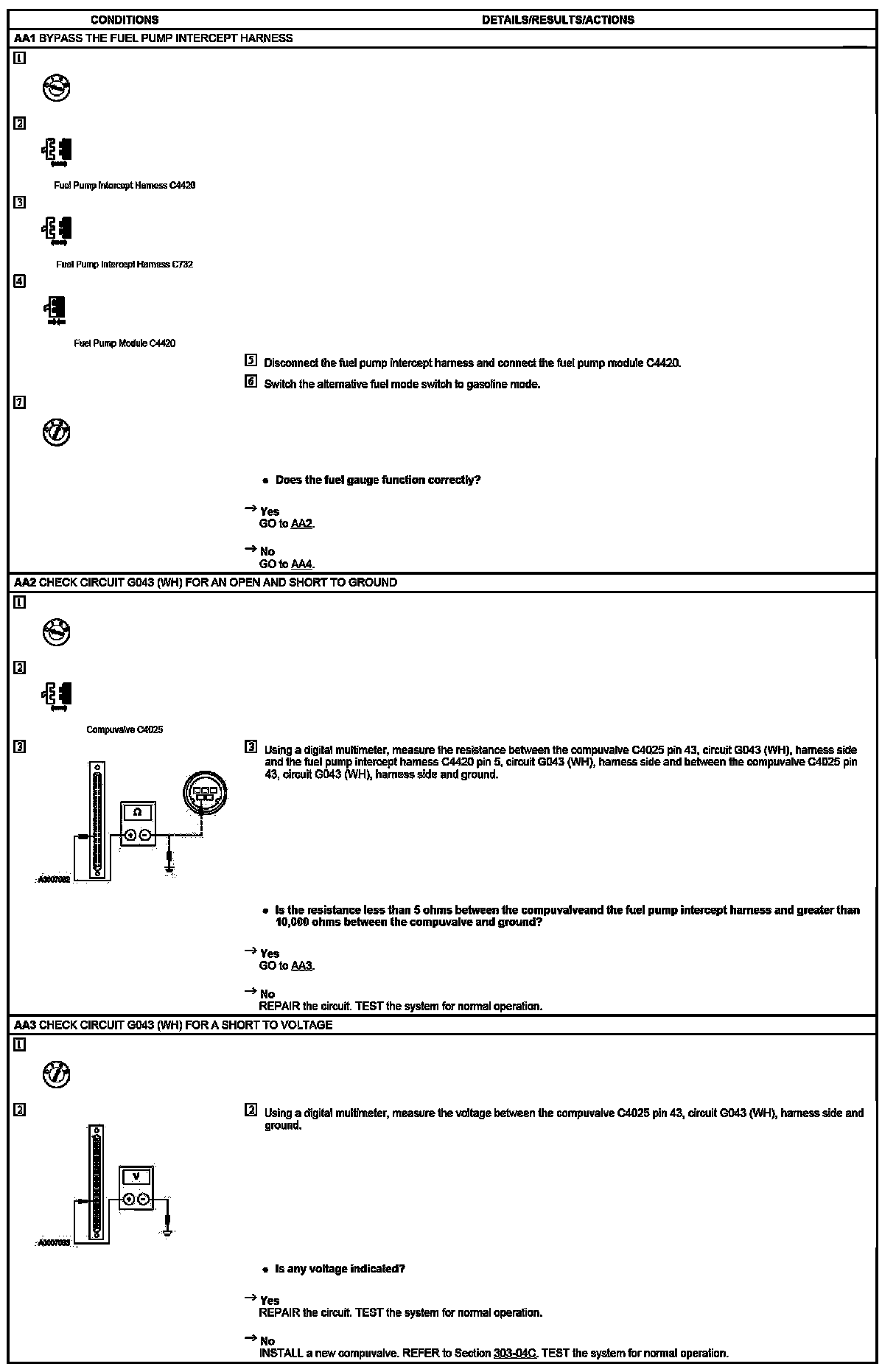

AA1-AA3:

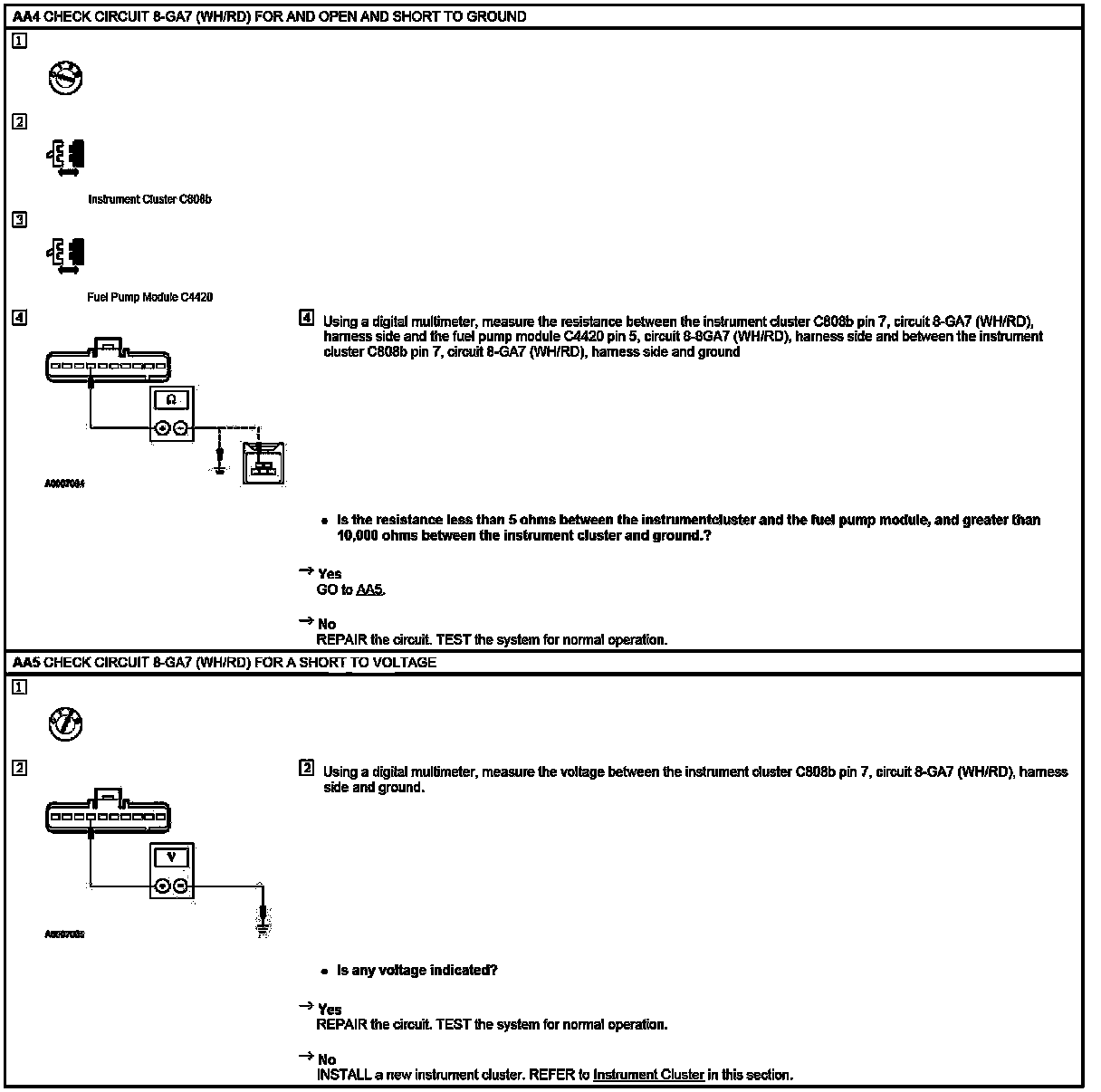

AA4 & AA5:
