Conventional Instrument Cluster

REMOVAL


1. Remove the instrument cluster lens.

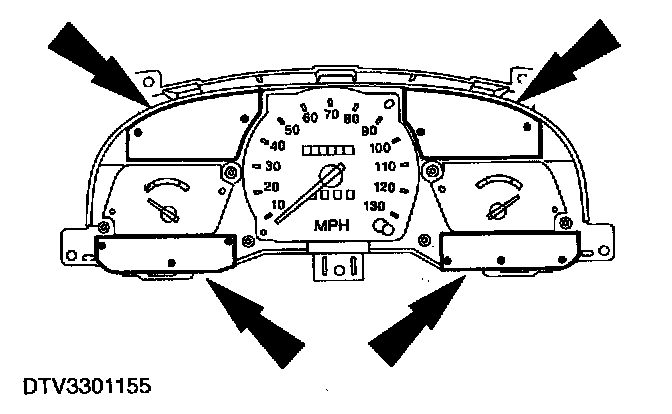

2. Remove the warning indicator appliques.

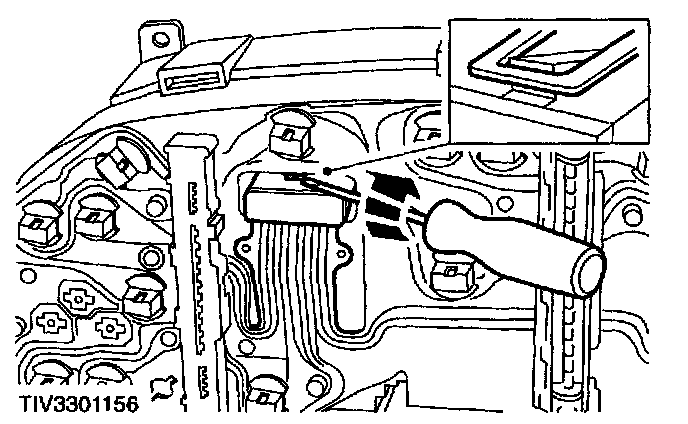

3. Disconnect the electrical connector.

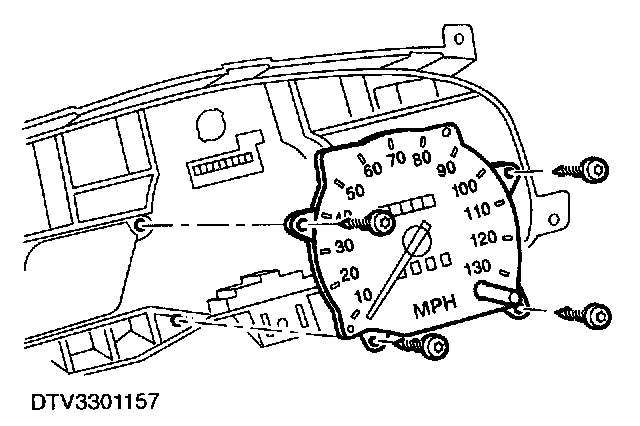

4. Remove the speedometer.

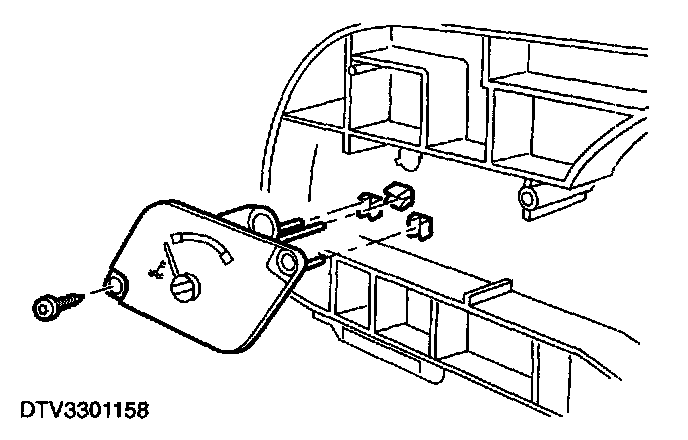

5. Remove the temperature gauge.

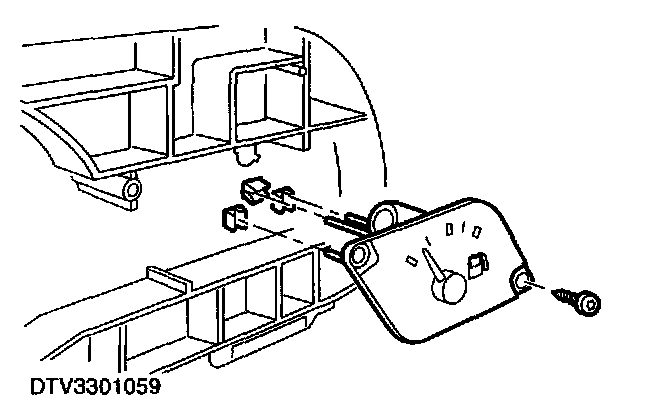

6. Remove the fuel gauge.

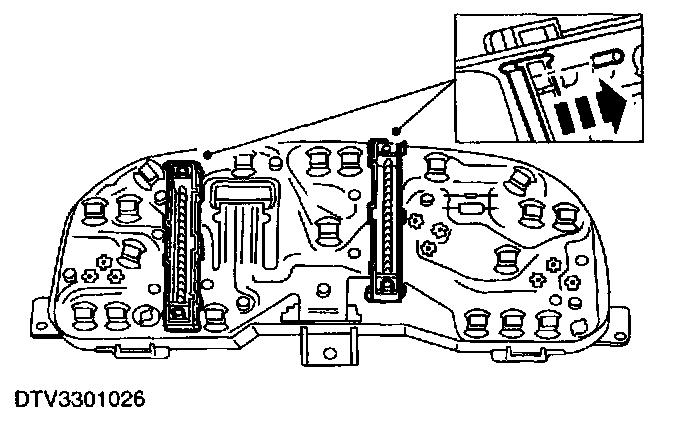

7. Push the sides of each connector towards the center to release.

CAUTION: Do not push the pin connectors all the way through.

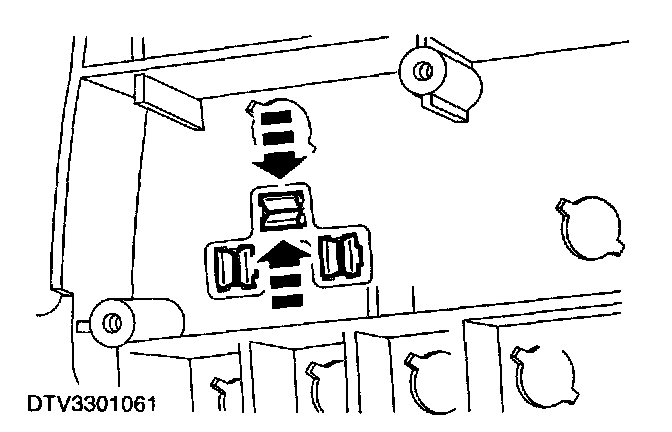

8. Remove the instrument cluster electrical connectors retainers.
- Push out the center pin of the retainers from the front of the instrument cluster.

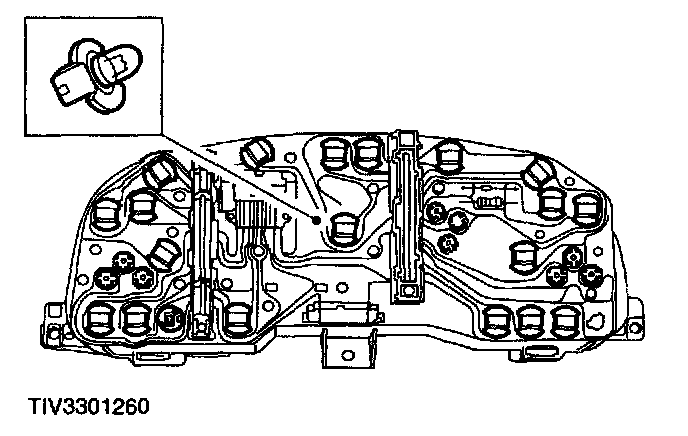

9. Remove the bulbs.

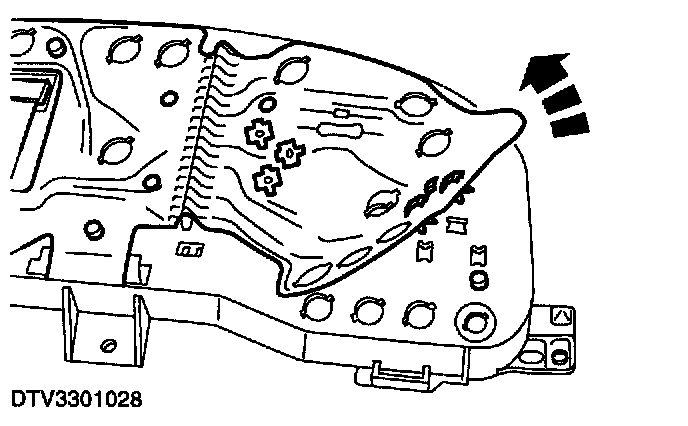

10. Remove the printed circuit from the locating dowels.

INSTALLATION
1. To install, reverse the removal procedure.
