Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Service and Repair >> Instrument Cluster - Lens >> With Conventional Cluster

With Conventional Cluster

REMOVAL
1. Remove the instrument cluster.

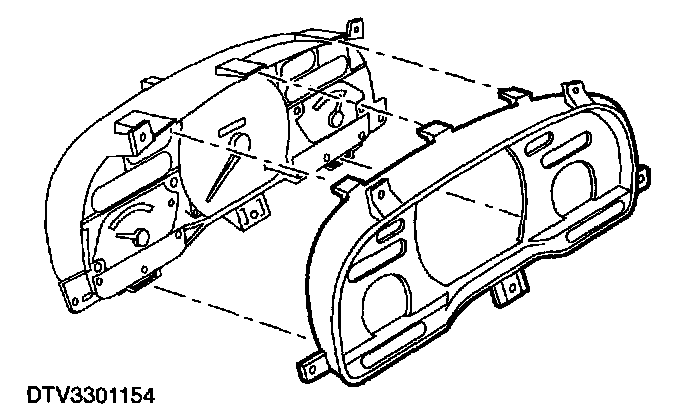

2. Remove the instrument cluster lens.
- Release each of the five retaining tangs and remove the lens.

INSTALLATION
1. To install, reverse the removal procedure.
