Clock: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.







2. Disconnect the instrument cluster bezel.
1 Remove the retaining screws.
2 Remove the screw covers and the retaining screws.







3. Remove the instrument cluster bezel.
- Disconnect the electrical connectors.

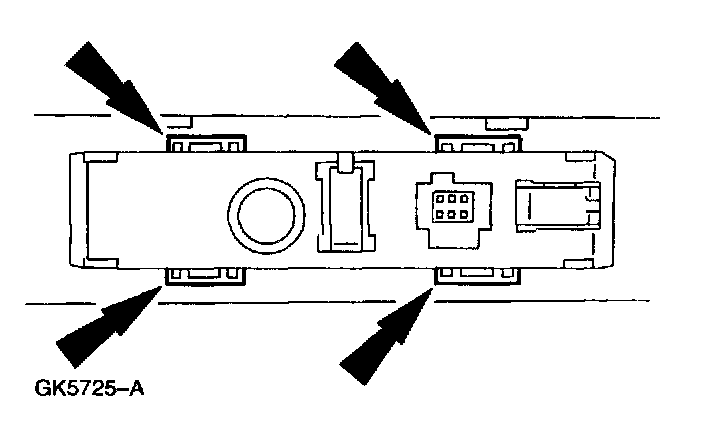

4. Release the retaining tabs and remove the clock.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
