Clock: Description and Operation

The clock
- Displays time in a 12-hour format.
- Illuminates with the ignition switch in ACC or RUN position.
- Dims when the headlights are on.
- Contains the anti-theft indicator if equipped.

Setting time
To set the time on the clock, the ignition switch must be in the ACC or RUN position.

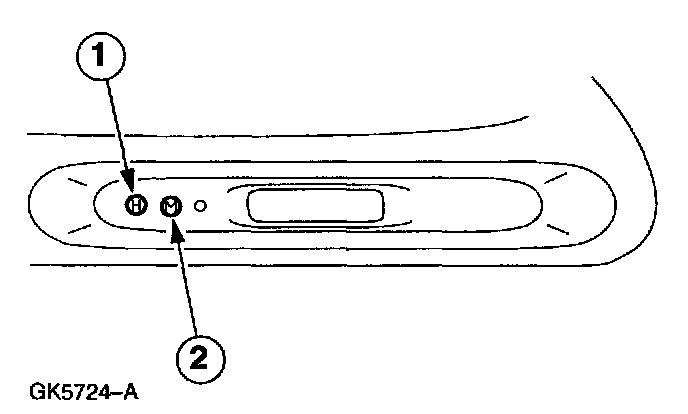

1. Press and hold the H button until the desired hour is displayed.
2. Press and hold the M button until the desired minute is displayed.
