Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Pinpoint Tests >> E: Chime Sounds When Driver Door Ajar (No IGN Key/Headlamp Off)

E: Chime Sounds When Driver Door Ajar (No IGN Key/Headlamp Off)

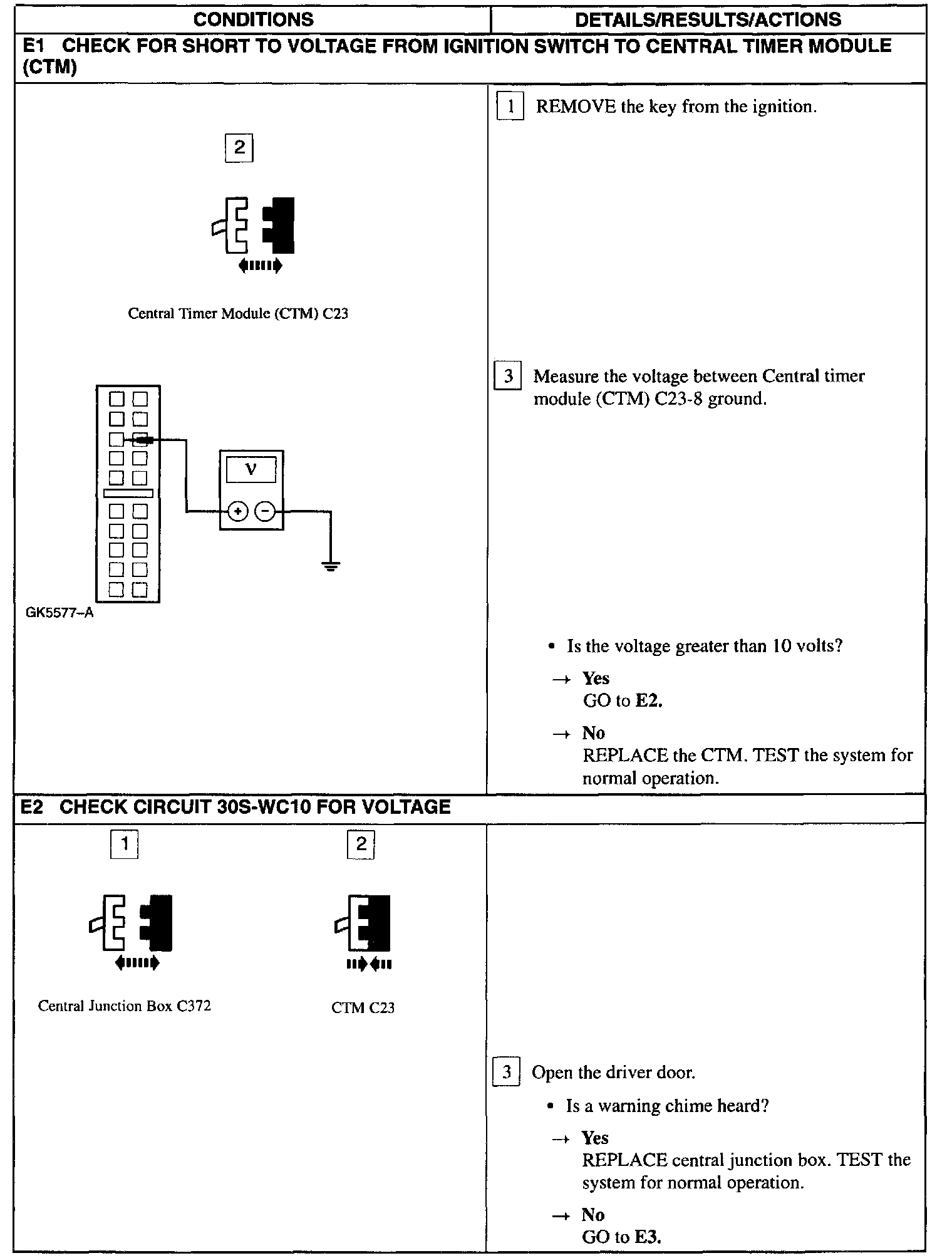

E1 - E2:

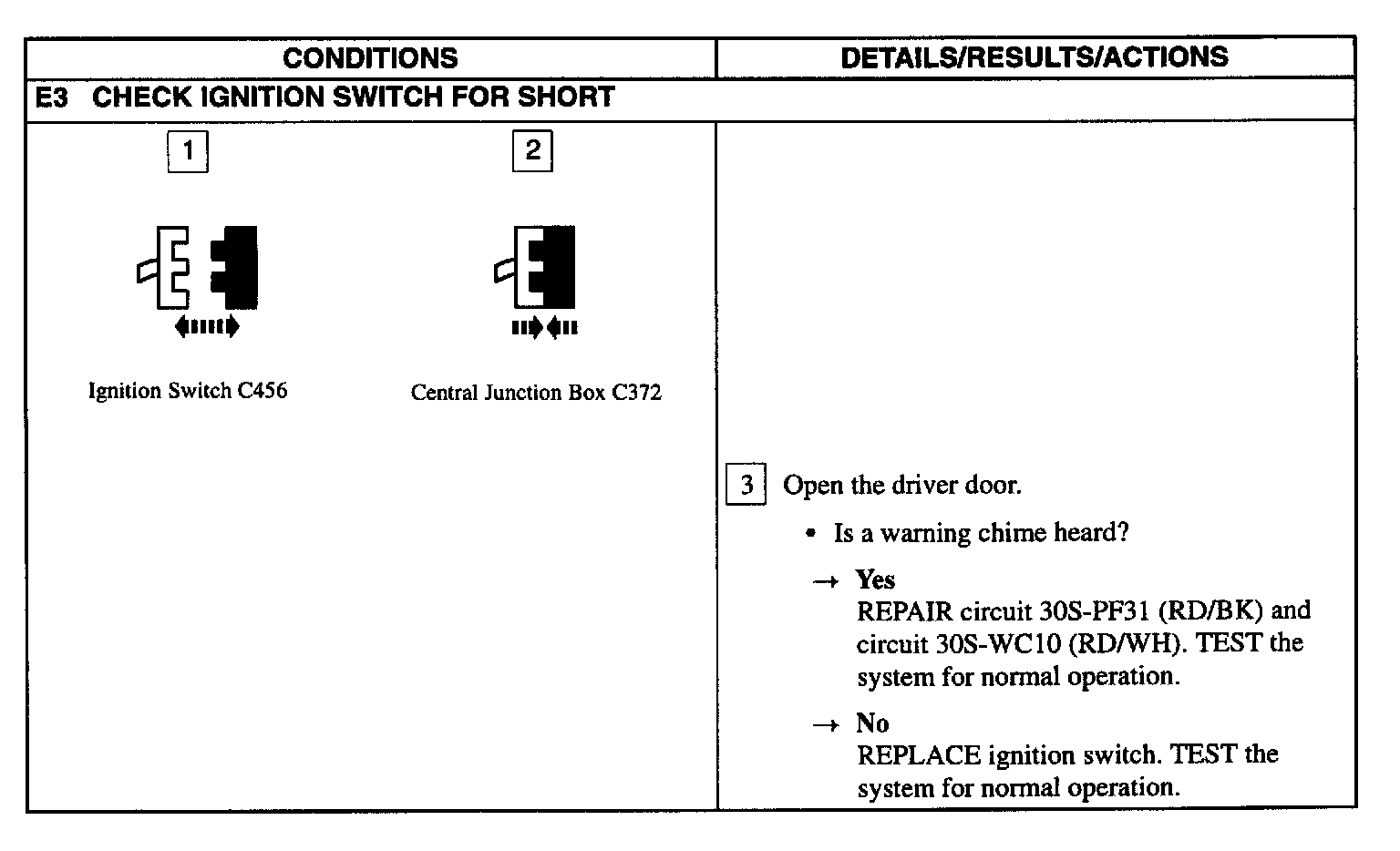

E3:
