D: Improper/Erratic Direction of Air Flow From Outlet

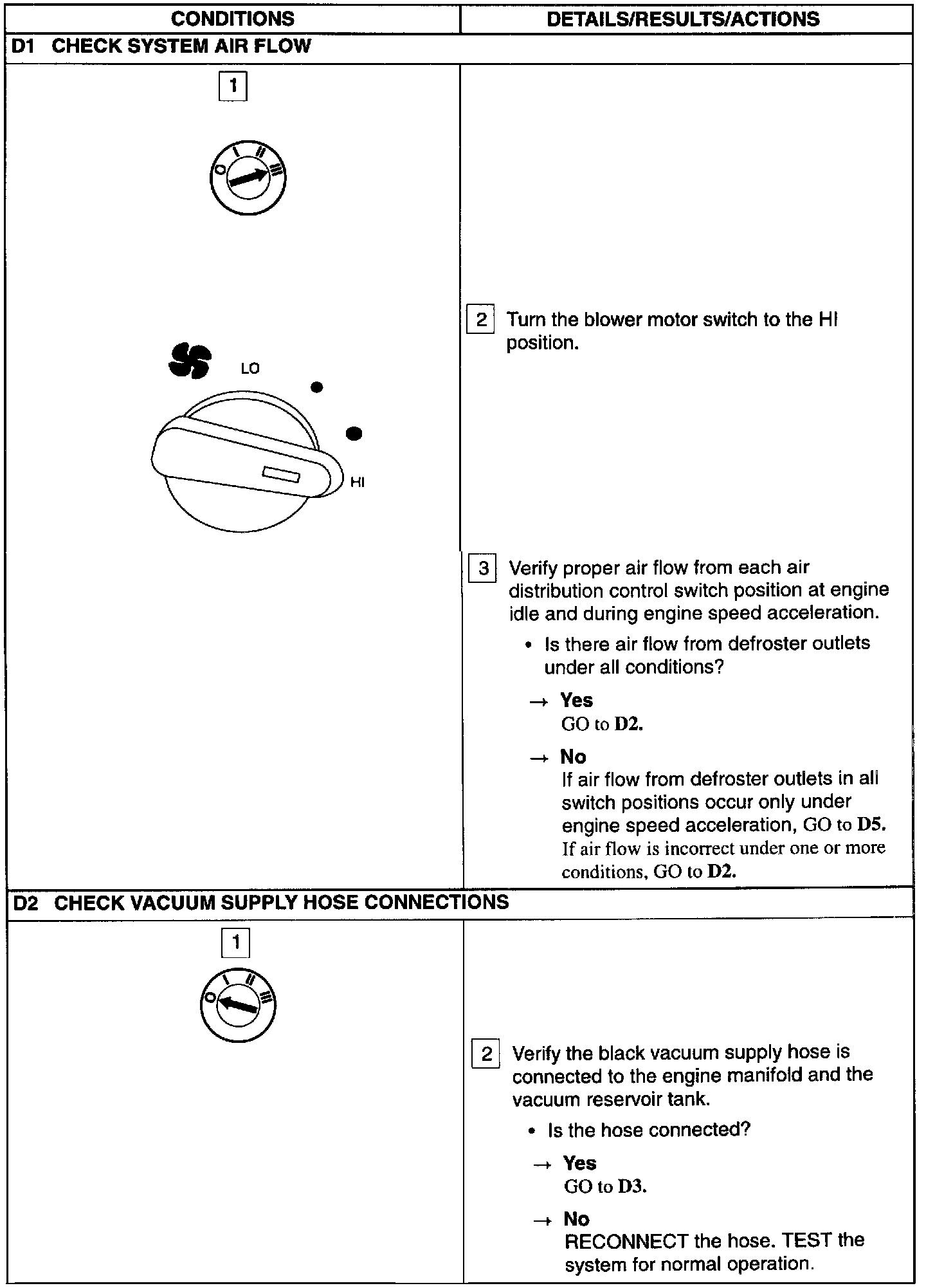

D1 - D2:






D3 - D4:

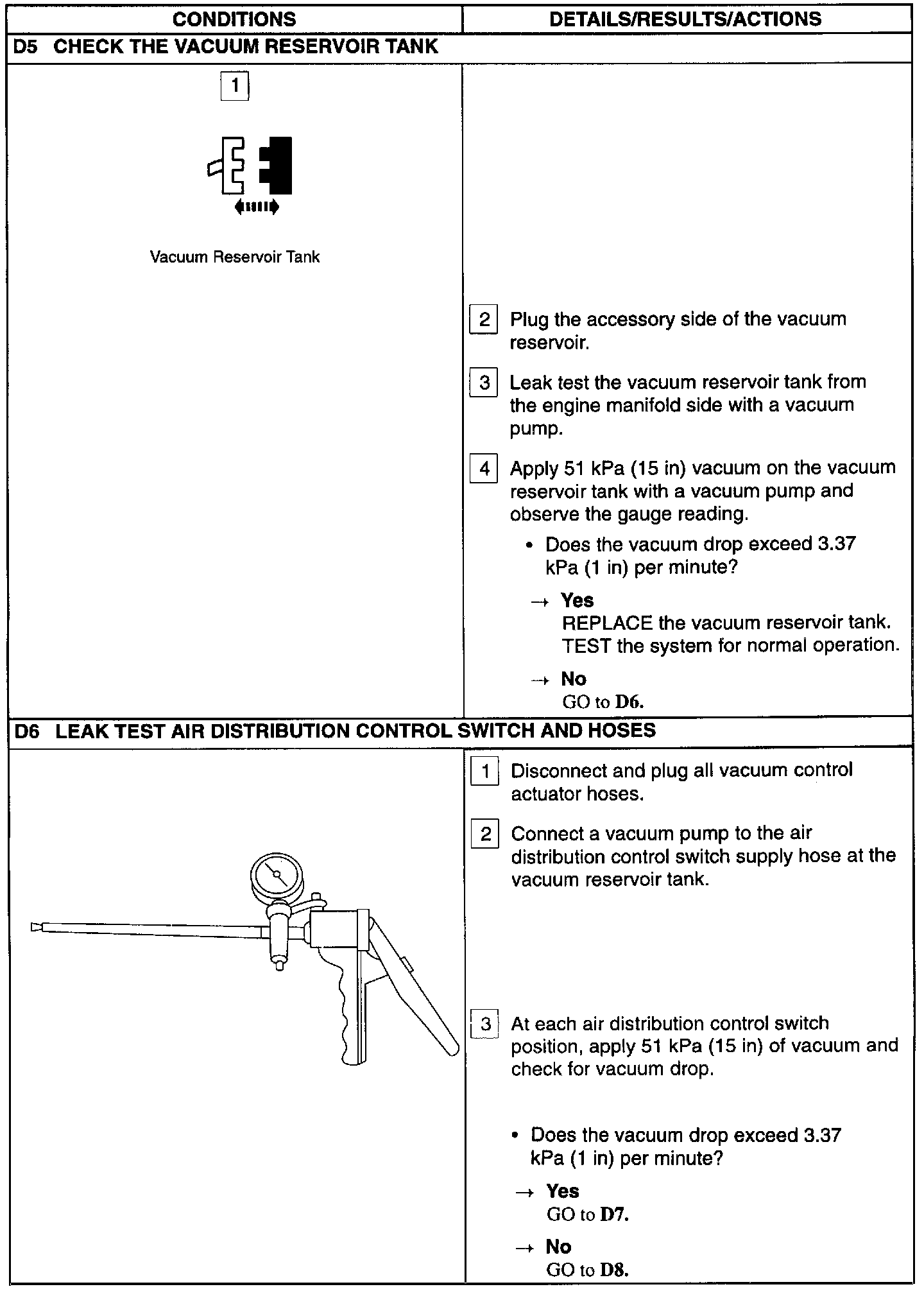

D5 - D6:

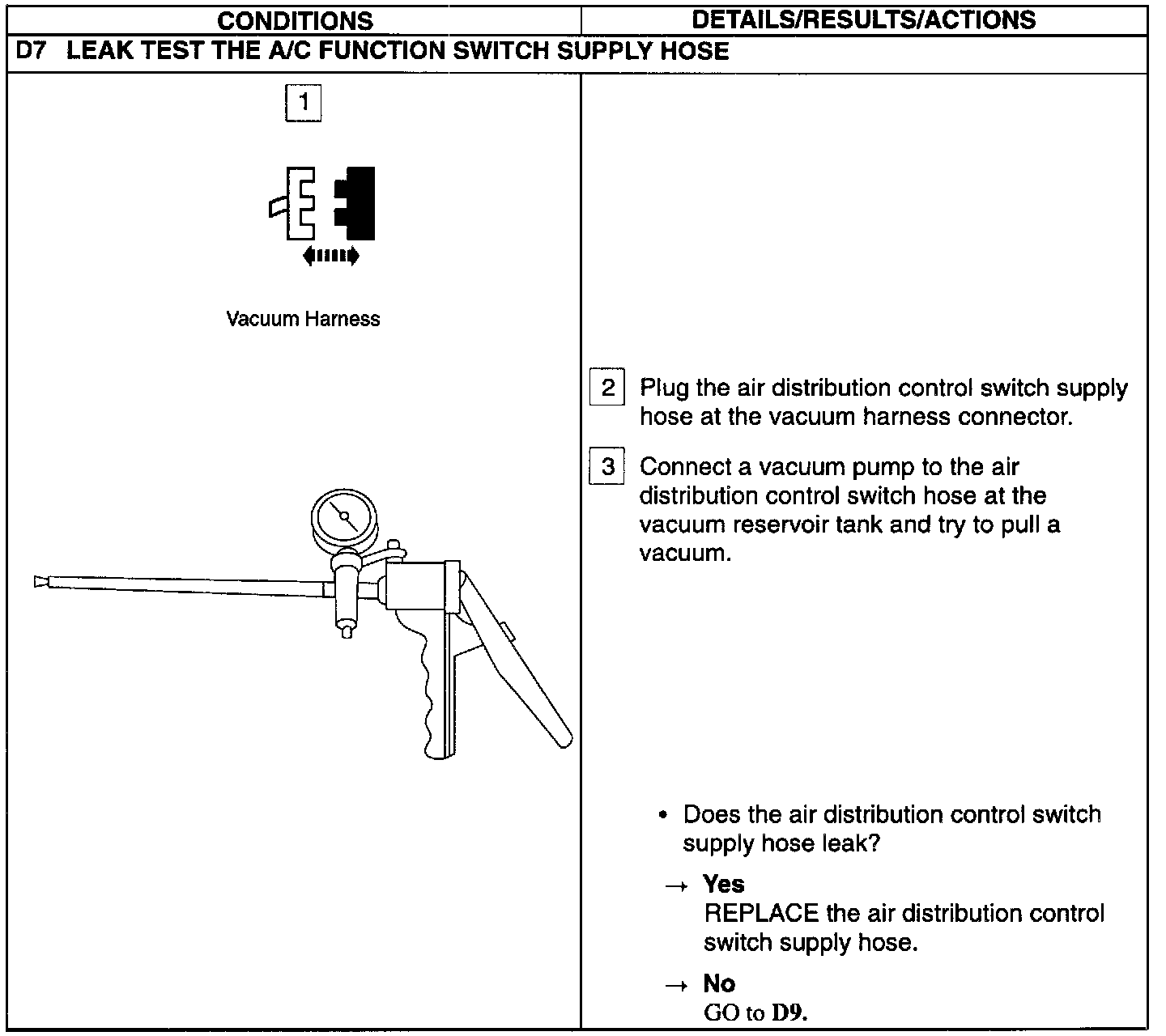

D7:

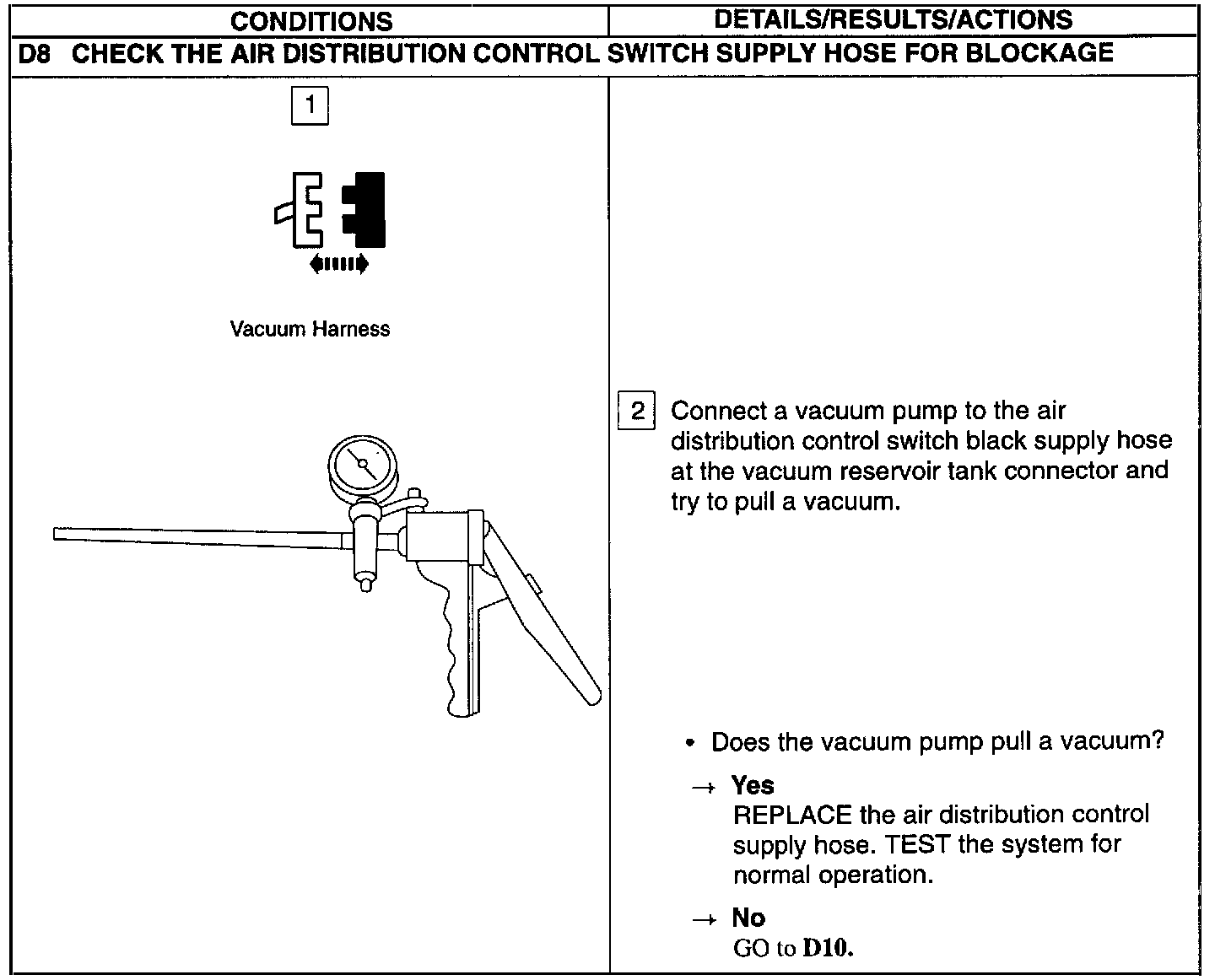

D8:

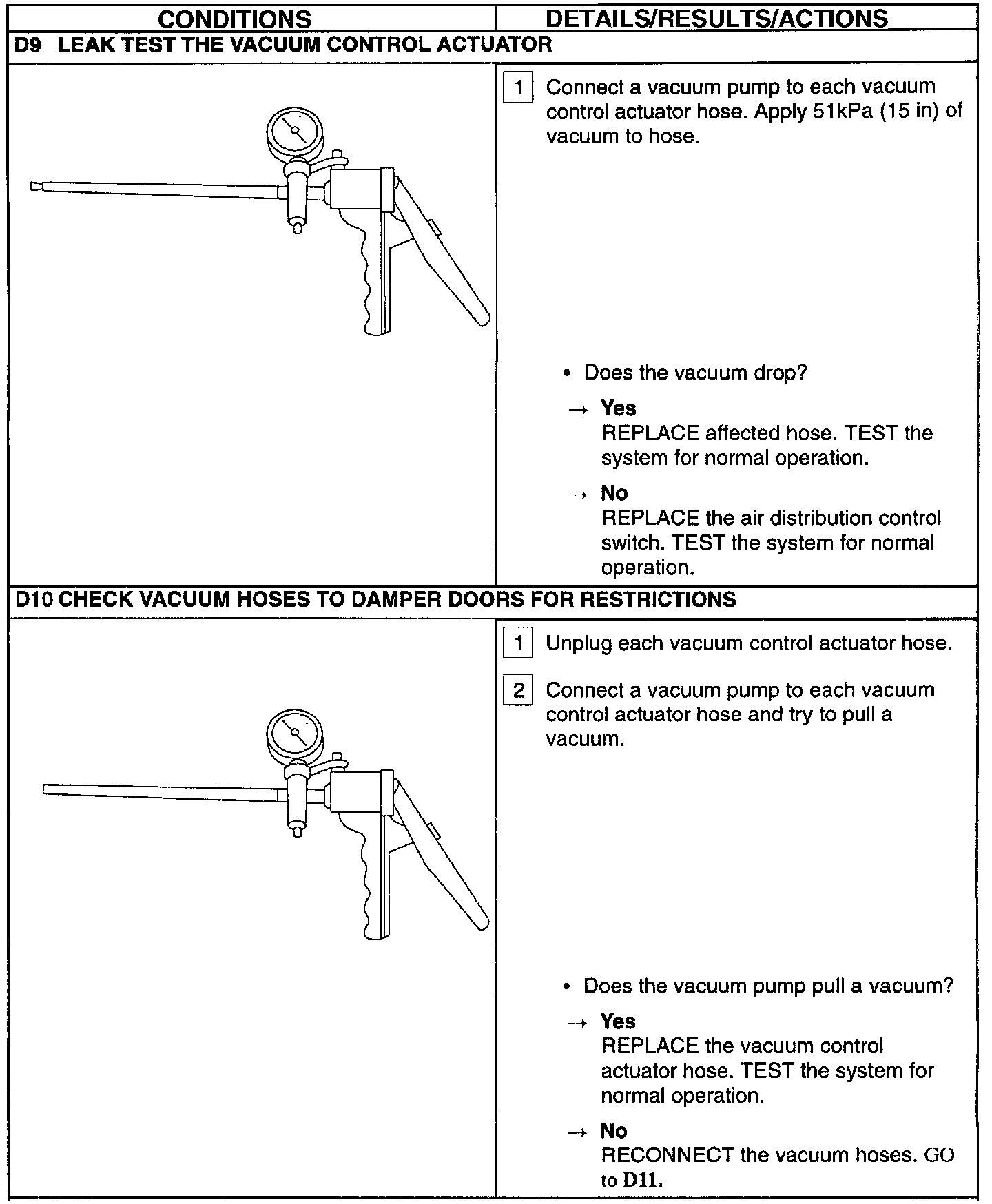

D9 - D10:

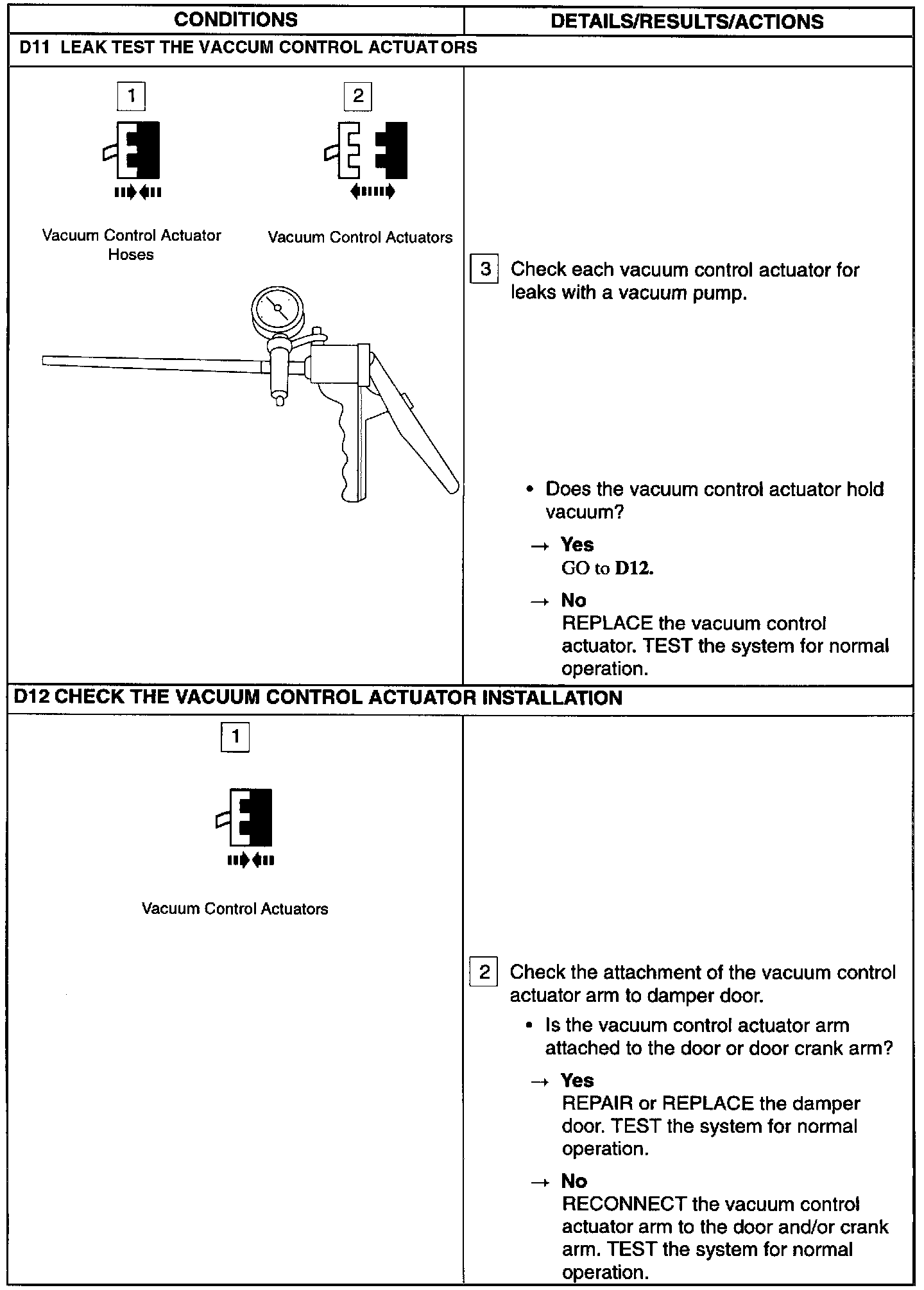

D11 - D12:
