Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
A: A/C Does Not Operate/Does Not Operate Properly
A: A/C Does Not Operate/Does Not Operate Properly

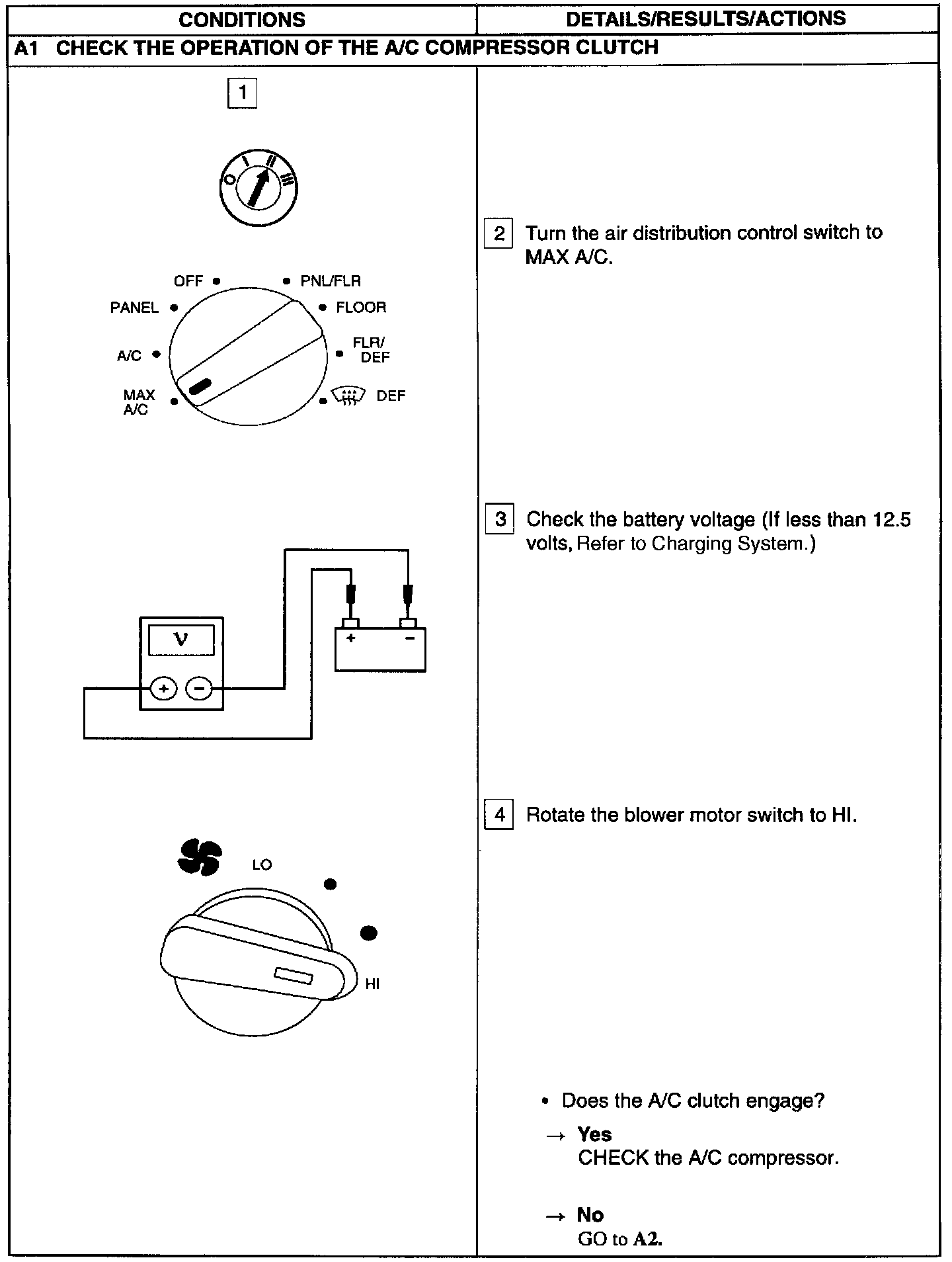

A1:

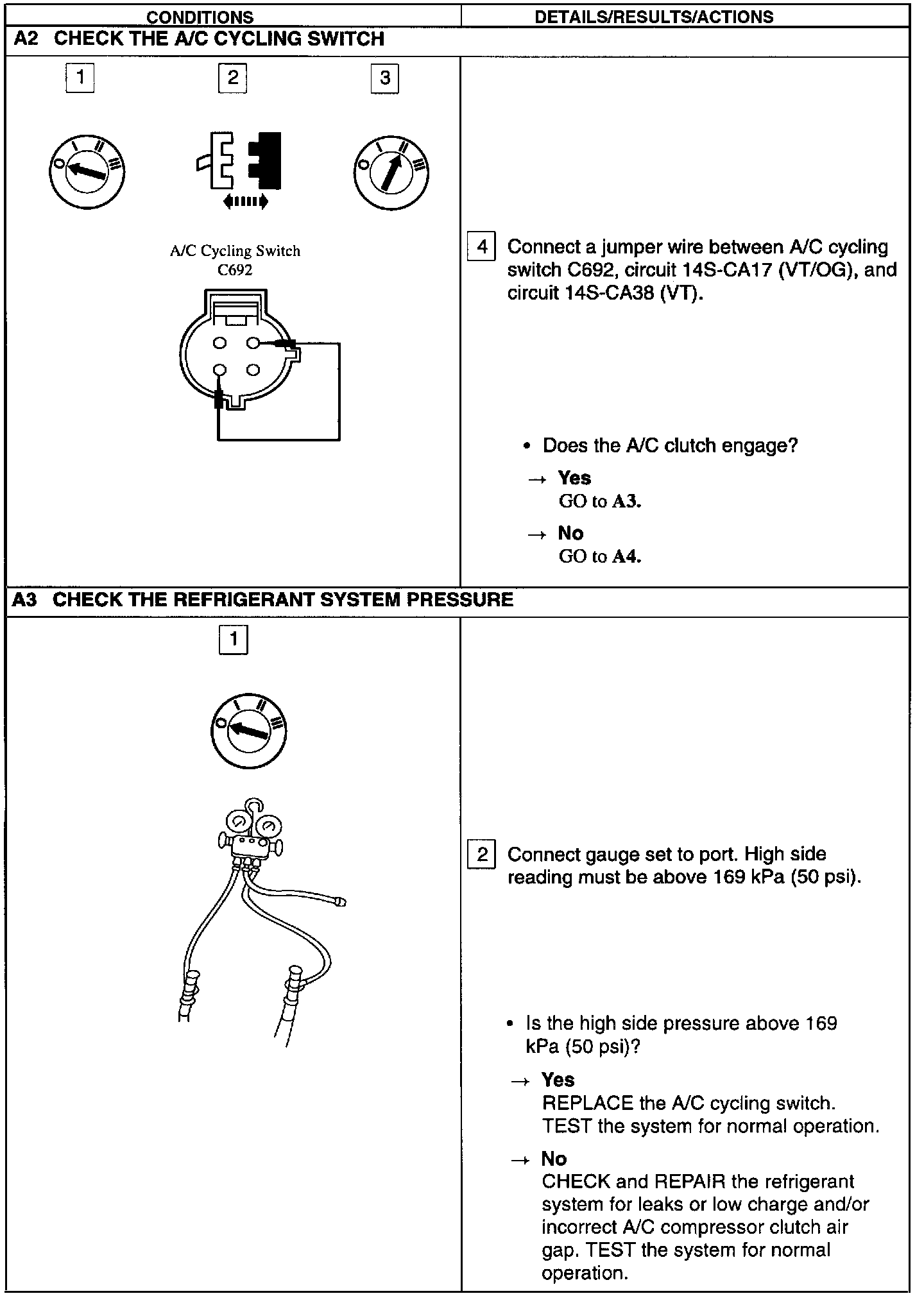

A2 - A3:

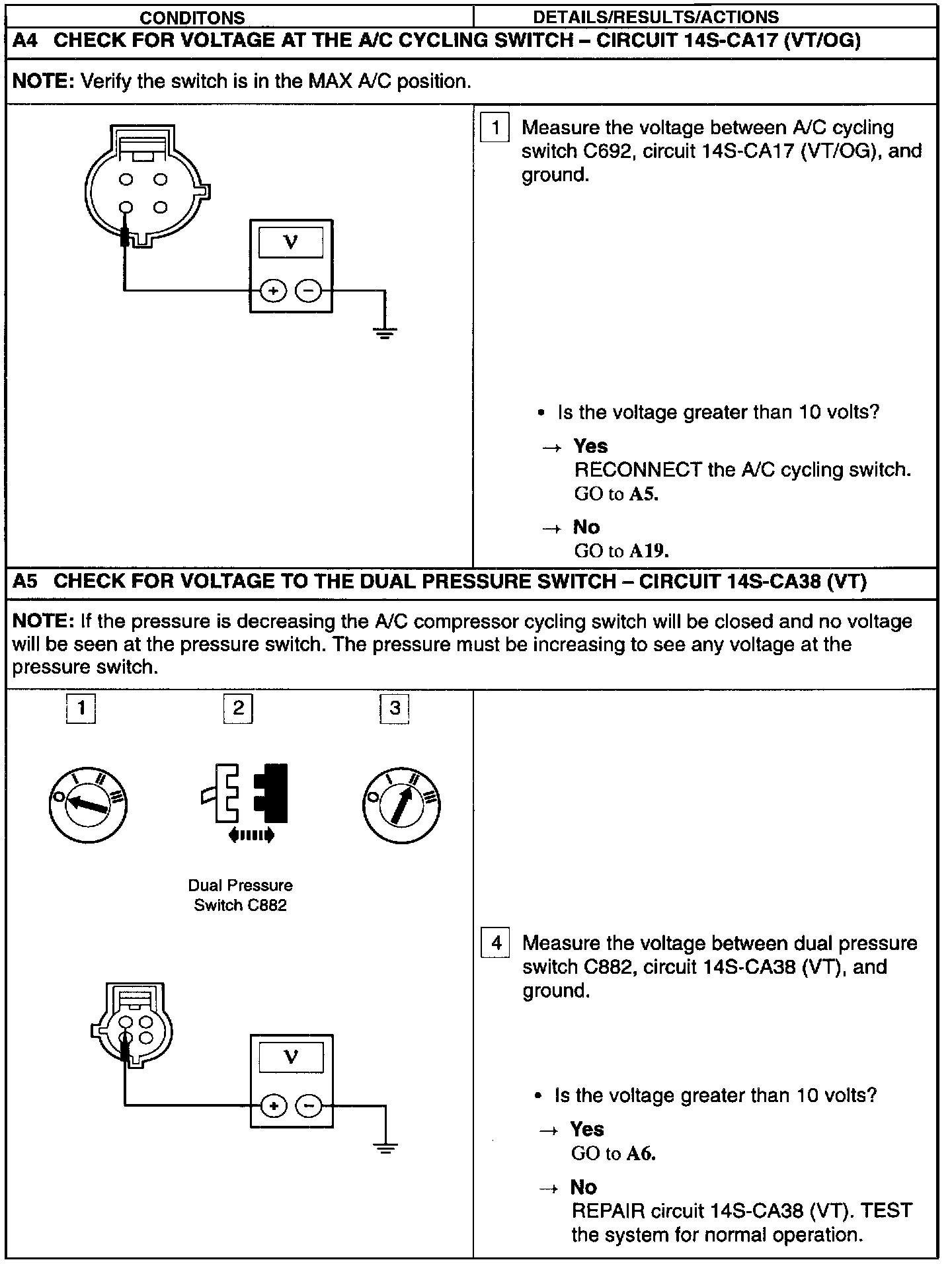

A4 - A5:

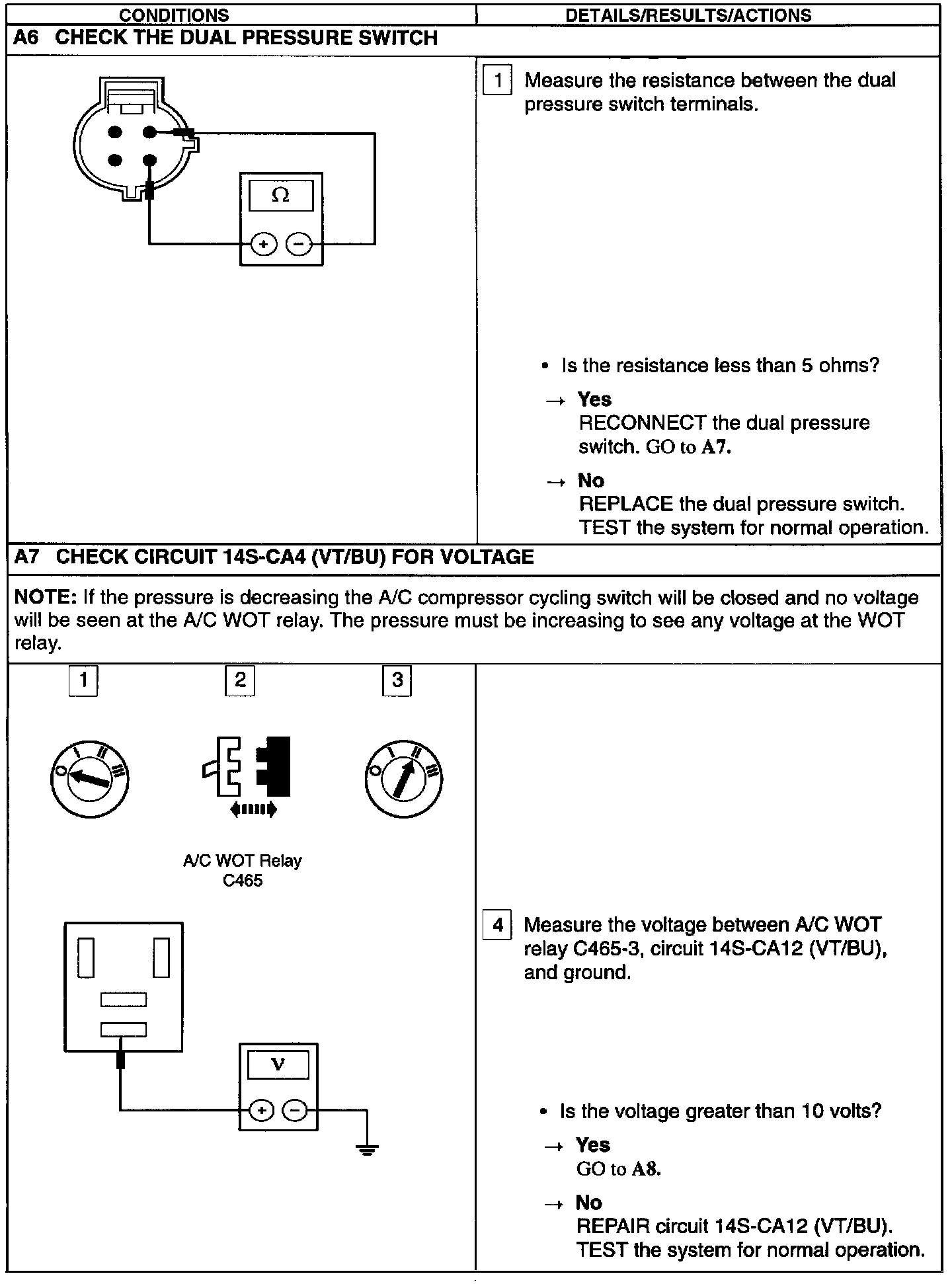

A6 - A7:

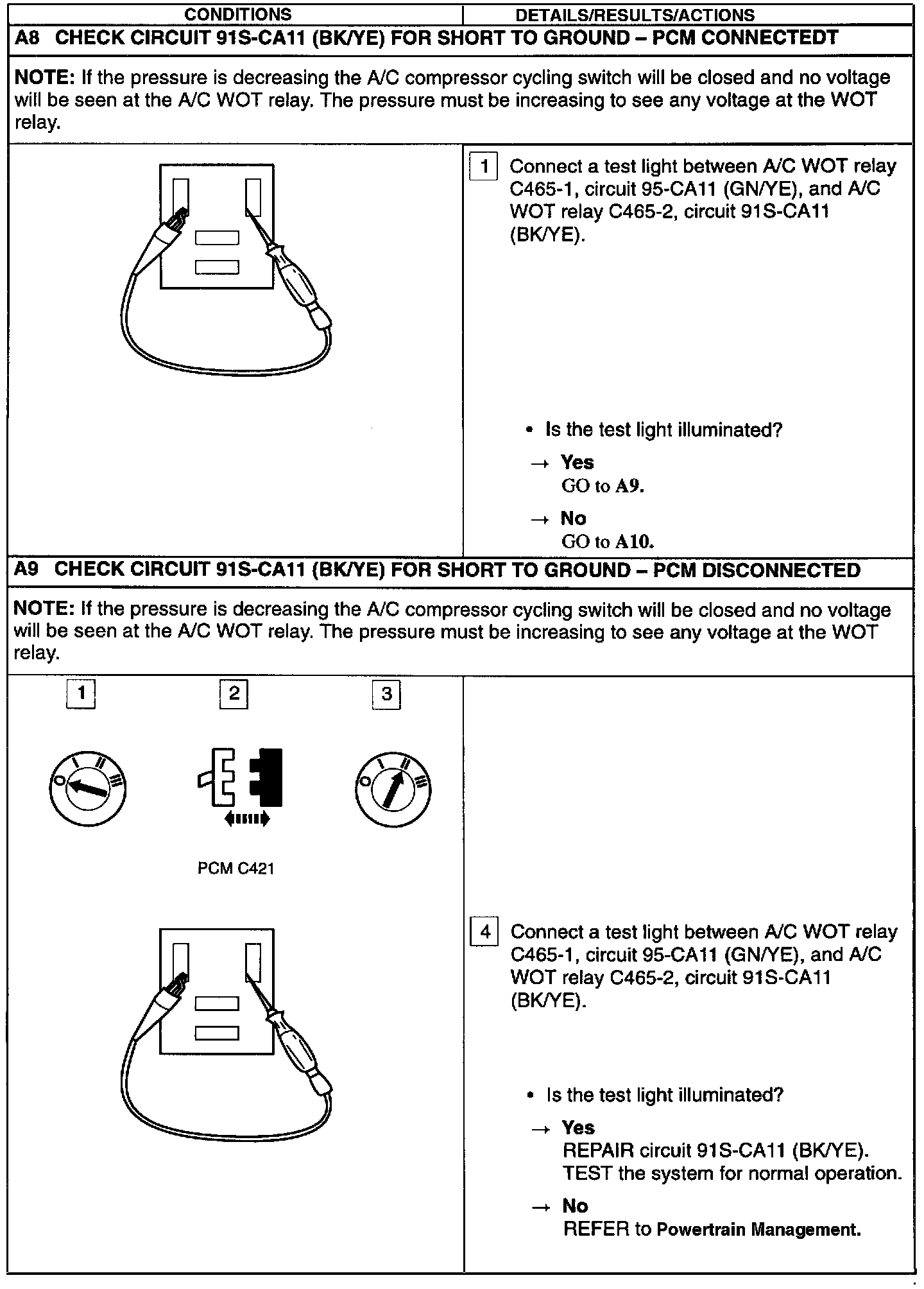

A8 - A9:

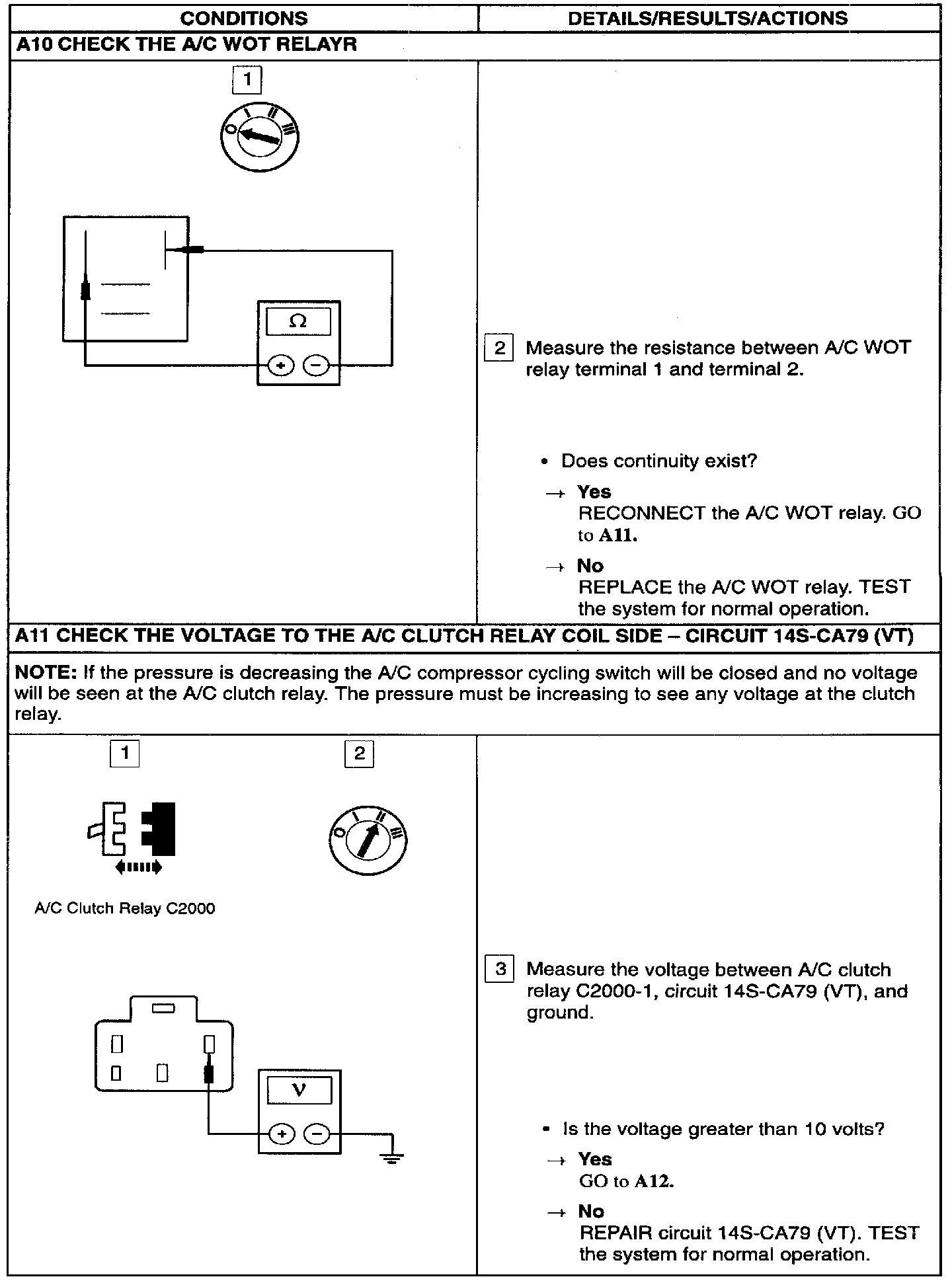

A10 - A11:

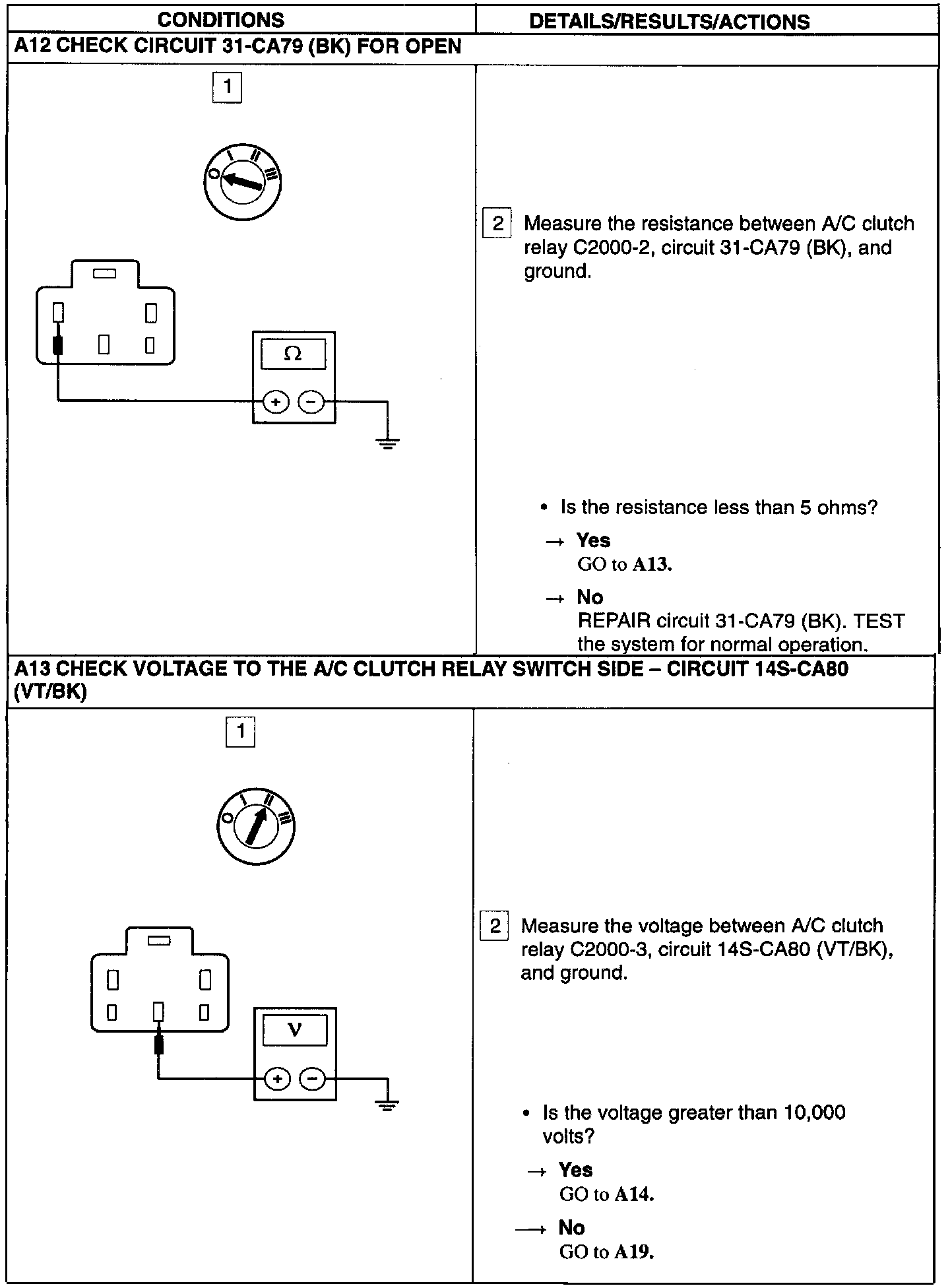

A12 - A13:

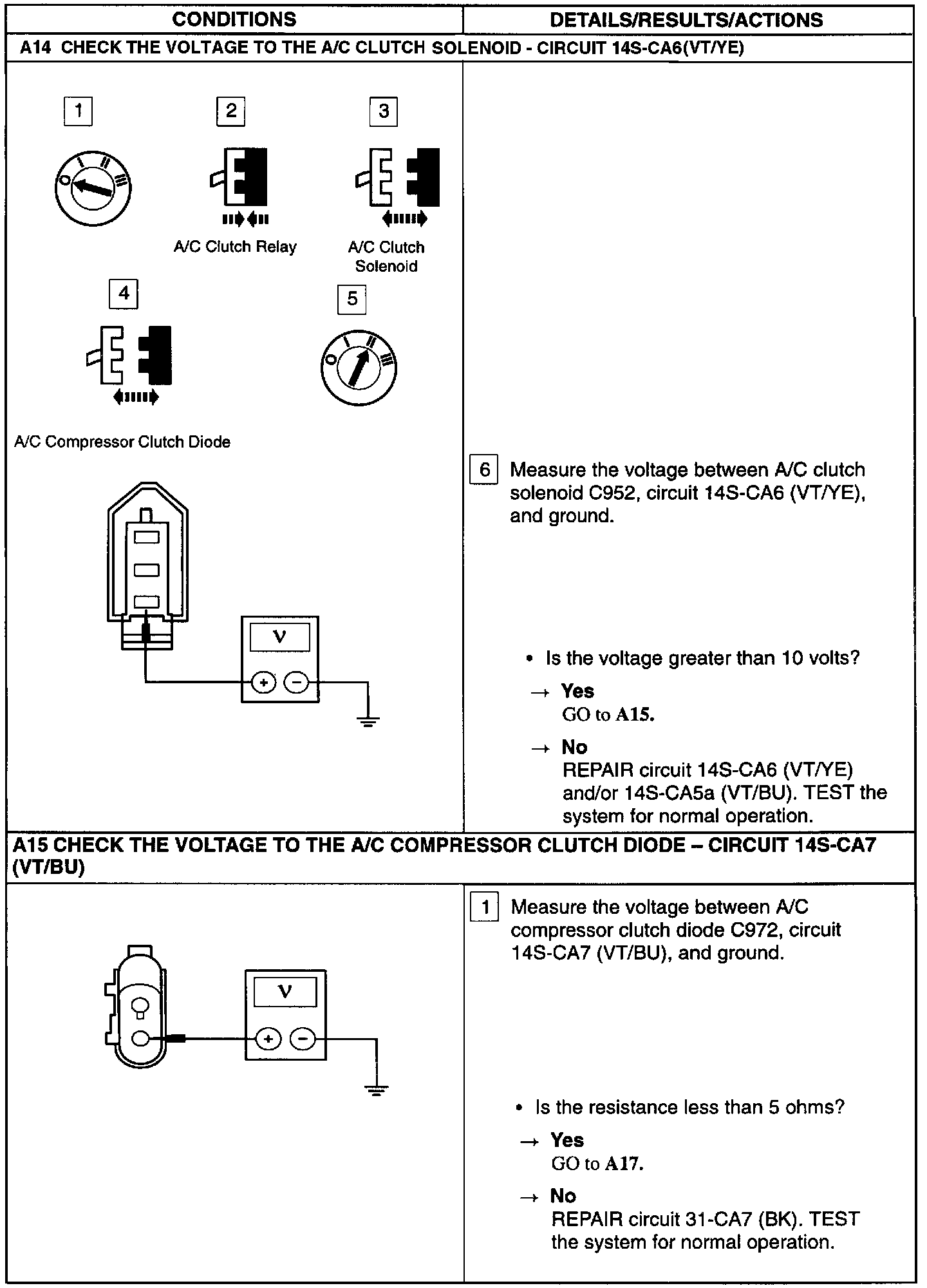

A14 - A15:

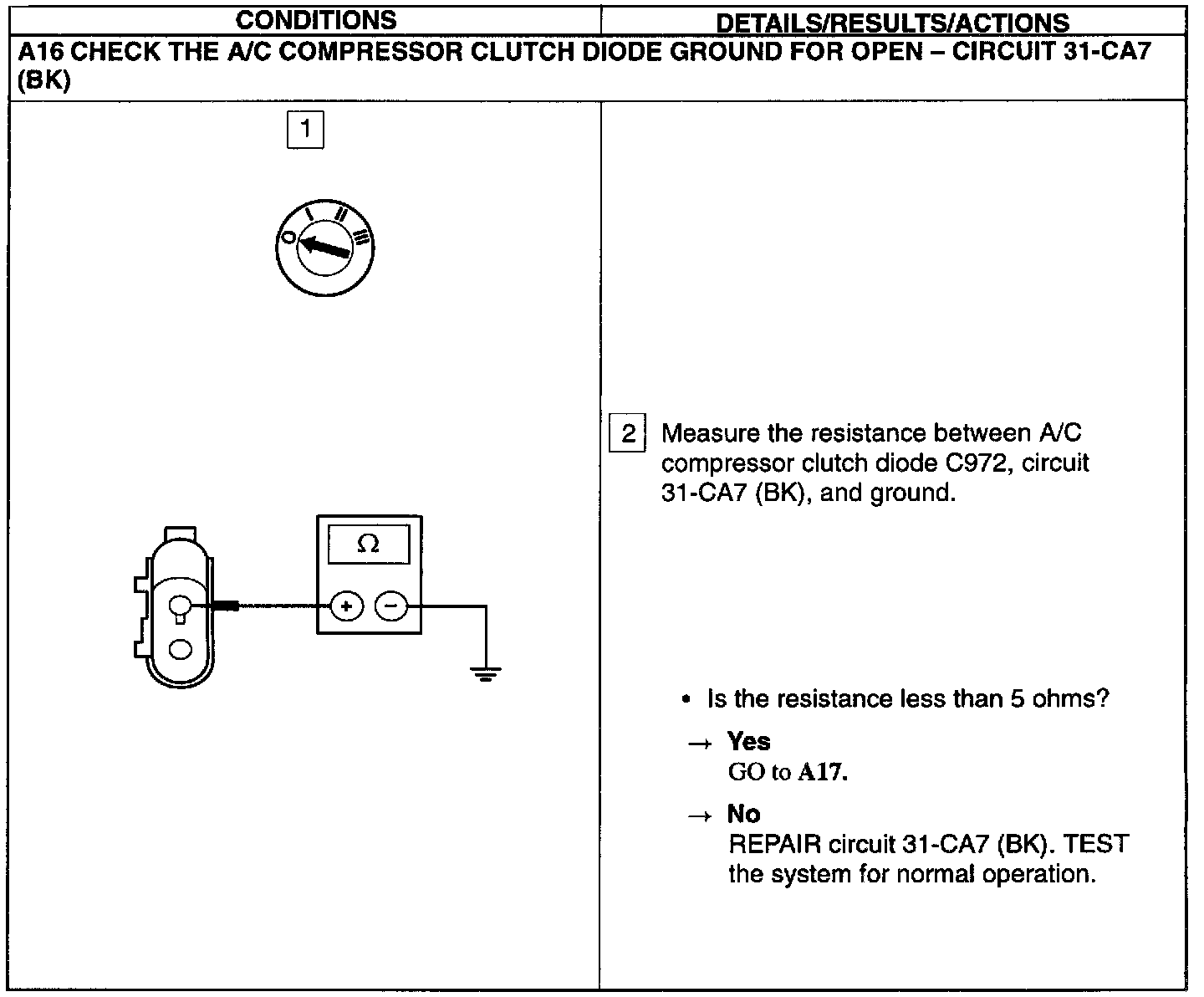

A16:

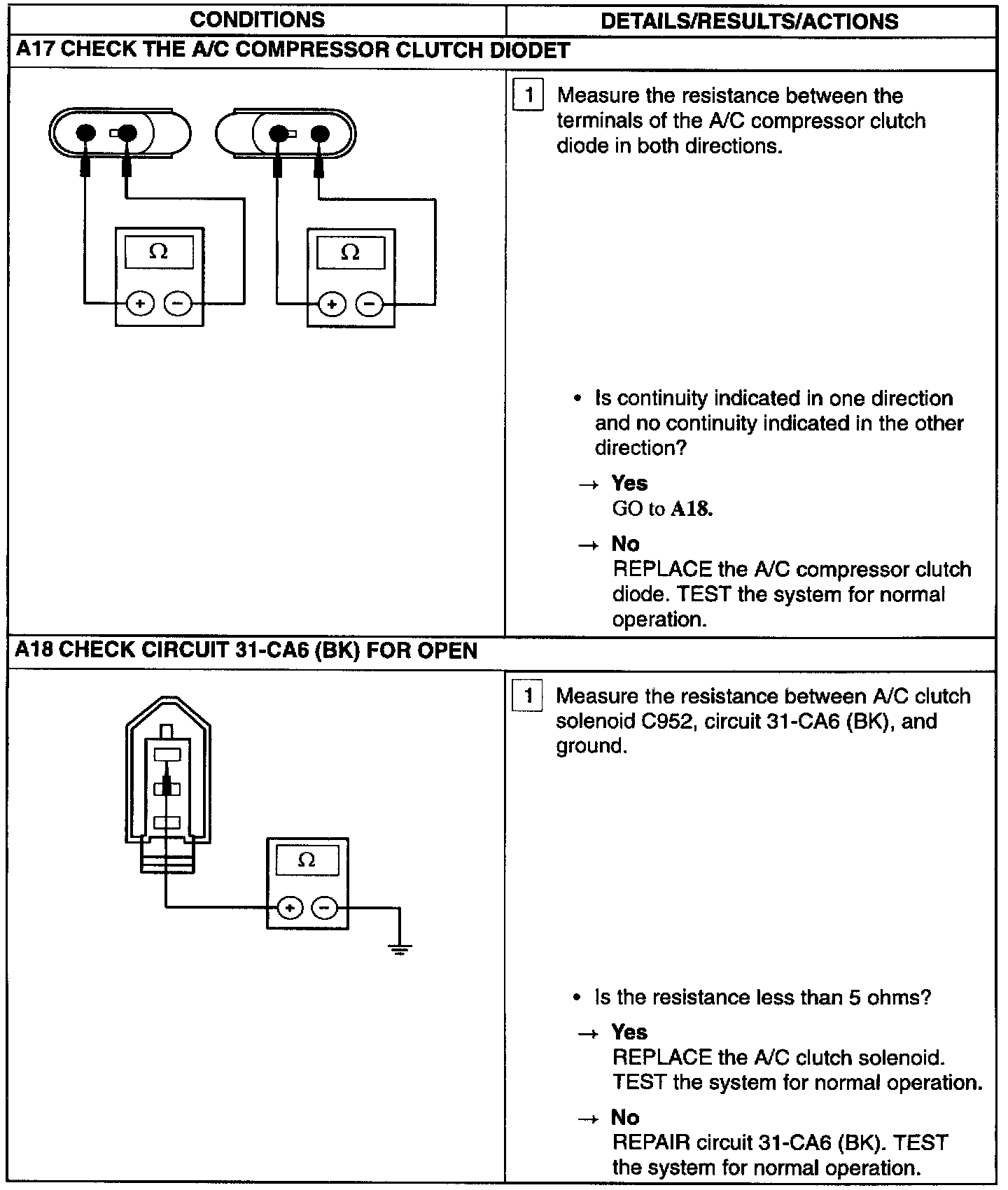

A17 - A18:

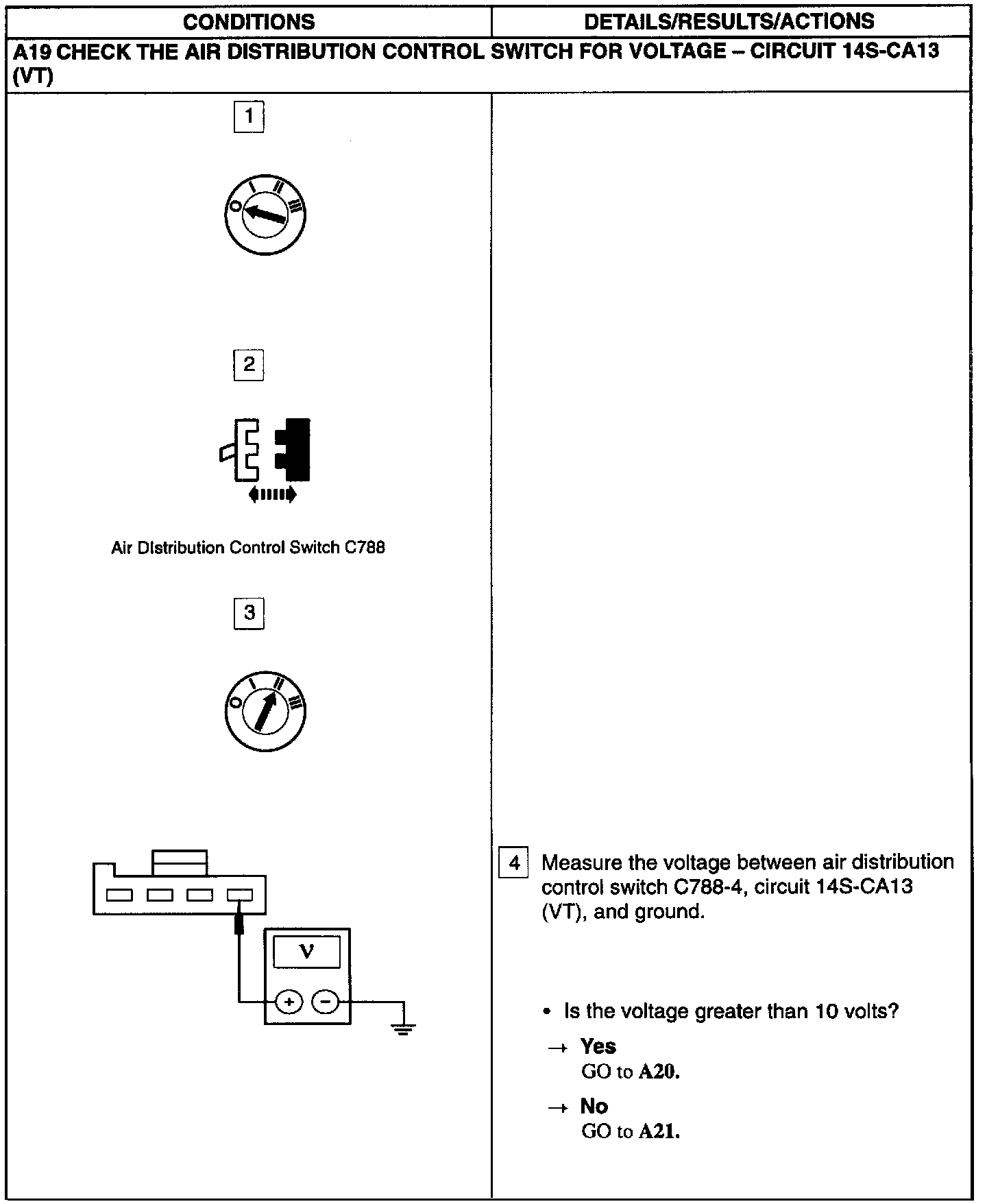

A19:

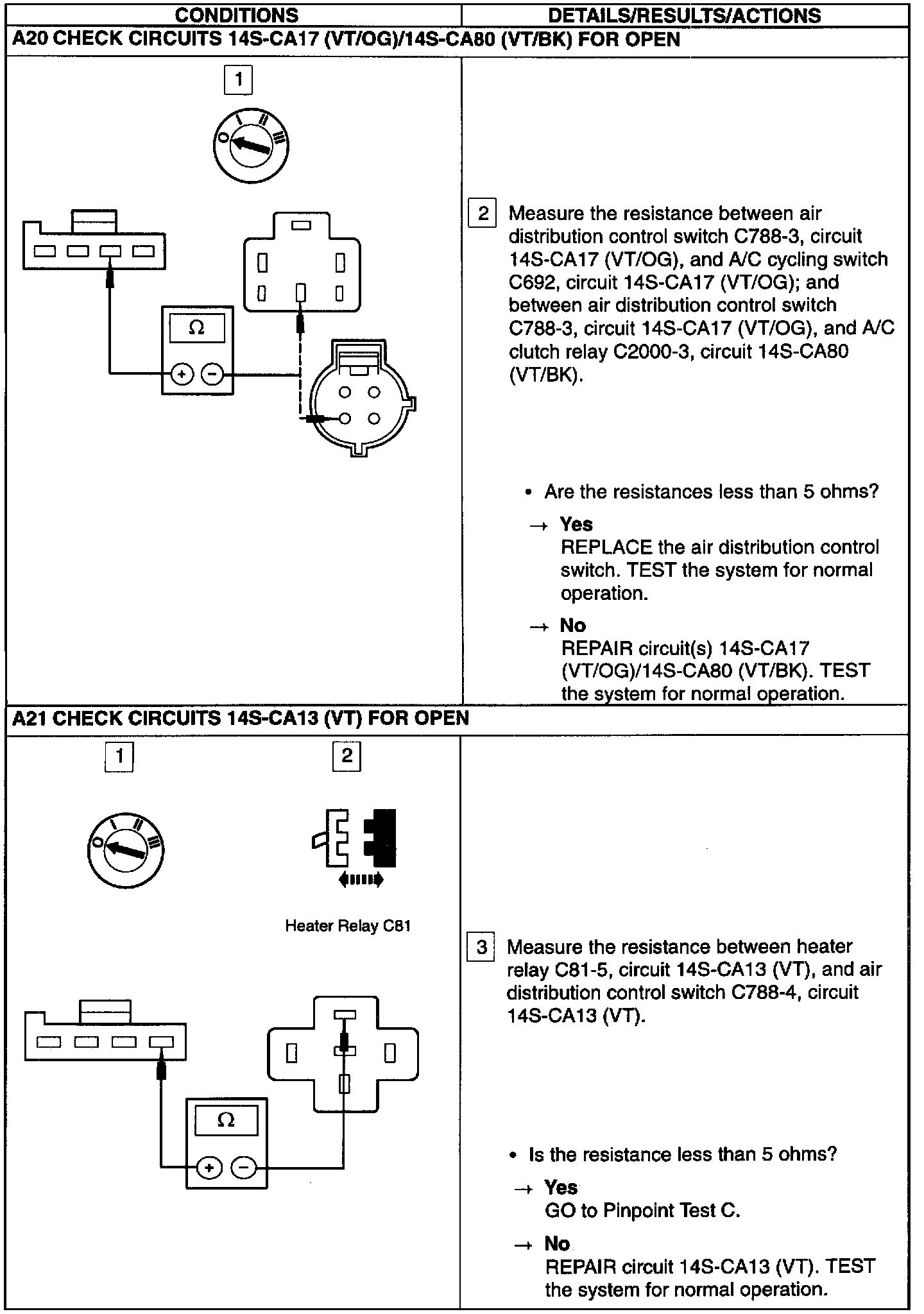

A20 - A21:
